All in One Series-Interactive Wall-mounted LED Display

All in One Series-Interactive Wall-mounted LED Display

All in One Series-Interactive Wall-mounted LED Display-SMD&COB

2K/4K/8K Resolution

Thin cabinet & Lightweight

Cost-effective

3840-7680Hz

14bits~22bits

Seamless Connection

Easy Maintenance

16:9 Aspect Ratio

Product description

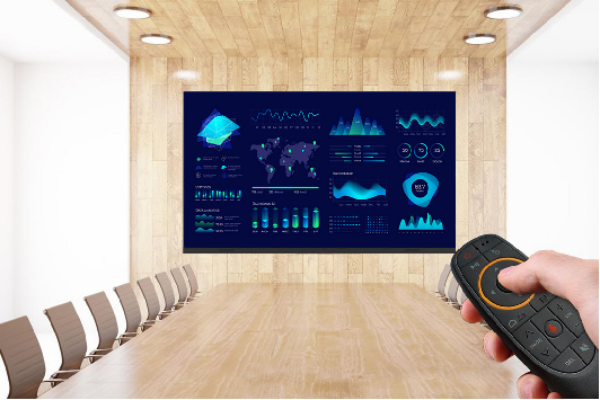

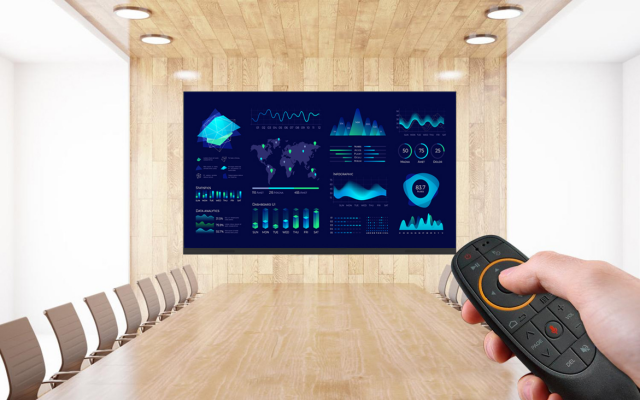

Remote control operation

Supports remote-controlled page turning for images, PPT, etc.

Allows adjustment of brightness, color temperature, contrast, volume, and signal source switching via remote control With one-touch sleep mode support.

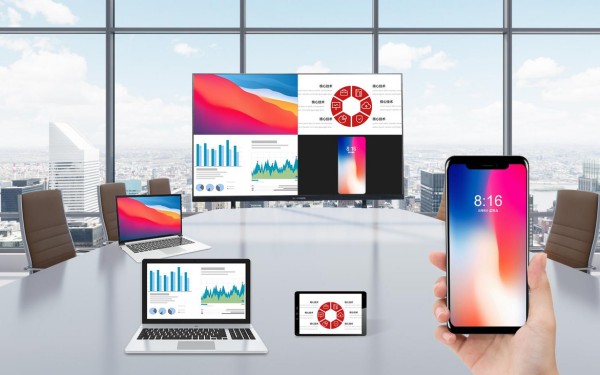

Seamless Control and Wireless Sharing

Supports multi-platform wireless screen casting from PC, smartphone, and tablet.

Up to 4–9 screens displayed simultaneously.

Supports reverse control (small screen controls large screen).

Wireless snapshot, wireless presentation, and wireless transfer of videos and files for simpler and more efficient interaction

High Compatibility, Easy to Use

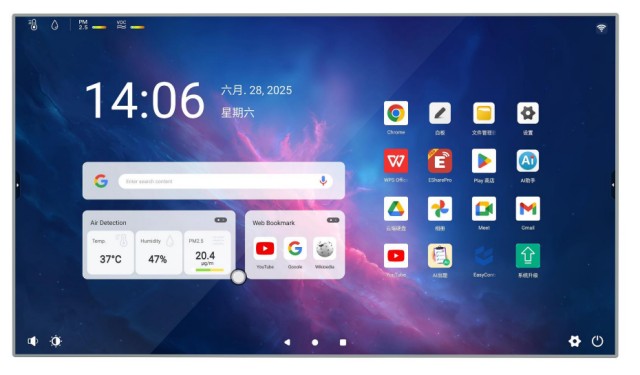

Clean interface with rich functions, built-in Android 11 system

Optional OPS embedded PC, supports multi-touch

Flexible resolution options: 720P / 1080P / 2K / 4K Plug-and-play after installation

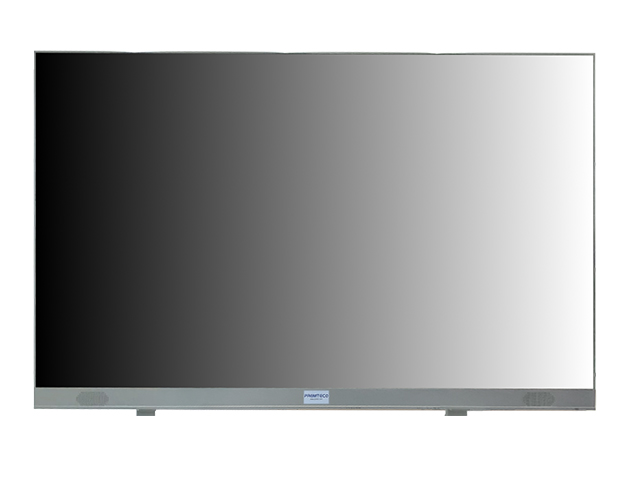

High Grayscale and Excellent White Balance

Our LED screens use high-quality material. The excellent grayscale is 14bits - 22bits.

Meanwhile, the white balance is extremely pure. The dark part of the color will still be clearly displayed, the color gradation of the screen is very smooth, the overall color display effect is more clear and vivid. The low gray state can not achieve this display effect.

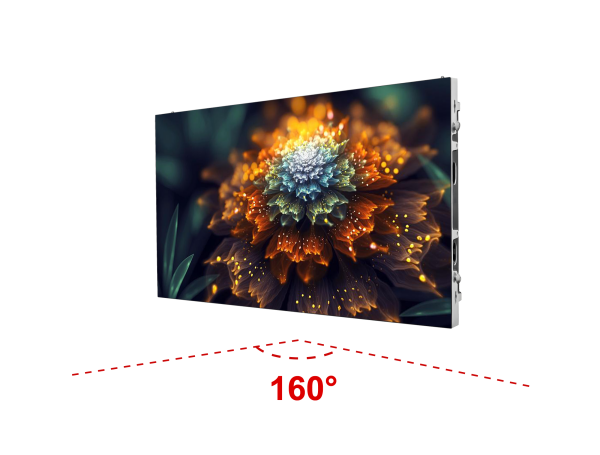

Large Viewing Angle

The high-precision die-casting cabinet makes the flatness of the screen great, thus the viewing angle can be up to 160°.  And the screen is seamless.

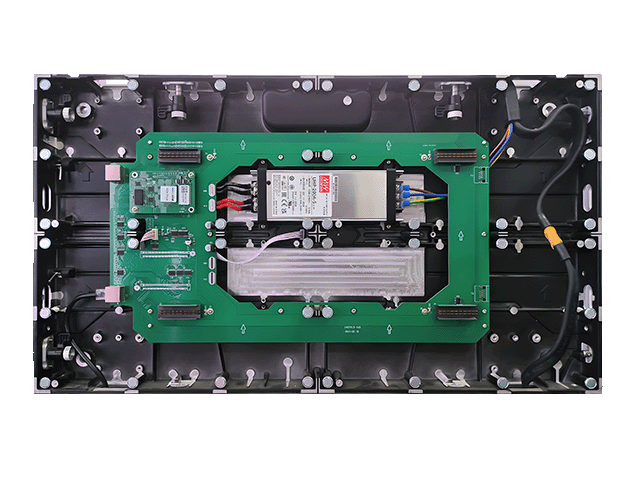

Dual backup for power and signal support

Our All-In-One series supports dual backup for power and signal, ensuring continuous operation even in the case of failure or outage.

This improves reliability and reduces downtime, making our new enclosure an excellent choice for critical operations.

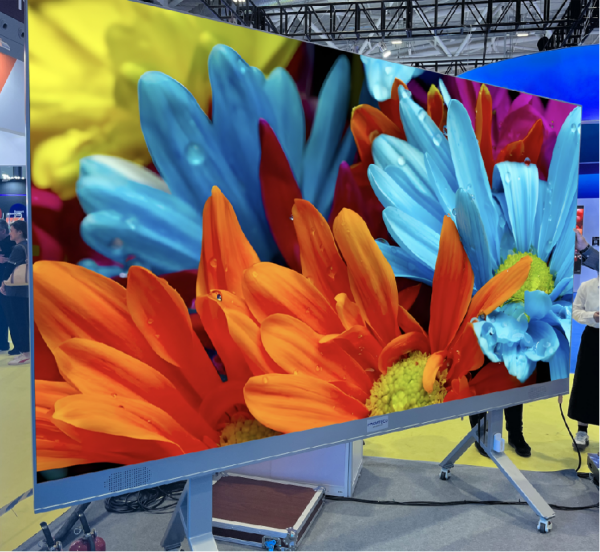

High Color Contrast Ratio and Enhancement of Sharpness, Brightness and Color

The color contrast ratio is even better than 10,000:1. Equipped with HDR technology and color enhancement technology, the screen's white balance reaches 100% sRGB, providing stunning visual performance. The screen remains clear even in high-light environments, and the visual effect is perfect.

Golden Aspect Ratio Cabinet Size

The cabinet features an aspect ratio of 16:9. Additionally, we can produce a variety of screen resolutions that adhere to the 16:9 aspect ratio, including but not limited to 2K, 3K, 4K, and 8K resolutions, as well as other specifications.




Application fields

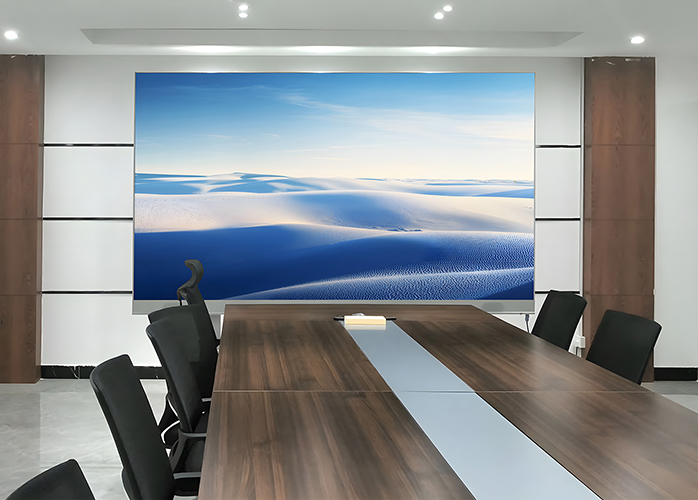

Meeting Room ; TV Studio; Exhibition Center; Shopping Mall





Parameter

Item P0.7 P0.9   P1.2
Pixel Pitch  0.78mm 0.9375mm 1.25mm
LED Type  COB COB COB/SMD1010
Module Resolution  192dots×216dots 160dots x 180dots 120dots x 135dots
Module Pixels  41,472dots  28,800dots  16,200dots
Module Size  150×168.75mm  150×168.75mm  150×168.75mm
Cabinet Size  600×337.5×32mm  600×337.5×32mm  600×337.5×32mm
Cabinet Resolution   768dotsx 432dots 480dots x 270dots 480dotsx 270dots
Pixel Density  1,638,400dots/㎡ 1,137,777dots/㎡ 640,000dots/㎡
Screen Size 108", 135", 162", 189", 216" 108", 135", 162", 189", 216" 108", 135", 162", 189", 216"
Color Contrast  Ratio 20000:1 20000:1 20000:1
Minimum Viewing Distance  0.7m 0.9 m 1.2m
Brightness  600~1000nits 600-2000nits 600-2000nits
IP Grade  IP54 IP54 IP54
Refresh Rate  3840-7680Hz 3840-7680Hz 3840-7680Hz
Gray Scale  14~24bits 14~24bits 14~24bits
Viewing Angle  H:170° / V:170° H:170° / V:170° H:170° / V:170°
Maximum Power Consumption   370W/m² 370W/m² 400W/m²
Average Power Consumption 160W/m² 160W/m² 170W/m²
Input Voltage  AC220V - AC110V @ 50Hz/60Hz AC220V - AC110V @ 50Hz/60Hz AC100V - AC240V @ 50Hz/60Hz
Operating Temperature  ﹣20℃~65℃  ﹣20℃~65℃  ﹣20℃~50℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight  4.2kg/Cabinet 4.2kg/Cabinet 4.2kg/Cabinet
Interactive Function Optional Optional Optional
Operating System  Android/ Windows Android/ Windows Android/ Windows
Signal Source Compatibility  RS232, HDMI, USB, etc RS232, HDMI, USB, etc RS232, HDMI, USB, etc
Item P1.5 P1.8
Pixel Pitch  1.562mm 1.875mm
LED Type  COB/SMD1212 COB/SMD1515
Module Resolution  96dots × 108dots 80dots × 90dots
Module Pixels  10,368dots  7,200dots
Module Size  150mm × 168.75mm  150mm × 168.75mm
Cabinet Size  600×337.5×32mm  600×337.5×32mm
Cabinet Resolution   384dots × 216dots 320dots × 180dots
Pixel Density  409,600dots/㎡ 284,444dots/㎡
Screen Size 108'', 135", 162", 189", 216" 108'', 135", 162", 189", 216"
Color Contrast  Ratio 20000:1 20000:1
Minimum Viewing Distance  1.5 m 1.8 m
Brightness  600nits-3000nits 600nits-3000nits
IP Grade  IP54 IP54
Refresh Rate  3840-7680Hz 3840-7680Hz
Gray Scale  14~24bits 14~24bits
Viewing Angle  H:170° / V:170° H:170° / V:170°
Maximum Power Consumption   400W/m² 400W/m²
Average Power Consumption 170W/m² 170W/m²
Input Voltage  AC100V - AC240V @ 50Hz/60Hz AC100V - AC240V @ 50Hz/60Hz
Operating Temperature  ﹣20℃~50℃  ﹣20℃~50℃
Operating Humidity 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum
Cabinet Weight  4.2kg/Cabinet 4.2kg/Cabinet
Interactive Function Optional Optional
Operating System  Android/ Windows Android/ Windows
Signal Source Compatibility  RS232, HDMI, USB, etc RS232, HDMI, USB, etc
