Transparent LED Display

T3

Features

Innovative LED Transparent Film Screen On Glass
Module Size: 1000mm*400mm
Light weight: 1.3kg/panel
High gray scale display (true 16bit)
Transparency: 90%-95%
Grade V1 flame retardant
Economical and Eco-friendly
Fast and Easy Installation
Light and Slim
Flexibility

View More >> Inquire Now >>

T2

Features

Innovative LED Transparent Glass Display
Module Size: 1500mm × 62.5mm
Panel Size: 1,500mm × 500mm
Maximum length of cabinet: up to 2.5m
Transparency: 48%-82%
Brightness: ≥5,000nits
Economical and Eco-friendly
Fast and Easy Installation
Light and Slim
Flexibility

View More >> Inquire Now >>

ORT Pro

Features

Outdoor Rental Transparent LED Display
Pixel Pitch: P3.9-7.8, P5.2-10.4, P7.8-7.8, P10.4-10.4
Module Size: 500mm × 125mm
Transparency: 45%-50%
Light and Thin
High Transparency
High Brightness
Excellent Heat Dissipation
Front and Rear Access
Protective Method: IP65
Fast and Easy Installation
Multiple Options

View More >> Inquire Now >>

OT1

Features

Outdoor Transparent LED Display
Pixel Pitch: P3.9-7.8, P5.2-10.4, P10.4
Module Size: 500mm × 250mm
Panel Size: 1000mm × 1000mm x 82mm
Transparency: 45%-50%
Brightness: 5500nits～6000nits
Slim and Lightweight
Better Heat Dissipation
Front and Rear Access
Protective Method: IP65
Flexible Design

View More >> Inquire Now >>

T1

Features

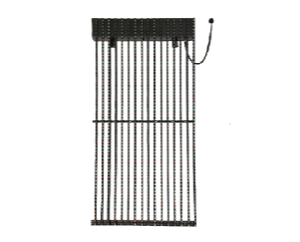

Led Curtain Display
Module Size: 500mm × 125mm
Panel Size: 1,000mm × 500mm
Transparency: 61%-73%
Brightness: ≥5,000nits
Economical and Eco-friendly
Standard Cabinet Design
Fast and Easy Installation
Light and Slim
Modular Design
Flexibility

View More >> Inquire Now >>

C1

Features

Excellent Heat Dissipation
Cabinet Size: 500mm × 1,000mm
IP65
Fast and Easy Maintenance
Light Weight
60% Transparency
6,000nits~10,000nits
1,920Hz～3,840Hz
13bits～24bits

View More >> Inquire Now >>

C1 Pro

Features

Excellent Heat Dissipation
Transparency: 35%-70%
IP65
Fast and Easy Maintenance
Light Weight
6,000nits~10,000nits
1,920Hz～3,840Hz
13bits～24bits

View More >> Inquire Now >>

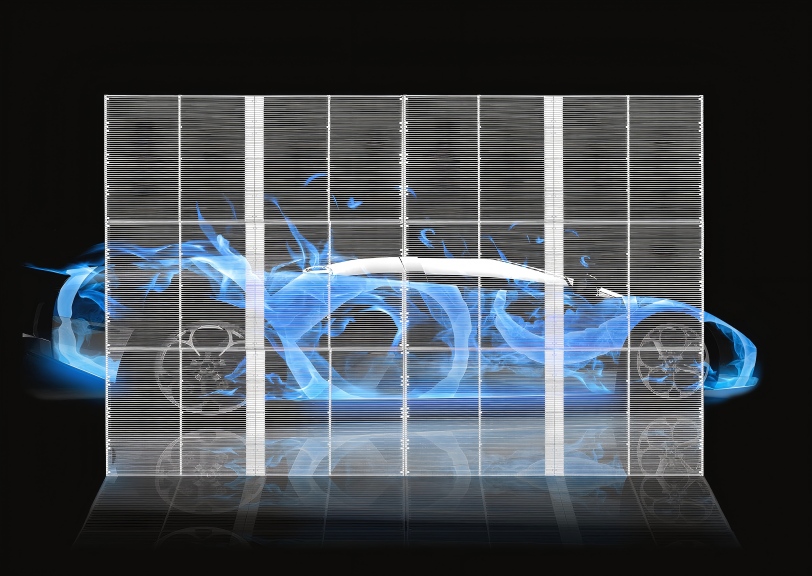

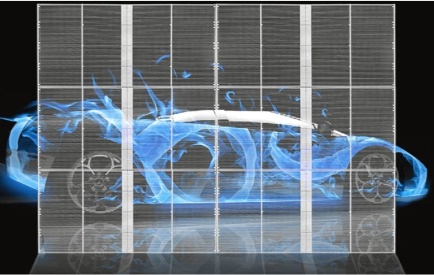

Transparent LED Display

A transparent LED display is a type of LED screen that is transparent, allowing users to see through it while still displaying images or videos. It is composed of a transparent LED mesh or a transparent LED panel with embedded LEDs that emit light in a specific color.

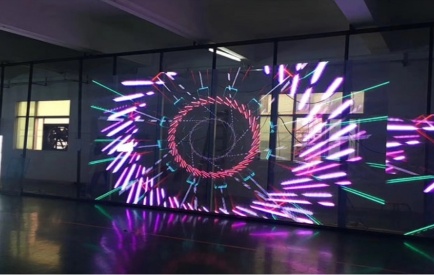

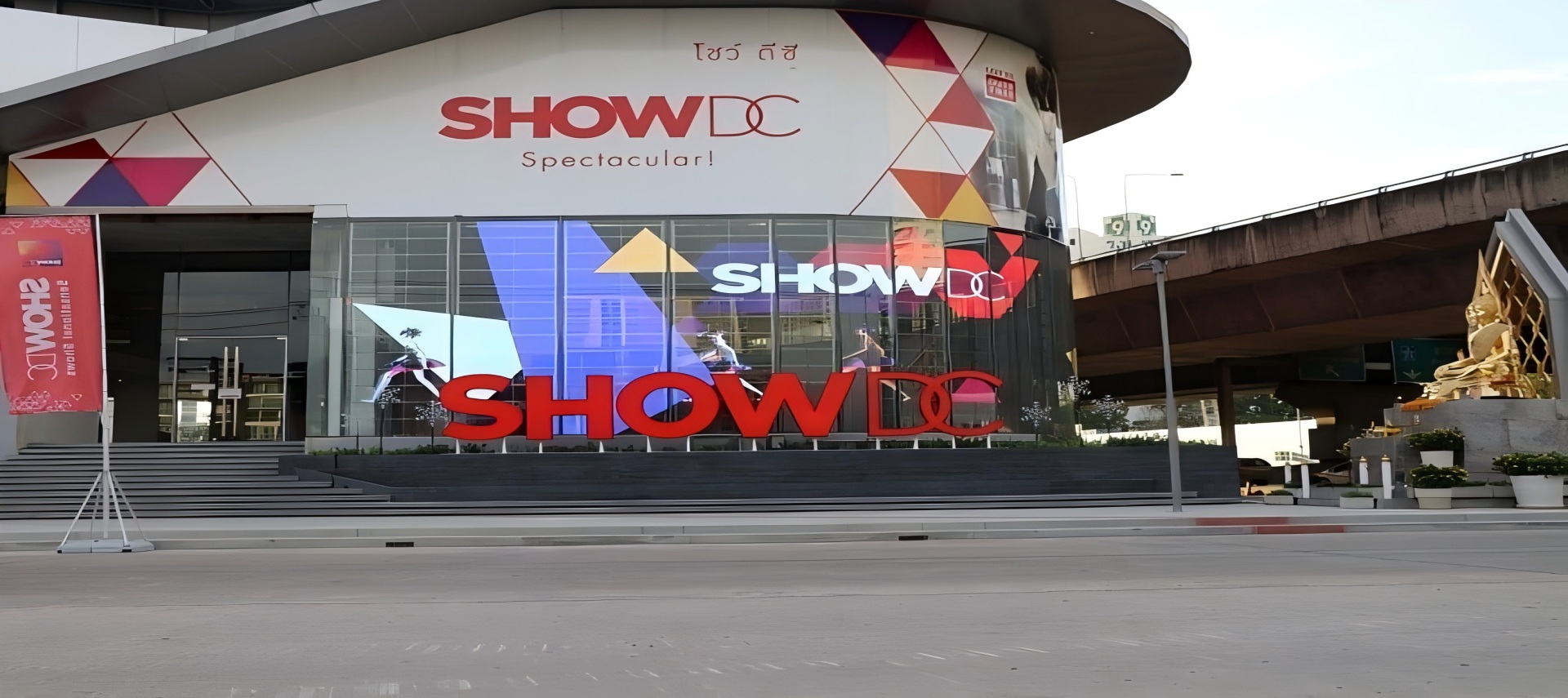

Transparent LED display solutions can be retrofitted behind any window or glass wall to create a full colour video screen without blocking the view in or out of the building. The modular design of these LED displays provides flexibility and can be retrofitted to meet your specific needs.

Our T1, C1 and C1 Pro series are 60-75% transparent LED display that can be placed in a window without sacrificing natural light in your space. These displays feature slim and lightweight design and high brightness that can compete with direct sunlight while giving you the ability to create a dynamic experience to your customers before they enter your location. They are widely used in Museums, Shopping malls and Exhibition events. Download Transparent Led Displays Datasheet [PDF]

Features of Transparent LED Displays

High Transparency

High transparency*(73%) allows glass to remain visible even after attaching the film, with no adverse effects on the original design. When the LED is OFF, the film is unnoticeable, blending into the glass completely.

Full Color Expression

Full Color Transparent LED film delivers a surprisingly wide range of colors using a 24 mm pitch. Applications can be extended to display an entire video or pictures in which various colors combinations are possible.

High Brightness

Its brightness is up to 5000nits or even higher. So the display content will still look very clear even if in the sunlight. Using its excellent video performance to capture the audience's attention and bring them unforgettable visual experience.

Flexible Structure

Owning to high flexibility of cabinet and high density of pixel pitch, units may be multi-anglefolded to satisfy creative HD design. Therefore, it is welcome in art exhibitions, commercial advertising, etc.

What equipment do we need for running transparent LED display?

LED Video Processor

The LED video processor is needed to support and deal with different signal inputs,
such as HDMI and DP from sending cards and then send them to receiving cards.

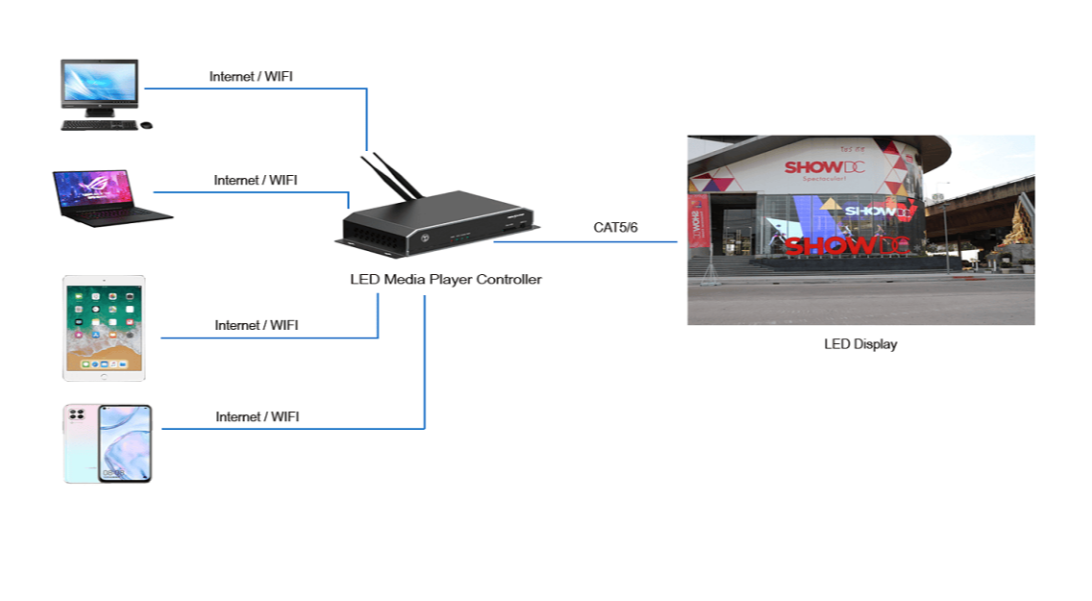

LED Controller

The LED controller is responsible for the connection between the PC and the screen.

It receives the signal from the PC and transmits it to the screen. It is like a brain in the LED display system.
