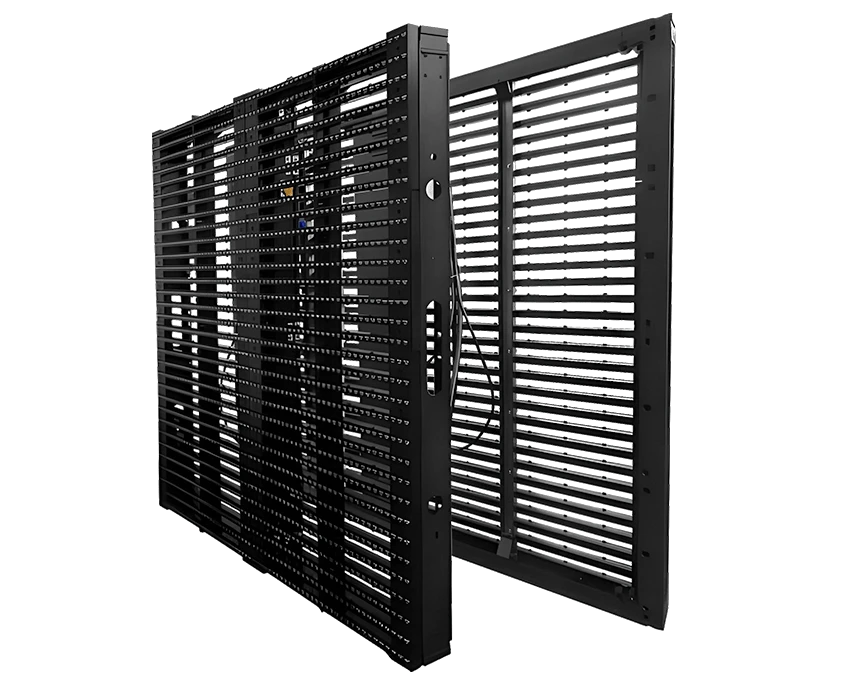

C1 Pro

C1 Pro

Media Facade LED Display-P12, P15, P25, P31, P50

Excellent Heat Dissipation

IP66

Fast and Easy Maintenance

Light Weight

60% Transparency

6,000nits~10,000nits

1,920Hz~3,840Hz

13bits~24bits

Product Description

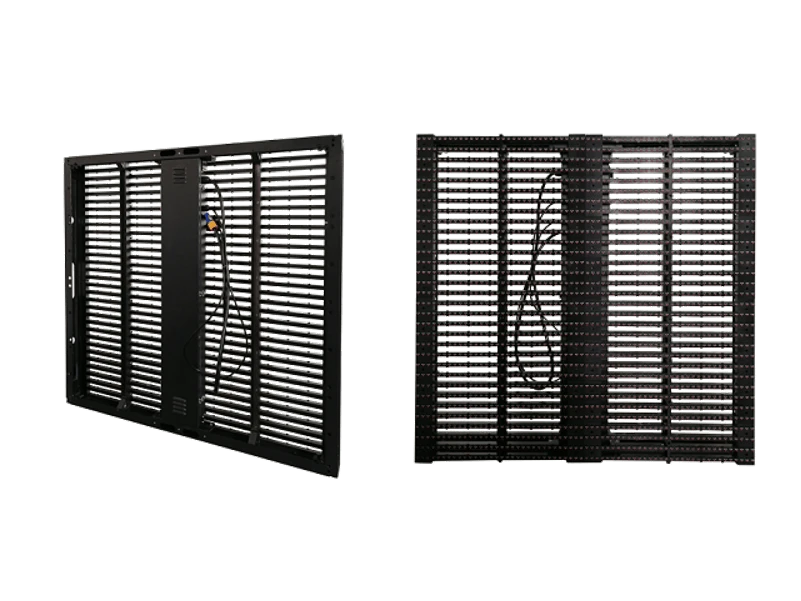

Innovative Curtain - Shaped LED Display

C1 PRO series LED display is a media facade LED screen with high transmittance. Designed to make architecture more cutting-edge and attractive, the series is integrated with the feature of the LED curtain. With high brightness and great transparency, this display tends to be used as over-dimensional, animated, illuminated advertising LED screens.It has been widely applied in the places like Times Square, Las Vegas and Hong Kong. The pixel pitches are P10, P12, P15, P15-31, P25-50.

High Protection: IP66

Features with IP65/IP54 waterproof, C1 PRO Series can deal with all kinds of extreme weather and more widely used.

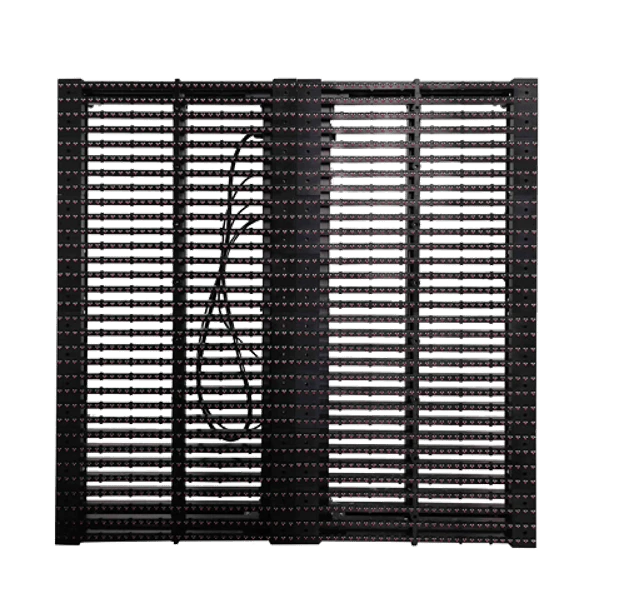

High Transparency: 30%-70%

Our C1 PRO series curtain LED display has high transparency up to 30-70%. The screen won’t block the natural light and the people inside the building can still enjoy the outside scenery.

Excellent Heat Dissipation

The cabinet is used with wind-pass design. As a result, even without fans and air conditioners, the screen can still work properly at the high temperature of over 50 degree.

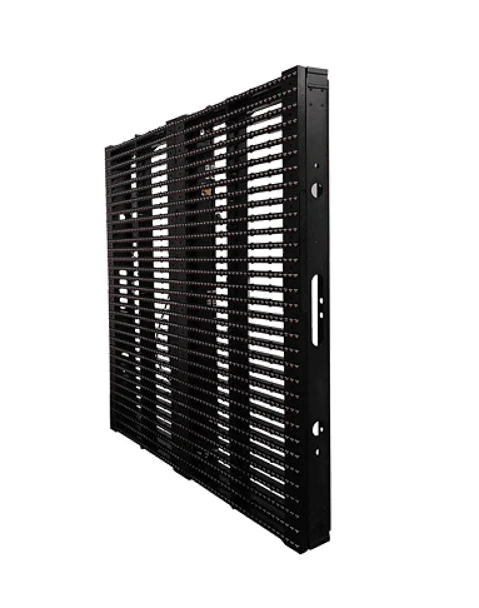

Ultra Thin & Light

The thickness of the cabinet is only 85mm. And the weight of the cabinet is less than 20kgs/sqm which greatly reduces the pressure on the building.

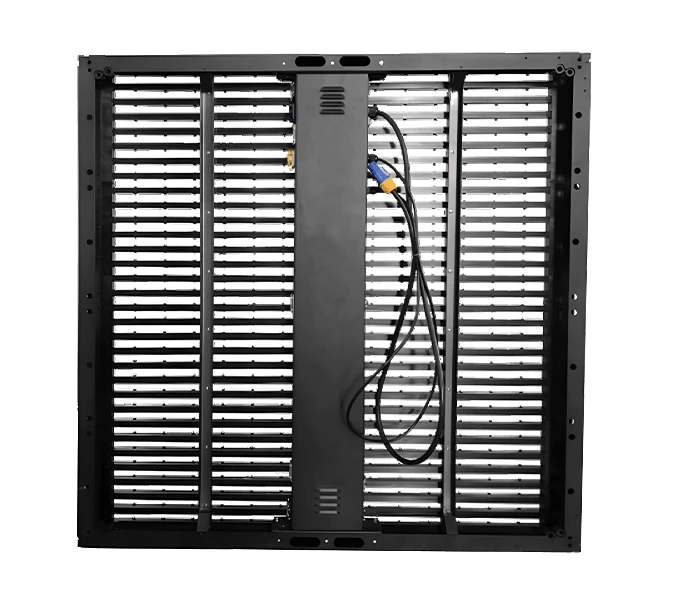

Fast Installation & Maintenance

Strong fast lock design is used in this cabinet. The cabinet is able to be hung or stacked.With great cabinet design, it is very efficient and fast to maintain the cabinet from the front and the back.

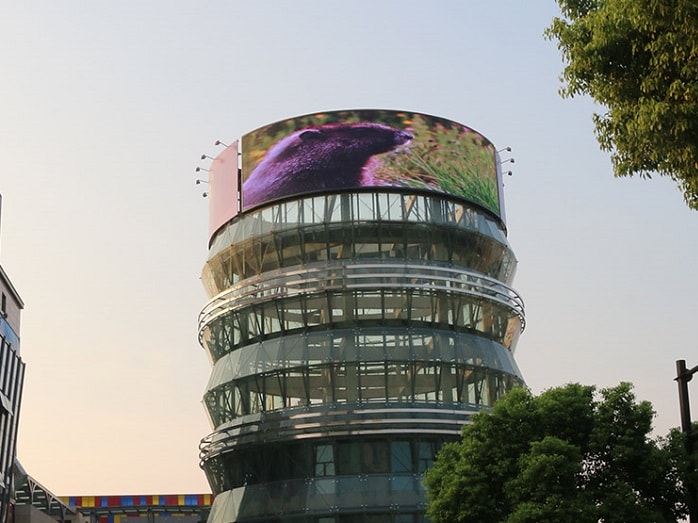

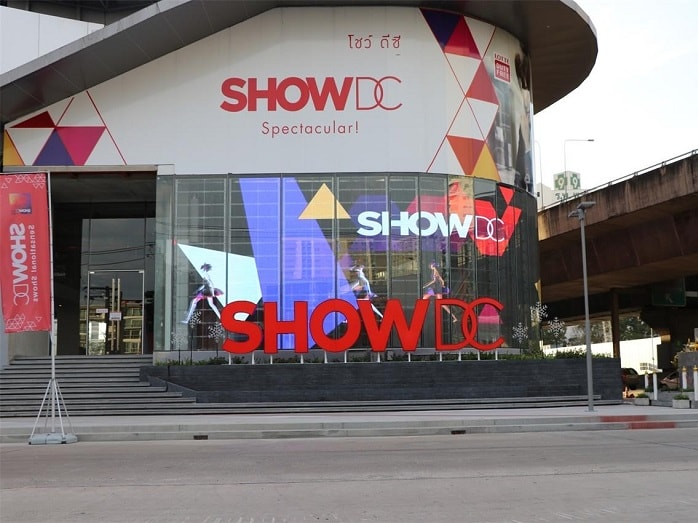

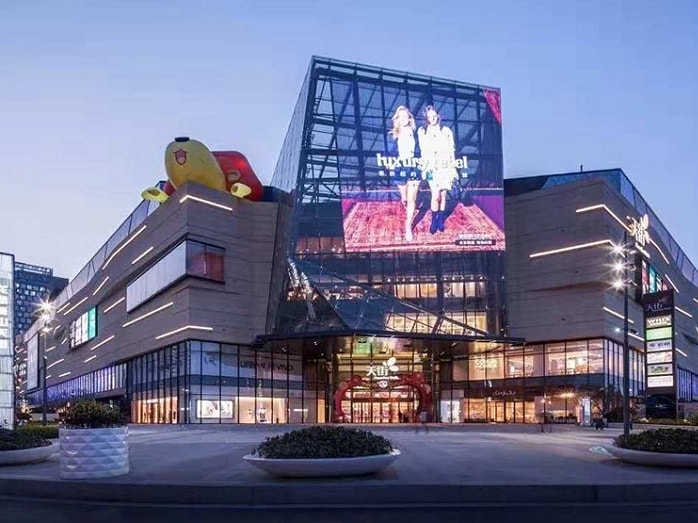

Application Fields

To fit every different scene, our product is made up of superior quality materials with the concise and strong structure. This product is usually used in:

Billboards; Chain Stores; Central Business Districts.

Parameter

Item P7.8-15.6 P15 P15-31
Pixel Pitch 7.5x15.6mm(H*V) 15.6x15.6mm(H*V) 15.6x31.25mm(H*V)
LED Type SMD3535 SMD3535 DIP346
Driving Mode 1/2 Static Static
Module Resolution 64dots × 32dots 32dots × 8dots 32dots × 8dots
Cabinet Size 1000mm × 1,000mm ×75mm 1000mm × 1,000mm ×75mm 1000mm × 1,000mm ×75mm
Cabinet Resolution 128dots × 64dots 64dots × 64dots 64dots × 32dots
Pixel Density 8192dots/㎡ 4096dots/㎡ 2048dots/㎡
Min. Viewing Distance ≥15.15m ≥15.15m ≥15.31m
Transparency 50% 42% 56%
Brightness 6000nits /8000nits 6000nits /8000nits 8000nits/10000nits
IP Grade IP66 IP66 IP66
Refresh Rate 1,920-3,840Hz 1,920-3,840Hz 1,920-3,840Hz
Gray Scale 13bits~24bits 13bits~24bits 13bits~24bits
Viewing Angle H:160° / V:160° H:160° / V:160° H:120° / V:60°
Max.Power Consumption 780W/㎡ 800W/㎡ 360W/㎡
Average Power Consumption 266W/㎡ 266W/㎡ 90W/㎡
Input Voltage AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operation Temperature ﹣40℃~60℃ ﹣20℃~65℃ ﹣20℃~65℃
Humidity-operating 10%~90% 10%~90% 10%~90%
Cabinet Material Aluminum Aluminum Aluminum
Cabinet Weight 19kg/㎡ 19kg/㎡ 19kg/㎡
System Operation Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Source compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item P15 P15-31 P25-50
Pixel Pitch 15.6x15.6mm(H*V) 15.6x31.25mm(H*V) 25x50mm(H*V)
LED Type SMD3535 DIP346 DIP346
Driving Mode Static Static Static
Module Resolution 32dots × 8dots 32dots × 8dots 1dot × 30dots
Cabinet Size 1000mm × 1,000mm ×75mm 1000mm × 1,000mm ×75mm 500mm × 1,500mm ×75mm
Cabinet Resolution 64dots × 64dots 64dots × 32dots 10dots× 60dots
Pixel Density 4096dots/㎡ 2048dots/㎡ 800dots/㎡
Min. Viewing Distance ≥15.15m ≥15.31m ≥25.50m
Transparency 42% 56% 70%
Brightness 6000nits /8000nits 8000nits/10000nits 5000nits
IP Grade IP66 IP66 IP66
Refresh Rate 1,920-3,840Hz 1,920-3,840Hz 1,920-3,840Hz
Gray Scale 13bits~24bits 13bits~24bits 13bits~24bits
Viewing Angle H:160° / V:160° H:120° / V:60° H:120° / V:60°
Max.Power Consumption 800W/㎡ 360W/㎡ 360W/㎡
Average Power Consumption 266W/㎡ 90W/㎡ 120W/㎡
Input Voltage AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operation Temperature ﹣20℃~65℃ ﹣20℃~65℃ ﹣20℃~65℃
Humidity-operating 10%~90% 10%~90% 10%~90%
Cabinet Material Aluminum Aluminum Aluminum
Cabinet Weight 20kg/㎡ 19kg/㎡ 12kgs/㎡
System Operation Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Source compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item P15 P15-31 P25-50
Pixel Pitch 15.6x15.6mm(H*V) 15.6x31.25mm(H*V) 25x50mm(H*V)
LED Type SMD3535 DIP346 DIP346
Driving Mode Static Static Static
Module Resolution 32dots × 8dots 32dots × 8dots 1dot × 30dots
Cabinet Size 1000mm × 1,000mm ×75mm 1000mm × 1,000mm ×75mm 500mm × 1,500mm ×75mm
Cabinet Resolution 64dots × 64dots 64dots × 32dots 10dots× 60dots
Pixel Density 4096dots/㎡ 2048dots/㎡ 800dots/㎡
Min. Viewing Distance ≥15.15m ≥15.31m ≥25.50m
Transparency 42% 56% 70%
Brightness 6000nits /8000nits 8000nits/10000nits 5000nits
IP Grade IP66 IP66 IP66
Refresh Rate 1,920-3,840Hz 1,920-3,840Hz 1,920-3,840Hz
Gray Scale 13bits~24bits 13bits~24bits 13bits~24bits
Viewing Angle H:160° / V:160° H:120° / V:60° H:120° / V:60°
Max.Power Consumption 800W/㎡ 360W/㎡ 360W/㎡
Average Power Consumption 266W/㎡ 90W/㎡ 120W/㎡
Input Voltage AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operation Temperature ﹣20℃~65℃ ﹣20℃~65℃ ﹣20℃~65℃
Humidity-operating 10%~90% 10%~90% 10%~90%
Cabinet Material Aluminum Aluminum Aluminum
Cabinet Weight 20kg/㎡ 19kg/㎡ 12kgs/㎡
System Operation Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Source compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
