LED Curtain Display-P10.4, P12.5, P15.6, P25, P31.2

Excellent Heat Dissipation

IP65

Fast and Easy Maintenance

Light Weight

60% Transparency

6,000nits~10,000nits

3,840Hz~7,680Hz

14bits~22bits

Product Description

Innovative Curtain - Shaped LED Display

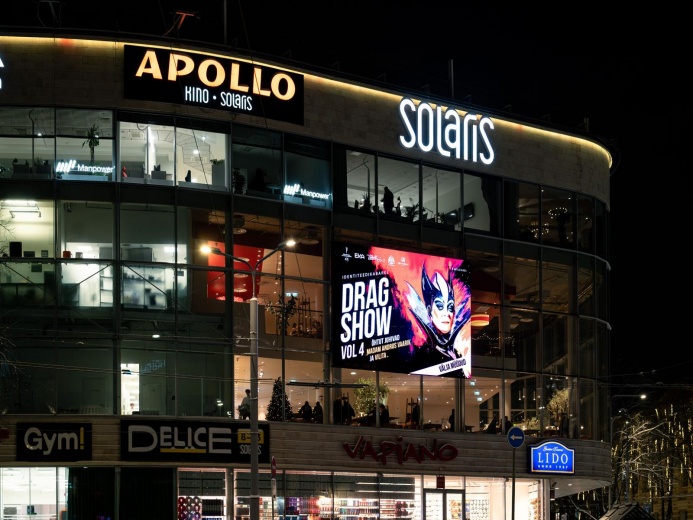

LED display C1 series is a media facade LED screen with high transmittance. Designed to make architecture more cutting-edge and attractive, the C1 series is integrated with the feature of the LED curtain. With high brightness and great transparency, this display tends to be used as over-dimensional, animated, illuminated advertising LED screens. It has been widely applied in the places like Times Square, Las Vegas and Hong Kong. The pixel pitches are P10.4, P12.5, P15.6, P25, P31.2.

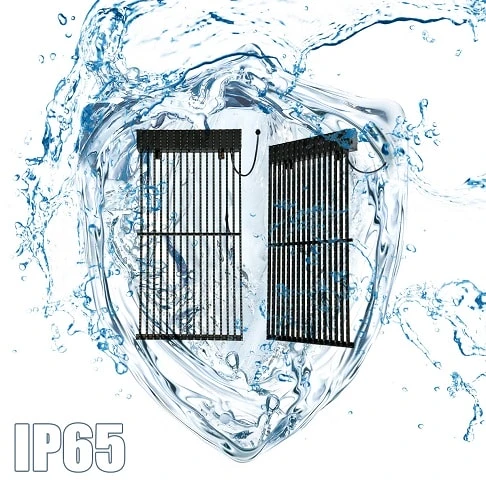

Waterproof & Dustproof

To make LED display C1 series adjust different environments, we enhance the resistance of screen to dust and water. The protective grade has reached IP65.

Slim and Brilliant Structure

The structural design is very compact. It is very efficient and fast to maintain the cabinet from the front and the back. This LED display is much lighter than other LED screens because of its aluminum strip design. This feature will bring more convenience to maintenance and transportation.

Vivid Visual Performance

This display is very decorative on the strength of its curtain shape and 60% transparency. After thousands of tests and improvements, the screen has reached the ideal value of each visual performance. (1) High Brightness: This curtain media facade can reach more than 7,000nits. (2) Ultimate Refresh Rate: The outdoor LED billboard is full color and its refresh rate can reach 3,840Hz. (3) Best Gray Scale: The gray scale of this DOOH screen can reach 24bits.

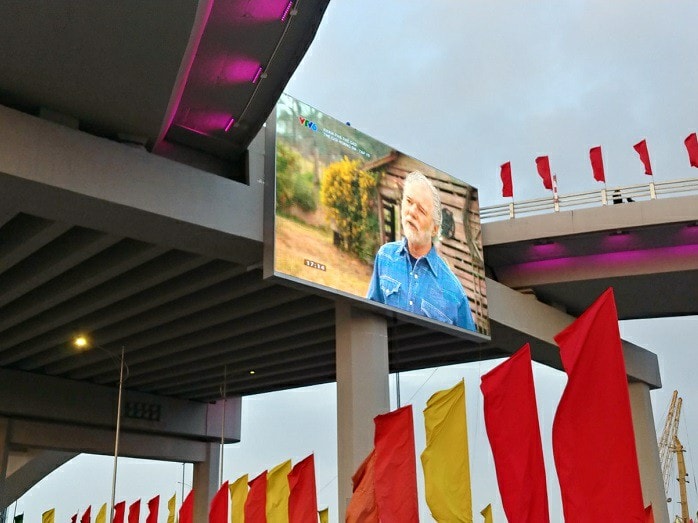

Application Fields

To fit every different scene, our product is made up of superior quality materials with the concise and strong structure. This product is usually used in:

Billboards; Chain Stores; Central Business Districts.

Parameter

Item P10.4 P12.5 P12.5
Pixel Pitch 10.416mm 12.5mm 12.5mm
LED Type SMD3535 SMD3535   DIP346
Driving Mode Static  Static Static
Module Resolution  96dots × 2dots 80dots × 2dot 80dots × 2dot
Cabinet Size 500mm × 1,000mm 500mm × 1,000mm 500mm × 1,000mm
Cabinet Resolution 48dots × 96dots 40dots × 80dots 40dots × 80dots
Pixel Density  9,216dots/㎡ 6400dots/㎡ 6400dots/㎡
Min. Viewing Distance ≥10.4m ≥12.5m ≥12.5m
Transparency 18% 24.6% / 18.4% 18%
Brightness 5,500nits 5500nits  7000nits
IP Grade IP65 IP65 IP65
Refresh Rate 3,840Hz~7,680Hz 3,840Hz~7,680Hz 3,840Hz~7,680Hz
Gray Scale 14bits~22bits 14bits~22bits 14bits~22bits
Viewing Angle H:160° / V:160° H:160° / V:160° H:160° / V:160°
Max.Power Consumption 560W/㎡ 700W/㎡  450W/㎡
Average Power Consumption 160W/㎡ 210W/㎡  135W/㎡
Input Voltage AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operation Temperature ﹣20℃~65℃  ﹣20℃~65℃  ﹣20℃~65℃
Humidity-operating 10%~90% 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight 22kg/㎡ 19.6kg/㎡ 19.6kg/㎡
System Operation Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Source compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Item P15.6 P25 P31.2
Pixel Pitch 15.625mm 25mm 31.25mm
LED Type DIP346 DIP346 DIP346
Driving Mode Static Static Static
Module Resolution  64dots × 1dot 40dots × 1dot 32dots × 1dot
Cabinet Size 500mm × 1,000mm 500mm × 1,000mm 500mm × 1,000mm
Cabinet Resolution 32dots × 64dots 20dots× 40dots 16dots × 32dots
Pixel Density  4,096dots/㎡ 1600dots/㎡ 1,024dots/㎡
Min. Viewing Distance ≥16m ≥25m ≥31m
Transparency 30% 54% 60%
Brightness 7,000nits 7000nits 6000nits
IP Grade IP65 IP65 IP65
Refresh Rate 3,840Hz~7,680Hz 3,840Hz~7,680Hz 3,840Hz~7,680Hz
Gray Scale 14bits~22bits 14bits~22bits 14bits~22bits
Viewing Angle H:120° / V:60° H:120° / V:60° H:120° / V:60°
Max.Power Consumption 380W/㎡ 380W/㎡ 320W/㎡
Average Power Consumption 110W/㎡ 120W/㎡ 90W/㎡
Input Voltage AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operation Temperature ﹣20℃~65℃  ﹣20℃~65℃  ﹣20℃~65℃
Humidity-operating 10%~90% 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight 19kg/㎡ 14.4kgs/㎡ 14kg/㎡
System Operation Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Source compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Item P15.6 P25 P31.2
Pixel Pitch 15.625mm 25mm 31.25mm
LED Type DIP346 DIP346 DIP346
Driving Mode Static Static Static
Module Resolution  64dots × 1dot 40dots × 1dot 32dots × 1dot
Cabinet Size 500mm × 1,000mm 500mm × 1,000mm 500mm × 1,000mm
Cabinet Resolution 32dots × 64dots 20dots× 40dots 16dots × 32dots
Pixel Density  4,096dots/㎡ 1600dots/㎡ 1,024dots/㎡
Min. Viewing Distance ≥16m ≥25m ≥31m
Transparency 30% 54% 60%
Brightness 7,000nits 7000nits 6000nits
IP Grade IP65 IP65 IP65
Refresh Rate 3,840Hz~7,680Hz 3,840Hz~7,680Hz 3,840Hz~7,680Hz
Gray Scale 14bits~22bits 14bits~22bits 14bits~22bits
Viewing Angle H:120° / V:60° H:120° / V:60° H:120° / V:60°
Max.Power Consumption 380W/㎡ 380W/㎡ 320W/㎡
Average Power Consumption 110W/㎡ 120W/㎡ 90W/㎡
Input Voltage AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operation Temperature ﹣20℃~65℃  ﹣20℃~65℃  ﹣20℃~65℃
Humidity-operating 10%~90% 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight 19kg/㎡ 14.4kgs/㎡ 14kg/㎡
System Operation Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Source compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.
