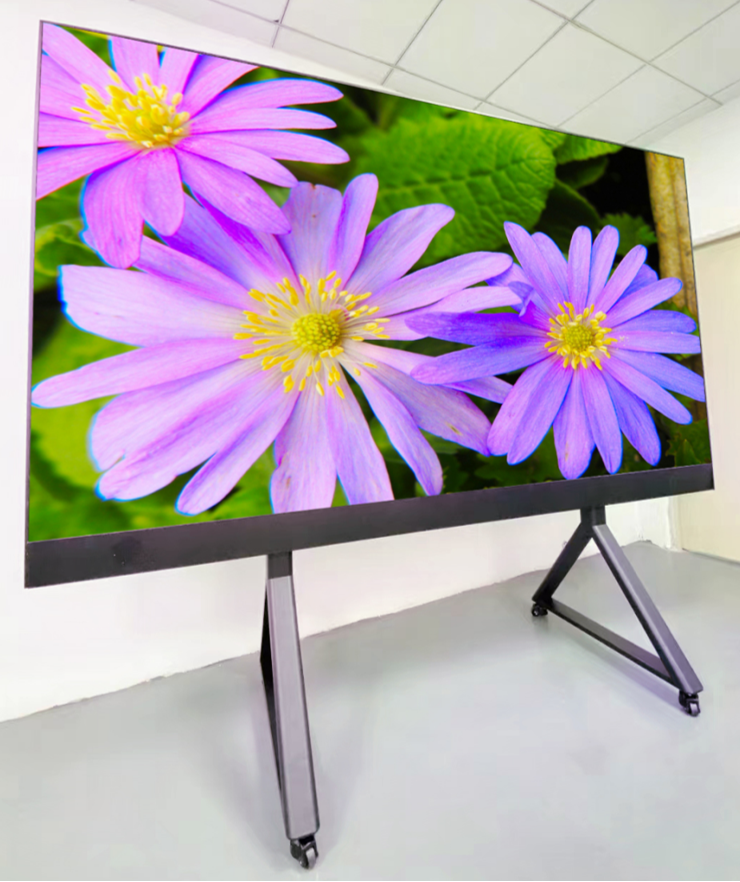

All-In-One Series

All-In-One Series

With COB LED Display Technology

6K Resolution

Thin cabinet & Lightweight

Cost-effective

7680Hz

14bits~22bits

Seamless Connection

Easy Maintenance

16:9 Aspect Ratio

Product description

High Resolution

High resolution is a crucial factor in the performance of LED display screens. The greater the pixel density, the higher the definition, allowing viewers to observe the screen from closer distances without experiencing pixelation.

Our All-In-One series features pixel pitches ranging from P0.7 to P1.8. This product is ideally suited for applications such as traffic control rooms, meeting rooms, television studios, exhibition centers, and more.

Groove design for easy carrying and installation.

Our new enclosure features a unique groove design at the back, making it easy to carry and mount onto surfaces. This improves convenience and usability, especially in difficult-to-reach areas. It is very convenient for installation, transportation, and the cabinet looks nobler.

Cost- effective

By utilizing lightweight and thin materials, our All-In-One series significantly reduces transportation and installation costs. This makes it an excellent choice for customers looking to minimize expenses while enhancing operational efficiency. Moreover, our pricing is more competitive compared to other suppliers' fine pitch LED display products available in the market.

Seamless Connection

The die-casting aluminum cabinet with internal lockers ensures precision and a seamless, bezel-free display. All signal and power cables are concealed inside the cabinets, providing greater stability and a clean appearance.

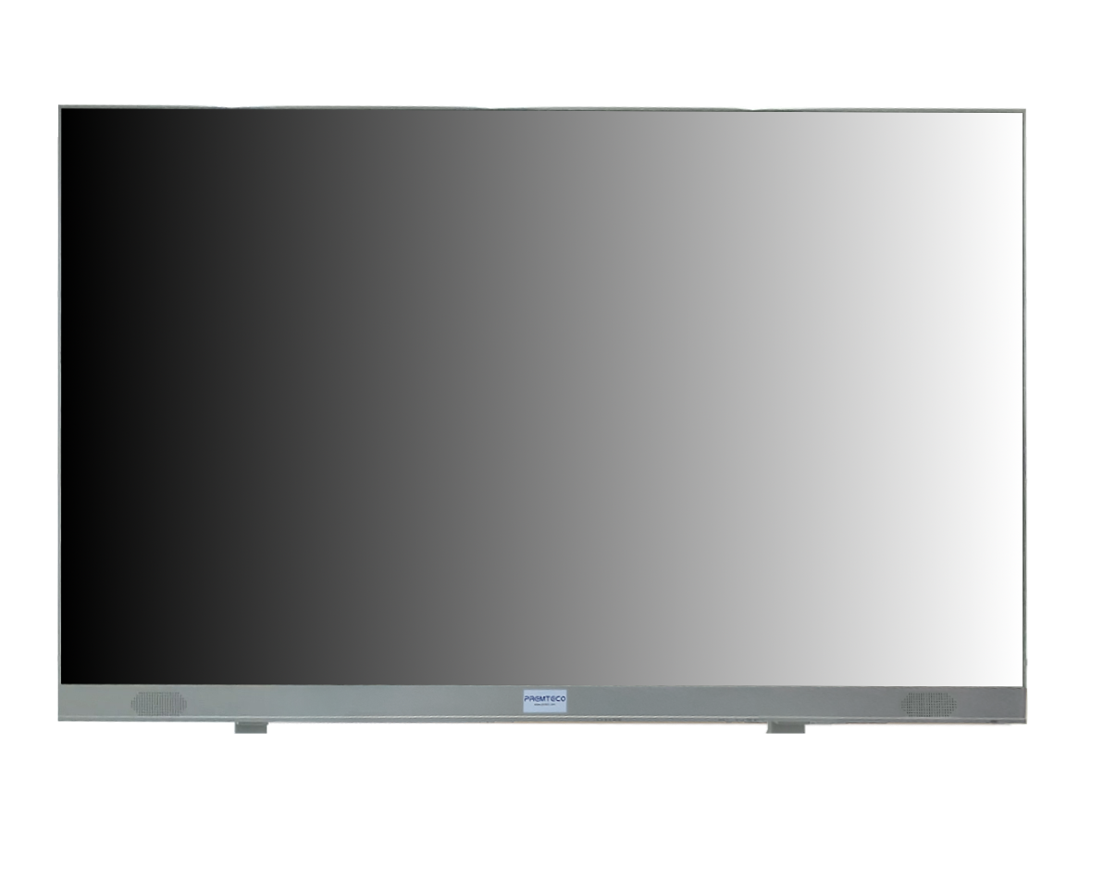

High Grayscale and Excellent White Balance

Our LED screens use high-quality material. The excellent grayscale is 13bits - 18bits. Meanwhile, the white balance is extremely pure.

The dark part of the color will still be clearly displayed, the color gradation of the screen is very smooth, the overall color display effect is more clear and vivid. The low gray state can not achieve this display effect.



Easy to install and maintain; interactive screen function available as an option

The cabinet is designed for full front access, facilitating the easy removal of power supplies, receiving cards, cables, and other components. This design enhances both installation and maintenance convenience.

Additionally, we also offer the interactive screen function as an optional feature.



Dual backup for power and signal support

Our All-In-One series supports dual backup for power and signal, ensuring continuous operation even in the case of failure or outage.

This improves reliability and reduces downtime, making our new enclosure an excellent choice for critical operations.

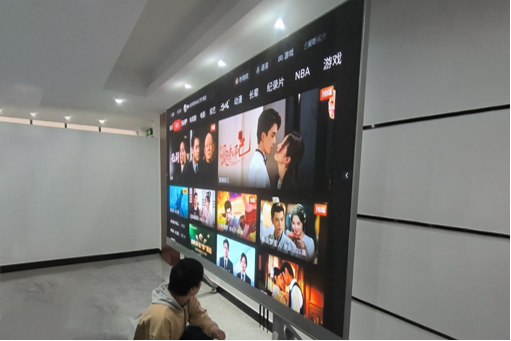

Quickly change signal sources with a remote for instant display.

The All-In-One series has developed a user-friendly system based on Android's comprehensive development, which accommodates various devices, such as computers, mobile phones, and tablets, and platforms like Windows and Android. This system enables quick wireless projection and divides the screen into four parts for separate display.



Large Viewing Angle

The high-precision die-casting cabinet guarantees exceptional flatness of the screen, enhanced by cutting-edge COB encapsulation technology. Consequently, the viewing angle of the LED display can extend up to 170°. Moreover, the screen features a seamless design.



Golden Aspect Ratio Cabinet Size

The cabinet features an aspect ratio of 16:9. Additionally, we can produce a variety of screen resolutions that adhere to the 16:9 aspect ratio, including but not limited to 2K, 3K, 4K, and 8K resolutions, as well as other specifications.



High Color Contrast Ratio and Enhancement of Sharpness, Brightness and Color

Our All-In-One series delivers excellent visual performance thanks to our use of high-quality HOB technology. The color contrast ratio is even better than 6,000:1. Equipped with HDR technology and color enhancement technology, the screen's white balance reaches 100% sRGB, providing stunning visual performance. The screen remains clear even in high-light environments, and the visual effect is perfect.



Application fields

Meeting Room ; TV Studio; Exhibition Center; Shopping Mall

Parameter

Item P0.7 P0.9   P1.2
Pixel Pitch  0.78mm 0.9375mm 1.25mm
LED Type  COB COB COB
Module Resolution  192dots×216dots 160dots x 180dots 120dots x 135dots
Module Pixels  41,472dots  28,800dots  16,200dots
Module Size  150×168.75mm  150×168.75mm  150×168.75mm
Cabinet Size  600×337.5×32mm  600×337.5×32mm  600×337.5×32mm
Cabinet Resolution   768dotsx 432dots 480dots x 270dots 480dotsx 270dots
Pixel Density  1,638,400dots/㎡ 1,137,777dots/㎡ 640,000dots/㎡
Screen Size 108", 135", 162", 189", 216" 108", 135", 162", 189", 216" 108", 135", 162", 189", 216"
Screen Resolution Range from 3k to 6k Range from 2k to 5k Range from 2k to 4k
Color Contrast  Ratio 20000:1 20000:1 20000:1
Minimum Viewing Distance  0.7m 0.9 m 1.2m
Brightness  600~1000nits 600-2000nits 600-3000nits
IP Grade  IP43/IP54 IP43/IP54 IP43/IP54
Refresh Rate  7680Hz 7680Hz 7680Hz
Gray Scale  14~24bits 14~24bits 14~24bits
Viewing Angle  H:170° / V:170° H:170° / V:170° H:170° / V:170°
Maximum Power Consumption   350W/m² 350W/m² 350W/m²
Average Power Consumption 100W/m² 100W/m² 100W/m²
Input Voltage  AC220V - AC110V @ 50Hz/60Hz AC220V - AC110V @ 50Hz/60Hz AC100V - AC240V @ 50Hz/60Hz
Operating Temperature  ﹣20℃~65℃  ﹣20℃~65℃  ﹣20℃~50℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight  150kg-450kg 150kg-450kg 150kg-450kg
Interactive Function Optional Optional Optional
Operating System  Android/ Windows Android/ Windows Android/ Windows
Signal Source Compatibility  RS232, HDMI, DIP, etc. RS232, HDMI, DIP, etc. RS232, HDMI, DIP, etc.
Item P1.5 P1.8
Pixel Pitch  1.562mm 1.875mm
LED Type  COB COB
Module Resolution  96dots × 108dots 80dots × 90dots
Module Pixels  10,368dots  7200dots
Module Size  150mm × 168.75mm  150mm × 168.75mm
Cabinet Size  600×337.5×32mm  600×337.5×32mm
Cabinet Resolution   384dots × 216dots 320dots × 180dots
Pixel Density  409,600dots/㎡ 284,444dots/㎡
Screen Size 135", 162", 189", 216" 162", 189", 216"
Screen Resolution Range from 2k to 3k 2k
Color Contrast  Ratio 20000:1 20000:1
Minimum Viewing Distance  1.5 m 1.8 m
Brightness  600nits-3000nits 600nits-3000nits
IP Grade  IP43/IP54 IP43/IP54
Refresh Rate  7680Hz 7680Hz
Gray Scale  14~24bits 14~24bits
Viewing Angle  H:170° / V:170° H:170° / V:170°
Maximum Power Consumption   350W/m² 350W/m²
Average Power Consumption 100W/m² 100W/m²
Input Voltage  AC100V - AC240V @ 50Hz/60Hz AC100V - AC240V @ 50Hz/60Hz
Operating Temperature  ﹣20℃~50℃  ﹣20℃~50℃
Operating Humidity 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum
Cabinet Weight  150kg-450kg 150kg-450kg
Interactive Function Optional Optional
Operating System  Android/ Windows Android/ Windows
Signal Source Compatibility  RS232, HDMI, DIP, etc. RS232, HDMI, DIP, etc.
