P2.6,P3,P4 Outdoor Food Delivery LED Box

Product Description

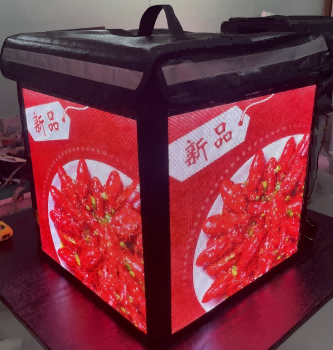

Lightweight and Thoughtful Cabinet Design

①Each cabinet weighs only 10.3kg — lightweight yet durable enough for outdoor use. ②Equipped with reflective strips on the lid to enhance rider visibility and ensure safer delivery at night. ③Built-in handle design makes it easy and convenient to open, close and move. ④High Impact Resistance--Proven through multiple tests, the LED delivery box offers strong impact resistance, ensuring its operability and safety even in demanding conditions.

Stable, Smart, and Space-Saving: LED Box Power Integration

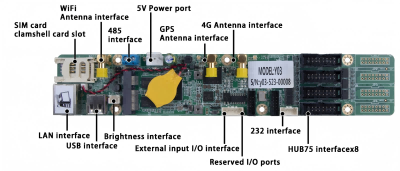

①Power Supply can connect to battery of motorcycle and electric scooter. ②The power supply and controller card are securely fixed and discreetly integrated at the end of the delivery box, occupying minimal space. This hidden design ensures stability and prevents shaking even under external vibrations ③Support Sim card: The control box can be installed sim card after the cover plate is opened downward.

Smart Delivery Box

①Integrate with the delivery system. ②3 in 1 LED control systerm. With this system, the data can be sent and changed from phone, computer and ipad to cloud, and then send to ervery screen without time and space limitation. ③Scheduled and Multi-Format Playback (1)Multiple formats: images, videos, customizable text (2)Option to display time or countdown (3)Three-sided screens can play different content simultaneously ④Brightness can be adjusted for day and night to improve advertising effectiveness and reduce energy consumption.

Creative and Innovative

①Supporting 4G. SIM card can be inserted inside the controller card so that you can remotely control the LED modules via phone. ②GPS is available for locating the food delivery LED boxes and tracking trajectory. ③Geofencing. It is a type of location-based marketing and advertising. A mobile app or software uses the GPS, RFID, Wi-Fi or cellular data to define a virtual geographical boundary and trigger a targeted marketing action when a device enters or exits that boundary. Ads can be changed based on location — for instance, the LED delivery box screen can automatically display a KFC video ad when it approaches or stops near a KFC restaurant.

High protection level&High Brightness

①IP 65. the food delivery LED box is built to outdoor standards—dustproof, waterproof, and reliable even in rainy conditions.endurable in the harsh outdoor environment. ②Brightness reaches 4000–4500 nits, ensuring clear visibility even in daylight. Available brightness settings for day and night, allowing optimal viewing in different lighting conditions.

Application Fields

This product is usually used in:

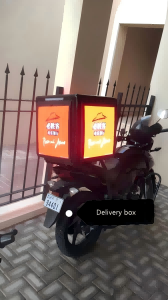

Food delivery industry

Parameter

Spec1

Item	P2.6	P3	P4
Pixel Pitch	P2.6-P2.4	3mm	P4
LED Type	SMD1921	SMD1921	SMD1921
Module Resolution	128dots × 160dots	112dots × 128dots	80dots × 96dots
Module Pixels	19,200 dots	14,336 dots	7,680 dots
Module Size	336mm x 384mm	336mm x 384mm	336mm x 384mm
Screen Size (one side)	336mm x 384mm	336mm x 384mm	336mm x 384mm
Screen Resolution (one side)	128dots × 160dots	112dots × 128dots	80dots × 96dots
Box Size(mm)	500 W x 500 H x 500 D mm	500 W x 500 H x 500 D mm	500 W x 500 H x 500 D mm
Pixel Density	145,125dots/㎡	111,111 dots/㎡	62,500 dots/㎡
Minimum Viewing Distance	≥2.6m	≥3m	≥4m
Brightness	4,000nits	4,000nits	4500nits
IP Grade	IP65	IP65	IP65
Refresh Rate	1920HZ~3840Hz	1920HZ~3840Hz	1920HZ~3840Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:140° / V:140°	H:140° / V:140°	H:140° / V:140°
Maximum Power Consumption	＜230w/set	＜230w/set	＜230w/set
Average Power Consumption	＜80w/set	＜80w/set	＜80w/set
Input Voltage	DC 9V - 36V	DC 9V - 36V	DC 9V - 36V
Driving Voltage	5V	5V	5V
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Box Material	FRP + Acrylic /Frosted	FRP + Acrylic /Frosted	FRP + Acrylic /Frosted
Cabinet Weight	16kg	16kg	16kg
Operating System	Android System	Android System	Android System
