FA1

FA1

Outdoor Front Service LED Display-P3.9, P4.8, P6, P8, P10

Front Maintenance

Up to 10000nits

Wide Viewing Angle

Excellent Performance

High Definition

13bits ~ 16bits

1920Hz ~ 3840Hz

High IP Level

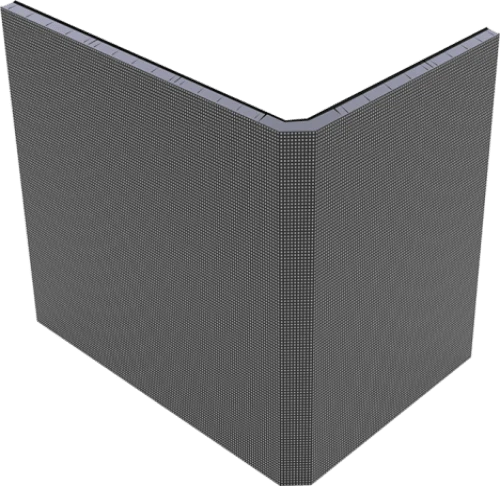

Innovative Cabinet Design

The FA1 cabinet has a unique and innovative feature: The modules can be spliced into a 90 degree angle seamlessly, without the black line. This feature allows the screen to fit 90 degree shape wall-mounted installation perfectly.

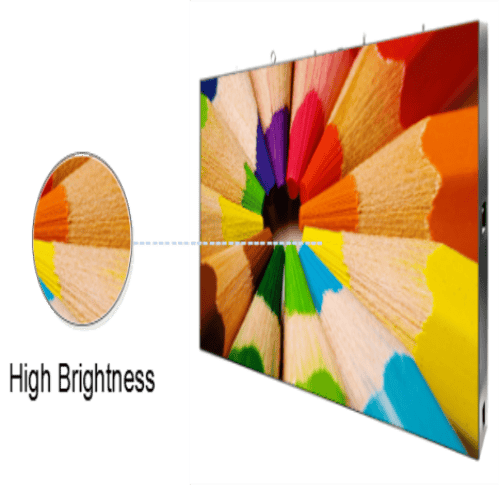

High Brightness

High Brightness The brightness of this outdoor advertising display can be up to 10,000nits. So the display content will still look very clear in direct sunlight. Lower Attenuation The LED screen is still bright enough in the sun after 6 years. Less Power Consumption We have adopted the unique design. This LED cabinet consumes 30% less power than the other similar products in the market.

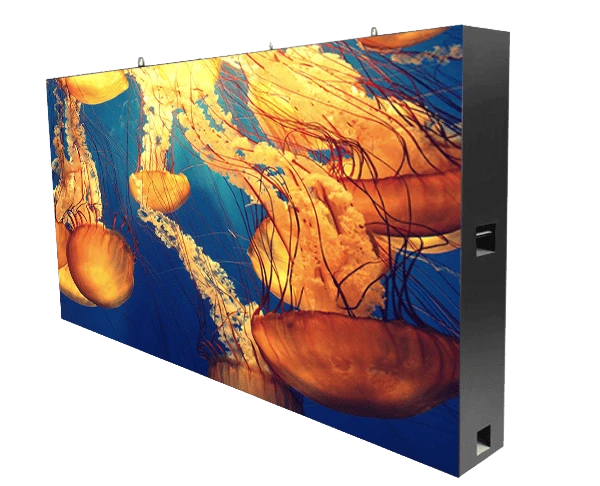

Premium LED Screen for Outdoor Advertising

Designed for outdoor advertising, our FA1 series has been proved to be a very successful front access LED screen. To make the LED display stable and reliable, we have carefully selected high-quality materials. The pixel pitches are SMD LED module: P3.9, P4.8, P5, P6.1, P6.6, P8, P10 DIP LED module: P10, P16, P20

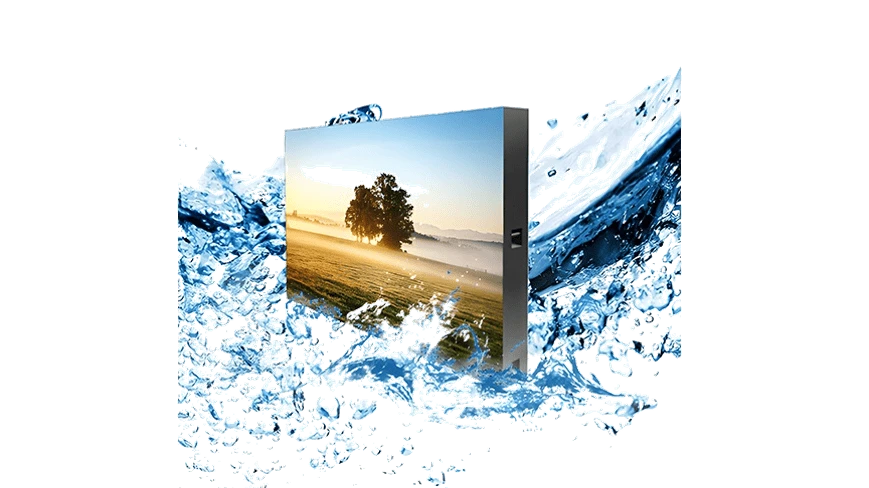

High Protection Grade

This outdoor LED cabinet can be designed to be no door, no fan and no ventilation. Therefore, the protective grade is higher than IP65. That's to say, the LED display can function well in dusty roadside and seashore.

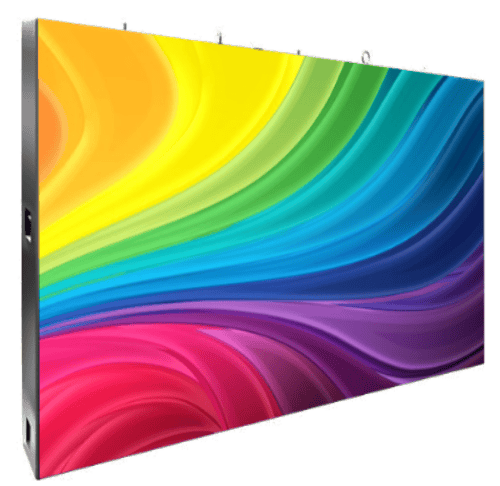

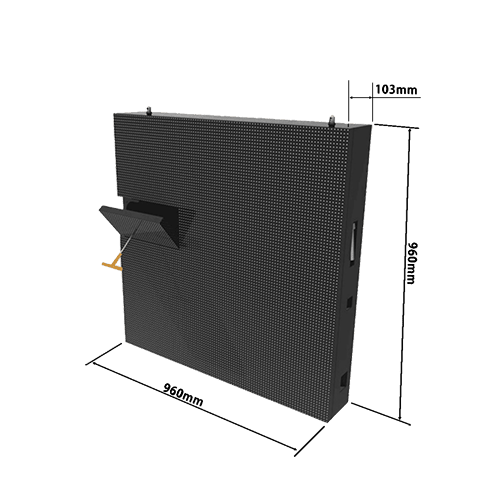

Fully Front Access Design

With fully front access design, all components, such as power box, receiving card and other accessories, can be removed in the front of the LED cabinets. 103mm Thickness and Neat Back The LED screen panel can be very thin and its back is neat, so it can be directly mounted on the wall. You don’t need to leave any space in the back.

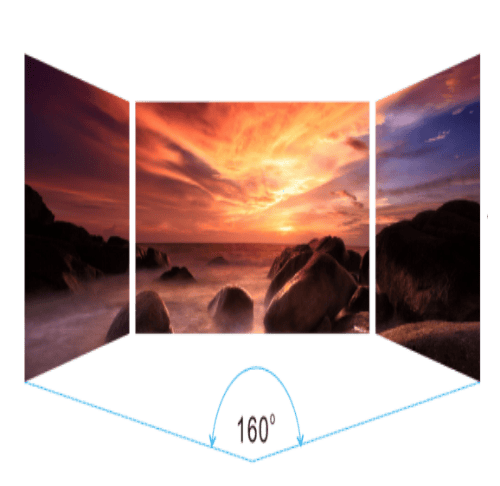

Wide Viewing Angle

We use high-quality plastic mask on the LED modules, which makes the LED screen very flat. Thus, the viewing angle is wider than that of other LED products. Moreover, the LED display is able to attract more audience.

Great Performance

We adopt the scientific design to reach 3840Hz refresh rate and 14bits grayscale. So the LED video screen won't look flickering in the camera and the visual effect will also look even more amazing.

Application Fields

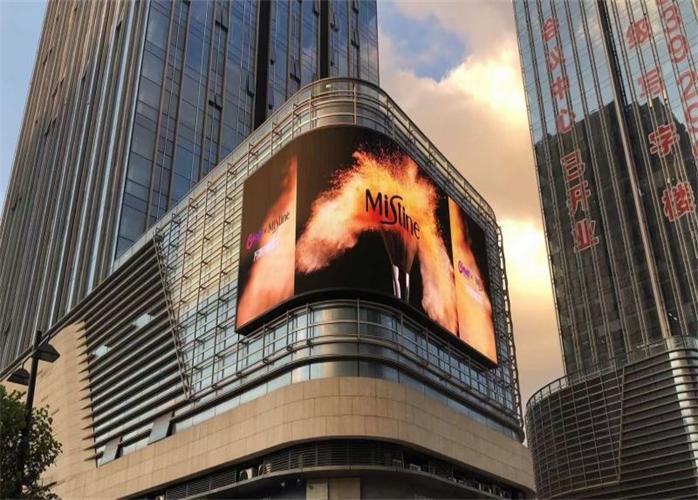

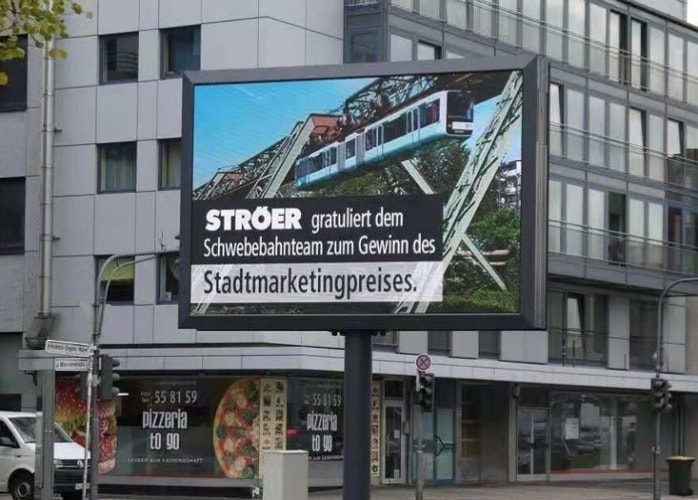

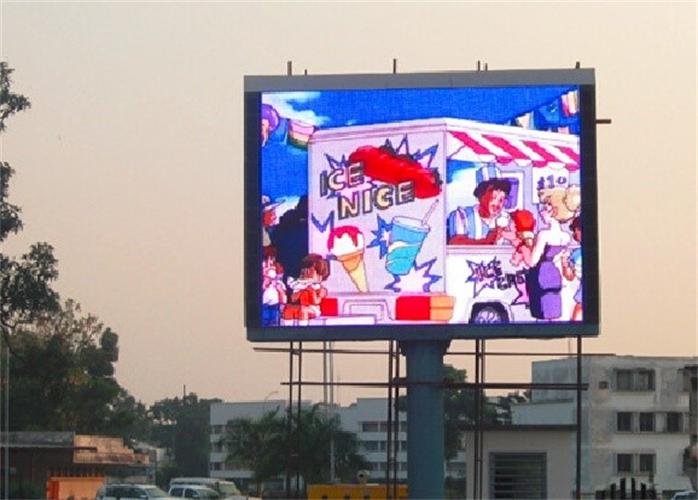

FA1 full color LED displays are mainly for outdoor advertising. They have been sold to many countries, including Australia, Qatar, Saudi, Thailand, etc. Those countries have very strong sunlight or high humidity. This product is usually used in:

Mall Advertisement; Stadiums scoreboard; Road billboard, etc.





Parameter

Item  P3.9  P4.8  P5  P6.1
Pixel Pitch  P3.906mm 4.807mm 5mm 6.154mm
LED Type  SMD1921 SMD1921 SMD1921 SMD1921
Module Resolution  64dots × 64dots    52dots × 52dots    64dots × 32dots  52dots × 26dots
Driving Mode  1/16scan or 1/8scan 1/7scan 1/8scan 1/7scan
Module Pixels  4,096dots 2,704dots 2,048dots 1,352dots
Module Size  250mm × 250mm 250mm × 250mm 320mm × 160mm 320mm × 160mm
Cabinet Size  1,000mm × 1,000mm 1,000mm × 1,000mm 960mm × 960mm 960mm × 960mm
Cabinet Resolution  256dots × 256dots      208dots × 208dots      192dots ×192dots 156dots × 156dots
Pixel Density  65,536dots/㎡ 43,264dots/㎡ 40,000dots/㎡ 26,406.25dots/㎡
Minimum Viewing Distance  ≥3.9m ≥4.8m ≥5m ≥6m
Brightness  5,000nits or 6,500nits 6500nits 6,000nits 6,000nits
IP Grade  IP65 IP65 IP65 IP65
Refresh Rate  1,920Hz~3,840Hz 1,920Hz~3,840Hz 1,920Hz~3,840Hz 1,920Hz~3,840Hz
Gray Scale  13bits~24bits 13bits~24bits 13bits~24bits 13bits~24bits
Viewing Angle  H:110° / V:110° H:110° / V:110° H:110° / V:110° H:110° / V:110°
Maximum Power Consumption   750W/㎡ or 1000W/㎡ 1000W/㎡ 750W/㎡ 750W/㎡
Average Power Consumption 250W/㎡ or 330W/㎡ 330W/㎡ 250W/㎡ 250 W/㎡
Input Voltage  AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature  ﹣20℃~50℃  ﹣20℃~50℃  ﹣20℃~50℃  ﹣20℃~50℃
Operating Humidity 10%~90% 10%~90% 10%~90% 10%~90%
Cabinet Material Iron / Aluminum Iron / Aluminum Iron / Aluminum Iron / Aluminum
Cabinet Weight  45kg/㎡ or 38kg/㎡ 45kg/㎡ or 38kg/㎡ 45kg/㎡ or 38kg/㎡ 45kg/㎡ or 38kg/㎡
Operating System  Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Item  P6.6  P8  P10
Pixel Pitch  6.667mm 8mm 10mm
LED Type  SMD2727 SMD2727 SMD2727
Module Resolution  48dots × 24dots    40dots × 40dots        32dots × 32dots
Driving Mode  1/6scan 1/4scan 1/2scan
Module Pixels  1,152dots 1,600dots 1,024dots
Module Size  320mm × 320mm 320mm × 320mm 320mm × 320mm
Cabinet Size  960mm × 960mm 960mm × 960mm 960mm × 960mm
Cabinet Resolution        144dots × 144dots       120dots × 120dots 96dots × 96dots
Pixel Density  22,500dots/㎡ 15,625dots/㎡ 10,000dots/㎡
Minimum Viewing Distance  ≥6.67m ≥8m ≥10m
Brightness  6,000nits 6,000nits 6,000nits
IP Grade  IP65 IP65 IP65
Refresh Rate  1,920Hz~3,840Hz 1,920Hz~3,840Hz 1,920Hz~3,840Hz
Gray Scale  13bits~24bits 13bits~24bits 13bits~24bits
Viewing Angle  H:110° / V:110° H:110° / V:110° H:110° / V:110°
Maximum Power Consumption   680W/㎡ 800W/㎡ 800W/㎡
Average Power Consumption 220W/㎡ 260W/㎡ 260W/㎡
Input Voltage  AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz/60Hz AC110V~AC220V @ 50Hz/60Hz
Operating Temperature  ﹣20℃~50℃  ﹣20℃~50℃  ﹣20℃~50℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Iron / Aluminum Iron / Aluminum Iron / Aluminum
Cabinet Weight  45kg/㎡ or 38kg/㎡ 45kg/㎡ or 38kg/㎡ 45kg/㎡ or 38kg/㎡
Operating System  Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Item  P10  P16  P20
Pixel Pitch  10mm 16mm 20mm
LED Type  DIP346 DIP346 DIP346
Module Resolution  32dots × 16dots           20dots × 10dots       16dots × 8dots
Driving Mode  1/4scan static  static
Module Pixels  512dots 200dots 128dots
Module Size  320mm × 160mm 320mm × 160mm 320mm × 160mm
Cabinet Size  960mm × 960mm 960mm × 960mm 960mm × 960mm
Cabinet Resolution  96dots × 96dots 60dots × 60dots      48dots × 48dots
Pixel Density  10,000 dots/㎡ 3,906dots/㎡ 2,500dots/㎡
Minimum Viewing Distance  ≥10m  ≥16m ≥20m
Brightness  7,000nits 7,000nits 6,000nits
IP Grade  IP65 IP65 IP65
Refresh Rate  1,920Hz~3,840Hz 1,920Hz~3,840Hz 1,920Hz~3,840Hz
Gray Scale  13bits~24bits 13bits~24bits 13bits~24bits
Viewing Angle  H:110° / V:55° H:110° / V:55° H:110° / V:55°
Maximum Power Consumption   530W/㎡ 500W/㎡ 500W/㎡
Average Power Consumption 170W/㎡ 160W/㎡ 160W/㎡
Input Voltage  AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature  ﹣20℃~50℃  ﹣20℃~50℃  ﹣20℃~50℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Iron / Aluminum Iron / Aluminum Iron / Aluminum
Cabinet Weight  65kg/㎡ or 55kg/㎡ 65kg/㎡ or 55kg/㎡ 65kg/㎡ or 55kg/㎡
Operating System  Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
