Flexible Led Display FL Series P1.9, P2.5, P3.8

Product Description

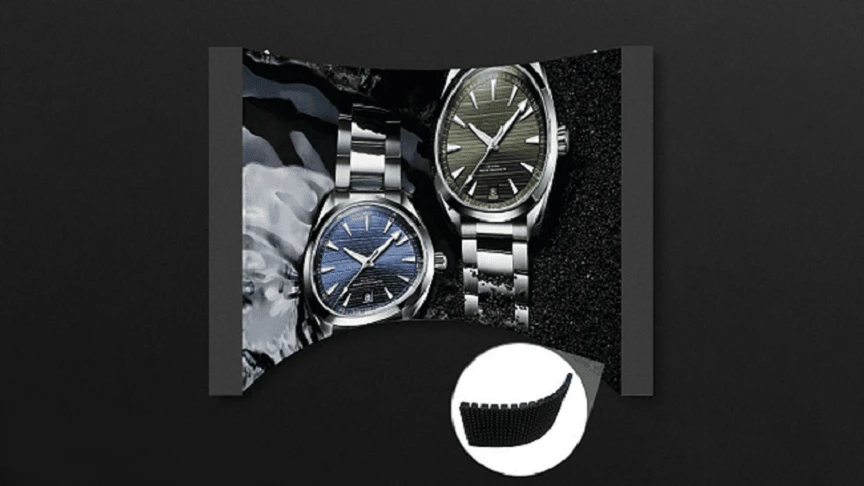

Multiple Curves

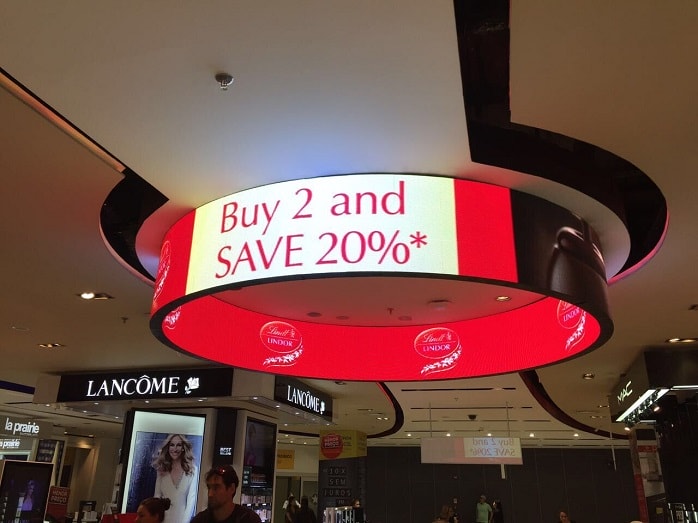

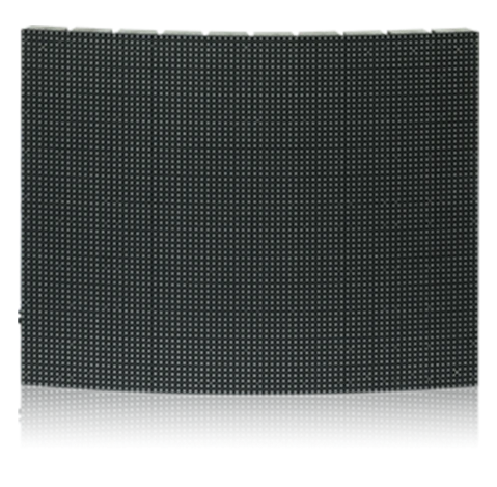

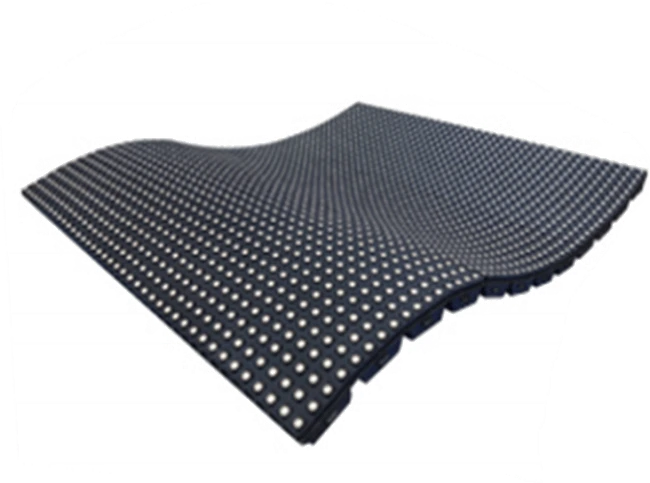

The flexible LED module uses soft type material，which makes it possible to be folded into multiple curves or angles. The smallest diameter of a round LED display is only 480mm(1.57'). And 5 modules could be made into a mini circle.

Reliable Display Performance

Even when the LED module is shaped into an irregular display configuration, the components on the PCB remain stable.

Smooth Surface

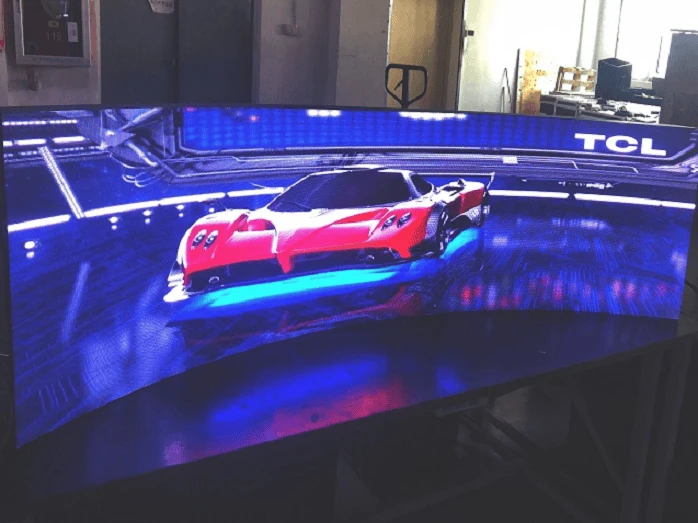

The smooth surface of the FL Series modules allows for: Flat, Concave, Convex, S Shape screen construction.

Superior Resolution

The PREMTECO FL Series P1.9 and P2.5 are industry setting, superior display resolutions.

Slim Shape

The thickness of the module is only 30mm. There are various kinds of shapes to fit projects. We could also make double face flexible LED display as well, and its thickness is only 130mm.

IP68 Rated

The P3.8 outdoor is manufactured with an IP68 humidity and dustproof rating.

Application Fields

In order to fit each different scene, the flexible LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:

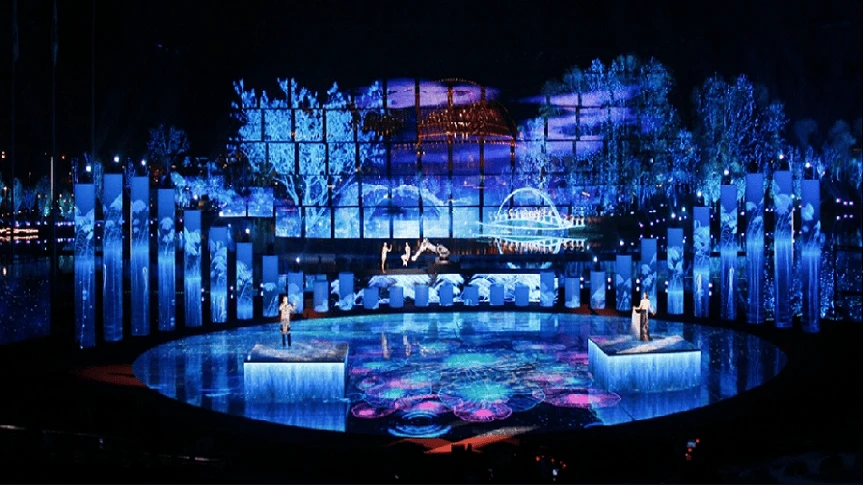

Stages; Exhibition events; Shopping centers.

Parameter

Spec1 Spec2 Spec3

Item	P1.9	P2.5	P3.8	P3.8
Pixel Pitch	1.905mm	2.54mm	3.81mm	3.81mm
LED Type	SMD1515	SMD1921	SMD2020	SMD1921 (outdoor)
Module Resolution	160dots × 160dots	120dots × 120dots	80dots × 80dots	80dots × 80dots
Driving Mode	1/32scan	1/30scan	1/16scan	1/13scan
Module Pixels	25,600dots	14,400dots	6,400dots	6,400dots
Module Size	304.8mm × 304.8mm	304.8mm × 304.8mm	304.8mm × 304.8mm	304.8mm × 304.8mm
Cabinet Size	Customized	Customized	Customized	Customized
Cabinet Resolution	Customized	Customized	Customized	Customized
Pixel Density	275,556.1dots/㎡	155,000.31dots/㎡	68,889.02dots/㎡	68,889.02dots/㎡
Minimum Viewing Distance	≥1.9m	≥2.5m	≥3.8m	≥3.8m
Brightness	800nits～1,000nits	800nits～1,000nits	800nits～1,000nits	5,000nits～6,500nits
IP Grade	IP43	IP43	IP43	IP68
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	13bits～24bits	13bits～24bits	13bits～24bits	13bits～24bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	800W/㎡	800W/㎡	800W/㎡	800W/㎡
Average Power Consumption	230W/㎡	230W/㎡	230W/㎡	230W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Aluminum	Aluminum	Iron / Aluminum	Iron / Aluminum
Cabinet Weight	35kg/㎡	35kg/㎡	50kg/㎡ or 40kg/㎡	50kg/㎡ or 40kg/㎡
Operating System	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
