Flexible LED Screen-P1.5, P1.9, P3.9, P6, P8, P10.

Inquiry
Download

Multiple Curves

Smooth Surface

Slim Shape

Intelligent Design

High Resolution

Outdoor IP68 Protection Level

Product Description

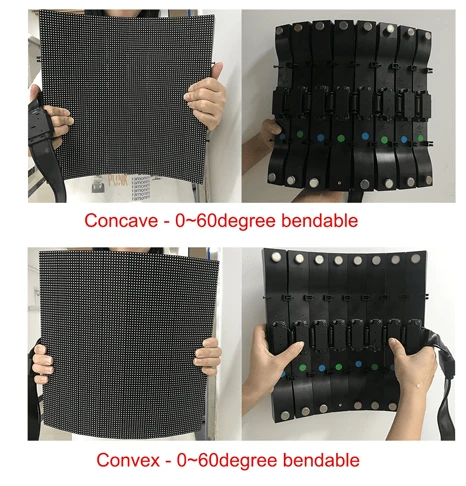

Multiple Curves

The LED module uses soft type material, which makes it possible to be folded into multiple curves or angles.

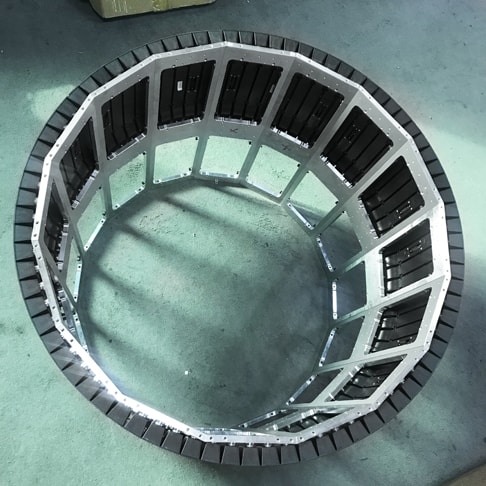

The smallest diameter of a round LED display is only 600mm(1.97'). And 8 modules could be made into a mini circle.

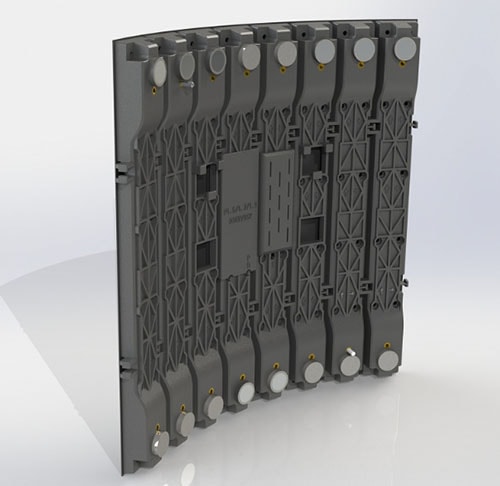

Intelligent Design

Max bending angle is 72°. The PCB and LED will not be damaged with the protect of hard plastic housing. Joint connector design between 2 modules, keeps screen seamless and no displacement.

Smooth Surface

The smooth surface of the FL Pro Series modules allows for: Flat, Concave, Convex, S Shape screen construction.

Superior Resolution

The PREMTECO FL Pro Series P1.5, P1.7 and P1.9 are industry setting, superior display resolutions.

Slim Shape

Slim PCB: PCB thickness is only 0.6mm with 6 layer
Slim Module: Each Module thickness is 26.6mm including magnet
Slim Structure: One Structure could be a slim pieces of iron plate which enable to make varies kinds of shape to suitble for project

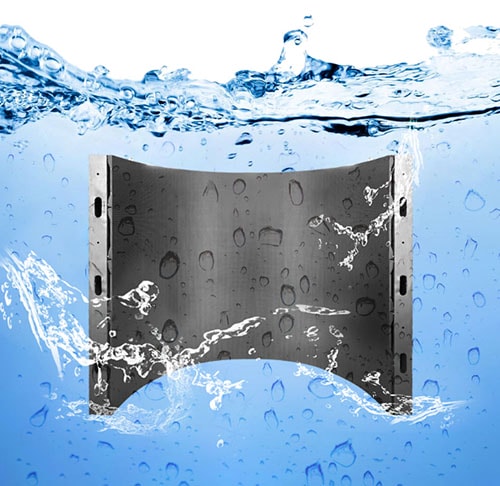

IP68 Rated

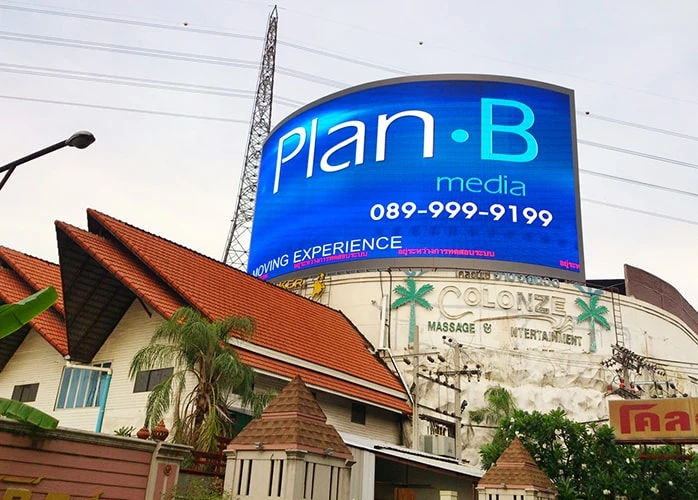

Outdoor flexible LED module is available. With the innovated technology, we launched the first outdoor flexible LED display in 2018. The pixel pitch is P3.8 and it has IP68 level of waterproof and dustproof.

Application Fields

In order to fit each different scene, the flexible LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:

Stages; Exhibition events; Shopping centers.

Parameter

Spec1 Spec2 Spec3
Item P1.5 P1.7  P1.9  P2.6
Pixel Pitch  1.5625mm 1.736mm 1.953mm 2.604mm
LED Type  SMD1010 SMD1010 SMD1010 SMD1515
Module Resolution  160dots × 160dots    144dots × 144dots    128dots × 128dots  96dots × 96dots
Driving Mode  1/32scan 1/29scan 1/32scan 1/24scan
Module Pixels  25,600dots 20,736dots 16,384dots 9,216dots
Module Size  250mm × 250mm 250mm × 250mm 250mm × 250mm 250mm × 250mm
Cabinet Size  Customized Customized Customized Customized
Cabinet Resolution  Customized Customized Customized Customized
Pixel Density  409,600dots/㎡ 331,776dots/㎡ 262,144dots/㎡ 147,456dots/㎡
Minimum Viewing Distance  ≥1.5m ≥1.7m ≥1.9m ≥2.6m
Brightness  800nits～1,000nits 800nits～1,000nits 800nits～1,000nits 800nits～1,000nits
IP Grade  IP43 IP43 IP43 IP43
Refresh Rate  ≥3,840Hz ≥3,840Hz ≥3,840Hz ≥3,840Hz
Gray Scale  13bits～24bits 13bits～24bits 13bits～24bits 13bits～24bits
Viewing Angle  H:160° / V:160° H:160° / V:160° H:160° / V:160° H:160° / V:160°
Maximum Power Consumption   750W/㎡ 680W/㎡ 618W/㎡ 500W/㎡
Average Power Consumption 250W/㎡ 225W/㎡ 206W/㎡ 150W/㎡
Input Voltage  AC110V～AC220V @ 50Hz / 60Hz AC110V～AC220V @ 50Hz / 60Hz AC110V～AC220V @ 50Hz / 60Hz AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature  ﹣20℃～65℃  ﹣20℃～65℃  ﹣20℃～65℃  ﹣20℃～65℃
Operating Humidity 10%～90% 10%～90% 10%～90% 10%～90%
Cabinet Material Aluminum Aluminum Aluminum Aluminum
Cabinet Weight  35kg/㎡ 35kg/㎡ 35kg/㎡ 35kg/㎡
Operating System  Windows (Win7,Win8,etc.) Windows (Win7,Win8,etc.) Windows (Win7,Win8,etc.) Windows (Win7,Win8,etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Item P3.9  P6.6  P8  P10
Pixel Pitch  3.91mm 6.667mm 8mm 10mm
LED Type  SMD2020 SMD2727(outdoor) SMD3535(outdoor) SMD3535(outdoor)
Module Resolution  64dots × 64dots    48dots × 48dots       40dots × 40dots                 32dots × 32dots
Driving Mode  1/16scan 1/6scan 1/4scan 1/2scan
Module Pixels  4,096dots 2,304dots 1,600dots 1,024dots
Module Size  250mm × 250mm 320mm × 320mm 320mm × 320mm 320mm × 320mm
Cabinet Size  Customized Customized Customized Customized
Cabinet Resolution  Customized Customized Customized Customized
Pixel Density  65,536dots/㎡ 22,500dots/㎡ 15,625dots/㎡ 10,000dots/㎡
Minimum Viewing Distance  ≥3.9m ≥6.6m ≥8m ≥10m
Brightness  800nits～1,000nits 5,500nits 5,500nits 5,500nits
IP Grade  IP43 IP68 IP68 IP68
Refresh Rate  ≥3,840Hz 1,920Hz～3,840Hz 1,920Hz～3,840Hz 1,920Hz～3,840Hz
Gray Scale  13bits～24bits 13bits～24bits 13bits～24bits 13bits～24bits
Viewing Angle  H:160° / V:160° H:160° / V:160° H:160° / V:160° H:160° / V:160°
Maximum Power Consumption   350W/㎡ 800W/㎡ 800W/㎡ 800W/㎡
Average Power Consumption 105W/㎡ 230W/㎡ 230W/㎡ 230W/㎡
Input Voltage  AC110V～AC220V @ 50Hz / 60Hz AC110V～AC220V @ 50Hz / 60Hz AC110V～AC220V @ 50Hz/60Hz AC110V～AC220V @ 50Hz/60Hz
Operating Temperature  ﹣20℃～65℃  ﹣20℃～65℃  ﹣20℃～65℃  ﹣20℃～65℃
Operating Humidity 10%～90% 10%～90% 10%～90% 10%～90%
Cabinet Material Iron / Aluminum Iron / Aluminum Iron / Aluminum Iron / Aluminum
Cabinet Weight  50kg/㎡ or 40kg/㎡ 50kg/㎡ or 40kg/㎡ 50kg/㎡ or 40kg/㎡ 50kg/㎡ or 40kg/㎡
Operating System  Windows (Win7,Win8,etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Item P3.9  P6.6  P8  P10
Pixel Pitch  3.91mm 6.667mm 8mm 10mm
LED Type  SMD2020 SMD2727(outdoor) SMD3535(outdoor) SMD3535(outdoor)
Module Resolution  64dots × 64dots    48dots × 48dots       40dots × 40dots                 32dots × 32dots
Driving Mode  1/16scan 1/6scan 1/4scan 1/2scan
Module Pixels  4,096dots 2,304dots 1,600dots 1,024dots
Module Size  250mm × 250mm 320mm × 320mm 320mm × 320mm 320mm × 320mm
Cabinet Size  Customized Customized Customized Customized
Cabinet Resolution  Customized Customized Customized Customized
Pixel Density  65,536dots/㎡ 22,500dots/㎡ 15,625dots/㎡ 10,000dots/㎡
Minimum Viewing Distance  ≥3.9m ≥6.6m ≥8m ≥10m
Brightness  800nits～1,000nits 5,500nits 5,500nits 5,500nits
IP Grade  IP43 IP68 IP68 IP68
Refresh Rate  ≥3,840Hz 1,920Hz～3,840Hz 1,920Hz～3,840Hz 1,920Hz～3,840Hz
Gray Scale  13bits～24bits 13bits～24bits 13bits～24bits 13bits～24bits
Viewing Angle  H:160° / V:160° H:160° / V:160° H:160° / V:160° H:160° / V:160°
Maximum Power Consumption   350W/㎡ 800W/㎡ 800W/㎡ 800W/㎡
Average Power Consumption 105W/㎡ 230W/㎡ 230W/㎡ 230W/㎡
Input Voltage  AC110V～AC220V @ 50Hz / 60Hz AC110V～AC220V @ 50Hz / 60Hz AC110V～AC220V @ 50Hz/60Hz AC110V～AC220V @ 50Hz/60Hz
Operating Temperature  ﹣20℃～65℃  ﹣20℃～65℃  ﹣20℃～65℃  ﹣20℃～65℃
Operating Humidity 10%～90% 10%～90% 10%～90% 10%～90%
Cabinet Material Iron / Aluminum Iron / Aluminum Iron / Aluminum Iron / Aluminum
Cabinet Weight  50kg/㎡ or 40kg/㎡ 50kg/㎡ or 40kg/㎡ 50kg/㎡ or 40kg/㎡ 50kg/㎡ or 40kg/㎡
Operating System  Windows (Win7,Win8,etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
