OR1 Pro

Product Description

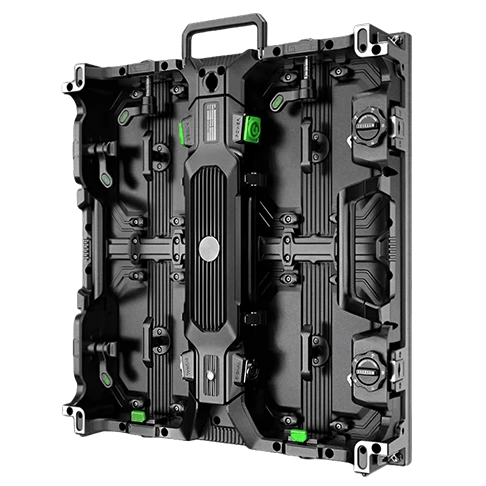

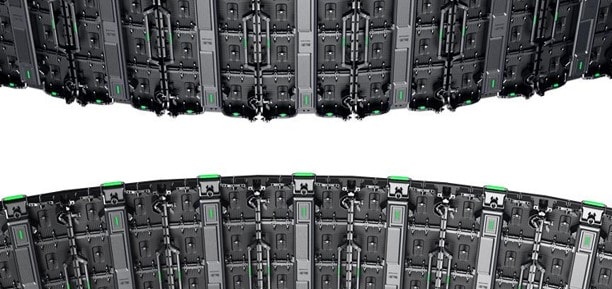

Great Cabinet Design

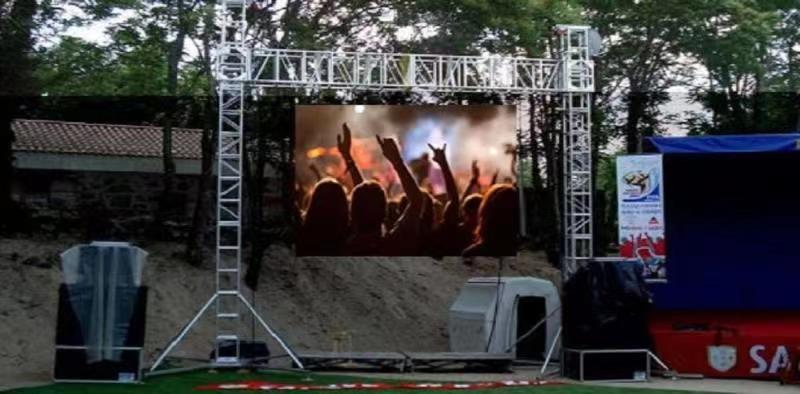

Outdoor rental LED screen aims at different kinds of outdoor events. Multiple ways of protection effectively protect the LED module from damage. Fast locks for tighter assemble with no gap. Dia-casting aluminum makes the cabinet dissipate heat greatly for outdoor applications.

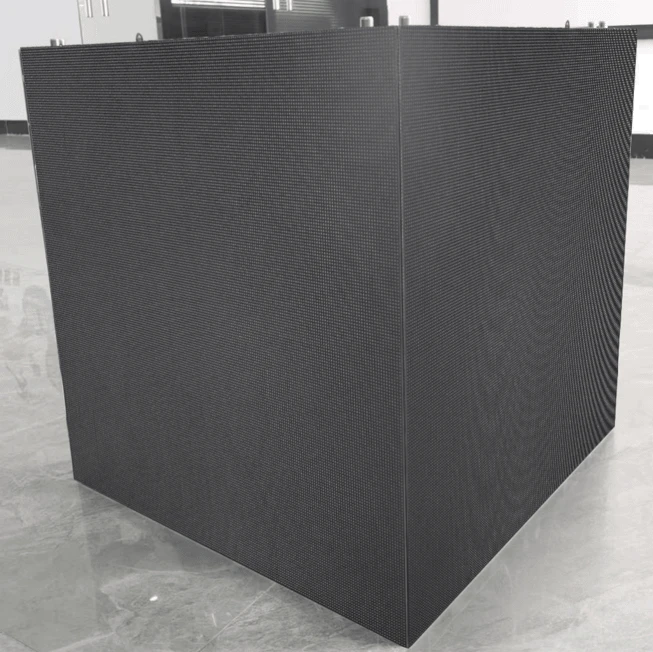

45° cutting angle design

With 45° cutting angle design, the OR1 Pro LED display cabinets can be assembled at seamless 90˚ angles, so that it can meet a variety of installation requirements.

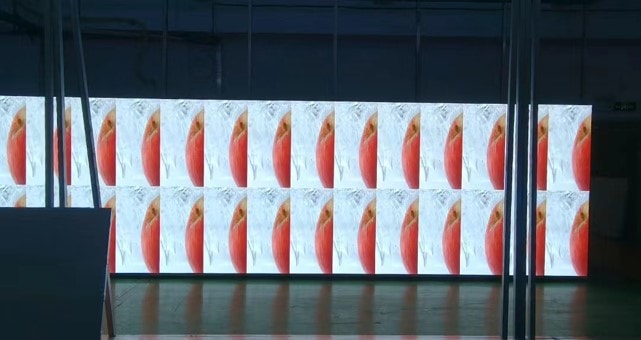

Flexible Installation

To meet the requirements of customers in different application scenarios, 2 cabinet sizes are available. One of the cabinet size is 500mm x 500mm, and another one is 500mm x 1000mm, which makes installation flexible during the event.

Removable power supply

The power supply box is easy to disassemble, you only need to open the button next to the box, and you can easily replace it.

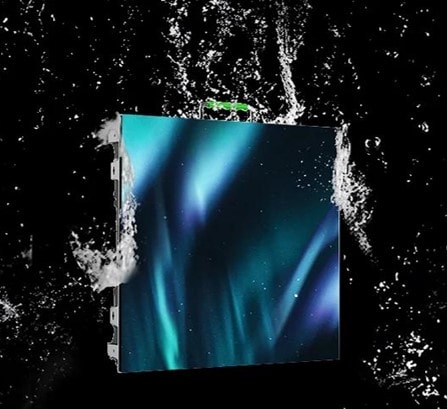

IP65 - Safe and Reliable

LED big screen adopts the automatic glue filling machine process, so it will effectively protect it from water and dust. High IP Rating (IP65) ensures great outputs in every condition.

Stunning Vision

With high quality material and great design, the screen looks extraordinary. Meanwhile, black outdoor LED technology is optional, and the outdoor rental LED screen stands out with a peerless visual performance.

Application Files

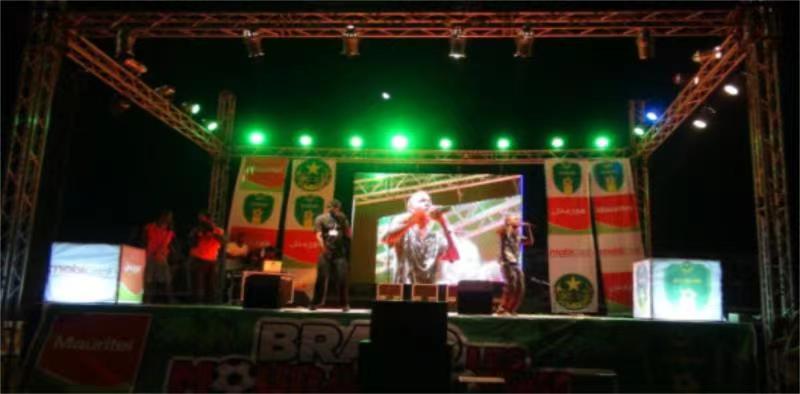

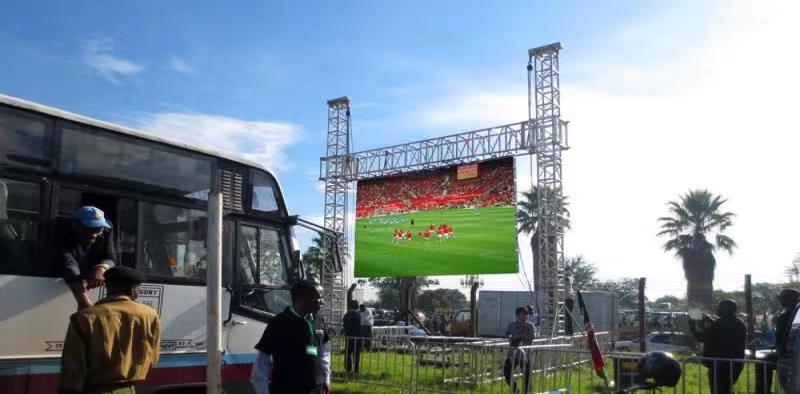

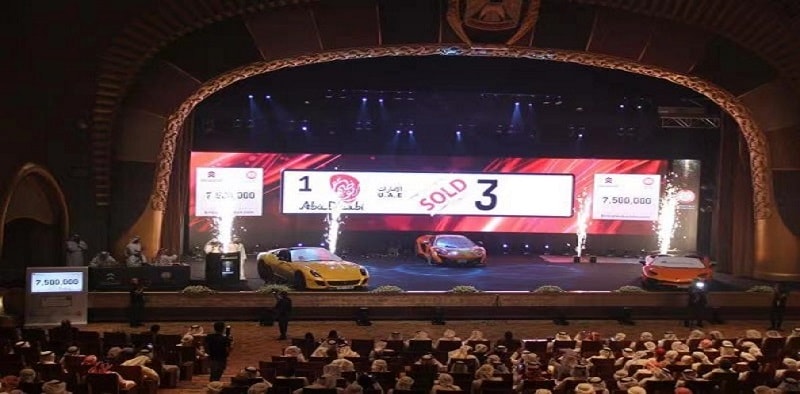

Cinemas; Stages; Advertisements; Sports Events.

Parameter

Spec1 Spec2 Spec3

Item	P2.9	P3.9	P4.8
Pixel Pitch	2.976mm	3.906mm	4.807mm
LED Type	SMD1415	SMD1921	SMD1921
Module Resolution	84dots × 84dots	64dots × 64dots	52dots × 52dots
Driving Mode	1/ 21scan	1/16scan	1/13scan
Module Pixels	7,056dots	4,096dots	2,704dots
Module Size	250mm × 250mm	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm × 500mm	500mm × 500mm or 500mm x 1000mm	500mm × 500mm or 500mm x 1000mm
Cabinet Resolution	168dots × 168dots	128dots × 128dots or 128dots × 256dots	104dots × 104dots or 104dots × 208dots
Pixel Density	112,896dots/㎡	65,536dots/㎡	43,264dots/㎡
Minimum Viewing Distance	≥2.9 m	≥3.9 m	≥4.8 m
Brightness	≥4,000nits	≥4,000nits	≥4,000nits
IP Grade	IP65	IP65	IP65
Refresh Rate	3,840Hz～7,680Hz	3,840Hz～7,680Hz	3,840Hz～7,680Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	550W/㎡	550W/㎡	550W/㎡
Average Power Consumption	185W/㎡	185W/㎡	185W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	9kg/panel	9kg/panel or 14kg/panel	9kg/panel or 14kg/panel
Operating System	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P2.9	P3.9	P4.8
Pixel Pitch	2.976mm	3.906mm	4.807mm
LED Type	SMD1415	SMD1921	SMD1921
Module Resolution	84dots × 84dots	64dots × 64dots	52dots × 52dots
Driving Mode	1/ 21scan	1/16scan	1/13scan
Module Pixels	7,056dots	4,096dots	2,704dots
Module Size	250mm × 250mm	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm × 500mm	500mm × 500mm or 500mm x 1000mm	500mm × 500mm or 500mm x 1000mm
Cabinet Resolution	168dots × 168dots	128dots × 128dots or 128dots × 256dots	104dots × 104dots or 104dots × 208dots
Pixel Density	112,896dots/㎡	65,536dots/㎡	43,264dots/㎡
Minimum Viewing Distance	≥2.9 m	≥3.9 m	≥4.8 m
Brightness	≥4,000nits	≥4,000nits	≥4,000nits
IP Grade	IP65	IP65	IP65
Refresh Rate	3,840Hz～7,680Hz	3,840Hz～7,680Hz	3,840Hz～7,680Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	550W/㎡	550W/㎡	550W/㎡
Average Power Consumption	185W/㎡	185W/㎡	185W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	9kg/panel	9kg/panel or 14kg/panel	9kg/panel or 14kg/panel
Operating System	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P2.9	P3.9	P4.8
Pixel Pitch	2.976mm	3.906mm	4.807mm
LED Type	SMD1415	SMD1921	SMD1921
Module Resolution	84dots × 84dots	64dots × 64dots	52dots × 52dots
Driving Mode	1/ 21scan	1/16scan	1/13scan
Module Pixels	7,056dots	4,096dots	2,704dots
Module Size	250mm × 250mm	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm × 500mm	500mm × 500mm or 500mm x 1000mm	500mm × 500mm or 500mm x 1000mm
Cabinet Resolution	168dots × 168dots	128dots × 128dots or 128dots × 256dots	104dots × 104dots or 104dots × 208dots
Pixel Density	112,896dots/㎡	65,536dots/㎡	43,264dots/㎡
Minimum Viewing Distance	≥2.9 m	≥3.9 m	≥4.8 m
Brightness	≥4,000nits	≥4,000nits	≥4,000nits
IP Grade	IP65	IP65	IP65
Refresh Rate	3,840Hz～7,680Hz	3,840Hz～7,680Hz	3,840Hz～7,680Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	550W/㎡	550W/㎡	550W/㎡
Average Power Consumption	185W/㎡	185W/㎡	185W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	9kg/panel	9kg/panel or 14kg/panel	9kg/panel or 14kg/panel
Operating System	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
