IR1

Product Description

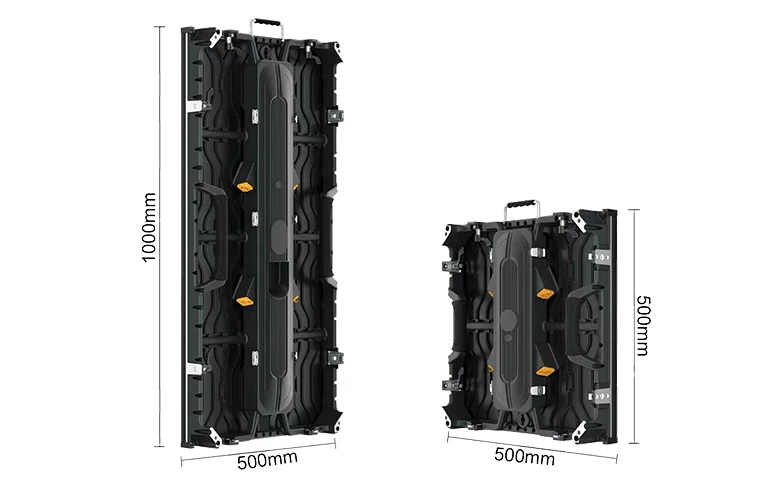

Great Cabinet Design

Handle on the top brings convenience. Protectors on the corner to protect the LEDs and cabinet. Fast lock for quick installation

Two options: 500*500mm, 500*1000mm

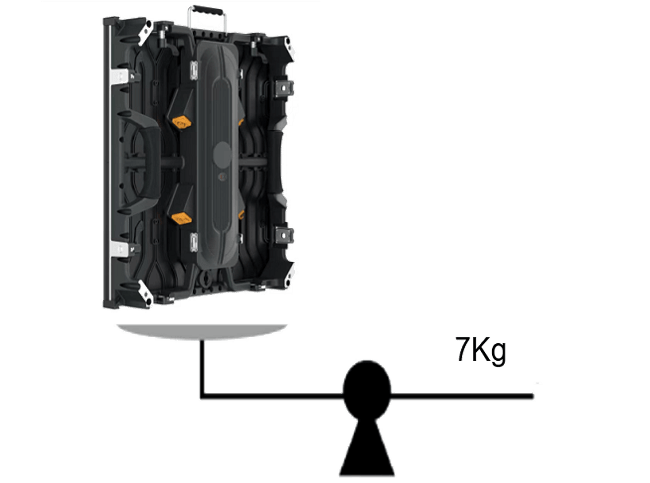

Light Weight

As the cabinet uses die-cast aluminum material, the weight of the panel is only 7 kgs, and it has great heat dissipation.

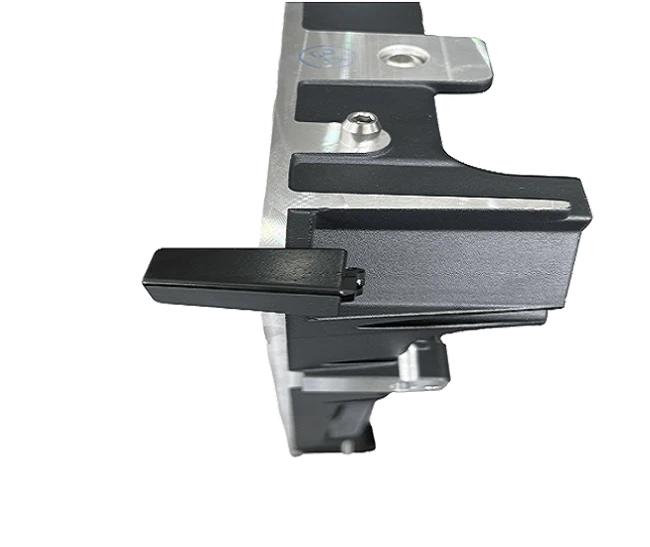

Corner Protection

Each cabinet corners are equipped with protectors, which can protect the cabinet and LEDs from damage caused by accidental collision.

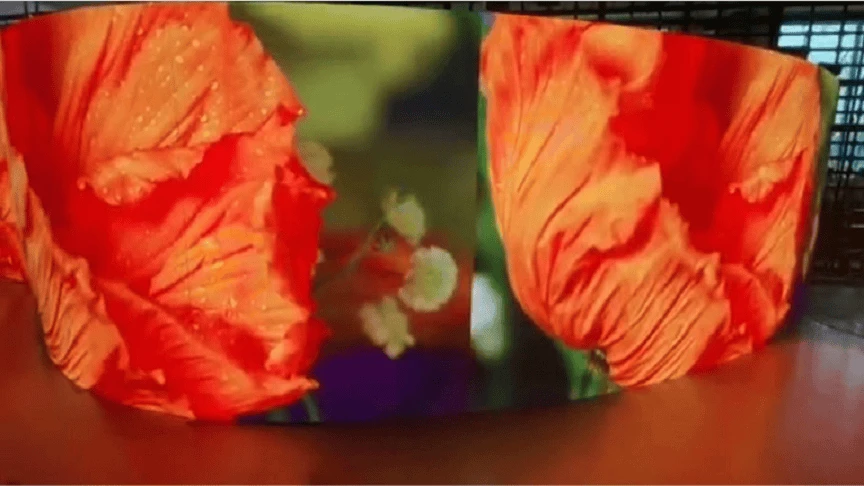

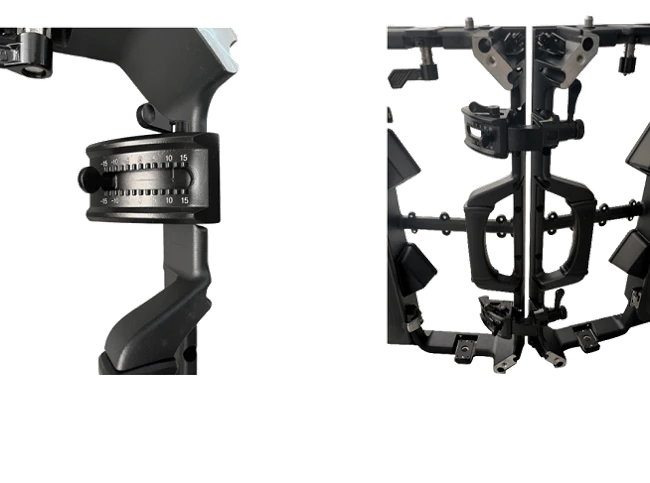

Curved Design

The lock is very secure and strong. It can be designed to be curved to form a curved screen from -15°(convex) to +15°(concave).

Excellent visual effert

With its excellent video performance, create an immersive and dynamic visual experience. Provide viewers with a dynamic and engaging visual experience.

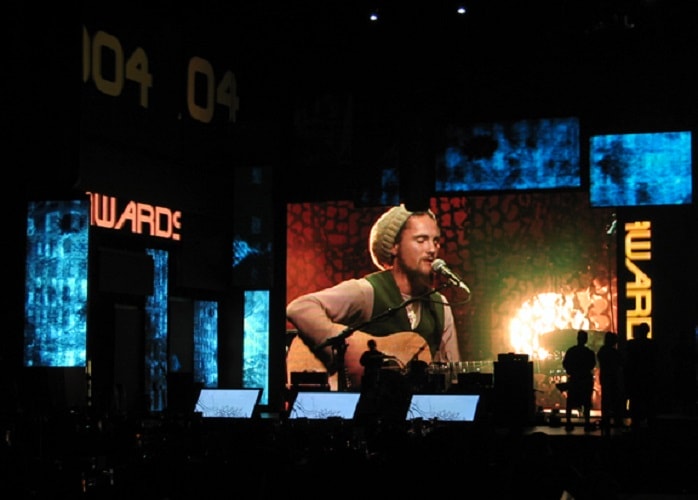

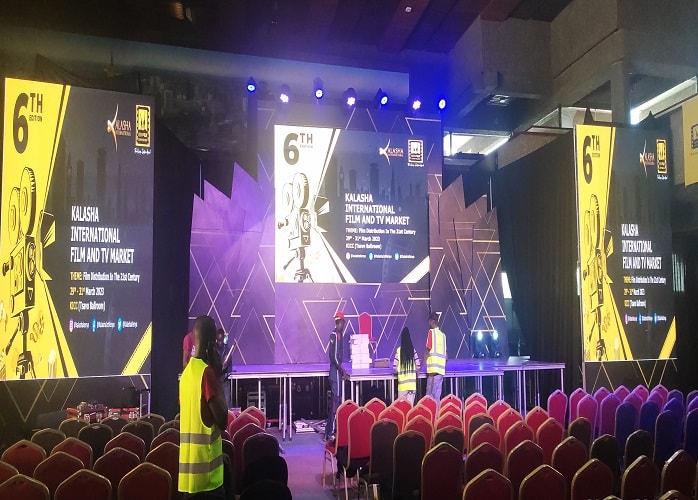

Application Files

Activity; Stages; Exhibition hall; Sports Events.

Parameter

Spec1 Spec2 Spec3

Item	P2.6	P2.9	P3.9
Pixel Pitch	2.604mm	2.976mm	3.906mm
LED Type	SMD1515	SMD1515	SMD2020
Module Resolution	96dots x 96dots	84dots x 84dots	64dots x 64dots
Driving Mode	1/32scan	1/28scan or 1/42scan	1/16scan
Module Pixels	9,216dots	7,056dots	4,096dots
Module Size	250mm x 250mm	250mm x 250mm	250mm x 250mm
Cabinet Size	500mm x 500mm	500mm x 500mm	500mm x 500mm or 500mm x 1,000mm
Cabinet Resolution	192dots x 192dots	168dots x 168dots	128dots x 128dots or 128dots x 256dots
Pixel Density	147,456dots/m²	112,896dot/m²	65,536dots/m²
Minimum Viewing Distance	≥2.6m	≥2.9m	≥3.9m
Brightness	600nits~800nits	600nits~800nits	800nits~1,200nits
IP Grade	IP43	IP43	IP43
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	13bits~18bits	13bits~18bits	13bits~18bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	520W/m²	520W/m² or 300W/m²	520W/m²
Average Power Consumption	175W/m²	175W/m² or 100W/m²	175W/m²
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃~65℃	﹣20℃~65℃	﹣20℃~65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	7kg/panel	7kg/panel	7kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P2.9	P3.9	P4.8
Pixel Pitch	2.976mm	3.906mm	4.807mm
LED Type	SMD1515	SMD2020	SMD2020
Module Resolution	84dots x 84dots	64dots x 64dots	52dots x 52dots
Driving Mode	1/28scan or 1/42scan	1/16scan	1/13scan
Module Pixels	7,056dots	4,096dots	2,704dots
Module Size	250mm x 250mm	250mm x 250mm	250mm x 250mm
Cabinet Size	500mm x 500mm	500mm x 500mm or 500mm x 1,000mm	500mm x 500mm or 500mm x 1,000mm
Cabinet Resolution	168dots x 168dots	128dots x 128dots or 128dots x 256dots	104dots x 104dots or 104dots x 208dots
Pixel Density	112,896dot/m²	65,536dots/m²	43,264dots/m²
Minimum Viewing Distance	≥2.9m	≥3.9m	≥4.8m
Brightness	600nits~800nits	800nits~1,200nits	800nits~1,200nits
IP Grade	IP43	IP43	IP43
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	13bits~18bits	13bits~18bits	13bits~18bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	520W/m² or 300W/m²	520W/m²	520W/m²
Average Power Consumption	175W/m² or 100W/m²	175W/m²	175W/m²
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃~65℃	﹣20℃~65℃	﹣20℃~65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	7kg/panel	7kg/panel or 15kg/panel	7kg/panel or 15kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P2.9	P3.9	P4.8
Pixel Pitch	2.976mm	3.906mm	4.807mm
LED Type	SMD1515	SMD2020	SMD2020
Module Resolution	84dots x 84dots	64dots x 64dots	52dots x 52dots
Driving Mode	1/28scan or 1/42scan	1/16scan	1/13scan
Module Pixels	7,056dots	4,096dots	2,704dots
Module Size	250mm x 250mm	250mm x 250mm	250mm x 250mm
Cabinet Size	500mm x 500mm	500mm x 500mm or 500mm x 1,000mm	500mm x 500mm or 500mm x 1,000mm
Cabinet Resolution	168dots x 168dots	128dots x 128dots or 128dots x 256dots	104dots x 104dots or 104dots x 208dots
Pixel Density	112,896dot/m²	65,536dots/m²	43,264dots/m²
Minimum Viewing Distance	≥2.9m	≥3.9m	≥4.8m
Brightness	600nits~800nits	800nits~1,200nits	800nits~1,200nits
IP Grade	IP43	IP43	IP43
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	13bits~18bits	13bits~18bits	13bits~18bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	520W/m² or 300W/m²	520W/m²	520W/m²
Average Power Consumption	175W/m² or 100W/m²	175W/m²	175W/m²
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃~65℃	﹣20℃~65℃	﹣20℃~65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	7kg/panel	7kg/panel or 15kg/panel	7kg/panel or 15kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
