Outdoor Rental LED Display

Product Description

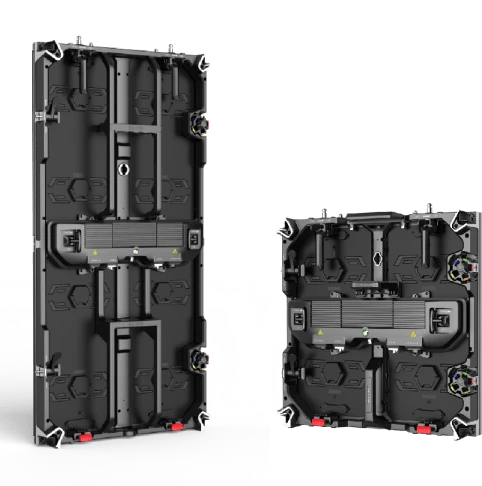

Cabinet Size

Size: 500mm x1000mm x 74.3mm or 500mm x 500mm x 74.3mm Weight: 12.5kg/panel or 9kg/panel Maintenance: Front / Rear

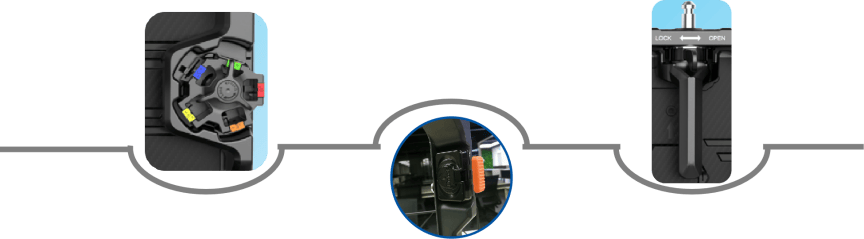

Unique Lock System

Side Curve Lock: unique unilateral arc lock design with -6, -3, 0, +3, +6 degrees of internal and external arc splicing, meet various stage needs, to do the creative screen design. Automatic lock System: innovation lock system for installation within 5s by one-man installation without tool.

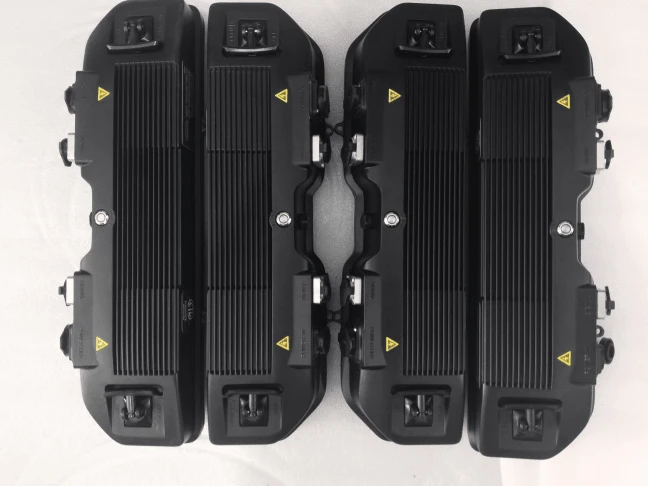

Excellent Power Box

Detachable independent control box with PSU and receiving card for fast replacement. We add breathable valve in every power box to adjust the air pressure. Louver heat sink structure, increasing its heat dissipation area, more effective. Waterproof rings prevent water damaging the components and prolong its lifetime.

More Angles, More Creativity

The LED screen can be any shape, for example, round shape, flat shape, which enables more possibilities of your stage design.

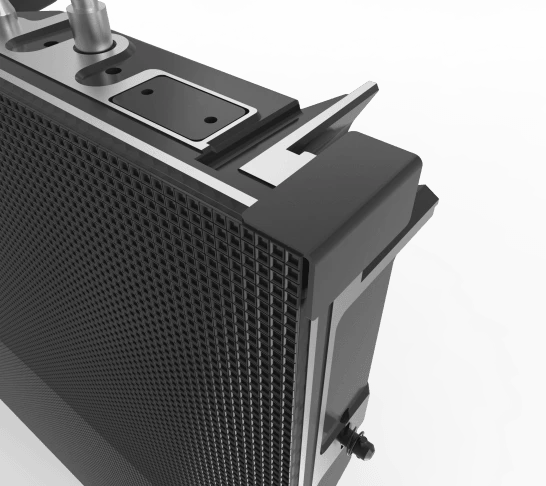

Double Corner Protection

There are protectors on the corners of the modules and cabinet reduce damage rate and repair cost of the cabinet and SMD. We add additional die-casting aluminum corner to further strengthen the protection of leds.

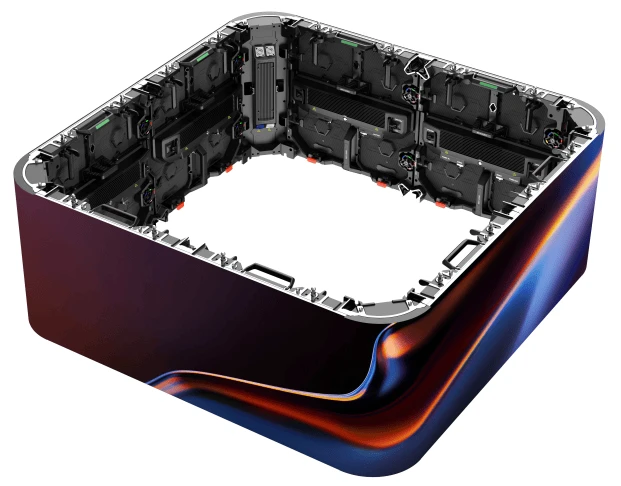

Seamless Round Corner

500mmx1000mm cabinet can do 90 degree round corner with 0 gap, the peripheral degree is 125.9. 500mm x 500mm cabinet also can do gapless 90 degree round corner.

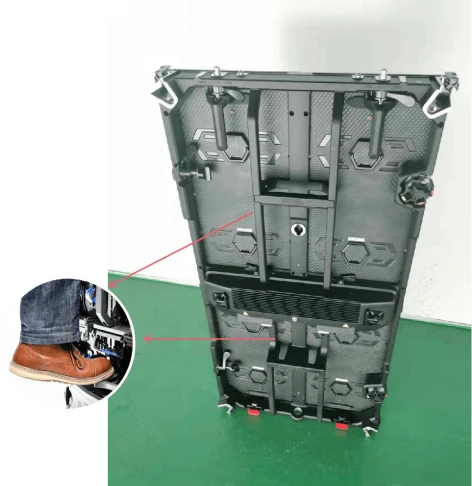

Climbable Handle

The strong handle can be used as a ladder to climb up for fixing the problems if the faulty LED panel is several meters off the ground.

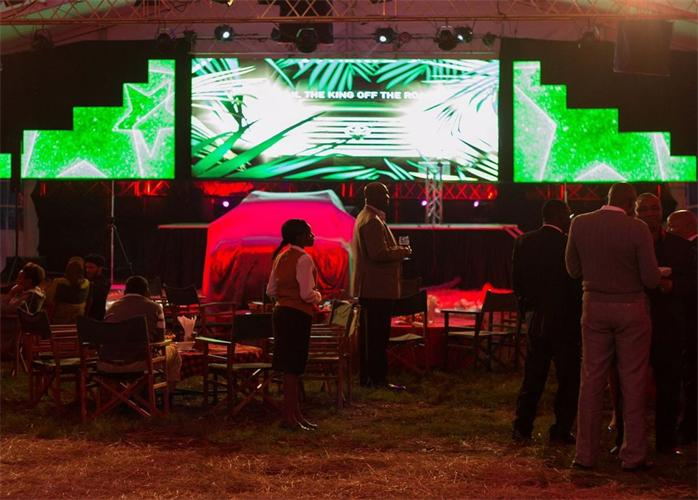

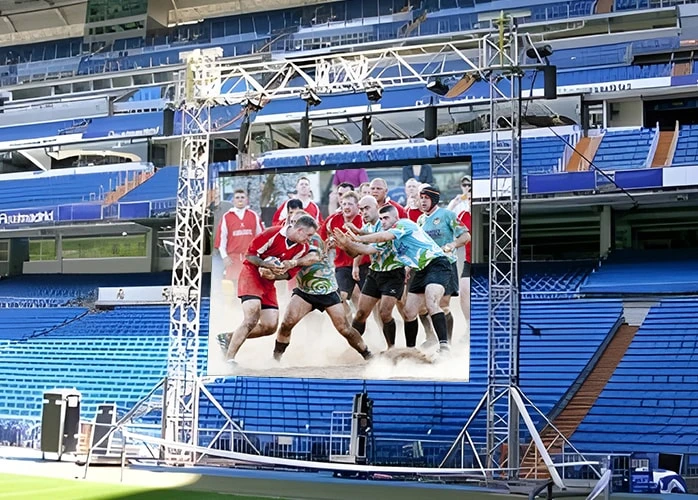

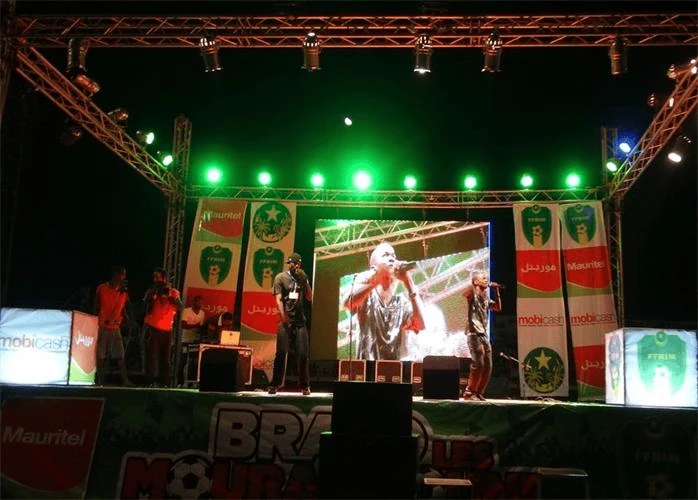

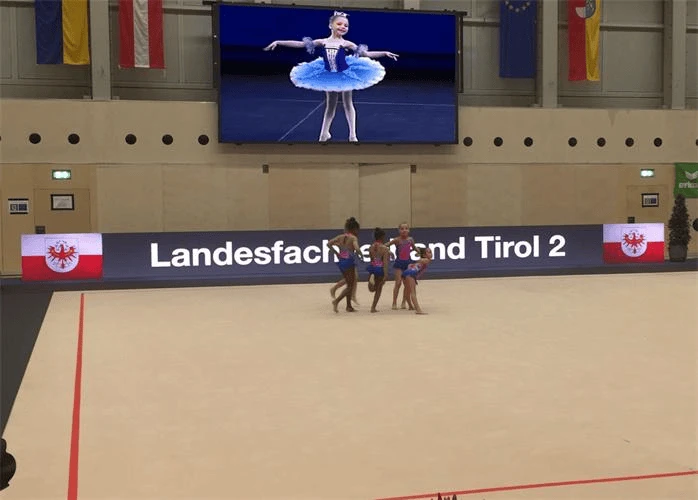

Application Fields

To fit every different scene, the outdoor full color LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:

Cinemas; Stages; Advertisements.

Parameter

Spec1 Spec2 Spec3

Item	P3.9	P4.8
Pixel Pitch	3.906mm	4.807mm
LED Type	SMD1921	SMD1921
Module Resolution	64dots × 64dots	52dots × 52dots
Driving Mode	1/16scan	1/13scan
Module Pixels	4,096dots	2,704dots
Module Size	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm × 500mm or 500mm × 1,000mm	500mm × 500mm or 500mm × 1,000mm
Cabinet Resolution	128dots × 128dots or 128dots × 256dots	104dots × 104dots or 104dots × 208dots
Pixel Density	65,536dots/㎡	43,264dots/㎡
Minimum Viewing Distance	≥3.9 m	≥4.8 m
Brightness	≥4,500nits	≥4,500nits
IP Grade	IP66	IP66
Refresh Rate	≥3,840Hz	≥3,840Hz
Gray Scale	≥15bits	≥15bits
Viewing Angle	H:160° / V: 90°	H:160° / V:90°
Maximum Power Consumption	700W/㎡	700W/㎡
Average Power Consumption	210W/㎡	210W/㎡
Input Voltage	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	9kg/panel or 12.5kg/panel	7.5kg/panel or 12.5kg/panel
Operating System	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P3.9	P4.8
Pixel Pitch	3.906mm	4.807mm
LED Type	SMD1921	SMD1921
Module Resolution	64dots × 64dots	52dots × 52dots
Driving Mode	1/16scan	1/13scan
Module Pixels	4,096dots	2,704dots
Module Size	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm × 500mm or 500mm × 1,000mm	500mm × 500mm or 500mm × 1,000mm
Cabinet Resolution	128dots × 128dots or 128dots × 256dots	104dots × 104dots or 104dots × 208dots
Pixel Density	65,536dots/㎡	43,264dots/㎡
Minimum Viewing Distance	≥3.9 m	≥4.8 m
Brightness	≥4,500nits	≥4,500nits
IP Grade	IP66	IP66
Refresh Rate	≥3,840Hz	≥3,840Hz
Gray Scale	≥15bits	≥15bits
Viewing Angle	H:160° / V: 90°	H:160° / V:90°
Maximum Power Consumption	700W/㎡	700W/㎡
Average Power Consumption	210W/㎡	210W/㎡
Input Voltage	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	9kg/panel or 12.5kg/panel	7.5kg/panel or 12.5kg/panel
Operating System	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P3.9	P4.8
Pixel Pitch	3.906mm	4.807mm
LED Type	SMD1921	SMD1921
Module Resolution	64dots × 64dots	52dots × 52dots
Driving Mode	1/16scan	1/13scan
Module Pixels	4,096dots	2,704dots
Module Size	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm × 500mm or 500mm × 1,000mm	500mm × 500mm or 500mm × 1,000mm
Cabinet Resolution	128dots × 128dots or 128dots × 256dots	104dots × 104dots or 104dots × 208dots
Pixel Density	65,536dots/㎡	43,264dots/㎡
Minimum Viewing Distance	≥3.9 m	≥4.8 m
Brightness	≥4,500nits	≥4,500nits
IP Grade	IP66	IP66
Refresh Rate	≥3,840Hz	≥3,840Hz
Gray Scale	≥15bits	≥15bits
Viewing Angle	H:160° / V: 90°	H:160° / V:90°
Maximum Power Consumption	700W/㎡	700W/㎡
Average Power Consumption	210W/㎡	210W/㎡
Input Voltage	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	9kg/panel or 12.5kg/panel	7.5kg/panel or 12.5kg/panel
Operating System	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
