LED Can Display

Product Description

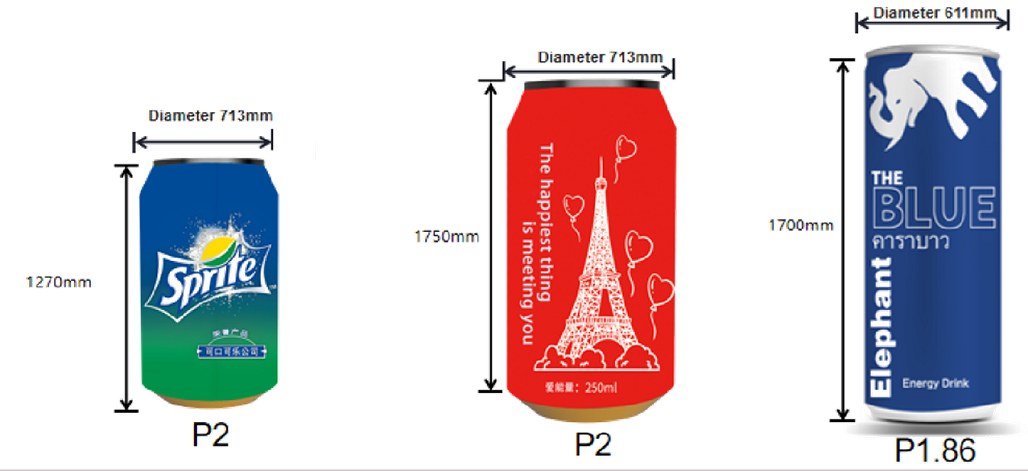

Multiple size options

713mm diameter, 1270mm height;

713mm diameter, 1750mm height;

611mm diameter, 1700mm height;

611mm diameter, 1050mm height

High resolution

The LED display boasts a high resolution that delivers clear visual effects, making it ideal for detailed close-up observation.

Intelligent Interactive function

The induction IC is integrated on the module, enabling the canned LED display to feature a smart interactive function. This enhancement significantly amplifies the advertising impact of the screen.

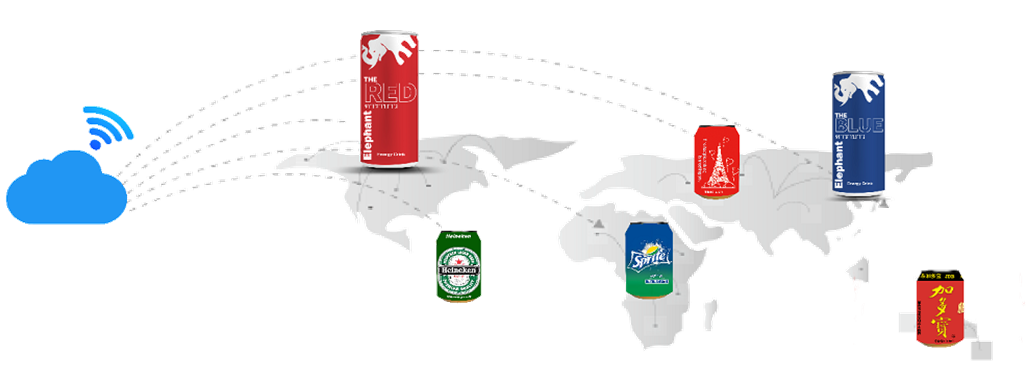

Intelligent cloud platform control

The display is equipped with a cloud management server, enabling you to manage all your devices remotely and effortlessly.

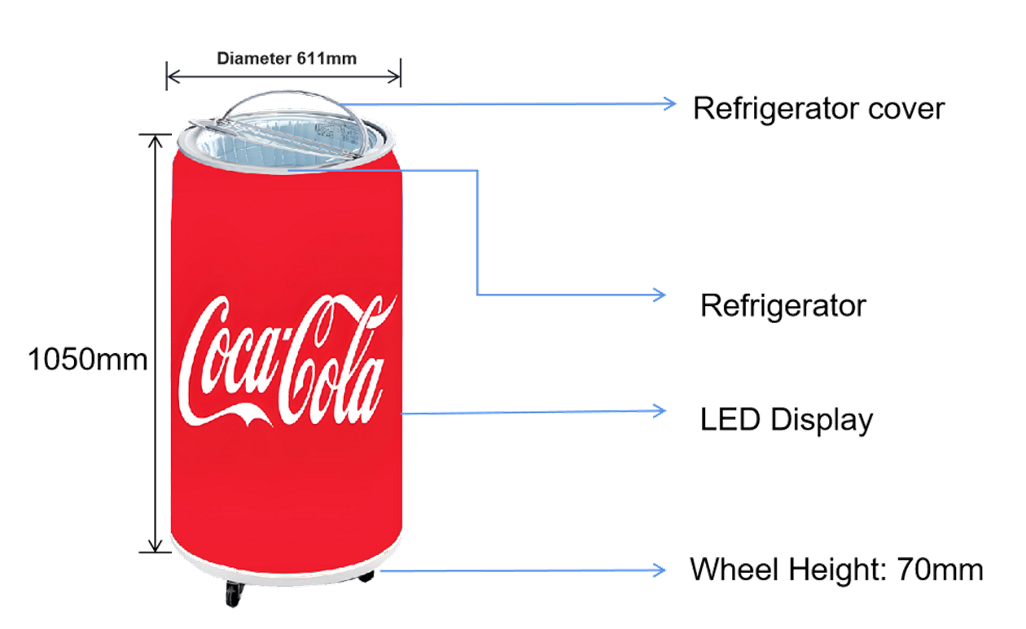

Customized refrigerator features

A refrigerator is integrated within the canned LED display, enabling the unit to serve not only as an advertising medium but also as a storage solution for cold beverages.

Refrigerator temperature range:

3°C ~ 10°C

-1°C ~ -10°C

Application Field

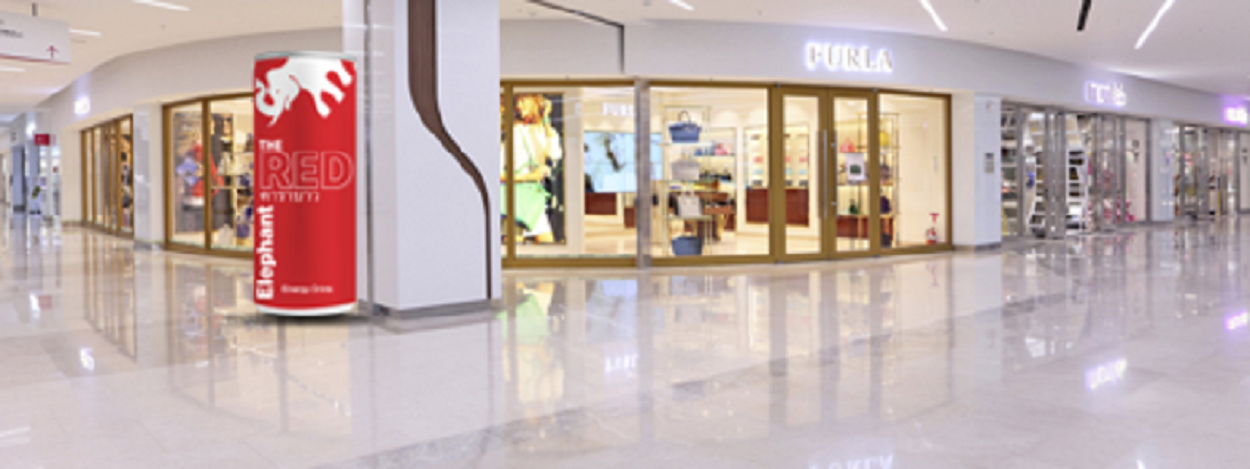

Supermarkets and retail

Catering and bars

Events and competitions

Brand marketing

Parameter

Spec1 Spec2 Spec3

Item	P1.86 Customized refrigerator features	P1.86	P2
Pixel Pitch	1.86mm	1.86mm	2mm
LED Type	SMD1212(With GOB)	SMD1212	SMD1515
Driving Mode	1/43 scan	1/43 scan	1/40 scan
Overall size (mm)	Height 1050mm x Diameter 611mm	Height 1700mm x Diameter 611mm	Height 1750mm x Diameter 713mm
Display resolution	1032dots x 473 dots	1032dots x 817 dots	1120dots x 800dots
Pixel Density	288,906 dots/㎡	288,906 dots/㎡	250,000dots/㎡
Minimum Viewing Distance	≥1.8m	≥1.8m	≥2m
Brightness	600-800nits	600-800nits	600-800nits
IP Grade	IP43	IP43	IP43
Refresh Rate	3840-7680Hz	3840-7680Hz	3840-7680Hz
Gray Scale	16bits	16bits	16bits
Viewing Angle	H:170° / V:170°	H:170° / V:170°	H:170° / V:170°
Maximum Power Consumption	420w	600w	1200w
Average Power Consumption	120w	170w	400w
Input Voltage	AC110V-220V@ 50Hz/60Hz	AC110V-220V@ 50Hz/60Hz	AC110V-220V@ 50Hz/60Hz
Maintenance	Front	Front	Front
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～85%	10%～85%	10%～85%
Cabinet Material	Iron	Iron	Iron
Weight	98kg/set	130kg/set	173kg/set
Signal Source Compatibility	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc

Item	P1.86	P2	P2
Pixel Pitch	1.86mm	2mm	2mm
LED Type	SMD1212	SMD1515	SMD1515
Driving Mode	1/43 scan	1/40 scan	1/40 scan
Overall size (mm)	Height 1700mm x Diameter 611mm	Height 1750mm x Diameter 713mm	Height 1270mm x Diameter 713mm
Display resolution	1032dots x 817 dots	1120dots x 800dots	1120dots x 560dots
Pixel Density	288,906 dots/㎡	250,000dots/㎡	250,000dots/㎡
Minimum Viewing Distance	≥1.8m	≥2m	≥2m
Brightness	600-800nits	600-800nits	600-800nits
IP Grade	IP43	IP43	IP43
Refresh Rate	3840-7680Hz	3840-7680Hz	3840-7680Hz
Gray Scale	16bits	16bits	16bits
Viewing Angle	H:170° / V:170°	H:170° / V:170°	H:170° / V:170°
Maximum Power Consumption	600w	1200w	800w
Average Power Consumption	170w	400w	200w
Input Voltage	AC110V-220V@ 50Hz/60Hz	AC110V-220V@ 50Hz/60Hz	AC110V-220V@ 50Hz/60Hz
Maintenance	Front	Front	Front
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～85%	10%～85%	10%～85%
Cabinet Material	Iron	Iron	Iron
Weight	130kg/set	173kg/set	65kg/set
Signal Source Compatibility	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc

Item	P1.86	P2	P2
Pixel Pitch	1.86mm	2mm	2mm
LED Type	SMD1212	SMD1515	SMD1515
Driving Mode	1/43 scan	1/40 scan	1/40 scan
Overall size (mm)	Height 1700mm x Diameter 611mm	Height 1750mm x Diameter 713mm	Height 1270mm x Diameter 713mm
Display resolution	1032dots x 817 dots	1120dots x 800dots	1120dots x 560dots
Pixel Density	288,906 dots/㎡	250,000dots/㎡	250,000dots/㎡
Minimum Viewing Distance	≥1.8m	≥2m	≥2m
Brightness	600-800nits	600-800nits	600-800nits
IP Grade	IP43	IP43	IP43
Refresh Rate	3840-7680Hz	3840-7680Hz	3840-7680Hz
Gray Scale	16bits	16bits	16bits
Viewing Angle	H:170° / V:170°	H:170° / V:170°	H:170° / V:170°
Maximum Power Consumption	600w	1200w	800w
Average Power Consumption	170w	400w	200w
Input Voltage	AC110V-220V@ 50Hz/60Hz	AC110V-220V@ 50Hz/60Hz	AC110V-220V@ 50Hz/60Hz
Maintenance	Front	Front	Front
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～85%	10%～85%	10%～85%
Cabinet Material	Iron	Iron	Iron
Weight	130kg/set	173kg/set	65kg/set
Signal Source Compatibility	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc
