COBPLUS

Product Description

Space Efficiency

COB technology allows for a high pixel density within a compact space. This means more LEDs can be packed into a smaller area, resulting in displays with higher resolutions and sharper image quality. The superior contrast performance of COB LED displays makes them ideal for applications where vibrant colors and crisp imagery are essential, such as advertising displays and digital signage.

Higher integration

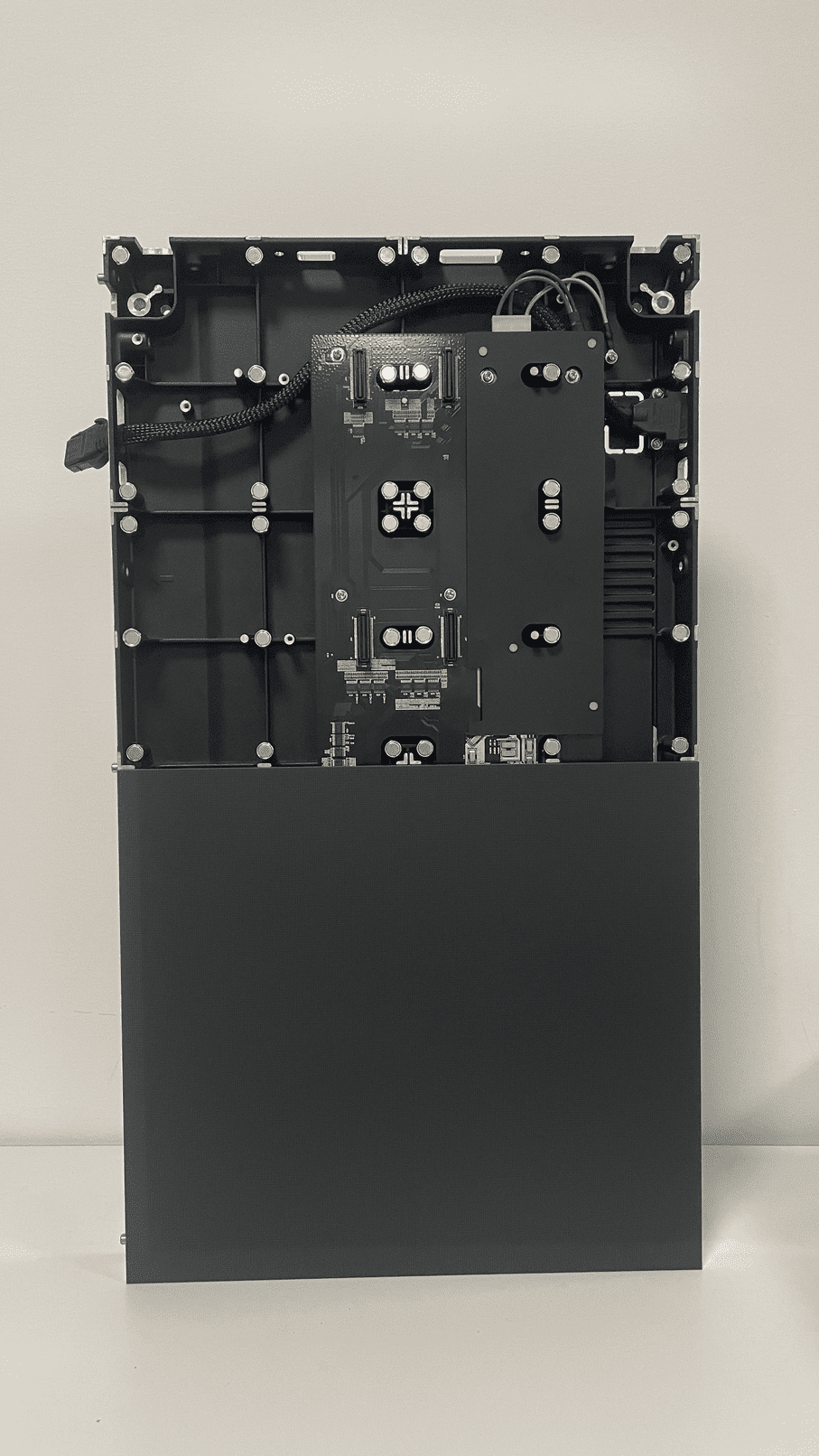

Integrate the power supply, receiving card and HUB board into the whole machine. Through high integration, the use of interfaces to connect each unit is reduced, and the probability of failure is also reduced.High integration can also reduce the installation steps for end users and save more manual installation time.Compared with traditional LED displays, COB LED displays are less prone to failure, resulting in lower maintenance costs and less downtime.

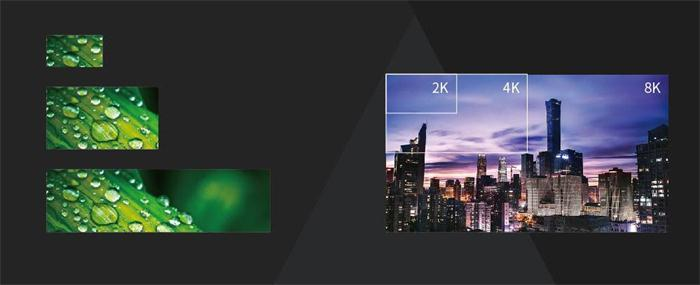

Seamless Connection & 16:9 Aspect Ratio

The screen is gapless. Meanwhile, when we build a LED screen with 2K, 4K, 8K, or some other resolutions, we can still have a 16:9 screen aspect ratio.

Larger Viewing Angle

COB LED displays offer wide viewing angles(more than 160 degree), ensuring that content remains visible and legible even when viewed from off-center positions.

Less Heat Generate

COB LEDs generate less heat during operation compared to traditional lighting sources, resulting in lower thermal stress on display components and improved reliability.

High protection level

IP54 rating signifies that the enclosure provides a high level of protection against both dust ingress and water jets, making it suitable for indoor applications where exposure to dust, rain, or water jets is a concern.

Extraordinary Visual Effects

COB PLUS adopt great PCB design and high quality LED material. With the high refresh rate(3840-7680Hz),grey scale(up to14-22bits) and Static contrast color contract ratio（10000:1), Dynamic contrast (350000:1) the LED display’s image is more stable and the picture is clearer which can bring the customers amazing visual effects. High contrast ratios, which enhance image clarity and visual impact by producing deeper blacks and brighter whites.

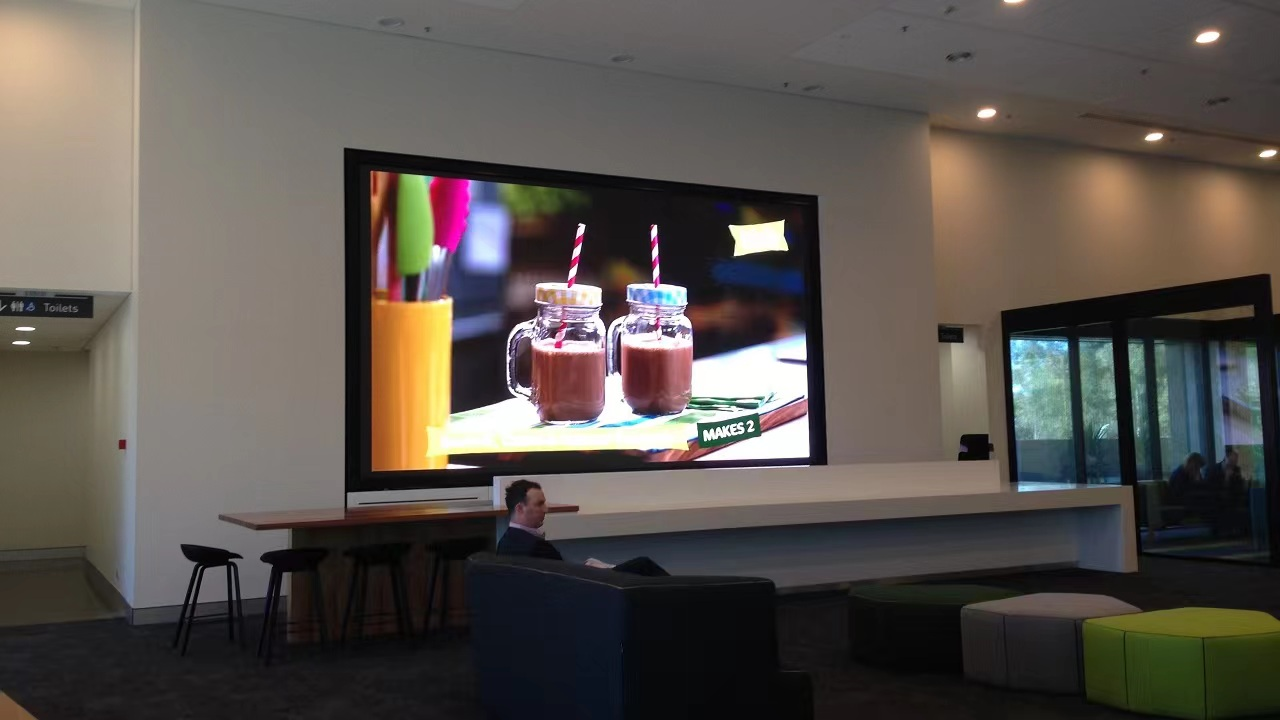

Application Fields

Meeting Room; Bus Station; Exhibition Center; Cinema; Education and Training Facilities

Parameter

Spec1 Spec2 Video

Item	P0.93	P1.25
Pixel Pitch	0.93mm	1.25mm
LED Type A	COB	COB
Module Resolution	160ts x 180dots	120dots x 135dots
Driving Mode	1/60	1/54
Module Pixels	28800dots	16875dots
Module Size	150 x 168.75mm	150×168.75mm
Cabinet Size	600337.536mm	600337.536mm
Cabinet Resolution	640dotsx 360dots	600dotsx 270dots
Pixel Density	230400dots/㎡	162000dots/㎡
Minimum Viewing Distance	0.93m	1.25m
Brightness	600~800nits	600~800nits
IP Grade	IP54	IP54
Refresh Rate	3840~7680Hz	3840~7680Hz
Gray Scale	14~22bits	14~22bits
Viewing Angle	H:160 ° / V:160 °	H:160 ° / V:160 °
Maximum Power Consumption	120W/m²	120W/m²
Average Power Consumption	64W/m²	64W/m²
Screen Lifespan	≥100,000 hours	≥100,000 hours
Input Voltage	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz
Operating Temperature	﹣20℃～40℃	﹣20℃～40℃
Operating Humidity	10%～95%	10%～95%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	4.5kg/panel	4.5kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.

Item	P0.93	P1.25
Pixel Pitch	0.93mm	1.25mm
LED Type A	COB	COB
Module Resolution	160ts x 180dots	120dots x 135dots
Driving Mode	1/60	1/54
Module Pixels	28800dots	16875dots
Module Size	150 x 168.75mm	150×168.75mm
Cabinet Size	600337.536mm	600337.536mm
Cabinet Resolution	640dotsx 360dots	600dotsx 270dots
Pixel Density	230400dots/㎡	162000dots/㎡
Minimum Viewing Distance	0.93m	1.25m
Brightness	600~800nits	600~800nits
IP Grade	IP54	IP54
Refresh Rate	3840~7680Hz	3840~7680Hz
Gray Scale	14~22bits	14~22bits
Viewing Angle	H:160 ° / V:160 °	H:160 ° / V:160 °
Maximum Power Consumption	120W/m²	120W/m²
Average Power Consumption	64W/m²	64W/m²
Screen Lifespan	≥100,000 hours	≥100,000 hours
Input Voltage	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz
Operating Temperature	﹣20℃～40℃	﹣20℃～40℃
Operating Humidity	10%～95%	10%～95%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	4.5kg/panel	4.5kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
