COB MAX

Product Description

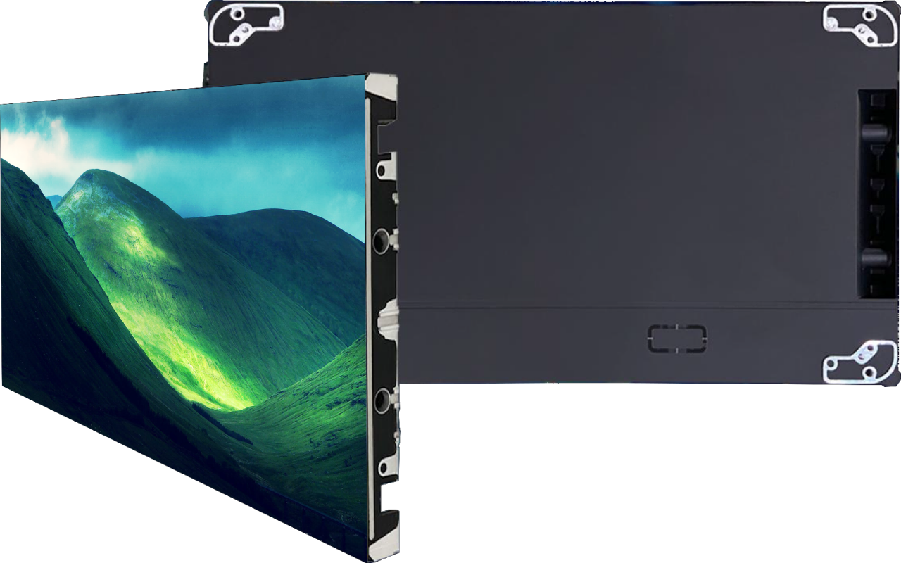

Die-Casting Aluminum Cabinet Design

Full die-casting aluminum material makes the cabinet light, thin and has tactile appeal; The diamond pattern design on the back shell makes it stylish and aesthetic; The gaps on the both sides increase the heat dissipation surface area and can be easily held in the hand for installation and transportation. 600mm×337.5mm.40.5mm thickness.5kg/panel weight.P0.7 , P0.9 , P1.25 , P1.56 , P1.875 are available.

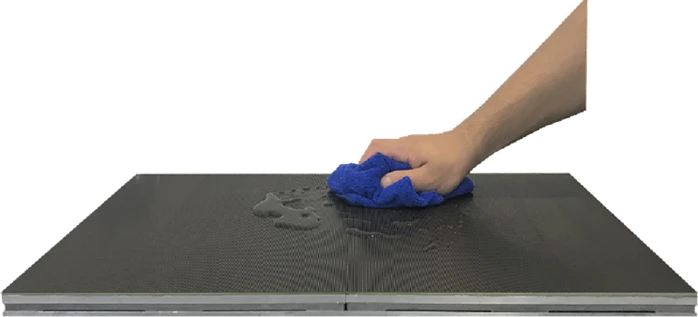

IP54, Ultra High Stability

The COB production process achieves comprehensive sealing of important components such as PCB boards, lamp beads, and solder pins. This makes COB MAX outstanding in moisture-proof, dust-proof, and bump-proof. The IP 54, which is high protection of LED screen. High stability reduces accidental damage during transportation and installation, and also makes the product easy to clean.

Low Energy Consumption

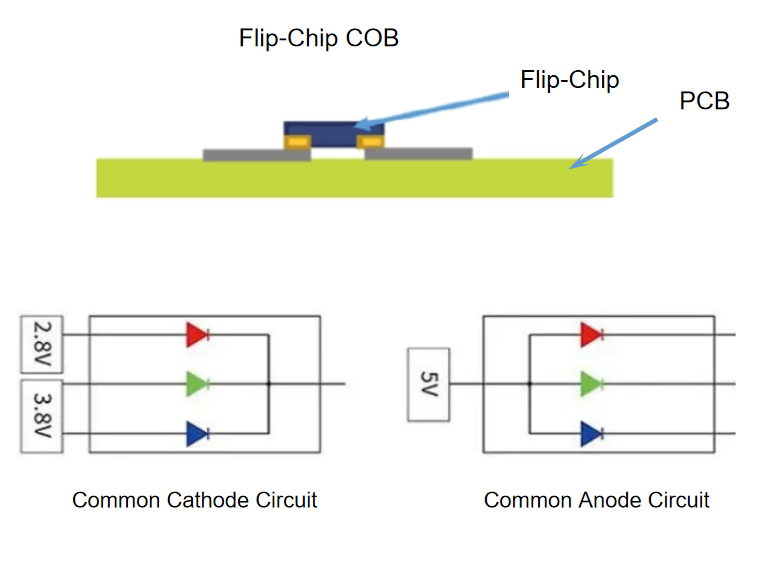

Using flip-chip technology, compared with conventional COB products, welding wires are saved and intermediate links that generate thermal resistance are reduced. This greatly reduces screen power consumption, and its power consumption can be reduced by 50% compared with conventional chip COB products. P0.7 P0.9 adopts common cathode technology to achieve precise power supply for red, green and blue lamp beads respectively, reducing unnecessary energy consumption and saving up to 75% energy.

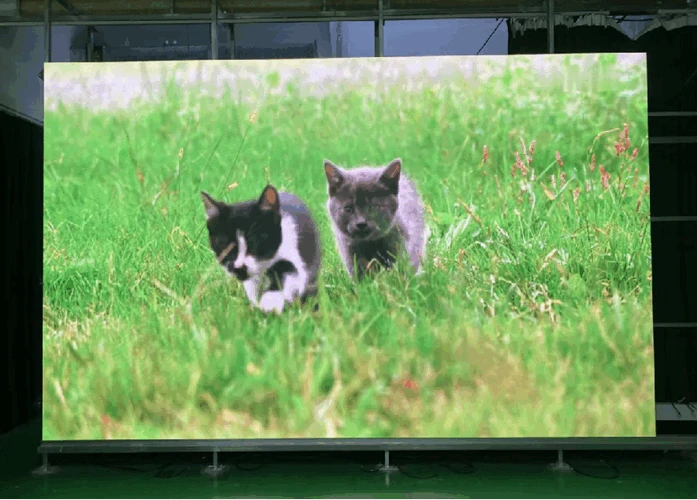

Perfect Near-Screen Experience

Flip chip has unique heat dissipation technology. Under the same brightness, the screen surface temperature is 10°C lower than that of conventional COB products. No pixel graininess, switching from “pixel light source” to “area light source”, and good brightness uniformity. Suitable for long-term viewing at close range and less likely to cause visual fatigue.

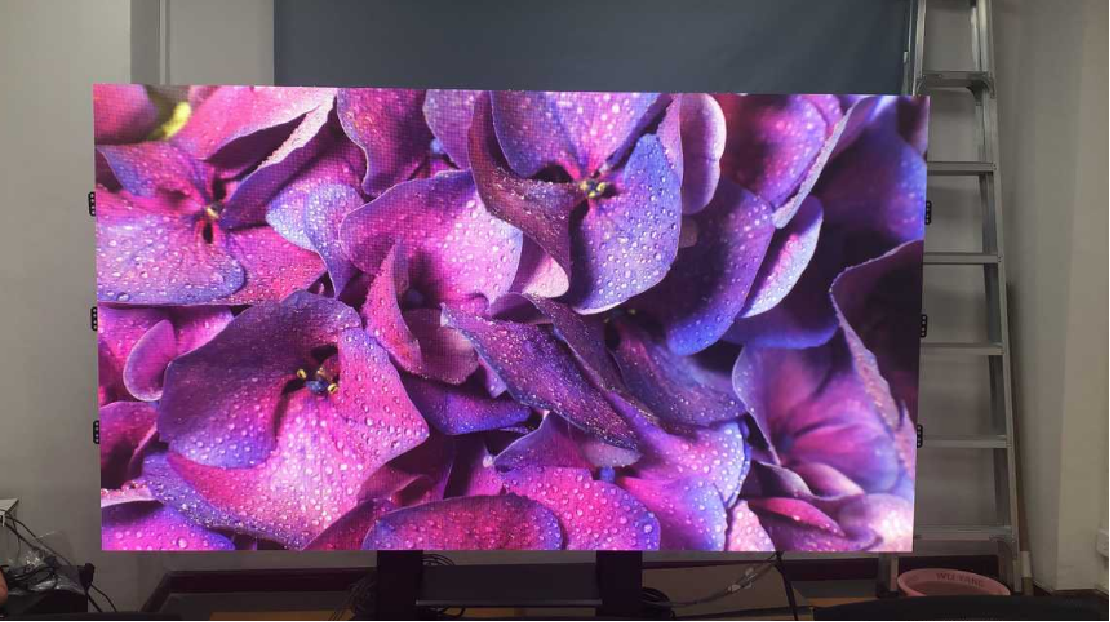

Ultra-high Pixel Density

P0.７,P0.９ are available for customers to choose from. Easily achieve 2k/4K/8K resolution and ultra-high definition. Present more details in the picture and colorful visual effects.

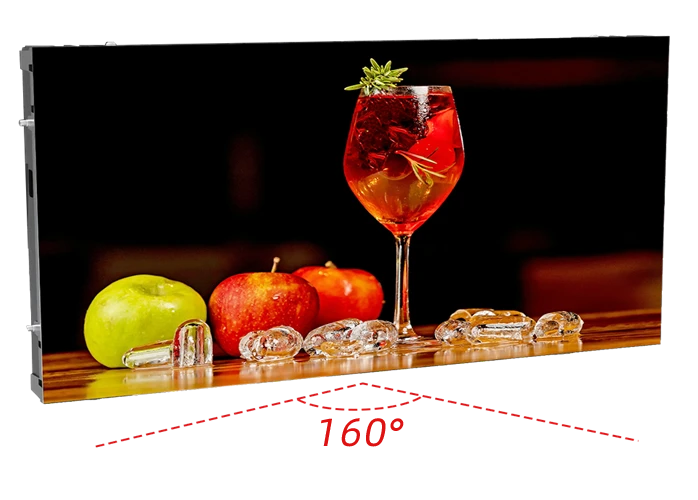

Wide Viewing Area

Flip-chip technology enables unlimited viewing angles, reaching a viewing angle of nearly 160°. There is no color cast or deformation when viewed from the side, and the color uniformity is good. Suitable for large size screen.

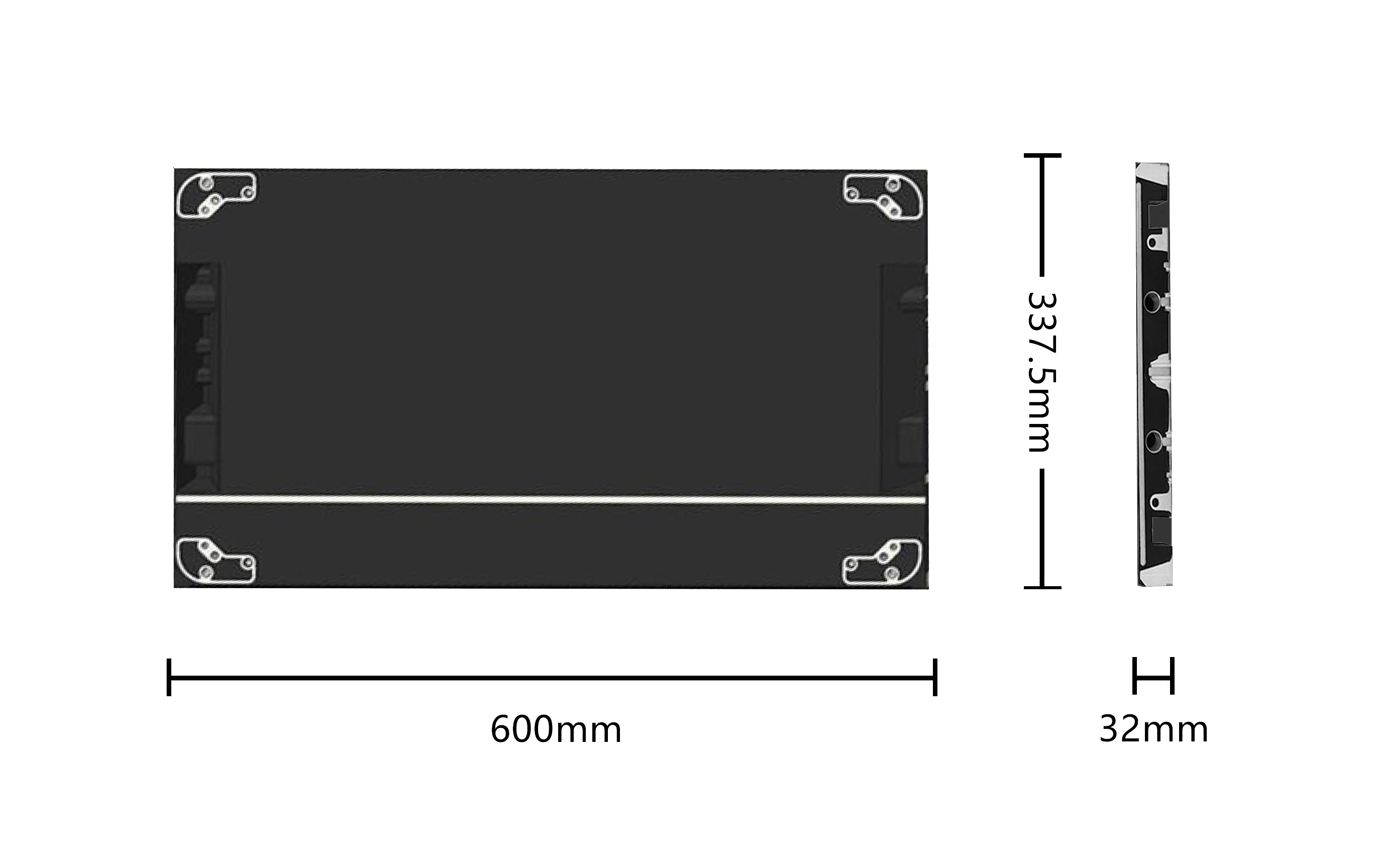

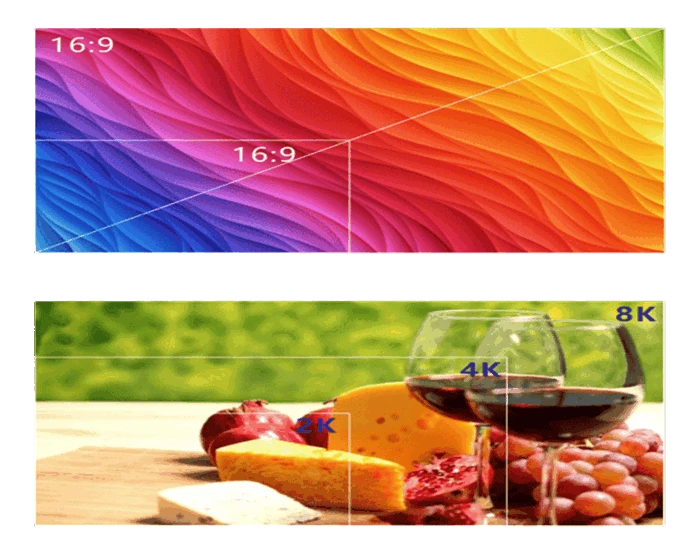

16:9 Aspect Ratio

The golden ratio is 16:9. The box size is 600mm×337.5mm. Bring our customers a comfortable viewing experience.

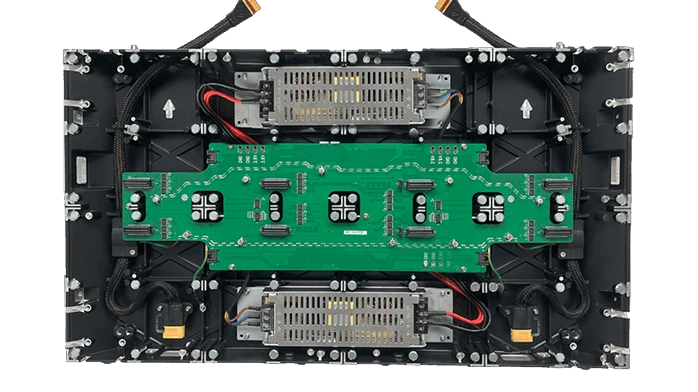

Power and Signal Redundancy

COB MAX supports dual backup of power and receiving card. When a problem suddenly occurs, the backup power supply and receiving card can keep the screen working, ensuring that important meetings or activities are not affected.

Application Fields

Meeting Room; TV Studio; Exhibition Center; Shopping Mall; Airport; Cinema.

Parameter

Spec1 Spec2 Video

Item	P0.7	P0.9	P1.25
Pixel Pitch	0.78mm	0.93mm	1.25mm
LED Type	COB	COB	COB
Module Resolution	192dots×216dots	161dots×181dots	120dots×135dots
Driving Mode	1/64 scan	1/54 scan	1/60 scan
Module Pixels	41472dots	29,141dots	16,200dots
Module Size	150mm×168.75mm	150mm×168.75mm	150mm×168.75mm
Cabinet Size	600mm×337.5mm×40.5mm	600mm×337.5mm×40.5mm	600mm×337.5mm×40.5mm
Cabinet Resolution	768dots×432dots	645dots×362dots	480dots×270dots
Pixel Density	1638400 dots/m²	1,156,203 dots/m²	640,000 dots/m²
Minimum Viewing Distance	≥0.78mm	≥0.9mm	≥1.25mm
Brightness	600nits~800nits	600nits~800nits	600nits~800nits
IP Grade	IP54	IP54	IP54
Refresh Rate	3840Hz ~7680Hz	3840Hz ~7680Hz	3840Hz ~7680Hz
Gray Scale	14bits~22bits	14bits~22bits	14bits~22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	380W/m²	380W/m²	320W/m²
Average Power Consumption	127W/m²	127W/m²	110W/m²
Input Voltage	AC100V～AC240V @ 50Hz / 60Hz	AC100V～AC240V @ 50Hz / 60Hz	AC100V～AC240V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	5kg/panel	5kg/panel	5kg/panel
Operating System	Windows（Win7，Win8，etc.）	Windows（Win7，Win8，etc.）	Windows（Win7，Win8，etc.）
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P1.56	P1.875
Pixel Pitch	1.56mm	1.875mm
LED Type	COB	COB
Module Resolution	96dots×108dots	80dotsx 90dots
Driving Mode	1/54 scan	1/45 scan
Module Pixels	10,368dots	7200dots
Module Size	150mm×168.75mm	150mm×168.75mm
Cabinet Size	600mm×337.5mm×40.5mm	600mm × 337.5mm×40.5mm
Cabinet Resolution	384dots x 216dots	320dots x 180dots
Pixel Density	410,913 dots/m²	284444 dots/㎡
Minimum Viewing Distance	≥1.56m	≥1.875m
Brightness	600nits~800nits	600nits~800nits
IP Grade	IP54	IP54
Refresh Rate	3840Hz~7680Hz	3840Hz~7680Hz
Gray Scale	14bits~22bits	14bits~22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	330W/m²	400W/m²
Average Power Consumption	110W/m²	130W/m²
Input Voltage	AC100V～AC240V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	5kg/panel	5kg/panel
Operating System	Windows（Win7，Win8，etc.）	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
