COB PRO

Product Description

Die-Casting Aluminum design

With the arrival of the 5G era, the market for ultra-high-definition 4k and 8k display has an urgent need, LED to the development of small pitch display to make the inevitable trend, the birth of the flip COB and COB technology to a new height.This LED panel has garnered high praise for delivering an exceptional user experience.600(w)mm x 337.5(h)mm.35mm thickness.The pixel pitch P0.7, P0.9, P1.25 and P1.56 are available.

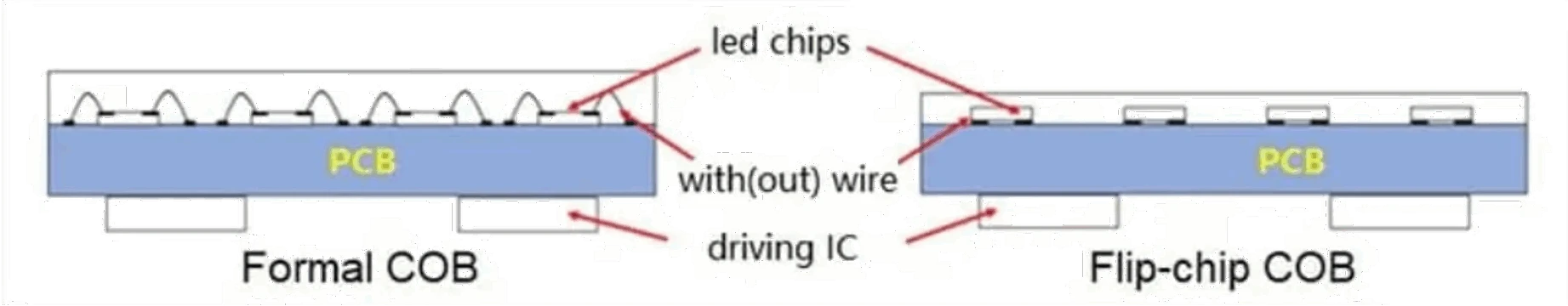

Flip-chip COB

Premteco offers super thin COB LED display screens with advanced flip-chip COB technology.Encapsulates the pixels on the PCB board, realizing full sealing of the PCB board, crystal particles, soldering pins and leads, etc.Without using wire on the LED chips, this Flip-chip technology has much lower power consumption than the normal LED.

The Common Cathode and Common Anode Design

The common anode display current flows from the PCB board to the lamp beads, and the RGB lamp beads are uniformly powered.（P1.56） In the common cathode mode, the R, G, and B chips individually provide power, ensuring precise distribution of voltage and current to the red, green, and blue diodes.(P0.7,P0.9,P1.25) Advantages of the common cathode mode:Enhance power supply efficiency.Reduce power consumption. Diminish heat generation by approximately 40%. Lower the rate of pixel failures, enhance the overall performance of the display screen and extend its lifespan.

Lightweight, Great Cabinet Design, Front maintenance

Lightweight design, only 4.6kgs/panel.Our COB Pro Series uses high CNC die-casting aluminum cabinet, both the screen flatness and heat dissipation function are the best compared to other cabinet material.Meanwhile, all components including LED module, power box, receiving card and other accessories can be removed in the front, so it is fully front service design.

Power and Signal redundancy

We have reasonale space to support two power supply and two receiving cards.This design ensures the operation of cabinets, since when there is something wrong with one of the power supplies or receiving cards, the other one will take charge in the operation.

Protective Method: IP 54

Compared with ordinary indoor LED products,we adopt IP54 high protection level. IP54 is an international standard that indicates that an electrical enclosure is dust tight and watertight against light pressure water spray. Have higher shockproof level, greater reliability and high level surface protection.

Excellent Color Contract Ratio

The color contrast ratio of 10,000:1. A high contrast ratio enhances visual clarity; colors appear more vibrant for a better viewing experience; depth and detail perception can be enhanced; and the optimal contrast ratio minimizes eye fatigue ratio and ensures viewer comfort.

Extraordinary Visual Effects

We adopt great PCB design and high quality LED material. With the high refresh rate(3840Hz~7680Hz) and gray scale(up to 14bits to 22bits) , the LED display can bring amazing visual effects to the customers. High refresh rate makes the screen stable without ripples and black screen, enhance the clarity and contrast of the image, make the video screen delicate and smooth.

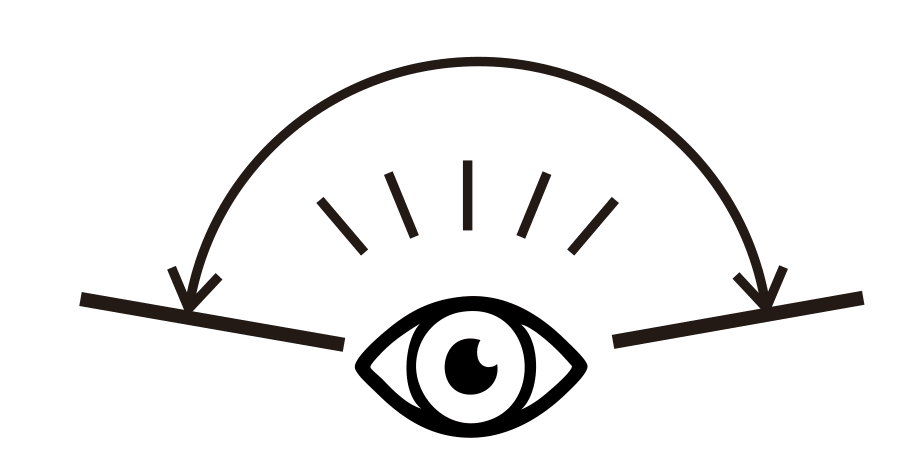

Larger Viewing Angle

COB package adopts the class of surface luminescence, so the viewing angle is wider, so that the COB encapsulated micro-pitch LED display screen has a vertical and horizontal bidirectional 160 ° wide viewing angle, which ensures that any angle of viewing no color deviation, the images and videos can always be displayed perfectly.

Application Fields

Meeting Room; TV Studio; Exhibition Center; Shopping Mall; Airport; Cinema.

Parameter

Spec1 Spec2 Video

Item	P0.7	P0.9	P1.25	P1.56
Pixel Pitch	0.78mm	0.93mm	1.25mm	1.56mm
LED Type	COB	COB	COB	COB
Module Resolution	192dots×216dots	161dots×181dots	120dots×135dots	96dots×108dots
Driving Mode	1/64scan	1/54scan	1/60scan	1/54scan
Module Pixels	41,472dots	29,141dots	16,200dots	10,368dots
Module Size	150mm×168.75mm	150mm×168.75mm	150mm×168.75mm	150mm×168.75mm
Cabinet Size	600mm×337.5mm×35mm	600mm×337.5mm×35mm	600mm×337.5mm×35mm	600mm × 337.5mm × 35mm
Cabinet Resolution	769dots×432dots	645dots×362dots	480dots×270dots	384dots x 216dots
Pixel Density	1,643,655dots/m²	1,156,203dots/m²	640,000dots/m²	410,913dots/m²
Minimum Viewing Distance	≥0.7mm	≥0.9mm	≥1.25mm	≥1.56m
Brightness	600nits~1000nits	600nits~1000nits	600nits~1000nits	600nits-1000nits
IP Grade	IP54	IP54	IP54	IP54
Refresh Rate	3840Hz ~7680Hz	3840Hz ~7680Hz	3840Hz ~7680Hz	3840Hz~7680Hz
Gray Scale	14bits~22bits	14bits~22bits	14bits~22bits	14bits~22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	360W/m²	380W/m²	320W/m²	330W/m²
Average Power Consumption	120W/m²	127W/m²	110W/m²	110W/m²
Input Voltage	AC100V～AC240V @ 50Hz / 60Hz	AC100V～AC240V @ 50Hz / 60Hz	AC100V～AC240V @ 50Hz / 60Hz	AC100V～AC240V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	4.6kg/panel	4.6kg/panel	4.6kg/panel	4.6kg/panel
Operating System	Windows（Win7，Win8，etc.）	Windows（Win7，Win8，etc.）	Windows（Win7，Win8，etc.）	Windows（Win7，Win8，etc.）
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P0.7	P0.9	P1.25	P1.56
Pixel Pitch	0.78mm	0.93mm	1.25mm	1.56mm
LED Type	COB	COB	COB	COB
Module Resolution	192dots×216dots	161dots×181dots	120dots×135dots	96dots×108dots
Driving Mode	1/64scan	1/54scan	1/60scan	1/54scan
Module Pixels	41,472dots	29,141dots	16,200dots	10,368dots
Module Size	150mm×168.75mm	150mm×168.75mm	150mm×168.75mm	150mm×168.75mm
Cabinet Size	600mm×337.5mm×35mm	600mm×337.5mm×35mm	600mm×337.5mm×35mm	600mm × 337.5mm × 35mm
Cabinet Resolution	769dots×432dots	645dots×362dots	480dots×270dots	384dots x 216dots
Pixel Density	1,643,655dots/m²	1,156,203dots/m²	640,000dots/m²	410,913dots/m²
Minimum Viewing Distance	≥0.7mm	≥0.9mm	≥1.25mm	≥1.56m
Brightness	600nits~1000nits	600nits~1000nits	600nits~1000nits	600nits-1000nits
IP Grade	IP54	IP54	IP54	IP54
Refresh Rate	3840Hz ~7680Hz	3840Hz ~7680Hz	3840Hz ~7680Hz	3840Hz~7680Hz
Gray Scale	14bits~22bits	14bits~22bits	14bits~22bits	14bits~22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	360W/m²	380W/m²	320W/m²	330W/m²
Average Power Consumption	120W/m²	127W/m²	110W/m²	110W/m²
Input Voltage	AC100V～AC240V @ 50Hz / 60Hz	AC100V～AC240V @ 50Hz / 60Hz	AC100V～AC240V @ 50Hz / 60Hz	AC100V～AC240V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	4.6kg/panel	4.6kg/panel	4.6kg/panel	4.6kg/panel
Operating System	Windows（Win7，Win8，etc.）	Windows（Win7，Win8，etc.）	Windows（Win7，Win8，etc.）	Windows（Win7，Win8，etc.）
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
