COB-Ultra

COB-Ultra

Innovative COB LED Display - P0.78 P0.93 P1.25 P1.56

IP54

16:9 Aspect Ratio

Seamless Connection

3840Hz~7680Hz

Large Viewing Angle

Die-Casting Aluminum

Front  Access

Common Cathode

Product Description

Slim and Lightweight Design

COB Ultra series adopt die-casting aluminum cabinet , designed to be 4.4kg/panel, its humanized design offers higher strength, lightweight construction and precision. The extinguishing screen mirror black and bright, comparable to the appearance of the LCD screen.

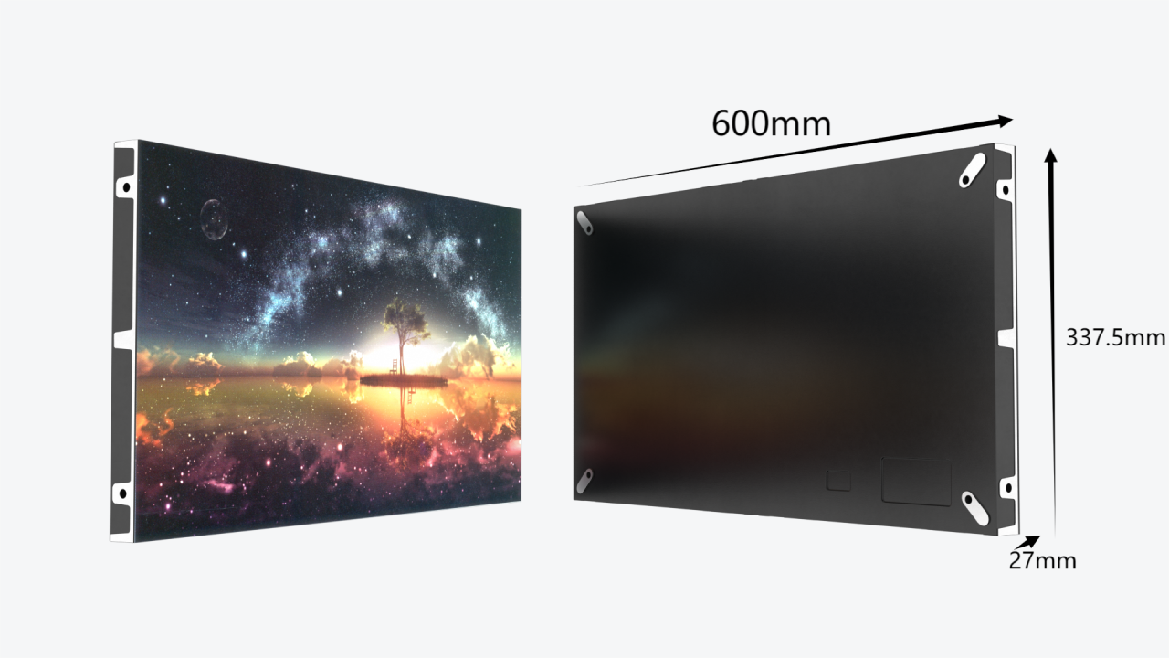

600(w)mm x 337.5(h)mm  27mm thickness 4.4kgs weight

The pixel pitch P0.78, P0.93, P1.25 and P1.56 are available.

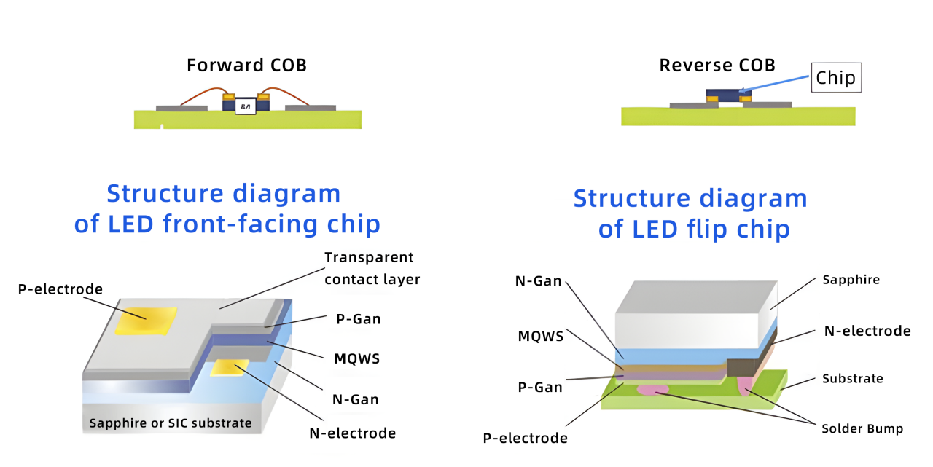

Flip Chip Technology

Our COB Ultra uses advanced flip COB technology.

1)Flip COB structure is simpler, has simplified manufacturing process, no gold wire and better heat dissipation.

2)Higher protection, reliability and RGB light mixing effect.

3)Chip level micro-spacing, ultra high-definition display and light source is not dazzling.

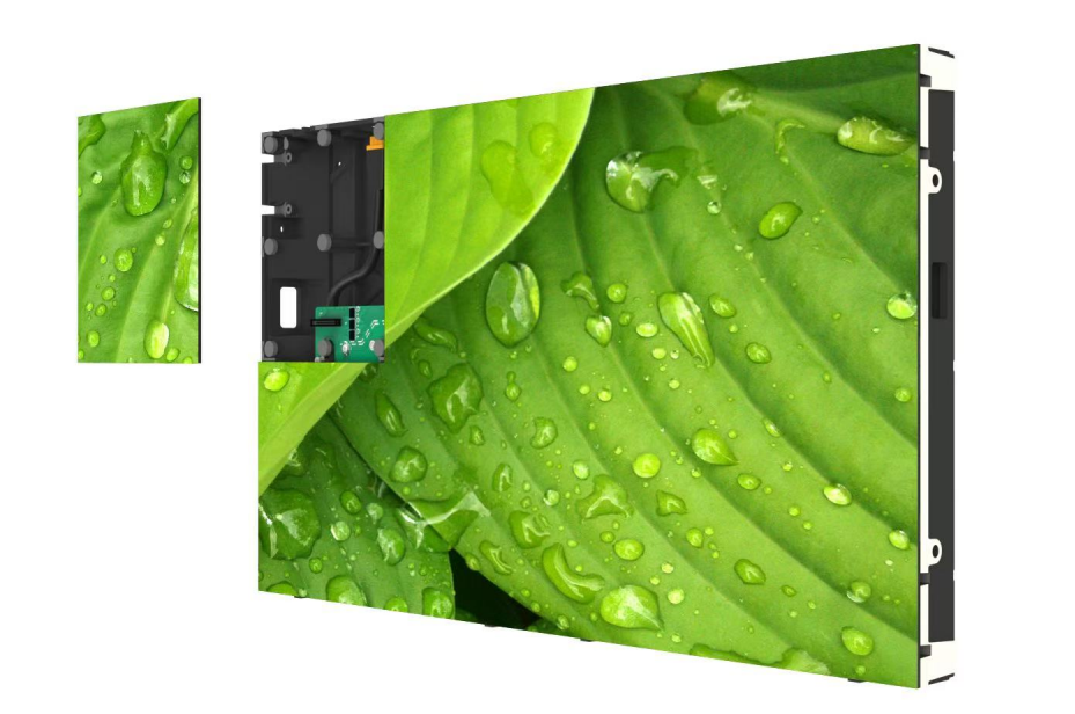

Fully Front Access Magnetic Design & Easy Maintenance

The module of cabinet are installed and removed fully from the front, which can realize the full front maintenance of the cabinet.The upper, lower, left and right connection of the cabinet is locked and leveled by the connecting piece, and easy to install.

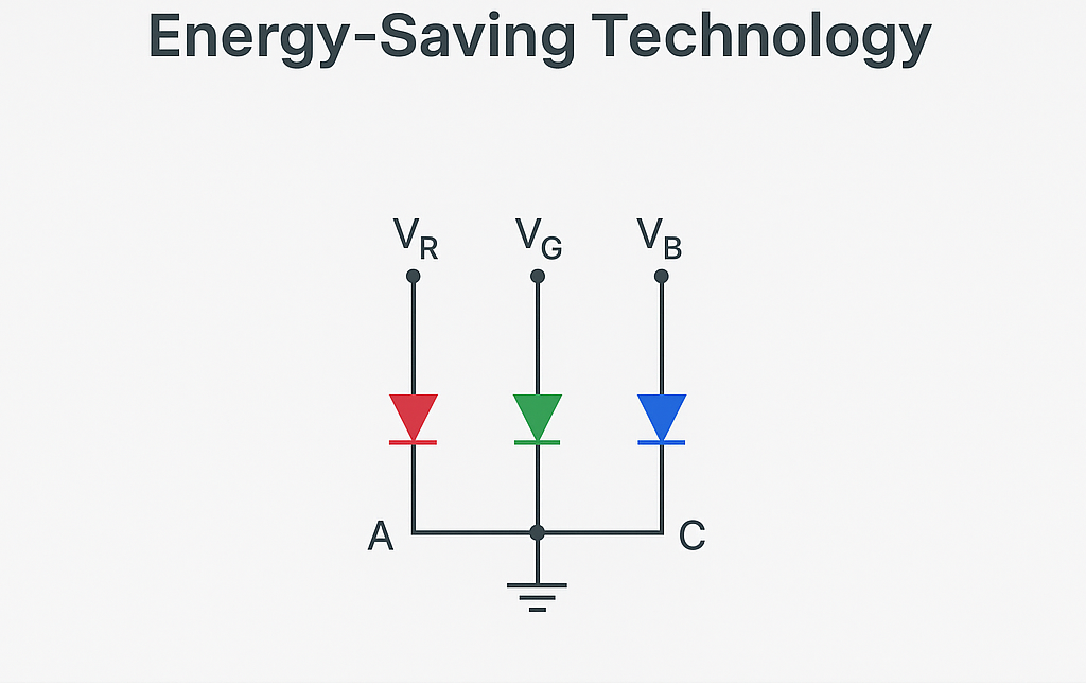

Common Cathode Energy-Saving Technology

Common cathode technology allows independent voltage supply to the red, green, and blue LEDs. This enables precise current control and reduces unnecessary power loss, resulting in up to 30% lower energy consumption compared to traditional common anode designs. It also helps reduce heat generation, extending the screen's lifespan and improving stability.

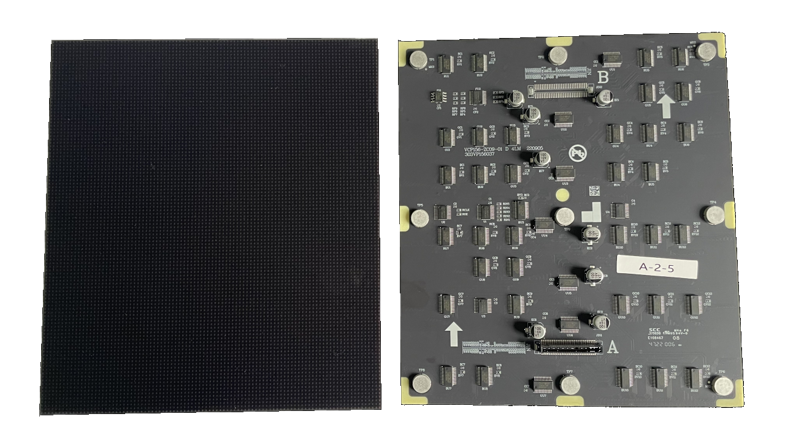

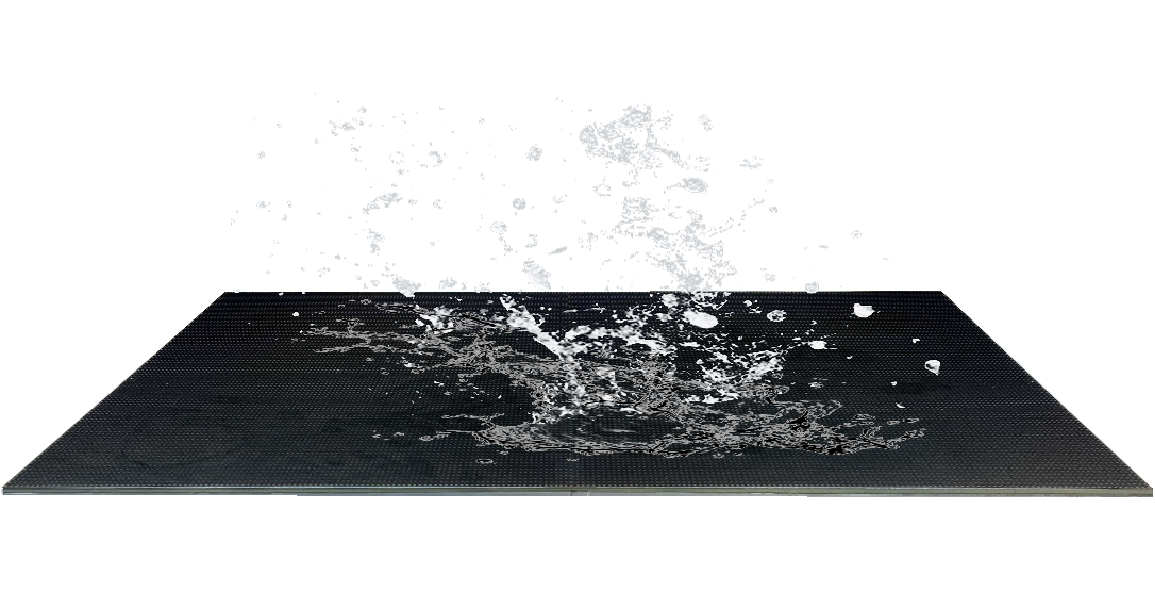

Strong Module with IP54

Compared with ordinary indoor LED products, we adopt IP54 high protection level.

1)Allow the water clean on surface.

2)Isolate electronic parts from humidity and dust.

3)Have higher shockproof level, greater reliability and high level surface protection.

Exquisite Cabinet Design

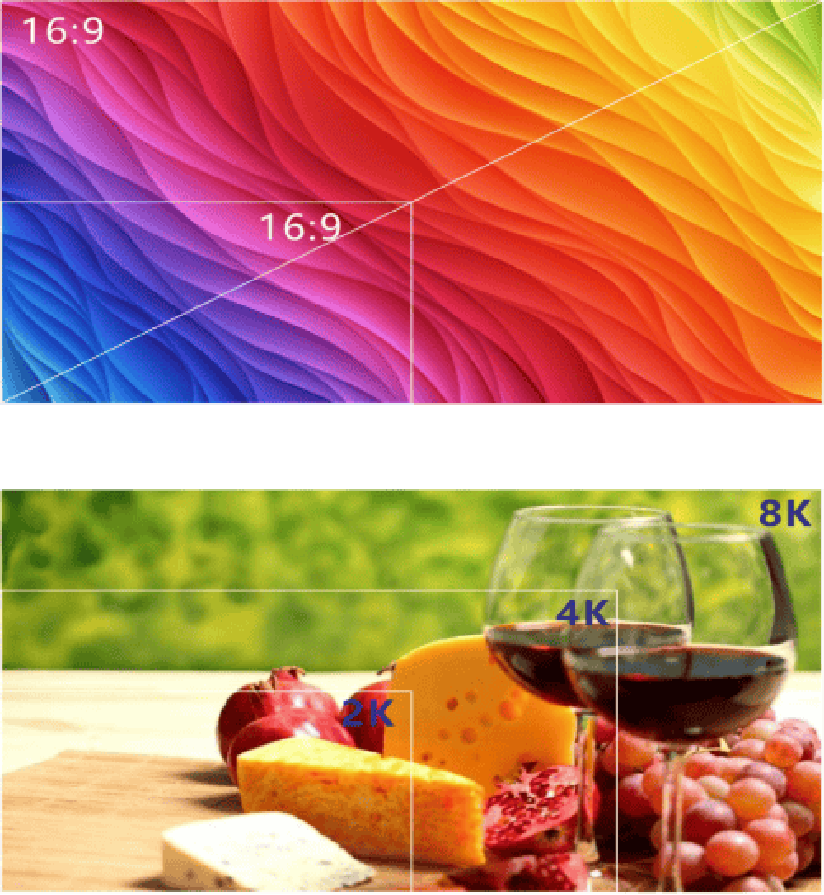

COB encapsulated micro-pitch LED display adopts 16:9 golden ratio cabinet size design, accurately matching the standard resolution of 2K/4K/8K. The screen image’s quality is better, higher definition, more delicate, and has better visual effects.

Larger Viewing Angle

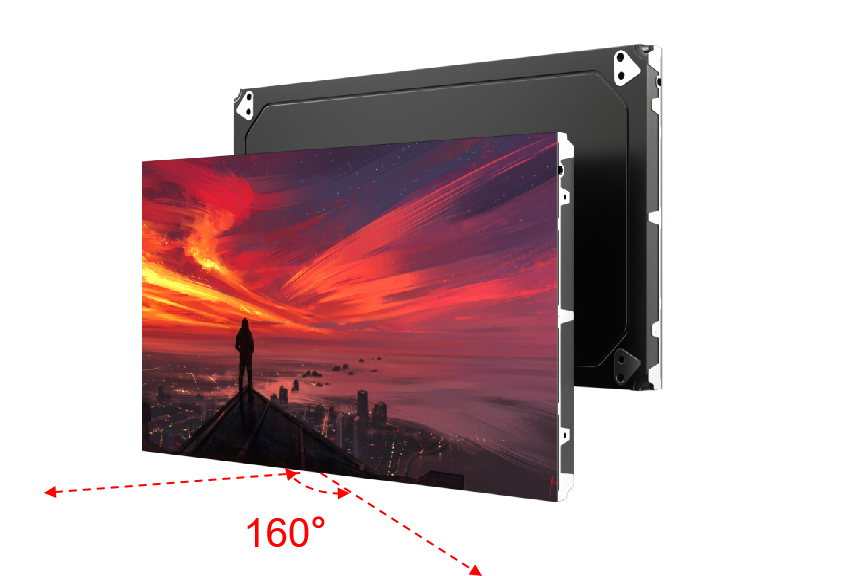

More than 165 degrees of ultra-wide viewing angle allow more viewers to fully immerse themselves in its captivating visual display. Regardless of the angle from which it is viewed, one can experience its breathtaking visual effects.

Extraordinary Visual Effects

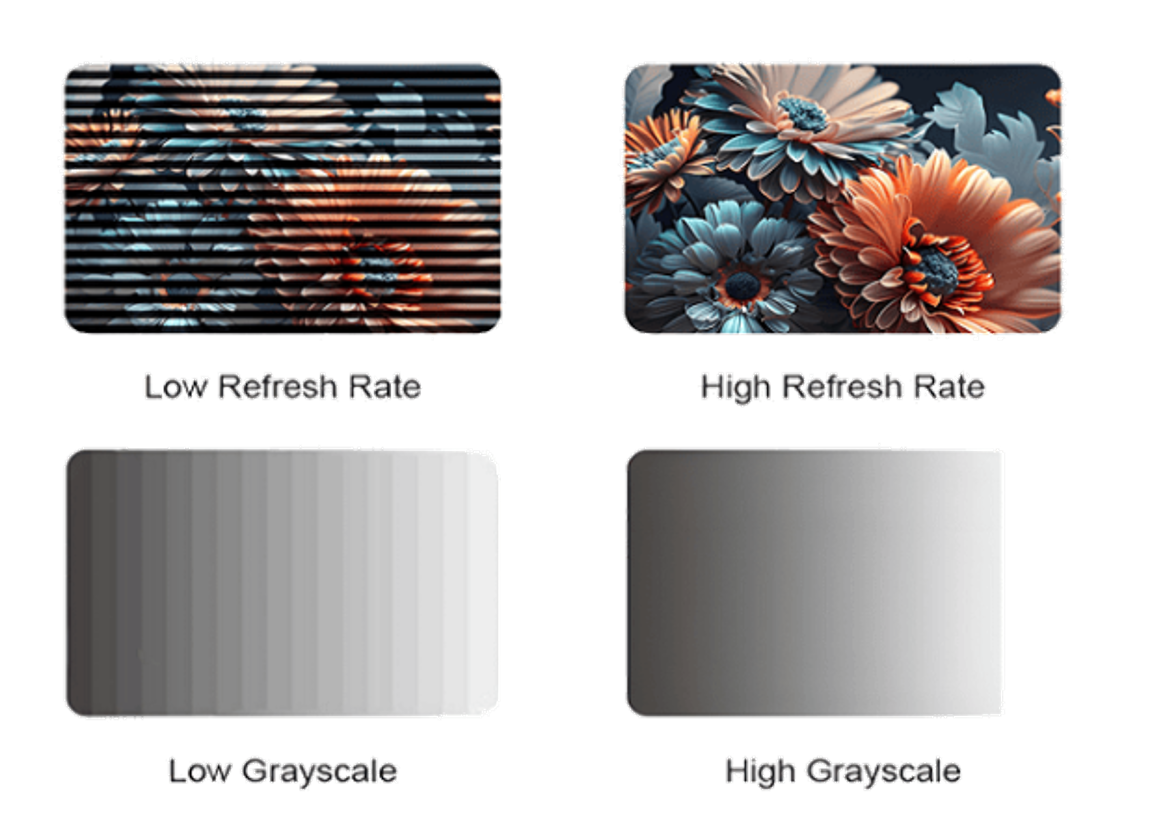

Thanks to the high refresh rate (3840-7680Hz), grey scale (up to14-22bits) and static color contrast: 10000:1, our COB Ultra series delivers exceptional visual performance. The image is more stable and the clearer, bring us amazing visual effects. In addition, the light from our COB LED looks softer to our eyes.

Application Fields

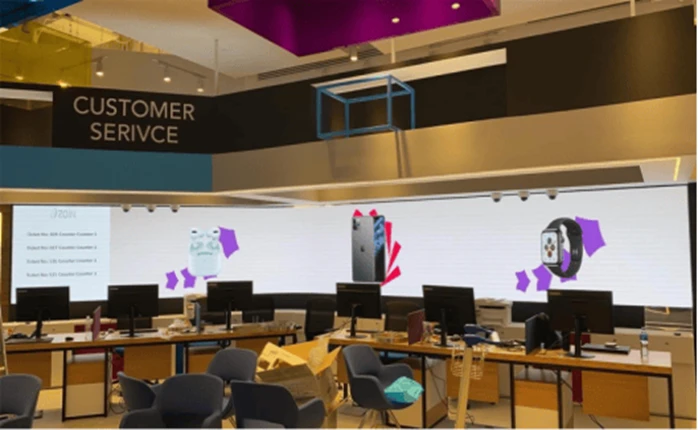

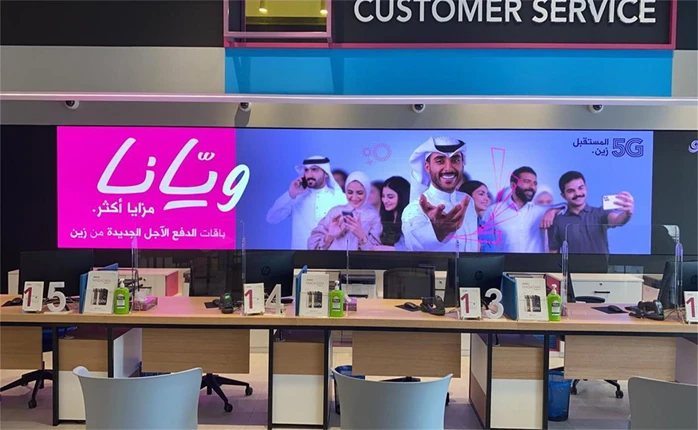

Meeting Room; TV Studio; Exhibition Center; Shopping Mall; Airport; Cinema.

Parameter

Item P0.78 P0.93   P1.25
Pixel Pitch  0.78mm 0.93mm 1.25mm
LED Type  Flip COB Flip COB Flip COB
Module Resolution  192dots×216dots 160dots×180dots 120dots x 135dots
Driving Mode  1/96scan 1/40scan 1/60scan
Module Pixels  41472dots 28800dots  16200dots
Module Size  150×168.75mm  150×168.75mm  150 x 168.75mm
Cabinet Size  600×337.5×27mm  600×337.5×27mm  600×337.5×27mm
Cabinet Resolution  768dotsx 432dots  640dotsx 360dots 480dots x 270dots
Pixel Density  1638400dots/㎡ 1137777dots/㎡ 640000dots/㎡
Minimum Viewing Distance  0.78m 0.93 m 1.25 m
Brightness  ≥600nits ≥600nits ≥600nits
IP Grade  IP54 IP54 IP54
Refresh Rate  3840Hz~7680Hz 3840Hz~7680Hz 3840Hz~7680Hz
Gray Scale  14~22bits 14~22bits 14~22bits
Viewing Angle  H:160° / V:160° H:160° / V:160° H:160° / V:160°
Maximum Power Consumption   275W/m² 275W/m² 245W/m²
Average Power Consumption 160W/m² 160W/m² 150W/m²
Screen Lifespan ≥100,000 hours ≥100,000 hours ≥100,000 hours
Input Voltage  AC100V - AC240V @ 50Hz/60Hz AC100V - AC240V @ 50Hz/60Hz AC100V - AC240V @ 50Hz/60Hz
Operating Temperature  ﹣20℃~40℃  ﹣20℃~40℃  ﹣20℃~40℃
Operating Humidity 10%~85% 10%~85% 10%~85%
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight  4.4kg/panel 4.4kg/panel 4.4kg/panel
Operating System  Windows (Win10, Win8, etc.) Windows (Win10, Win8, etc.) Windows (Win10 Win8, etc.)
Signal Source Compatibility  DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
Item P1.56
Pixel Pitch  1.56mm
LED Type  Flip COB
Module Resolution  96dots x 108dots
Driving Mode  1/48scan
Module Pixels  10368dots
Module Size  150 x 168.75mm
Cabinet Size  600×337.5×27mm
Cabinet Resolution  384dotsx 216dots
Pixel Density  409600dots/㎡
Minimum Viewing Distance  1.56m
Brightness  ≥600nits
IP Grade  IP54
Refresh Rate  3840Hz~7680Hz
Gray Scale  14~22bits
Viewing Angle  H:160° / V:160°
Maximum Power Consumption   205W/m²
Average Power Consumption 150W/m²
Screen Lifespan ≥100,000 hours
Input Voltage  AC100V - AC240V @ 50Hz/60Hz
Operating Temperature  ﹣20℃~40℃
Operating Humidity 10%~85%
Cabinet Material Die-casting Aluminum
Cabinet Weight  4.4kg/panel
Operating System  Windows (Win10, Win8, etc.)
Signal Source Compatibility  DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
