SP1 Mini
Indoor Small Pitch Mini LED Display-P0.9, P1.25, P1.56
Cost-Effective
Light Weight
Thin Screen
Easy Maintenance
Die-Casting Aluminum
Quick Installation
3840Hz ~ 7680Hz
14bits~22bits
Compared to traditional 1R1G1B SMD LED, SP1 Mini series adopts advanced 4R4G4B Mini LED 4 in 1. Mini-LED overcomes the graininess of SMD lamps and realizes smaller LED crystal particles. It enables finer display for small pitch products. This breaks the bottleneck of the small pitch market.

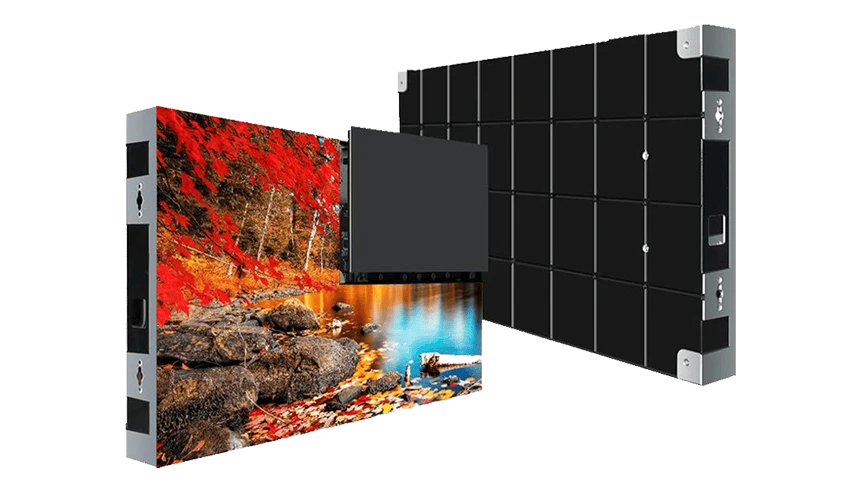

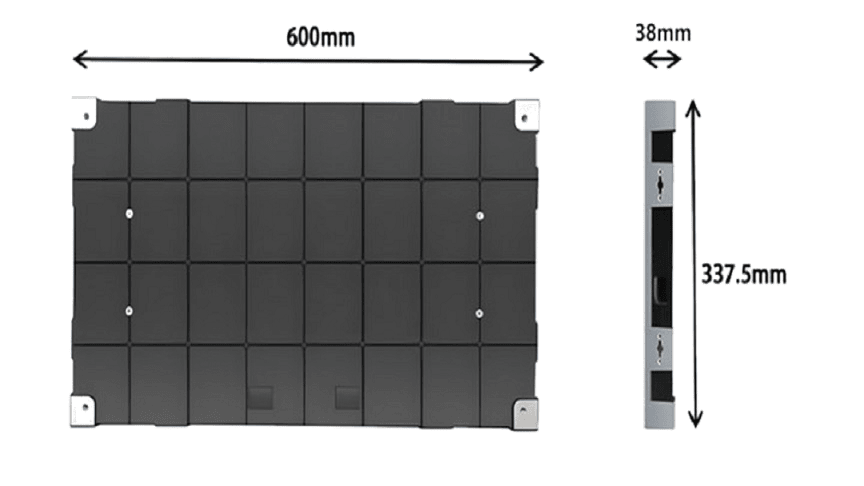

Die-casting aluminum design is used in the cabinet and the thickness of cabinet including modules is only 38mm, so each panel weighs only 7.3kgs, which brings much more convenience when we do the installation and transportation. More importantly, it can reduce the pressure of architecture and the risk of collapse.
Mini LED 4 in 1 adopts advanced common cathode design, which greatly save energy, reduce the heat from screen and extend the lifespan of screen. At the same time, this is also conducive to optimizing the terminal manufacturing process, reducing the number of solder joints, and improving the cost of the product.

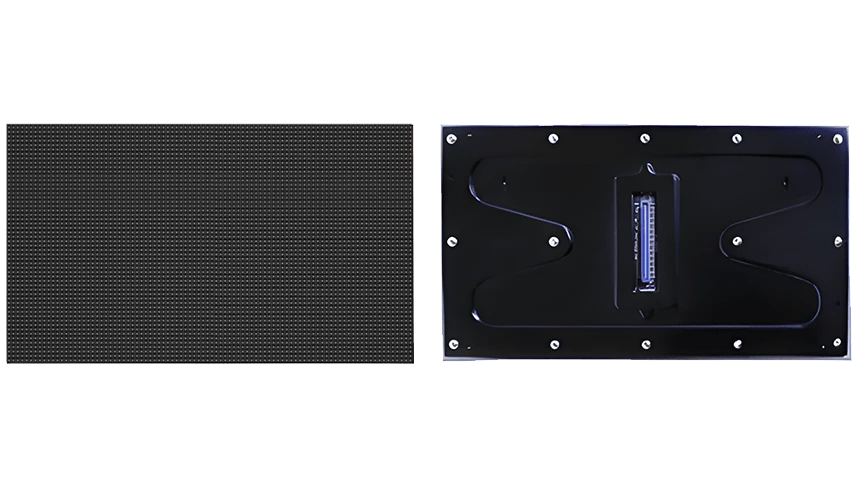

The cabinet can be accessed from front side for maintenance and installation. All receiving cards, power supplies, etc can be serviced from the front side.

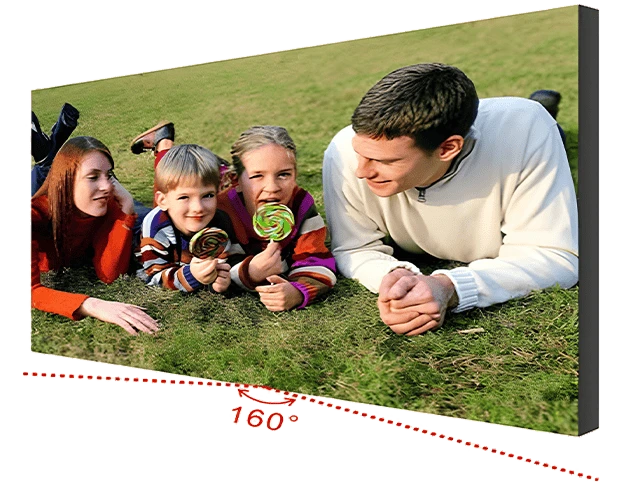

The surface of the screen looks very flat and neat because of the precision of cabinets, and thus the viewing angle can be up to 160°.
SP1 Mini series was put in the market in 2015. The feedback from the clients for this item is 5 stars because of its reliable performance and high quality visual effect.

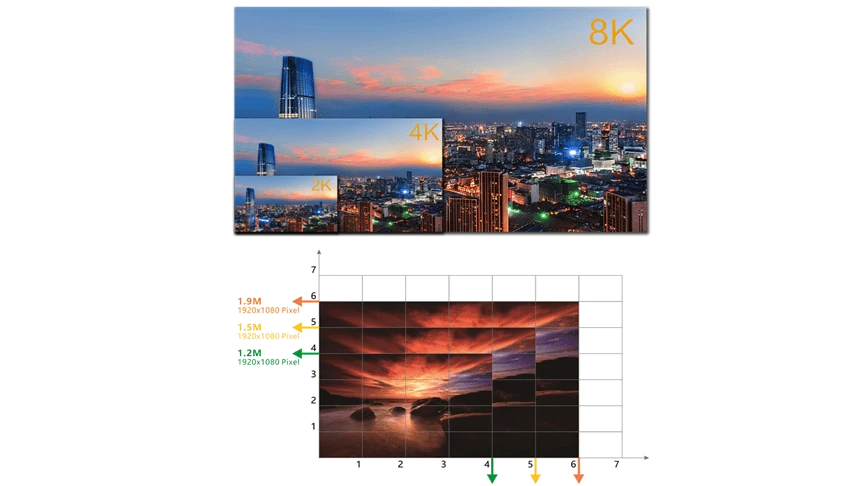

When we build a screen with 2k, 4k, 8k or some other resolutions, we can still have a 16:9 screen aspect ratio.

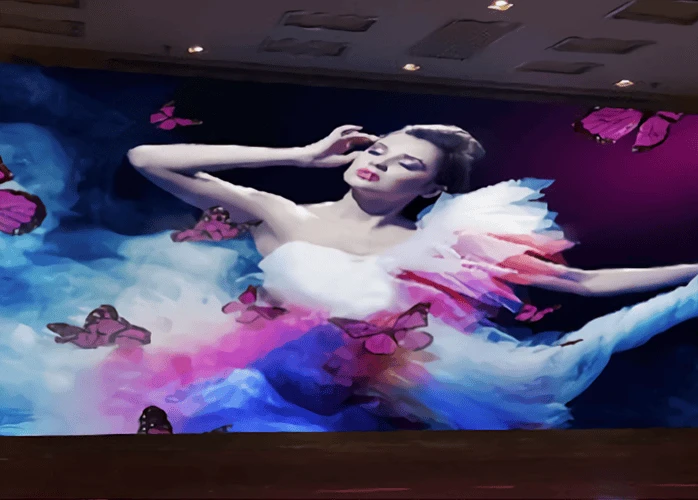

To display the perfect image is not easy, but we persist in producing the high - quality image on the screen. After thousands of tests and improvements, the screen has reached the ideal value of each visual performance. 1. Ultimate Refresh Rate: Up to 3840Hz 2.Best Gray Scale: Up to 16bits
To fit every different scene, our products utilize superior materials with a concise and strong structure, and various installation methods make it flexible and easy to apply.

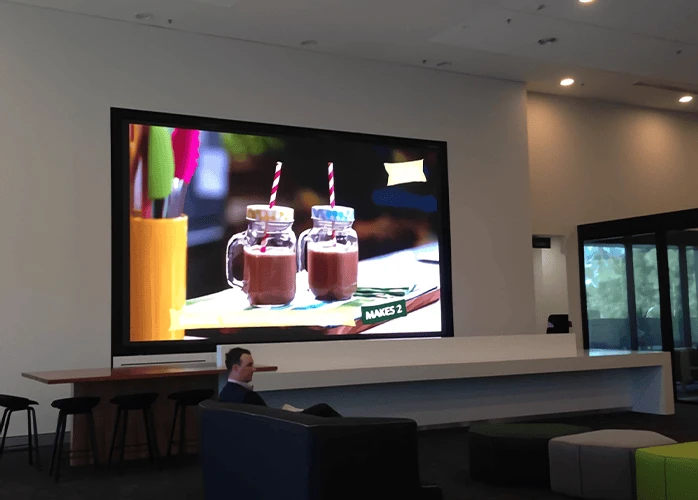

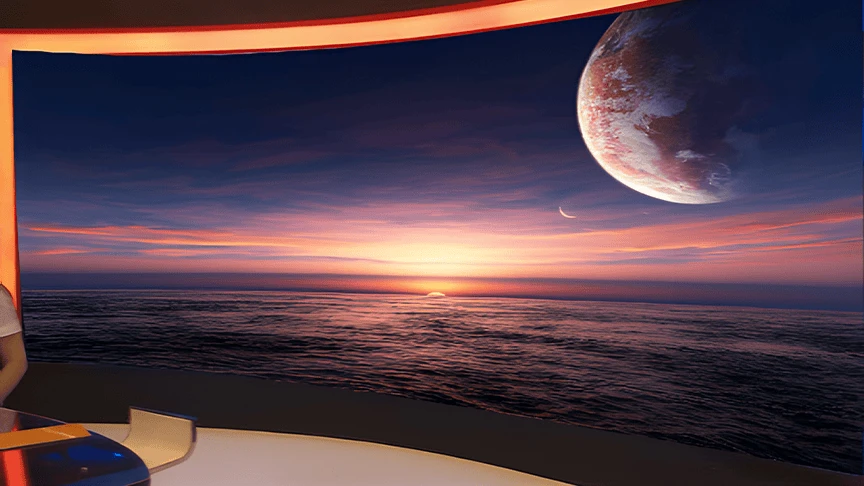

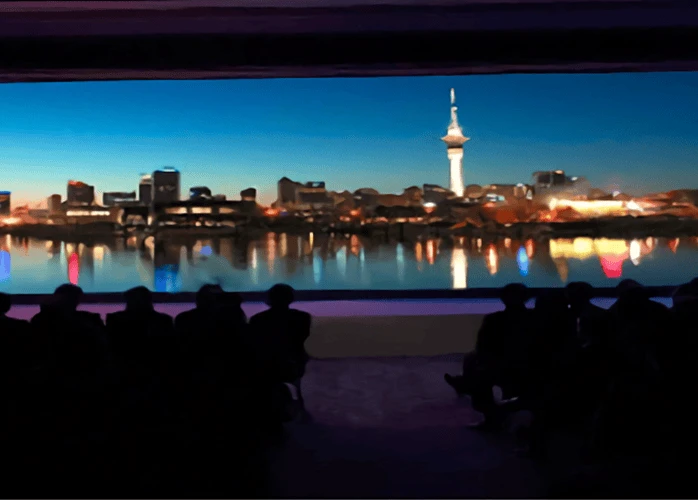

This product is usually used in:Meeting Room; TV Studio; Exhibition Center;Shopping Mall; Airport.
Item | P0.9 | P1.25 | P1.56 |
---|---|---|---|
Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm |
LED Type | MINI LED 4 in 1 | MINI LED 4 in 1 | MINI LED 4 in 1 |
Module Resolution | 320dots × 180dots | 240dots × 135dots | 192dots × 108dots |
Driving Mode | 1/60scan | 1/45scan | 1/36scan |
Module Pixels | 57,600dots | 32,400dots | 20,736dots |
Module Size | 300mm × 168.75mm | 300mm × 168.75mm | 300mm × 168.75mm |
Cabinet Size | 600mm × 337.5mm × 38mm | 600mm × 337.5mm × 38mm | 600mm × 337.5mm × 38mm |
Cabinet Resolution | 640dots × 360dots | 480dots × 270dots | 384dots × 216dots |
Pixel Density | 1137,778dots/㎡ | 640,000dots/㎡ | 409,600dots/㎡ |
Minimum Viewing Distance | ≥0.9m | ≥1.2 m | ≥1.5 m |
Brightness | 600-1000nits | 600-1000nits | 600-1000nits |
IP Grade | IP43 | IP43 | IP43 |
Refresh Rate | 3840-7680Hz | 3840-7680Hz | 3840-7680Hz |
Gray Scale | 14bits~22bits | 14bits~22bits | 14bits~22bits |
Viewing Angle | H:150° / V:150° | H:150° / V:150° | H:110° / V:110° |
Maximum Power Consumption | 350W/㎡ | 350W/㎡ | 300W/㎡ |
Average Power Consumption | 130W/㎡ | 130W/㎡ | 105W/㎡ |
Input Voltage | AC110V~AC240V @ 50Hz / 60Hz | AC110V~AC240V @ 50Hz / 60Hz | AC110V~AC240V @ 50Hz / 60Hz |
Operating Temperature | ﹣20℃~50℃ | ﹣20℃~50℃ | ﹣20℃~50℃ |
Operating Humidity | 10%~90% | 10%~90% | 10%~90% |
Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
Cabinet Weight | 7.3kg/panel | 7.3kg/panel | 7.3kg/panel |
Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
