Extremely thin 4k LED Display

Product Description

Multi-layer Circuit Board Design

(1)Uniform current distribution;(2)Lower power consumption;(3)Faster heat dissipation;(4)Higher reliability

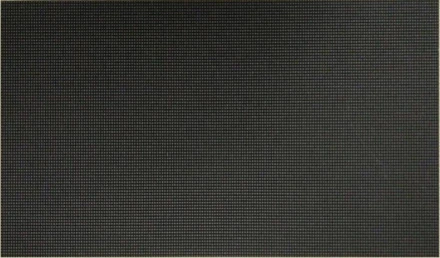

High Quality Black LEDs

(1)Lower attenuation;(2)Good color uniformity;(3)Better contrast ratio;(4)No mosaic phenomenon

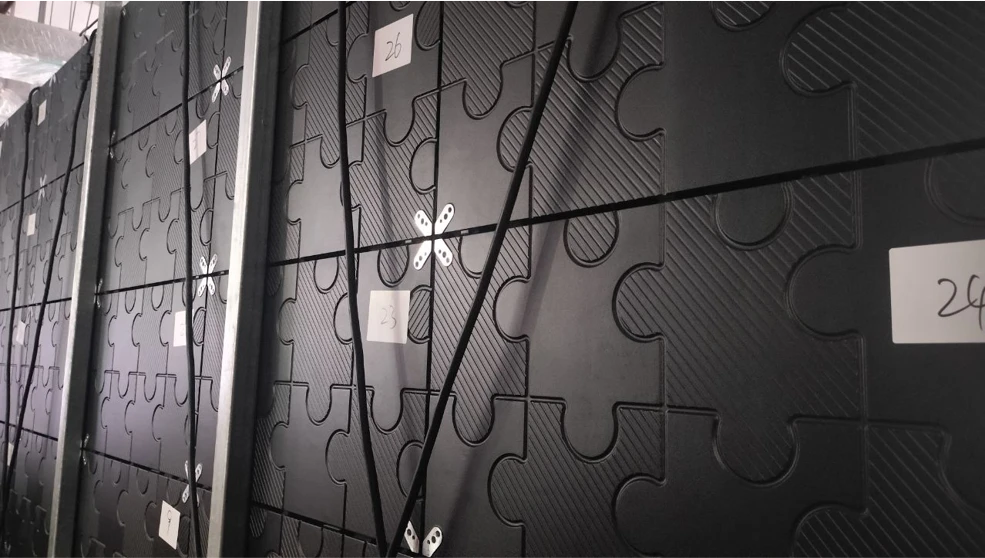

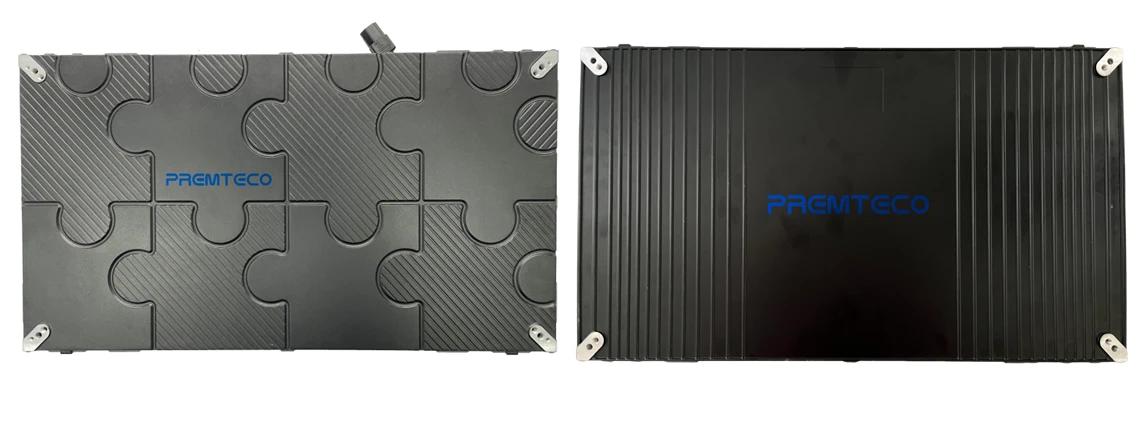

Cabinet Appearance (Optional)

(1)High precision;(2)Lightweight; (3)Ultra-thin; (4)No fan design

Support Power & Signal Redundancy

Ensuring stable operation for 24/7

Flash Smart IC

Automatic parameters adjustment function Avoiding color diferrences

Seamless Connection & Better Flatness

Positioning pins design

(1) Ensuring accurate position

(2)Improving the flatness of caibnet splicing

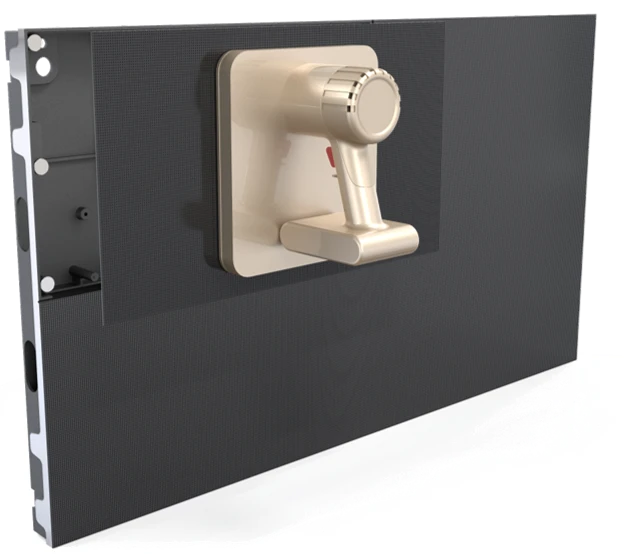

Fully Front Access : Easy to Install and Maintain

The power supply, receiving card, cables, and other components can all be removed from the front

Integrated Control Box: BR600

(1)Integrated power supply, receiving card, and hub card;

(2)Simple and easy to install and maintain

Golden Aspect Ratio Cabinet Size

The cabinet aspect ratio is 16:9. We can also make various screen resolutions with 16:9 aspect ratio, such as 720P, 2K, 4K, or other resolutions.

Brightness and color point-to-point adjustment technology

(1)Improving overall screen consistency

(2)Preserving shadow detail;

(3)Avoiding excessive brightness

Higher Refresh Rate

No flicker and no scanning line under high-speed camera shutter

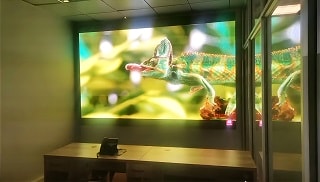

Application Fields

Meeting Room; TV Studio; Exhibition Center; Shopping Mall; Airport.

Parameter

Spec1 Spec2 Video

Item	P0.9375	P1.25	P1.56	P1.875
Pixel Pitch	0.9375mm	1.25mm	1.5625mm	1.875mm
LED Type	SMD4in1	CHIP1010	CHIP1010/SMD1212	SMD1010
Module Resolution	320dots × 180dots	240dots × 135dots	192dots × 108dots	160dots × 90dots
Driving Mode	1/46scan	1/45scan	1/48scan	1/45scan
Module Pixels	57,600dots	32,400dots	32,400dots	14,400dots
Module Size	300mm × 168.75mm	300mm × 168.75mm	300mm × 168.75mm	300mm × 168.75mm
Cabinet Size	600mm × 337.5mm×58mm	600mm × 337.5mm×58mm	600mm × 337.5mm×58mm	600mm × 337.5mm×58mm
Cabinet Resolution	640dots × 360dots	480dots × 270dots	384dots × 216dots	320dots × 180dots
Pixel Density	1137,777dots/㎡	640,000dots/㎡	409,600dots/㎡	284,444dots/㎡
Minimum Viewing Distance	≥0.937m	≥1.25m	≥1.56m	≥1.875m
Brightness	600nits～1000nits	600nits～1000nits	600nits～1000nits	600nits～1000nits
IP Grade	IP43	IP43	IP43	IP43
Refresh Rate	3,840Hz~7,680Hz	3,840Hz~7,680Hz	3,840Hz~7,680Hz	3,840Hz~7,680Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:110° / V:110°	H:110° / V:110°	H:110° / V:110°	H:110° / V:110°
Maximum Power Consumption	≤450W/㎡（90W/Panel）	≤450W/㎡（90W/Panel）	≤450W/㎡（90W/Panel）	≤450W/㎡（90W/Panel）
Average Power Consumption	≤135W/㎡（135W/Panel）	≤135W/㎡（135W/Panel）	≤135W/㎡（27W/Panel）	≤135W/㎡（27W/Panel）
Input Voltage	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz
Operating Temperature	﹣20℃～50℃	﹣20℃～50℃	﹣20℃～50℃	﹣20℃～50℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	6kg/panel	6kg/panel	6kg/panel	6kg/panel
Operating System	Windows	Windows	Windows	Windows
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.1, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.1, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P1.875
Pixel Pitch	1.875mm
LED Type	SMD1010
Module Resolution	160dots × 90dots
Driving Mode	1/45scan
Module Pixels	14,400dots
Module Size	300mm × 168.75mm
Cabinet Size	600mm × 337.5mm × 58mm
Cabinet Resolution	320dots × 180dots
Pixel Density	284,444dots/㎡
Minimum Viewing Distance	≥1.8 m
Brightness	600-1000nits
IP Grade	IP43
Refresh Rate	3840Hz～7680Hz
Gray Scale	13bits～24bits
Viewing Angle	H:110° / V:110°
Maximum Power Consumption	≤450W/㎡
Average Power Consumption	≤135W/㎡
Input Voltage	AC220V 50Hz
Operating Temperature	﹣20℃～50℃
Operating Humidity	10%～90%
Cabinet Material	Die-casting Aluminum
Cabinet Weight	6kg/panel
Operating System	Windows
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
