SS2
Perimeter LED Screen for Stadium-P4,P5.7,P6.67, P8, P10
Soft Plastic Mask
Multifunctional
High Quality SMD LED
14bits~22bits
Big Viewing Angle
IP68
3,840Hz~7,680Hz
6,000nits ~ 10,000nits

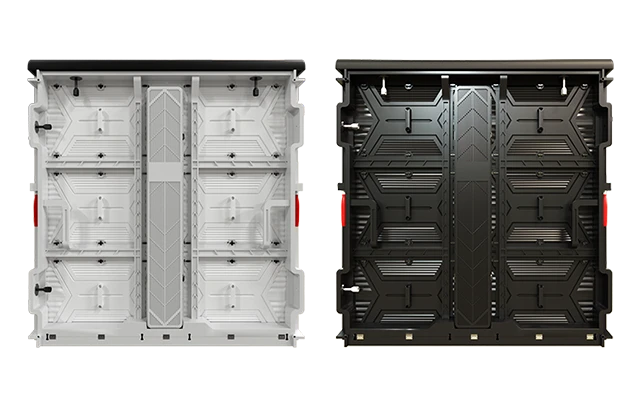

SS2 is available in black and white cabinet colors to meet the requirements of different scenes.
The main difference between the perimeter led screen and the other series is that the SS2 series has a soft plastic mask to protect the players from injury when they hit the screen in the stadium by accident.
This LED panel is equipped with a robust support bracket, thereby enhancing the stability of the LED panel support. In the event of a storm causing the LED panel to be knocked down, its IP65 waterproof rating ensures that the screen remains safe and protected. Additionally, the product features an excellent heat dissipation design due to both the material of the LED cabinet and the box for mounting the power supply on the back of the LED cabinet being made of aluminum. This allows it to function properly even in high temperatures up to 60 degrees in Middle Eastern weather conditions.

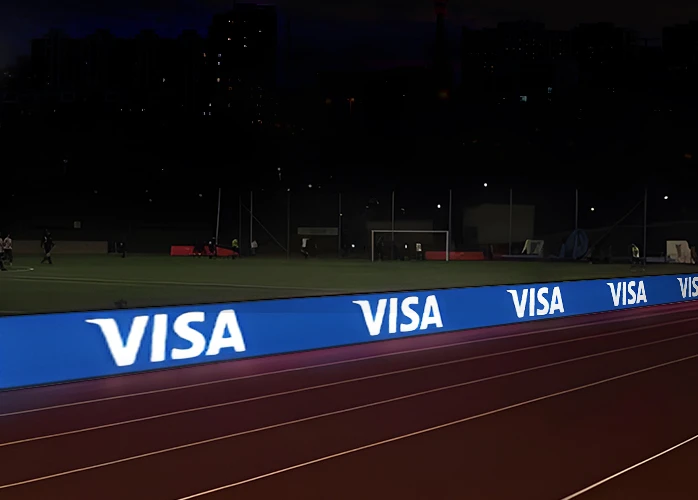

Perimeter led screen can also be used as a scoreboard in the stadium. You can clearly see what is on the screen at various angles.

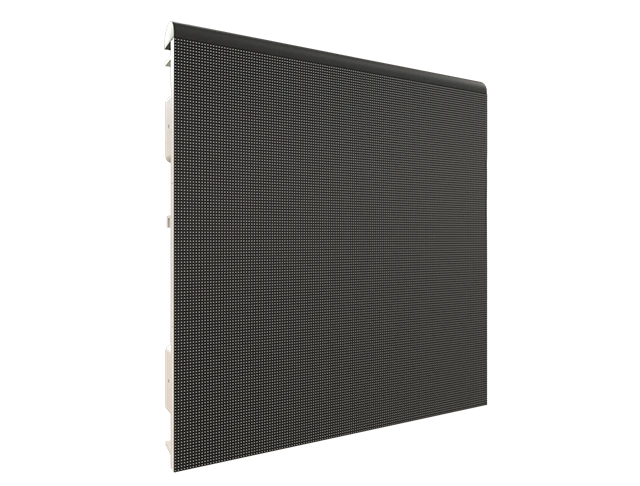

The high-precision die-casting aluminum cabinet is adopted. Compared with the traditional one, the perimeter led screen's cabinet is quicker, and it has a better splicing effect.
UEFA Standard, our perimeter LED screen meets the UEFA standard, and we have sold many perimeter screens to different stadiums in Europe.
The viewing angle of our sports LED display can be up to 160°.High Refresh Rate, with the high refresh rate of 3840Hz, the visual effect is excellent when we run the videos or images.
The brightness of our perimeter LED screen is as high as 6000 nits or even higher.The Product Passed All CertificationsOur products have been certified by CE (including EMC & LVD), RoHS, ETL, CCC, CB etc.

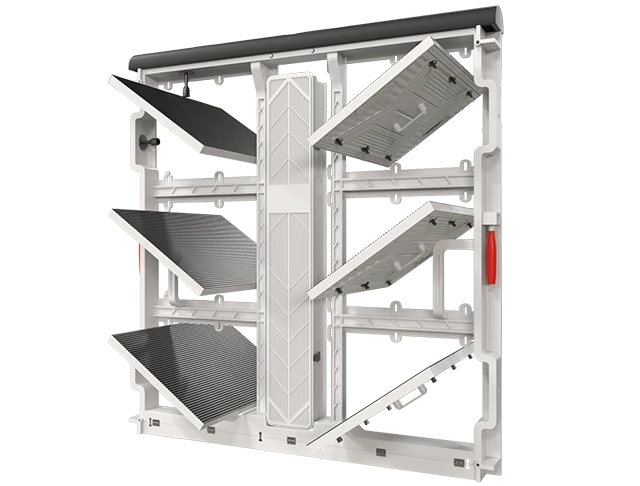

Our SS2 features a well-designed cabinet with front and back maintenance capabilities. In addition, the replacement of modules can be completed in less than one minute, allowing any emergencies arising from module failure during the gameplay to be quickly resolved. Furthermore, compared with the traditional soft ribbon cable connection design, the hard-pin connection design of the SS2 series modules provides higher stability.

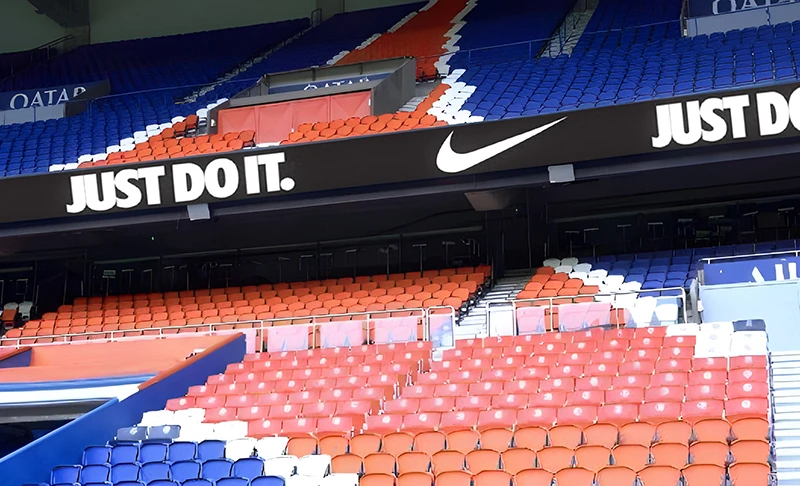

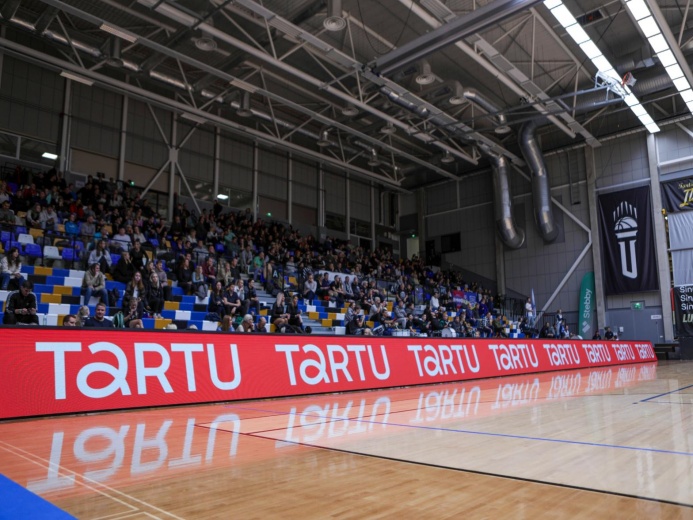

On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors. It is always used in the stadium as:

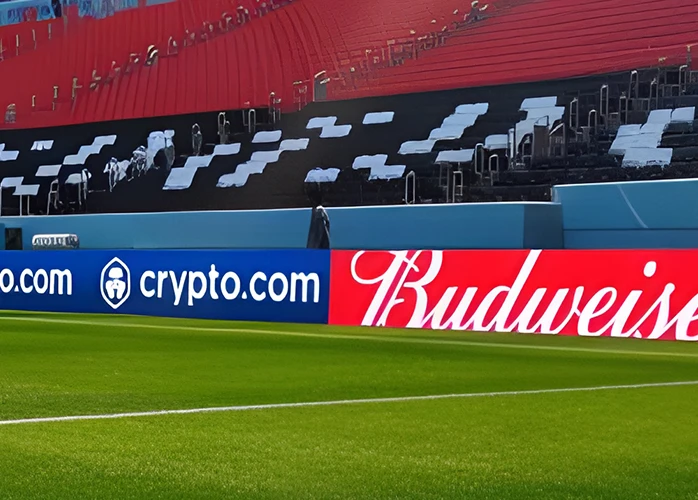

Perimeter Banner Screen; Score Board; Live Feed Video Screen.
Item | P4 | P5.7 | P6.67 |
---|---|---|---|
Pixel Pitch | 4mm | 5.7mm | 6.67mm |
LED Type | SMD1921 | SMD2727 | SMD2727 |
Module Resolution | 120dots × 80dots | 84dots × 56dots | 72dots x 48dots |
Driving Mode | 1/10scan | 1/7scan | 1/6scan |
Module Pixels | 9600dots | 4704dots | 3456dots |
Module Size | 480mm x 320mm | 480mm x 320mm | 480mm x 320mm |
Cabinet Size | 960mm x 960mm | 960mm x 960mm | 960mm x 960mm |
Cabinet Resolution | 240dots x 240dots | 168dots x 168dots | 144dots x 144dots |
Pixel Density | 62,500dots/m² | 30,671dots/m² | 22,477dots/m² |
Minimum Viewing Distance | ≥4 m | ≥5.7 m | ≥6.67m |
Brightness | 5,500nits | 5,500nits | 5,500nits |
IP Grade | IP65 | IP65 | IP65 |
Refresh Rate | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz |
Gray Scale | 13bits~16bits | 13bits~16bits | 13bits~16bits |
Viewing Angle | H:120° / V:120° | H:120° / V:120° | H:120° / V:120° |
Maximum Power Consumption | 800W/m² | 800W/m² | 800W/m² |
Average Power Consumption | |||
Input Voltage | AC90-240V | AC90-240V | AC90-240V |
Operating Temperature | ﹣30℃~50℃ | ﹣30℃~50℃ | ﹣30℃~50℃ |
Operating Humidity | 10%~90% | 10%~90% | 10%~90% |
Cabinet Material | Aluminum | Aluminum | Aluminum |
Cabinet Weight | 26kg | 26kg | 26kg |
Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
Item | P8 | P10 |
---|---|---|
Pixel Pitch | 8mm | 10mm |
LED Type | SMD3535 | SMD3535 |
Module Resolution | 60dots x 40dots | 48dots x 32dots |
Driving Mode | 1/5scan | 1/2scan |
Module Pixels | 2,400dots | 1536dots |
Module Size | 480mm x 320mm | 480mm x 320mm |
Cabinet Size | 960mm x 960mm | 960mm x 960mm |
Cabinet Resolution | 120dots x 120dots | 96dots x 96dots |
Pixel Density | 15,625dots/m² | 10,000dots/m² |
Minimum Viewing Distance | ≥8 m | ≥10 m |
Brightness | 5,500nits | 6,000nits |
IP Grade | IP65 | IP65 |
Refresh Rate | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz |
Gray Scale | 13bits~16bits | 13bits~16bits |
Viewing Angle | H:120° / V:120° | H:120° / V:120° |
Maximum Power Consumption | 700W/m² | 800W/m² |
Average Power Consumption | 200W/m² | 250W/m² |
Input Voltage | AC90-240V | AC90-240V |
Operating Temperature | ﹣30℃~50℃ | ﹣30℃~50℃ |
Operating Humidity | 10%~90% | 10%~90% |
Cabinet Material | Aluminum | Aluminum |
Cabinet Weight | 26kg | 26kg |
Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
Item | P7.8 | P10.4 |
---|---|---|
Pixel Pitch | 7.8125mm | 10.416mm |
LED Type | SMD2727 | SMD2727 |
Module Resolution | 64dots x 32dots | 48dots x 24dots |
Driving Mode | 1/4scan | 1/2scan |
Module Pixels | 2048dots | 1152dots |
Module Size | 500mm x 250mm | 500mm x 250mm |
Cabinet Size | 1000mm x 1000mm | 1000mm x1000mm |
Cabinet Resolution | 128dots x 128dots | 96dots x 96dots |
Pixel Density | 16,394dots/m² | 9227dots/m² |
Minimum Viewing Distance | ≥7.8 m | ≥10.4 m |
Brightness | 6,500nits~10,000nits | 6,500nits~10,000nits |
IP Grade | IP68 | IP68 |
Refresh Rate | 3,840Hz~7,680Hz | 3,840Hz~7,680Hz |
Gray Scale | 14bits~22bits | 14bits~22bits |
Viewing Angle | H:160° / V:160° | H:160° / V:160° |
Maximum Power Consumption | 550W/m² | 550W/m² |
Average Power Consumption | 150W/m² | 150W/m² |
Input Voltage | AC110V - AC220V @ 50Hz/60Hz | AC110V - AC220V @ 50Hz/60Hz |
Operating Temperature | ﹣20℃~60℃ | ﹣20℃~60℃ |
Operating Humidity | 10%~90% | 10%~90% |
Cabinet Material | Aluminum | Aluminum |
Cabinet Weight | 34kg/sqm | 34kg/sqm |
Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
