SS1
Perimeter LED Screen for Stadium-P6.6, P8, P10
Soft plastic mask
multifunctional
High quality SMD LED
14bits ~ 22bits
Large Viewing Angle
IP65
3,840Hz~40,000Hz
6,000nits ~ 10,000nits

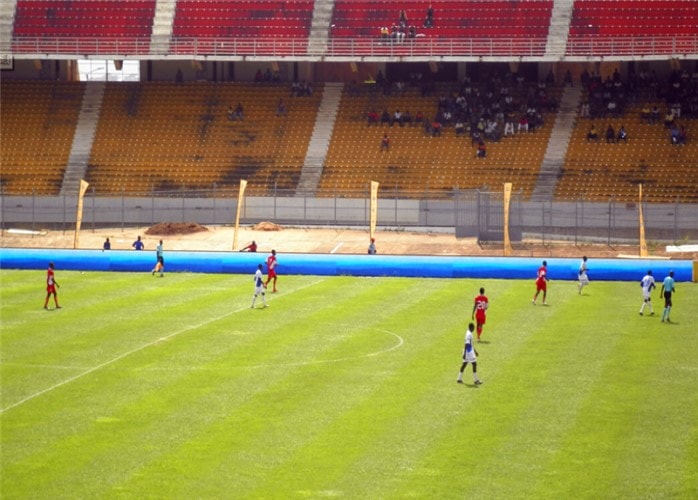

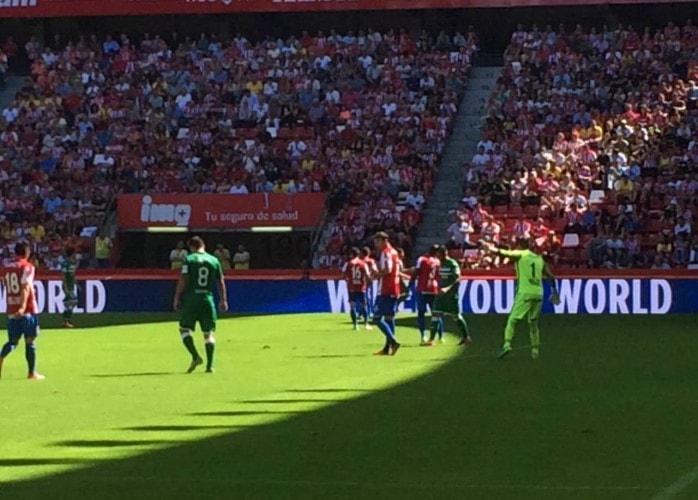

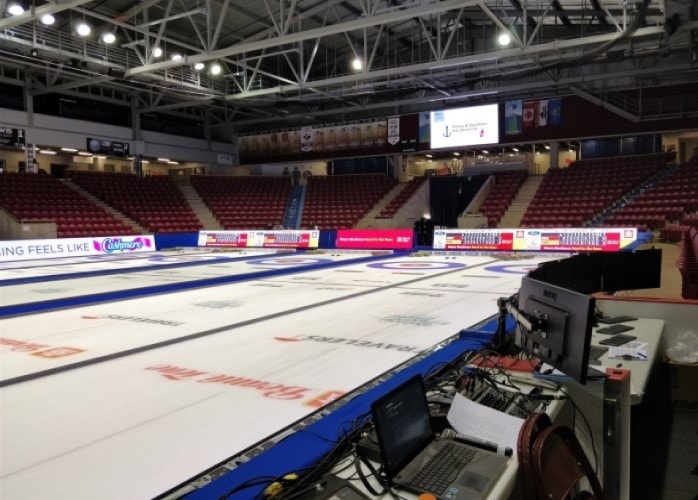

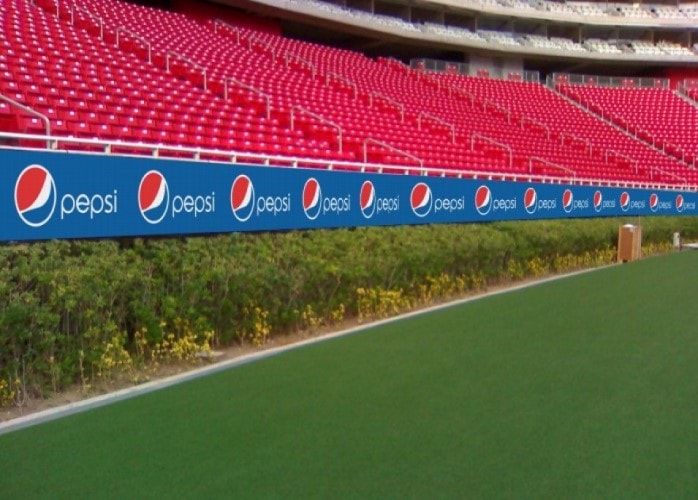

On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors. It is always used in the stadium as:
Perimeter Banner Screen; Score Board; Live Feed Video Screen.
| Item | P6.6 | P8 | P10 |
|---|---|---|---|
| Pixel Pitch | 6.67mm | 8mm | 10mm |
| LED Type | SMD2727 | SMD2727 | SMD2727 |
| Module Resolution | 48dots × 24dots | 40dots × 20dots | 32dots × 16dots |
| Driving Mode | 1/6scan | 1/5scan | 1/2scan |
| Module Pixels | 1,152dots | 800dots | 512dots |
| Module Size | 320mm × 160mm | 320mm × 160mm | 320mm × 160mm |
| Cabinet Size | 960mm × 960mm | 960mm × 960mm | 960mm × 960mm |
| Cabinet Resolution | 144dots × 144dots | 120dots × 120dots | 96dots × 96dots |
| Pixel Density | 22,500dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ |
| Minimum Viewing Distance | ≥6m | ≥8m | ≥10m |
| Brightness | 6,000nits～10,000nits | 6,000nits～10,000nits | 6,000nits～10,000nits |
| IP Grade | IP65 | IP65 | IP65 |
| Refresh Rate | 7,680Hz～18,000Hz | 7,680Hz～18,000Hz | 7,680Hz～18,000Hz |
| Gray Scale | 14bits～22bits | 14bits～22bits | 14bits～22bits |
| Viewing Angle | H:160° / V:120° | H:160° / V:120° | H:160° / V:120° |
| Maximum Power Consumption | 720W/㎡ | 720W/㎡ | 720W/㎡ |
| Average Power Consumption | 210W/㎡ | 210W/㎡ | 210W/㎡ |
| Input Voltage | AC110V～AC240V @ 50Hz / 60Hz | AC110V～AC240V @ 50Hz / 60Hz | AC110V～AC240V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Aluminum die-casting | Aluminum die-casting | Aluminum die-casting |
| Cabinet Weight | 48kg/panel | 48kg/panel | 48kg/panel |
| Operating System | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) |
| Signal Source Compatibility | HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
| Item | P6.6 | P8 | P10 |
|---|---|---|---|
| Pixel Pitch | 6.67mm | 8mm | 10mm |
| LED Type | SMD2727 | SMD2727 | SMD2727 |
| Module Resolution | 48dots × 24dots | 40dots × 20dots | 32dots × 16dots |
| Driving Mode | 1/6scan | 1/5scan | 1/2scan |
| Module Pixels | 1,152dots | 800dots | 512dots |
| Module Size | 320mm × 160mm | 320mm × 160mm | 320mm × 160mm |
| Cabinet Size | 960mm × 960mm | 960mm × 960mm | 960mm × 960mm |
| Cabinet Resolution | 144dots × 144dots | 120dots × 120dots | 96dots × 96dots |
| Pixel Density | 22,500dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ |
| Minimum Viewing Distance | ≥6m | ≥8m | ≥10m |
| Brightness | 6,000nits～10,000nits | 6,000nits～10,000nits | 6,000nits～10,000nits |
| IP Grade | IP65 | IP65 | IP65 |
| Refresh Rate | 7,680Hz～18,000Hz | 7,680Hz～18,000Hz | 7,680Hz～18,000Hz |
| Gray Scale | 14bits～22bits | 14bits～22bits | 14bits～22bits |
| Viewing Angle | H:160° / V:120° | H:160° / V:120° | H:160° / V:120° |
| Maximum Power Consumption | 720W/㎡ | 720W/㎡ | 720W/㎡ |
| Average Power Consumption | 210W/㎡ | 210W/㎡ | 210W/㎡ |
| Input Voltage | AC110V～AC240V @ 50Hz / 60Hz | AC110V～AC240V @ 50Hz / 60Hz | AC110V～AC240V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Aluminum die-casting | Aluminum die-casting | Aluminum die-casting |
| Cabinet Weight | 48kg/panel | 48kg/panel | 48kg/panel |
| Operating System | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) |
| Signal Source Compatibility | HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
| Item | P6.6 | P8 | P10 |
|---|---|---|---|
| Pixel Pitch | 6.67mm | 8mm | 10mm |
| LED Type | SMD2727 | SMD2727 | SMD2727 |
| Module Resolution | 48dots × 24dots | 40dots × 20dots | 32dots × 16dots |
| Driving Mode | 1/6scan | 1/5scan | 1/2scan |
| Module Pixels | 1,152dots | 800dots | 512dots |
| Module Size | 320mm × 160mm | 320mm × 160mm | 320mm × 160mm |
| Cabinet Size | 960mm × 960mm | 960mm × 960mm | 960mm × 960mm |
| Cabinet Resolution | 144dots × 144dots | 120dots × 120dots | 96dots × 96dots |
| Pixel Density | 22,500dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ |
| Minimum Viewing Distance | ≥6m | ≥8m | ≥10m |
| Brightness | 6,000nits～10,000nits | 6,000nits～1,000nits | 6,000nits～10,000nits |
| IP Grade | IP65 | IP65 | IP65 |
| Refresh Rate | 7,680Hz～18,000Hz | 7,680Hz～18,000Hz | 7,680Hz～18,000Hz |
| Gray Scale | 14bits～22bits | 14bits～22bits | 14bits～22bits |
| Viewing Angle | H:160° / V:120° | H:160° / V:120° | H:160° / V:120° |
| Maximum Power Consumption | 720W/㎡ | 720W/㎡ | 720W/㎡ |
| Average Power Consumption | 210W/㎡ | 210W/㎡ | 210W/㎡ |
| Input Voltage | AC110V～AC240V @ 50Hz / 60Hz | AC110V～AC240V @ 50Hz / 60Hz | AC110V～AC240V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Aluminum die-casting | Aluminum die-casting | Aluminum die-casting |
| Cabinet Weight | 48kg/panel | 48kg/panel | 48kg/panel |
| Operating System | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) |
| Signal Source Compatibility | HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
