FR - PTC Led

Product Description

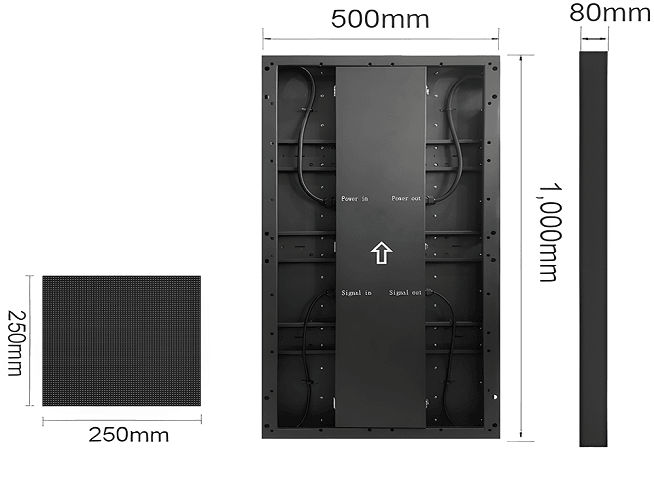

Slim and lightweight design

The iron cabinet only weights 23kgs which is lighter than conventional cabinets in the market. Thickness 80mm, lighter cabinets provide more convenience for installation and maintenance. 0.5m by 1m panel size can be easily assembled into big screen of different dimensions.

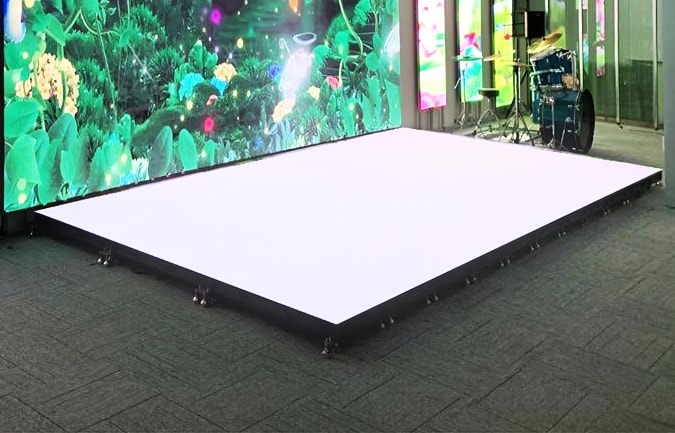

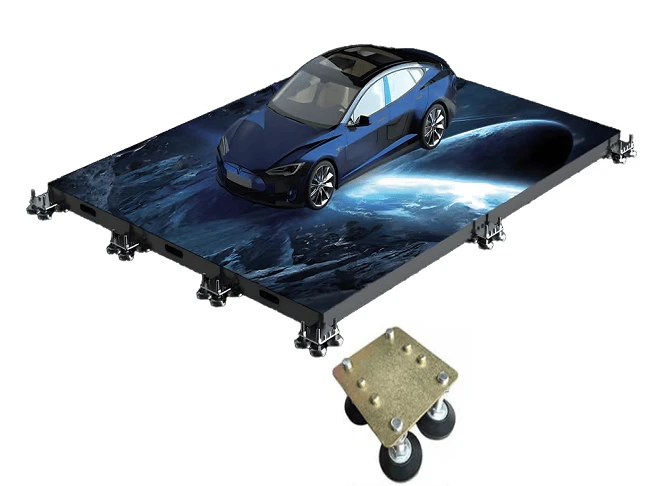

High Load-bearing Capacity

Each square meter can bear 2200kg, it has excellent load-bearing performance thanks to 1)the cabinet material is strong, and the board is 1.5, 2)multilayer subdivision PC mask is used, 3)one cabinet with 4 adjustable feets which support adjustable height: 130mm-170mm. Special reinforcement structure and wire buckle design greatly enhance the stability of the cabinet.

Good heat dissipation

The back cover of cabinet and power box are made of aluminum, which makes the cabinet more durable and highly stable. Meanwhile, heat dissipation of aluminum is much better than other materials in the market. As the eletronic components can be cooled down quickly, their lifespan will be longer.

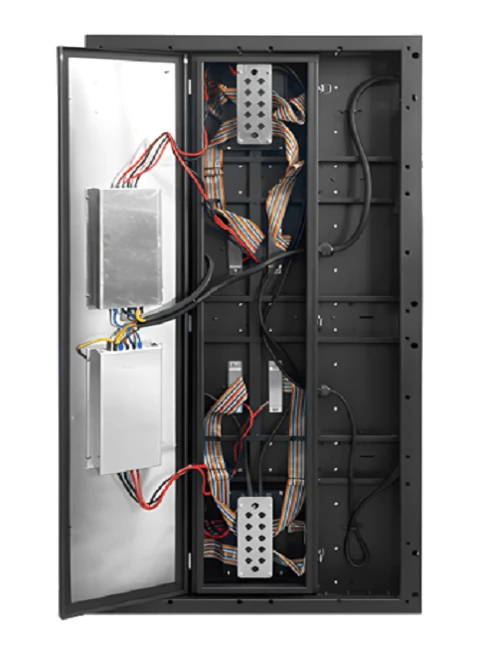

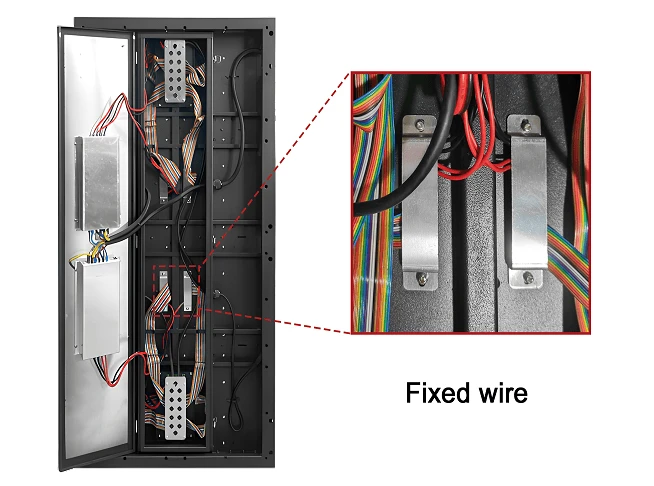

Patch design to fix cables

Each cabinet has patches for fixing cables.The vibration generated when stepping on the screen will not cause the wire to loosen. And the inner layout will be neater.

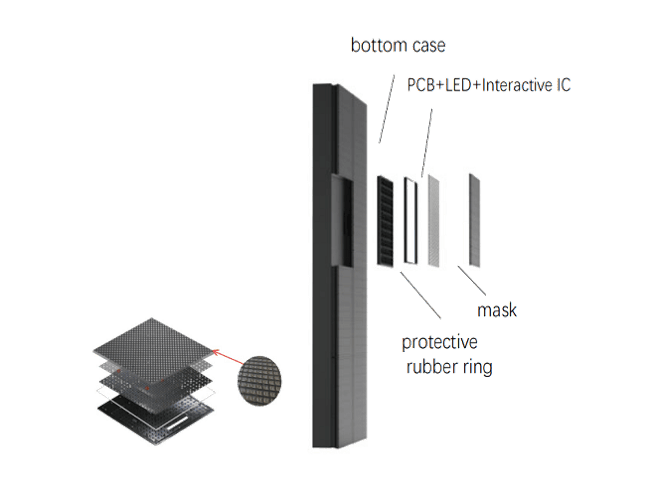

Strong PC Mask Design

1)Using private mode anti-scratch mask. 2)The mask convex design enhances the wear resistance and scratch resistance of the module surface. 3)IP54 Protective rubber ring enhances waterproof performance. 4)Enough distance reserved between the LEDs and the mask so the LEDs won't be influenced when people standing on. 5)Multilayer subdivision PC mask is stronger to realize high protection level.

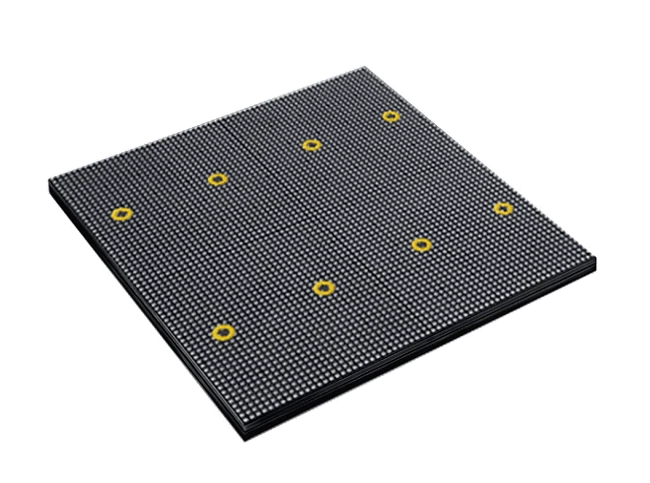

Interactive Induction

One module has 8 built-in chips to achieve the fast response time: 0.016s.Adjustable sensitivity. The reaction speed and time can be changed on the software according to different needs. The response speed of the built-in chip is much faster than that of the radar sensor.

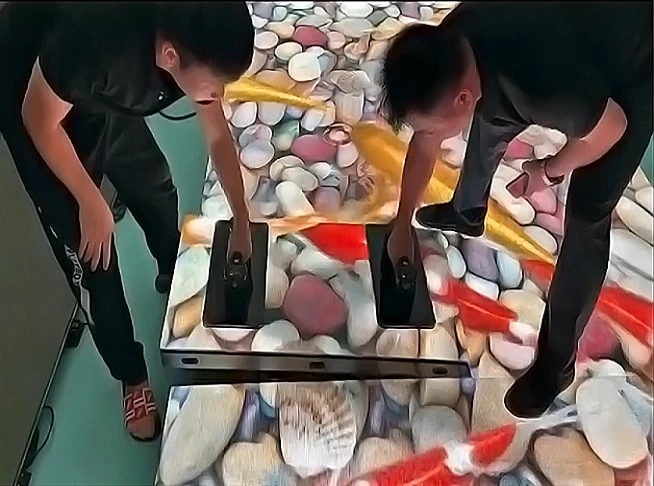

Cabinet Front Maintenance

Magnetic suction cabinet design, supporting arbitrary removal of the cabinet without affecting the normal operation of other parts. Also it's more convinent for replacing the modules.

High brightness up to 1500nits

Unlike the regular indoor screens only reach 800nits brightness, our product can reach 1500nits since we use outdoor LEDs. And it has better moisture resistance.

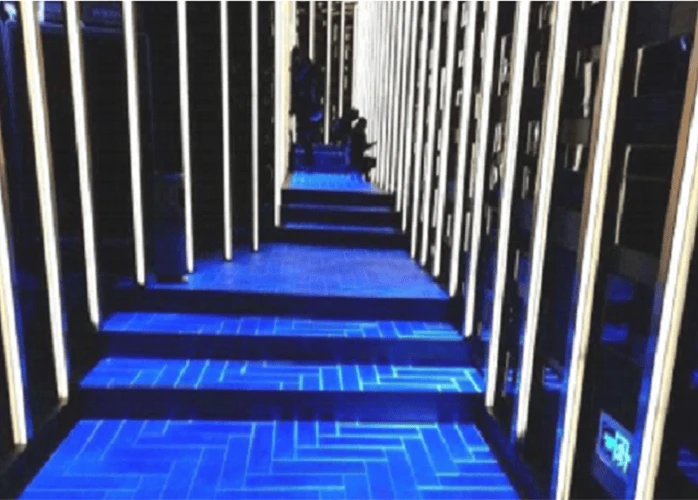

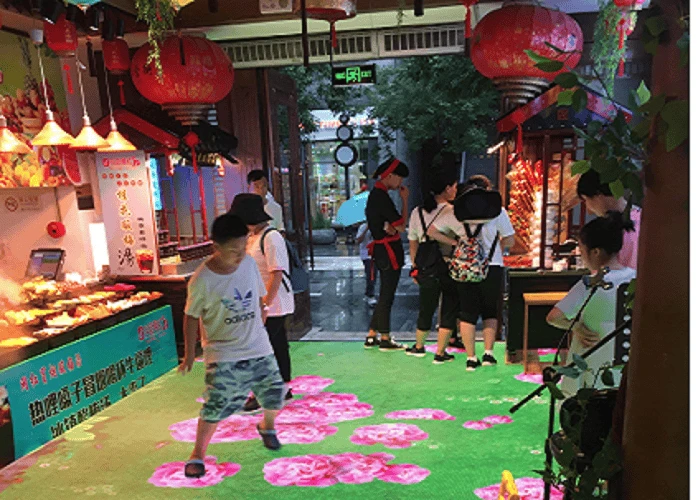

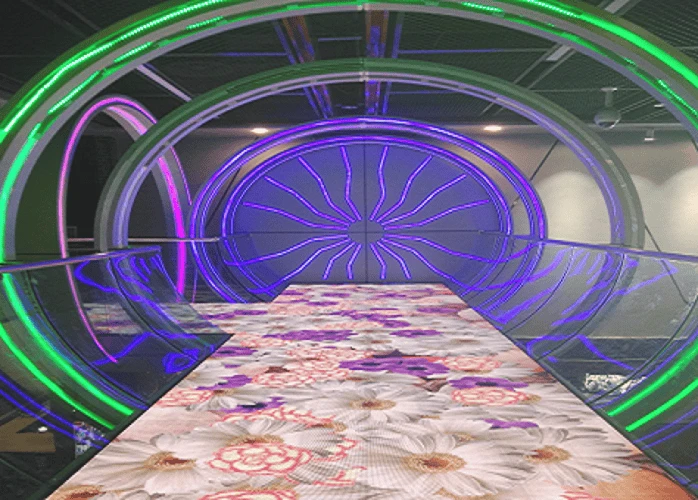

Application Files

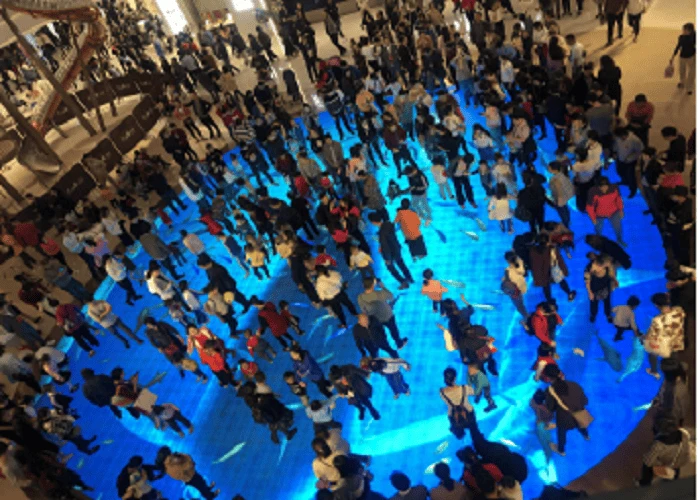

This indoor LED panel is usually be used for:

Shopping Mall; Hotel and Restaurants; Exhibition Center; Entertainment Center.etc.

Parameter

Spec1 Spec2 Spec3

Item	P2.5	P2.6	P2.9	P3.9
Pixel Pitch	2.5	2.6	2.976	3.91
LED Type	SMD1415	SMD1415	SMD1415	SMD1921
Module Resolution	100dots x 100dots	96dots x 96dots	84dots x 84dots	64dots x 64dots
Driving Mode	1/21scan	1/21scan	1/21scan	1/16scan
Module Pixels	10000dots	9216dots	7056dots	4096dots
Module Size	250mm x 250mm	250mm x 250mm	250mm x 250mm	250mm x 250mm
Cabinet Size	500mm x 1000mm	500mm x 1000mm	500mm x 1000mm	500mm x 1000mm
Cabinet Resolution	200dots x 400dots	192dots x 384dots	168dots x 336dots	128dots x 256dots
Pixel Density	160000dots/㎡	147456dots/㎡	112896dots/㎡	65536dots/㎡
Minimum Viewing Distance	≥2.5m	≥2.6m	≥2.9m	≥3.9m
Brightness	900nits-1500nits	900nits ~1500nits	900nits~1500nits	900nits~1800nits
IP Grade	IP54/IP45	IP54/IP45	IP54/IP45	IP54/IP45
Refresh rate	3840-7680Hz	3840-7680Hz	3840-7680Hz	3840-7680Hz
Gray Scale	14bits ~ 22bits	14bits ~ 22bits	14bits ~ 22bits	14bits ~ 22bits
Viewing Angle	160°/160°(H/V)	160°/160°(H/V)	160°/160°(H/V)	160°/160°(H/V)
Maximum Power Consumption	400W/Panel	400W/Panel	400W/Panel	400W/Panel
Average Power Consumption	200W/Panel	200W/Panel	200W/Panel	200W/Panel
Input Voltage	100~240V AC 50-60Hz	100~240V AC 50-60Hz	100~240V AC 50-60Hz	100~240V AC 50-60Hz
Operating Temperature	-10℃~+60℃	-10℃~+60℃	-10℃~+60℃	-10℃~+60℃
Operating Humidity	10~90%RH	10~90%RH	10~90%RH	10~90%RH
Cabinet Material	Iron	Iron	Iron	Iron
Cabinet Weight	24kg	24kg	24kg	24kg
Operating System	Windows(win7,win8,etc)	Windows(win7,win8,etc)	Windows(win7,win8,etc)	Windows(win7,win8,etc)
Signal Source Compatibility	DVI , HDMI	DVI, HDMI	DVI, HDMI	DVI, HDMI

Item	P4.8	P5.2	P6.25
Pixel Pitch	4.81	5.2	6.25
LED Type	SMD1921	SMD1921	SMD1921
Module Resolution	52dots x 52dots	48dots x 48dots	40dots x 40dots
Driving Mode	1/13scan	1/12scan	1/10scan
Module Pixels	2704dots	2304dots	1600dots
Module Size	250mm x 250mm	250mm x 250mm	250mm x 250mm
Cabinet Size	500mm x 1000mm	500mm x 1000mm	500mm x 1000mm
Cabinet Resolution	104dots x 208dots	96dots x 192dots	80dots x 160dots
Pixel Density	43264dots/㎡	36864dots/㎡	25600dots/㎡
Minimum Viewing Distance	≥4.8	≥5.2	≥6.25
Brightness	900nits~3000nits	900nits~3000nits	900nits~3000nits
IP Grade	IP54/IP45	IP54/IP45	IP54/IP45
Refresh rate	3840-7680Hz	3840-7680Hz	3840-7680Hz
Gray Scale	14bits ~ 22bits	14bits ~ 22bits	14bits ~ 22bits
Viewing Angle	160°/160°(H/V)	160°/160°(H/V)	160°/160°(H/V)
Maximum Power Consumption	400W/Panel	400W/Panel	400W/Panel
Average Power Consumption	200W/Panel	200W/Panel	200W/Panel
Input Voltage	100~240V AC 50-60Hz	100~240V AC 50-60Hz	100~240V AC 50-60Hz
Operating Temperature	-10℃~+60℃	-10℃~+60℃	-10℃~+60℃
Operating Humidity	10~90%RH	10~90%RH	10~90%RH
Cabinet Material	Iron	Iron	Iron
Cabinet Weight	24kg	24kg	24kg
Operating System	Windows(win7,win8,etc)	Windows(win7,win8,etc)	Windows(win7,win8,etc)
Signal Source Compatibility	DVI, HDMI	DVI, HDMI	DVI, HDMI

Item	P4.8	P5.2	P6.25
Pixel Pitch	4.81	5.2	6.25
LED Type	SMD1921	SMD1921	SMD1921
Module Resolution	52dots x 52dots	48dots x 48dots	40dots x 40dots
Driving Mode	1/13scan	1/12scan	1/10scan
Module Pixels	2704dots	2304dots	1600dots
Module Size	250mm x 250mm	250mm x 250mm	250mm x 250mm
Cabinet Size	500mm x 1000mm	500mm x 1000mm	500mm x 1000mm
Cabinet Resolution	104dots x 208dots	96dots x 192dots	80dots x 160dots
Pixel Density	43264dots/㎡	36864dots/㎡	25600dots/㎡
Minimum Viewing Distance	≥4.8	≥5.2	≥6.25
Brightness	900nits~3000nits	900nits~3000nits	900nits~3000nits
IP Grade	IP54/IP45	IP54/IP45	IP54/IP45
Refresh rate	3840-7680Hz	3840-7680Hz	3840-7680Hz
Gray Scale	14bits ~ 22bits	14bits ~ 22bits	14bits ~ 22bits
Viewing Angle	160°/160°(H/V)	160°/160°(H/V)	160°/160°(H/V)
Maximum Power Consumption	400W/Panel	400W/Panel	400W/Panel
Average Power Consumption	200W/Panel	200W/Panel	200W/Panel
Input Voltage	100~240V AC 50-60Hz	100~240V AC 50-60Hz	100~240V AC 50-60Hz
Operating Temperature	-10℃~+60℃	-10℃~+60℃	-10℃~+60℃
Operating Humidity	10~90%RH	10~90%RH	10~90%RH
Cabinet Material	Iron	Iron	Iron
Cabinet Weight	24kg	24kg	24kg
Operating System	Windows(win7,win8,etc)	Windows(win7,win8,etc)	Windows(win7,win8,etc)
Signal Source Compatibility	DVI, HDMI	DVI, HDMI	DVI, HDMI
