Outdoor Led Display Banner AP1 Series

Product Description

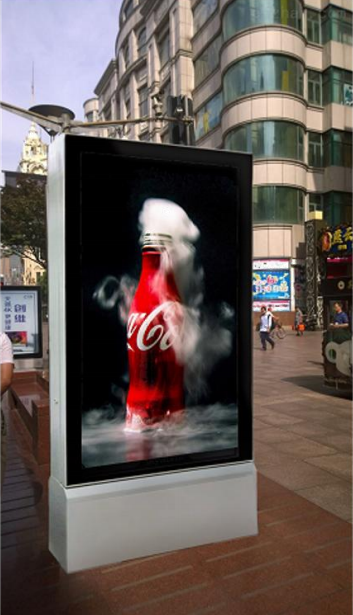

Outdoor Advertising Player

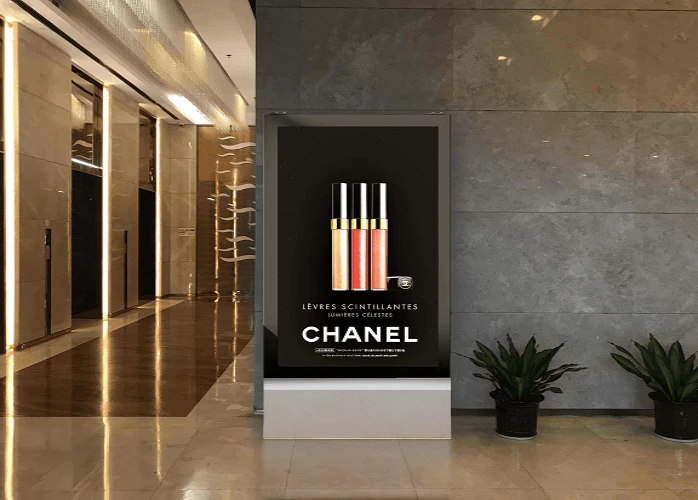

AP1 series are our outdoor advertising player LED display products. They are also called totem LED displays, which are usually used in shopping plaza, train station, airport, etc. It aims at different kinds of outdoor advertisements. The pixel pitches are P2.9, P3, P3.9, P4.4, P4.8, P6.67, P8 and P10.

High Technical Parameter

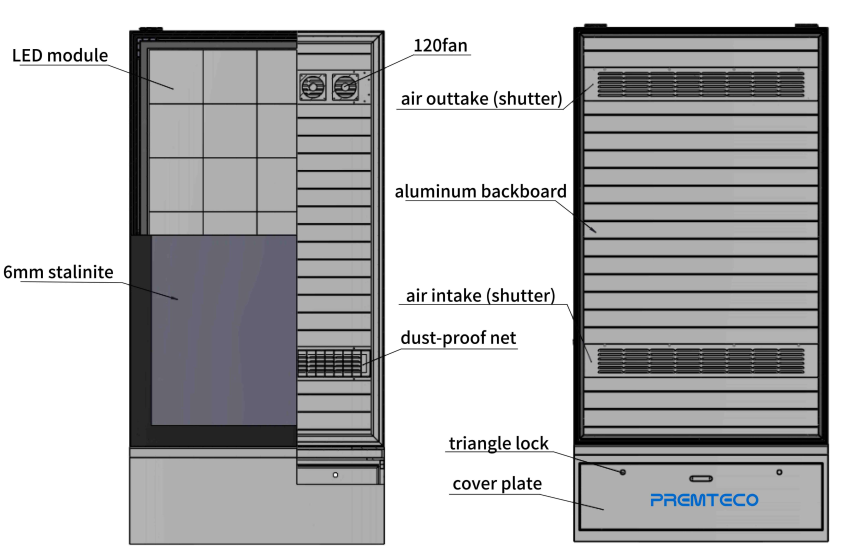

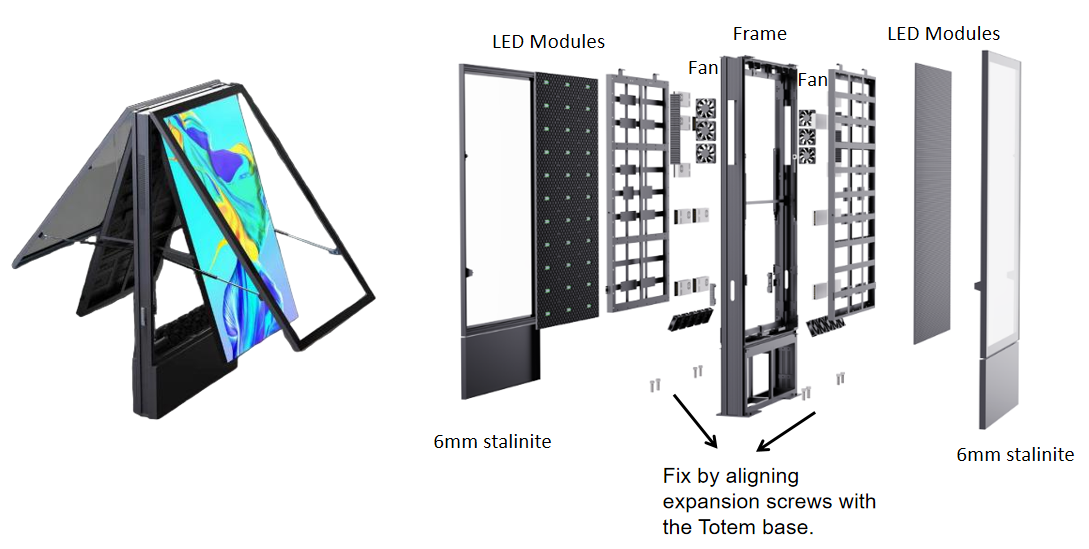

Our outdoor digital LED screens use very good materials: the aluminum backboard for heat dissipation and the 6mm stalinite in the front part of screen protects the leds very well.

Gray scale 16 bits IP65 Refresh rate 3840Hz

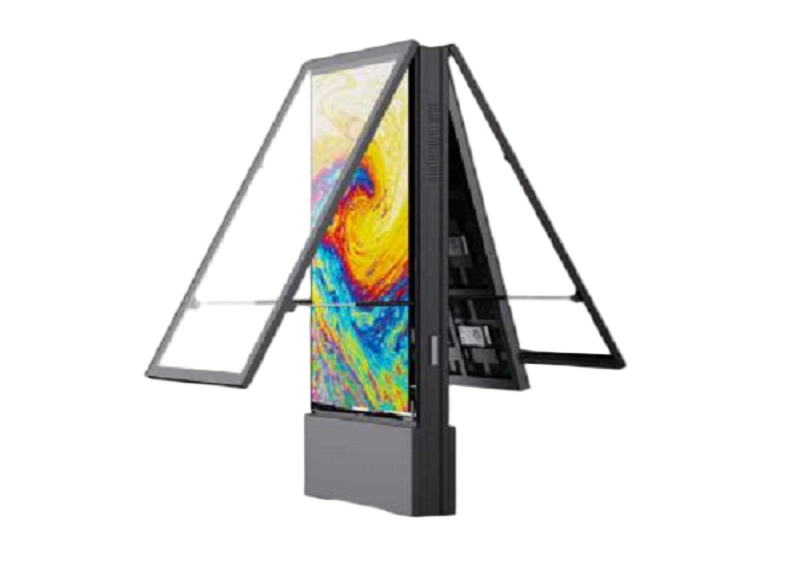

Double-sided Advertising Banner

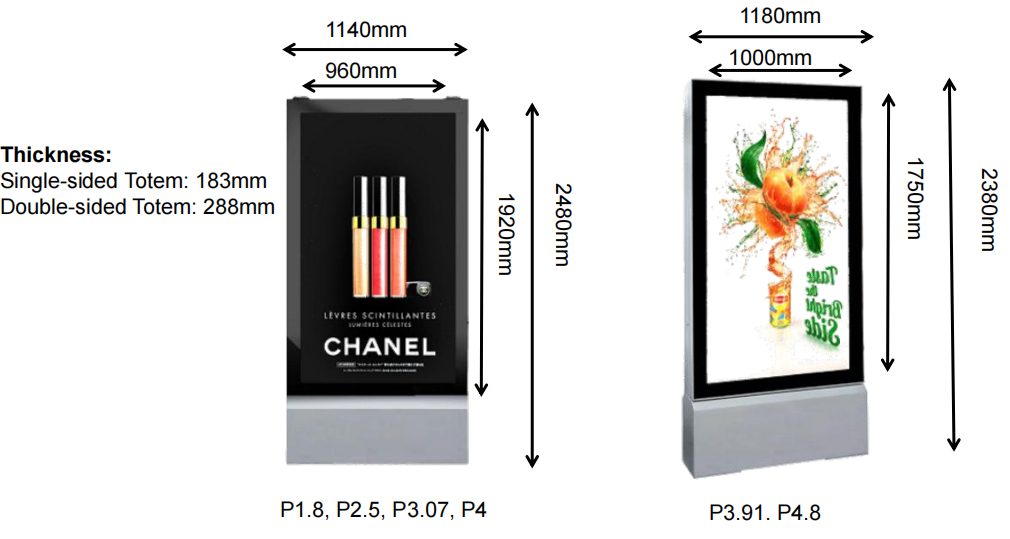

Both single-sided and double-sided totem are available. The latter one expands the visibility and can be seen by pedestrains coming and going in both directions. The thicknesss is only 228mm.

High Brightness

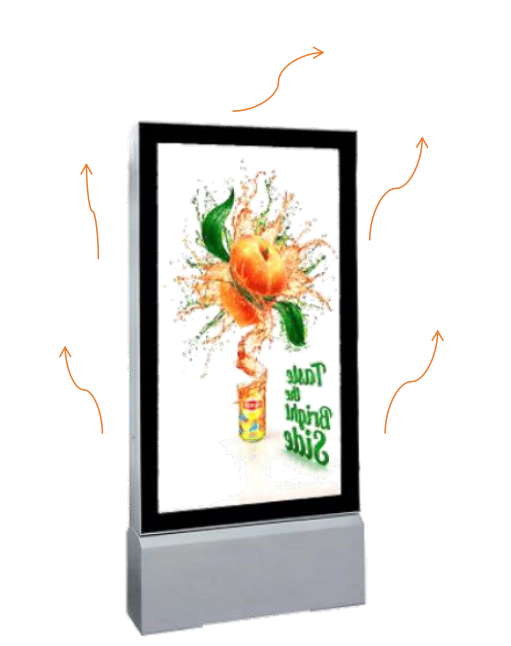

Advanced LED materials are used and the brightness of the screen can be up to 6000nits. Our outdoor LED display has very good clarity in sunlight.

Easy Operation

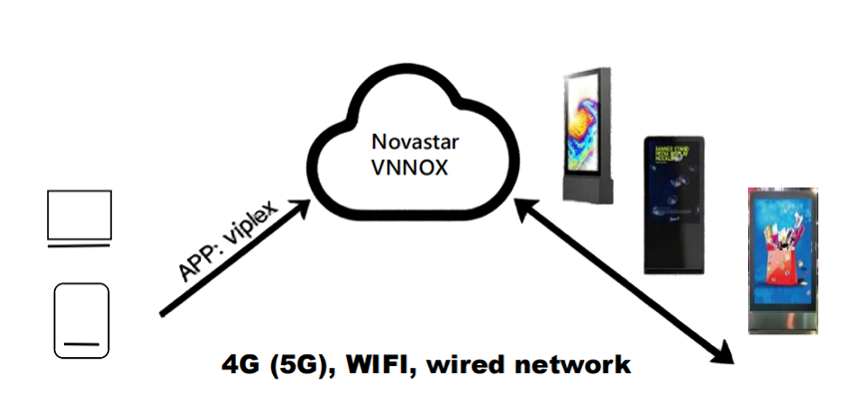

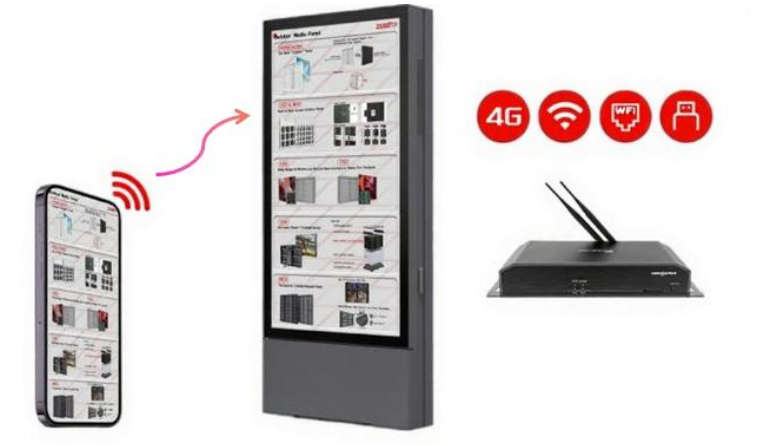

The totem LED display can support Wi-Fi, CAT5, and even remote control via internet. It can run videos, images, texts, etc. without computers after the display content is uploaded.

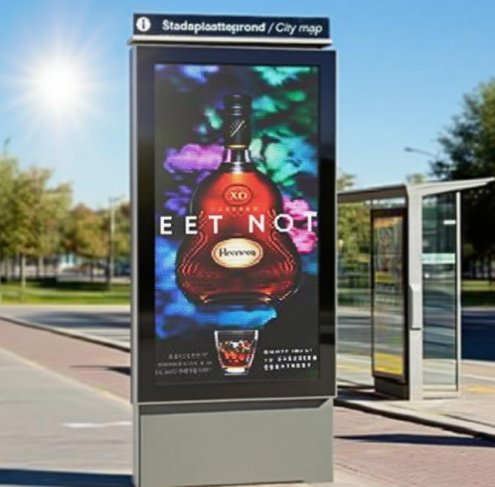

Application Fields

To be adapted for every different scene, our product is made up of superior quality materials with the concise and strong structure. This product is usually used in:

Outdoor Advertising; DOOH; Street Advertisement.

Parameter

Spec1 Spec2 Spec3

Item	P2.5	P3.07	P3.91	P4.4
Pixel Pitch	2.5mm	3.07mm	3.91mm	4.4mm
LED Type	SMD1415	SMD1415	SMD1921	SMD2727
Module Resolution	128dots × 64dots	104dots × 52dots	64dots × 64dots	72dots × 72dots
Driving Mode	1/14scan	1/16scan	1/8scan	1/8scan
Module Pixels	8,192dots	5,408dots	4,096dots	5,184dots
Module Size	320mm × 160mm	320mm × 160mm	250mm × 250mm	320mm × 320mm
Panel display Size	640mm × 640mm	960mm × 960mm	1,000mm × 1,000mm	1,280mm × 1,280mm
Panel display Resolution	256dots × 256dots	312dots × 312dots	256dots × 256dots	288dots × 288dots
Pixel Density	160,000dots/㎡	105,625dots/㎡	65,536dots/㎡	50,625dots/㎡
Minimum Viewing Distance	≥2.5m	≥3m	≥3.9m	≥4.4m
Brightness	5,000nits～8,500nits	5,000nits～8,500nits	5,000nits～8,500nits	5,500nits～9,000nits
IP Grade	IP65	IP65	IP65	IP65
Refresh Rate	3,840Hz～40,000Hz	3,840Hz～40,000Hz	3,840Hz～40,000Hz	3,840Hz～40,000Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:120° / V:120°	H:120° / V:120°	H:120° / V:120°	H:120° / V:120°
Maximum Power Consumption	600-850W/㎡	600-850W/㎡	450-850W/㎡	450-850W/㎡
Average Power Consumption	283W/㎡	283W/㎡	150W/㎡	150W/㎡
Input Voltage	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting	Die-casting	Iron	Aluminum
Weight of Machine	33kg/m²	33kg/m²	50kg/m²	29kg/m²
Dimension of Machine	640mm(w) x 640mm(h) x 130mm(d)	960mm(w) x 960mm(h) x 130mm(d)	1000mm(w) x 1000mm(h) x 130mm(d)	1280mm(w) x 1280mm(h) x 130mm(d)
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P4.8	P6.67	P8	P10
Pixel Pitch	4.8mm	6.67mm	8mm	10mm
LED Type	SMD2727	SMD2727	SMD2727	SMD2727
Module Resolution	52dots × 52dots	48dots × 48dots	40dots × 40dots	32dots × 32dots
Driving Mode	1/8scan	1/8scan	1/8scan	1/8scan
Module Pixels	2704dots	2,304dots	1,60dots	1,024dots
Module Size	250mm × 250mm	320mm × 320mm	320mm × 320mm	320mm × 320mm
Panel display Size	1000mm × 1,000mm	1,280mm × 1,280mm	1,280mm × 1,280mm	1,280mm × 1,280mm
Panel display Resolution	208dots × 208dots	192dots × 192dots	160dots × 160dots	128dots × 128dots
Pixel Density	43,264dots/㎡	22,500dots/㎡	15,625dots/㎡	10,000dots/㎡
Minimum Viewing Distance	≥4.8m	≥6.7m	≥8m	≥10m
Brightness	5,000nits～8,500nits	5,500nits～9,000nits	5,500nits～9,000nits	5,500nits～9,000nits
IP Grade	IP65	IP65	IP65	IP65
Refresh Rate	3,840Hz～40,000Hz	3,840Hz～40,000Hz	3,840Hz～40,000Hz	3,840Hz～40,000Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:120° / V:120°	H:120° / V:120°	H:120° / V:120°	H:120° / V:120°
Maximum Power Consumption	450-850W/㎡	450-850W/㎡	450-850W/㎡	450-850W/㎡
Average Power Consumption	150W/㎡	150W/㎡	150W/㎡	150W/㎡
Input Voltage	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Iron	Aluminum	Aluminum	Aluminum
Weight of Machine	50kg/m²	29kg/m²	29kg/m²	29kg/m²
Dimension of Machine	1000mm(w) x 1000mm(h) x 130mm(d)	1280mm(w) x 1280mm(h) x 130mm(d)	1280mm(w) x 1280mm(h) x 130mm(d)	1280mm(w) x 1280mm(h) x 130mm(d)
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P4.8	P6.67	P8	P10
Pixel Pitch	4.8mm	6.67mm	8mm	10mm
LED Type	SMD2727	SMD2727	SMD2727	SMD2727
Module Resolution	52dots × 52dots	48dots × 48dots	40dots × 40dots	32dots × 32dots
Driving Mode	1/8scan	1/8scan	1/8scan	1/8scan
Module Pixels	2704dots	2,304dots	1,60dots	1,024dots
Module Size	250mm × 250mm	320mm × 320mm	320mm × 320mm	320mm × 320mm
Panel display Size	1000mm × 1,000mm	1,280mm × 1,280mm	1,280mm × 1,280mm	1,280mm × 1,280mm
Panel display Resolution	208dots × 208dots	192dots × 192dots	160dots × 160dots	128dots × 128dots
Pixel Density	43,264dots/㎡	22,500dots/㎡	15,625dots/㎡	10,000dots/㎡
Minimum Viewing Distance	≥4.8m	≥6.7m	≥8m	≥10m
Brightness	5,000nits～8,500nits	5,500nits～9,000nits	5,500nits～9,000nits	5,500nits～9,000nits
IP Grade	IP65	IP65	IP65	IP65
Refresh Rate	3,840Hz～40,000Hz	3,840Hz～40,000Hz	3,840Hz～40,000Hz	3,840Hz～40,000Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:120° / V:120°	H:120° / V:120°	H:120° / V:120°	H:120° / V:120°
Maximum Power Consumption	450-850W/㎡	450-850W/㎡	450-850W/㎡	450-850W/㎡
Average Power Consumption	150W/㎡	150W/㎡	150W/㎡	150W/㎡
Input Voltage	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Iron	Aluminum	Aluminum	Aluminum
Weight of Machine	50kg/m²	29kg/m²	29kg/m²	29kg/m²
Dimension of Machine	1000mm(w) x 1000mm(h) x 130mm(d)	1280mm(w) x 1280mm(h) x 130mm(d)	1280mm(w) x 1280mm(h) x 130mm(d)	1280mm(w) x 1280mm(h) x 130mm(d)
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
