FA2

FA2

Outdoor Front and Rear Access LED Display-P6.35, P8.46, P10.16, P16.93

IP 65

Energy Saving

Rapid Heat Dissipation

Low mounting cost

10000nits

Quick problem shooting

Product Description

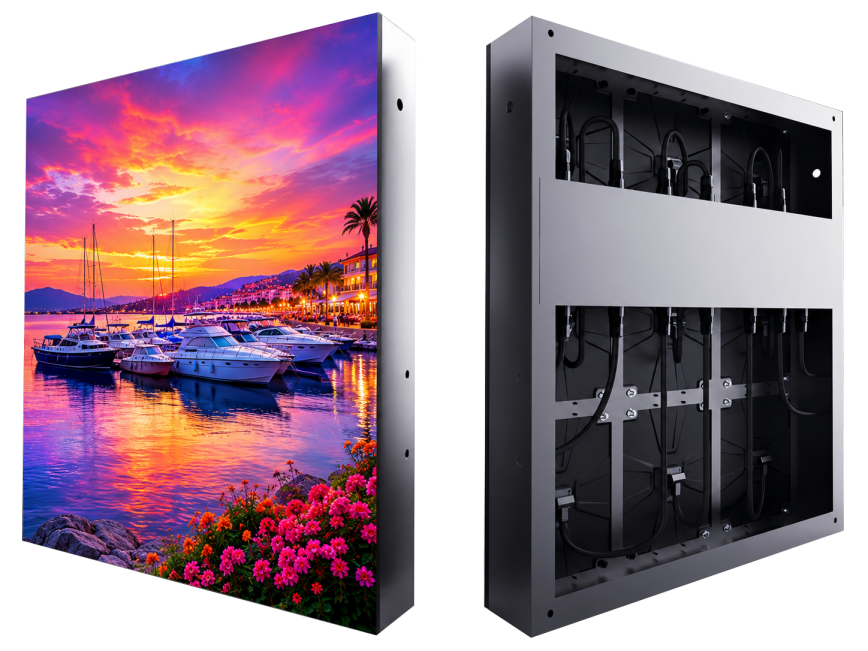

Front and Rear Access

The power supply, receiving card and module can be removed from the front or rear side. This kind of concise and easy design allows remove and replace modules fast in an emergency, especially when the technician wonder which part has issues. Fast problem solving saves a large amount of labor cost.

High Quality LED

Gold bonding wire DIP LED with stable driving IC ensures the high brightness of 10,000nits and long lifespan of modules. High-quality SMD lamp beads can ensure that the viewing angle of the screen remains at 120°-160°.

High Reliability, Wide Application

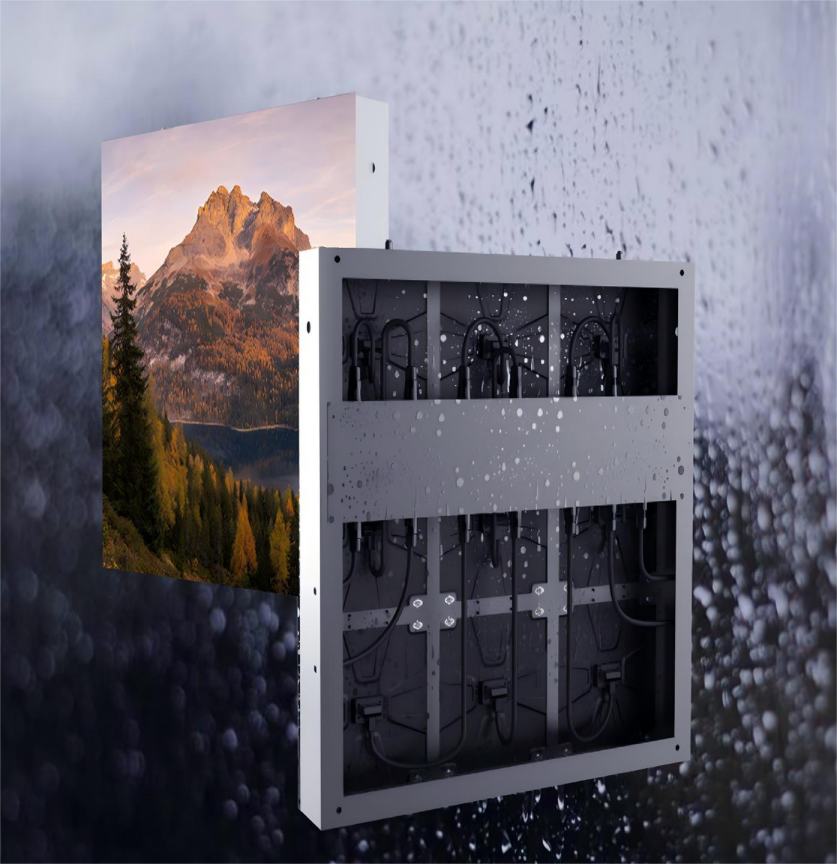

With IP 65 design, the item is an ideal DOOH product which suits any kind of working environment: dusty roadside, humid seashore, high temperature locations, rainy regions, etc. Meanwhile, the screen can be used 10000 nits brightness for strong sunlight.

Rapid Heat Dissipation

Cooling holes are designed on the cabinet, and it has a slope, rainwater will not flow into the box, thereby improving the waterproof performance of the cabinet. And the cabinet material is aluminum, which has better heat dissipation than iron.

High Refresh Rate& Grayscale

3840Hz refresh rate for high dynamic range pictures eliminates scan lines and flicker on the display at the moment we capture the display. High grayscale ensures the premium vision and the LED display has vivid visual performance.

Application Fields

To fit every different scene, our products utilize superior materials with the concise and strong structure. This product is usually used in:

Truck Trailers; Scoreboards; Digital Out Of Home(DOOH).

Parameter

Item P6.35 P8.46 P10.16
Pixel Pitch 6.35 8.46 10.16
LED Type SMD2727 SMD2727 SMD2727
Module Resolution 48dots x 48dots 48dots x 48dots 32dots x 32dots
Driving Mode 1/4scan 1/3scan 1/3scan
Module Pixels 2304dots 2304dots 1024dots
Module Size 1ft x 1 ft (304.8mmx304.8mm) 1ft x 1 ft (304.8mmx304.8mm) 1ft x 1 ft (304.8mmx304.8mm)
Module Weight 1.5kg 1.8kg 1.4kg
Cabinet Size 914mm x 914mm (standard) 914mm x 914mm (standard) 914mm x 914mm (standard)
Cabinet Thickness 110mm-135mm 110mm-135mm 110mm-135mm
Cabinet Weight(4'X4'/4'X8') 54kg/81kg 54kg/81kg 52kg/77.25kg
Cabinet Resolution 144dots x 144dots 108dots x 108dots 90dots x 90dots
Pixel Density 22500dots/㎡ 15625dots/㎡ 10000dots/㎡
Minimum Viewing Distance ≥6.35m ≥8.46m ≥10.16m
Brightness ≥6500 nits ≥7000 nits 6000nits~10700nits
IP Grade IP65 IP65 IP65
Refresh rate 1920-3840Hz 1920~3840Hz 1920~3840Hz
Gray Scale 14-16 bit 14-16 bit 14-16 bit
Viewing Angle 140°/140°(H/V) 140°/140°(H/V) 140°/140°(H/V)
Maximum Power Consumption ≤ 968W/㎡ ≤ 700W/㎡ ≤ 900W/㎡
Average Power Consumption 322W/㎡ 240W/㎡ 300W/㎡
Input Voltage AC110V240V AC110V240V AC110V240V
Operating Temperature -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Operating Humidity 10~90%RH 10~90%RH 10~90%RH
Cabinet Material Aluminum / Metal Aluminum / Metal Aluminum / Metal
Operating System Windows(win7,win8,etc) Windows(win7,win8,etc) Windows(win7,win8,etc)
Signal Source Compatibility DVI , HDMI DVI, HDMI DVI, HDMI
Item P10.16 P10.16 P16.93
Pixel Pitch 10.16 10.16 16.93
LED Type SMD2727 DIP346 Golden Thread DIP346 Golden Thread
Module Resolution 32dots x 32dots 32dots x 32dots 20dots x 20dots
Driving Mode 1/3scan 1/3scan Constant  Static
Module Pixels 1024dots 1024dots 400dots
Module Size 1ft x 1 ft (304.8mmx304.8mm) 1ft x 1 ft (304.8mmx304.8mm) 1ft x 1 ft (304.8mmx304.8mm)
Module Weight 1.4kg 1.2kg Constant  Static
Cabinet Size 914mm x 914mm (standard) 914mm x 914mm (standard) 914mm x 914mm (standard)
Cabinet Thickness 110mm-135mm 110mm-135mm 110mm-135mm
Cabinet Weight(4'X4'/4'X8') 52kg/77.25kg 60kg/89.25kg Constant  Static
Cabinet Resolution 90dots x 90dots 90dots x 90dots 54dots x 54dots
Pixel Density 10000dots/㎡ 9687dots/㎡ 3488dots/㎡
Minimum Viewing Distance ≥10.16m ≥10.16m ≥16.93m
Brightness 6000nits~10700nits ≥10000 nits ≥9000 nits
IP Grade IP65 IP65 IP65
Refresh rate 1920~3840Hz 1920~3840Hz 1920~3840Hz
Gray Scale 14-16 bit 12-16 bit 12 bit
Viewing Angle 140°/140°(H/V) 110°/45°(H/V) 110°/45°(H/V)
Maximum Power Consumption ≤ 900W/㎡ ≤ 500W/㎡ ≤ 500W/㎡
Average Power Consumption 300W/㎡ 183W/㎡ 183W/㎡
Input Voltage AC110V240V AC110V240V AC110V240V
Operating Temperature -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Operating Humidity 10~90%RH 10~90%RH 10~90%RH
Cabinet Material Aluminum / Metal Aluminum / Metal Aluminum / Metal
Operating System Windows(win7,win8,etc) Windows(win7,win8,etc) Windows(win7,win8,etc)
Signal Source Compatibility DVI, HDMI DVI, HDMI DVI, HDMI
Item P10.16 P10.16 P16.93
Pixel Pitch 10.16 10.16 16.93
LED Type SMD2727 DIP346 Golden Thread DIP346 Golden Thread
Module Resolution 32dots x 32dots 32dots x 32dots 20dots x 20dots
Driving Mode 1/3scan 1/3scan Constant  Static
Module Pixels 1024dots 1024dots 400dots
Module Size 1ft x 1 ft (304.8mmx304.8mm) 1ft x 1 ft (304.8mmx304.8mm) 1ft x 1 ft (304.8mmx304.8mm)
Module Weight 1.4kg 1.2kg Constant  Static
Cabinet Size 914mm x 914mm (standard) 914mm x 914mm (standard) 914mm x 914mm (standard)
Cabinet Thickness 110mm-135mm 110mm-135mm 110mm-135mm
Cabinet Weight(4'X4'/4'X8') 52kg/77.25kg 60kg/89.25kg Constant  Static
Cabinet Resolution 90dots x 90dots 90dots x 90dots 54dots x 54dots
Pixel Density 10000dots/㎡ 9687dots/㎡ 3488dots/㎡
Minimum Viewing Distance ≥10.16m ≥10.16m ≥16.93m
Brightness 6000nits~10700nits ≥10000 nits ≥9000 nits
IP Grade IP65 IP65 IP65
Refresh rate 1920~3840Hz 1920~3840Hz 1920~3840Hz
Gray Scale 14-16 bit 12-16 bit 12 bit
Viewing Angle 140°/140°(H/V) 110°/45°(H/V) 110°/45°(H/V)
Maximum Power Consumption ≤ 900W/㎡ ≤ 500W/㎡ ≤ 500W/㎡
Average Power Consumption 300W/㎡ 183W/㎡ 183W/㎡
Input Voltage AC110V240V AC110V240V AC110V240V
Operating Temperature -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Operating Humidity 10~90%RH 10~90%RH 10~90%RH
Cabinet Material Aluminum / Metal Aluminum / Metal Aluminum / Metal
Operating System Windows(win7,win8,etc) Windows(win7,win8,etc) Windows(win7,win8,etc)
Signal Source Compatibility DVI, HDMI DVI, HDMI DVI, HDMI
