Rotating LED Display RS Series

Product Description

Standard Configuration

3-sided sub-screens, offering multi-angle visibility; User-friendly control system, allowing for customized rotation and content; Multiple sizes available, with a minimum base height of 50cm.

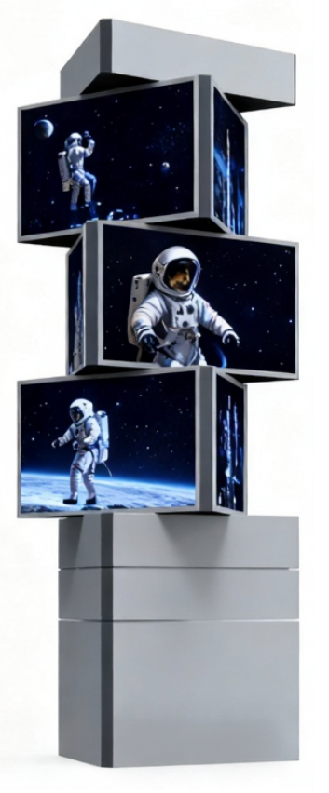

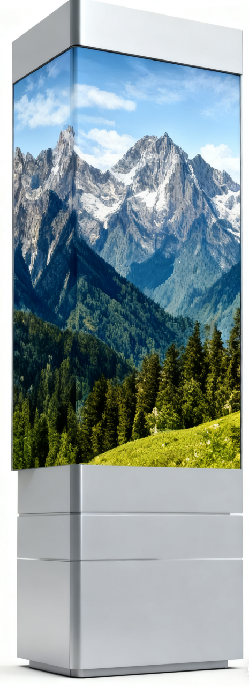

Polyhedral LED Screen & 360°Rotational Display

The product adopts a splicing structure of polyhedral LED screens, enabling 360-degree rotational display of images, with a flexible rotation effect similar to a magic cube. RS series breaks the limitation of traditional single-sided screens, allowing audiences to view clear and complete content from any angle—whether in shopping malls, exhibition halls, or outdoor squares, it can effectively capture the attention of passers-by and maximize information dissemination efficiency.

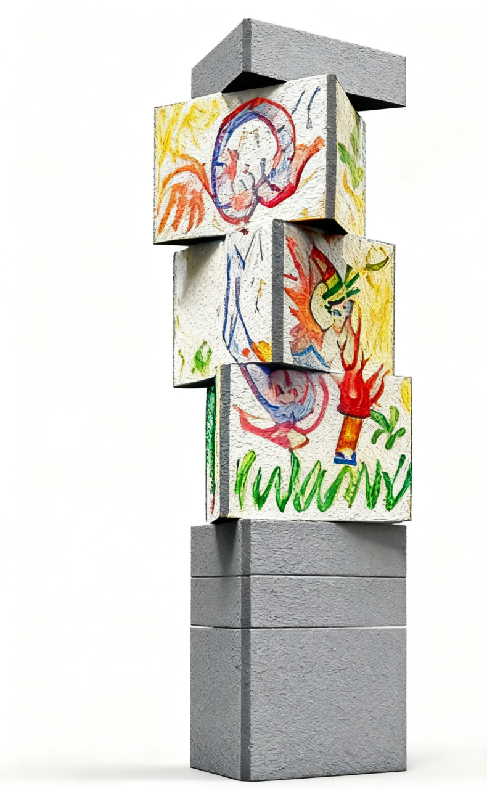

Linkage Between Images & Rotation, with Rich Creative Possibilities

The displayed images are closely linked to the screen's rotation actions, and a variety of creative application methods are waiting to be explored.

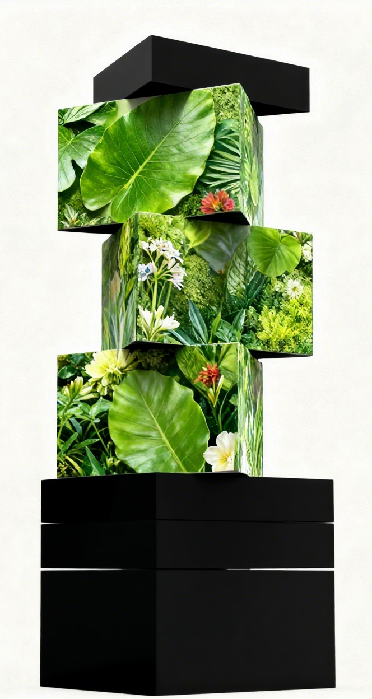

Strong Customization Capabilities for Diverse Needs

The product boasts strong customization capabilities—users can customize the style of the base and top box, as well as the number of polyhedral LED screens, according to their actual needs.

Self-Developed OS for Flexible & Multi-Terminal Control

The product is equipped with a self-developed operating system, which supports custom setting of rotation actions and is compatible with control via computers, mobile phones, and tablets.

Excellent HD Display Performance for Multi-Scenario Adaptation

The product delivers excellent high-definition display performance, supports multi-resolution adaptation, can accurately restore the color and details of images, and is suitable for visual needs in multiple scenarios such as advertising promotion and exhibition display.

Application Fields

To fit every different scene, our products utilize superior materials with the concise and strong structure, and various installation methods make it flexible and easy to apply. This product is usually used in.

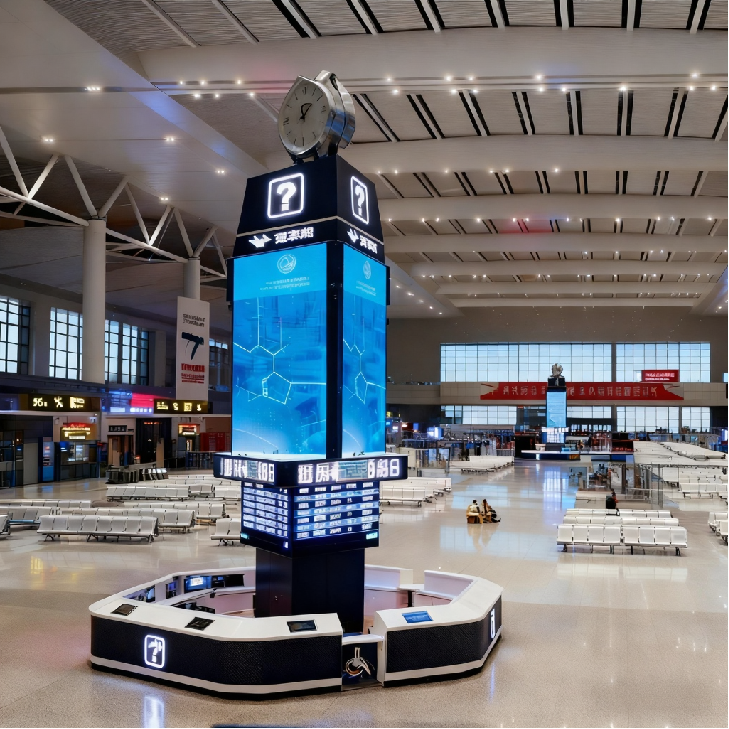

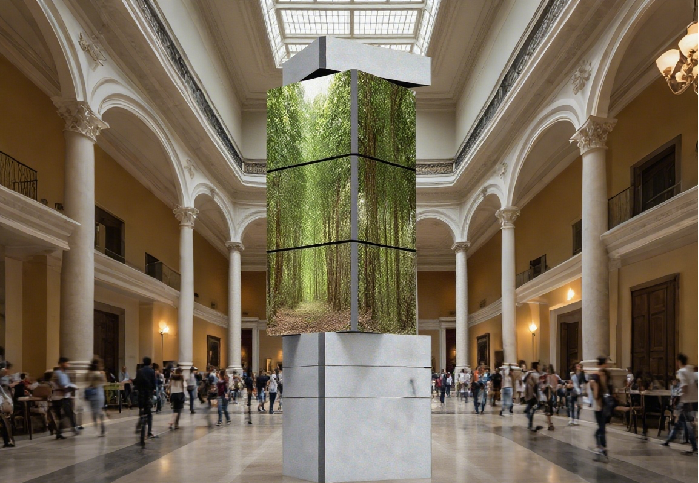

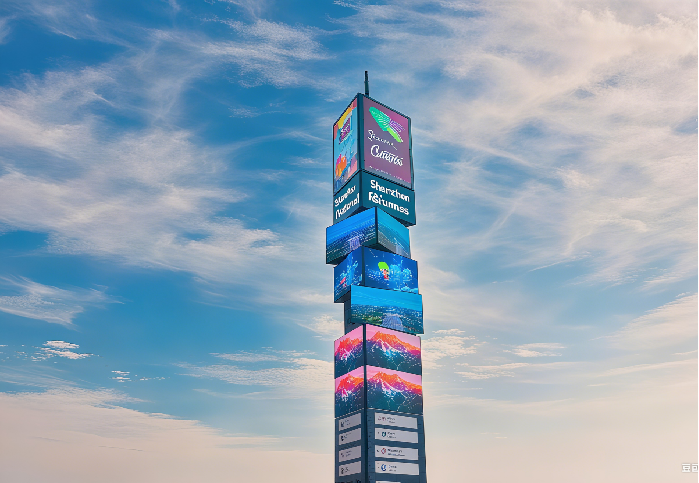

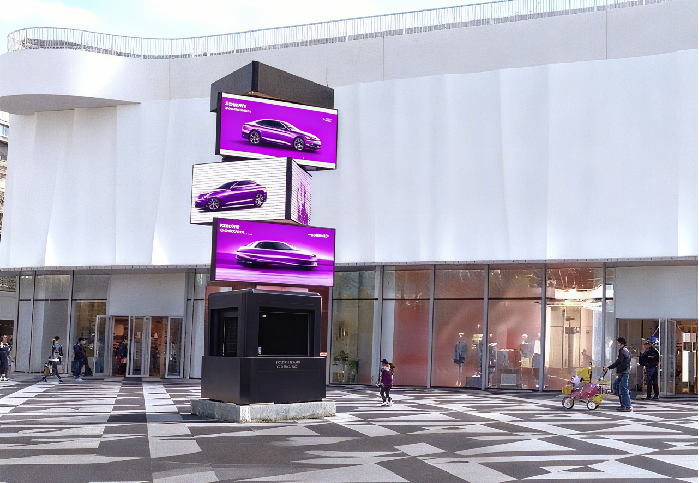

Large Waiting Hall, Airport Shopping Mall , Museum, Roadside Advertising Billboard.

Parameter

Spec1 Spec2 Spec3

Item	P2.5-indoor	P3-indoor	P4-indoor	P4-indoor
Pixel Pitch	2.5mm	3mm	4mm	4mm
Overall Height	2.0m	5.0m	6.0m	7.0m
Total LED Screen Area	3.46m²	9.22m²	19.36m²	33.18m²
Module Size	160mm×160mm	320mm×160mm	320mm×160mm	320mm×160mm
Module Resolution	64dots×64dots	104dots×52dots	80dots×40dots	80dots×40dots
Single Screen Size	800mm×480mm	1280mm×800mm	1920mm×1120mm	2560mm×1440mm
Single Screen Resolution	320dots×192dots	416dots×260dots	480dots×280dots	640dots×360dots
Full screen Size	2.4m×1.44m	3.84m×2.4m	5.76m×3.36m	7.68m×4.32m
Full screen Resolution	960dots×576dots	1248dots×780dots	1440dots×840dots	1920dots×1080dots
Brightness	≥600nits	≥600nits	≥600nits	≥600nits
Refresh Rate	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz
Gray Scale	14~16bits	14~16bits	14~16bits	14~16bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Screen Lifespan	≥100,000 hours	≥100,000 hours	≥100,000 hours	≥100,000 hours
Maximum Power Consumption	2.2 kw/pc	10.0 kw/pc	18.5 kw/pc	29.0 kw/pc
Average Power Consumption	0.88 kw/pc	4.0 kw/pc	7.4 kw/pc	11.6 kw/pc
Input Voltage	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz
Screen Material	Iron	Iron	Iron	Iron
Screen Weight	300 kg	1500 kg	2100 kg	4200 kg
Operating System	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)
Footprint	0.3m²	0.7m²	1.6m²	2.8m²

Item	P5-outdoor	P5-outdoor	P6.67-outdoor	P6.67-outdoor
Pixel Pitch	5mm	5mm	6.67mm	6.67mm
Overall Height	6.3m	6.7m	7.3m	7.7m
Total LED Screen Area	19.4m²	25.8m²	33.2m²	41.5m²
Module Size	320mm×160mm	320mm×160mm	320mm×160mm	320mm×160mm
Module Resolution	64dots×32dots	64dots×32dots	48dots×24dots	48dots×24dots
Single Screen Size	1920mm×1120mm	2240mm×1280mm	2560mm×1440mm	2880mm×1600mm
Single Screen Resolution	384dots×224dots	448dots×256dots	384dots×216dots	432dots×240dots
Full screen Size	5.76m×3.36m	6.72m×3.84m	7.68m×4.32m	8.64m×4.8m
Full screen Resolution	1152dots×672dots	1344dots×768dots	1152dots×648dots	1296dots×720dots
Brightness	4500~6000nits	4500~6000nits	4500~6000nits	4500~6000nits
Refresh Rate	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz
Gray Scale	14~16bits	14~16bits	14~16bits	14~16bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Screen Lifespan	≥100,000 hours	≥100,000 hours	≥100,000 hours	≥100,000 hours
Maximum Power Consumption	29 kw/pc	36 kw/pc	44 kw/pc	53 kw/pc
Average Power Consumption	11.4 kw/pc	15 kw/pc	18 kw/pc	22 kw/pc
Input Voltage	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz
Screen Material	Iron	Iron	Iron	Iron
Screen Weight	2100kg	3000kg	4200kg	5000kg
Operating System	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)
Footprint	1.6m²	2.2m²	2.8m²	3.6m²

Item	P6.67-outdoor	P6.67-outdoor	P8-outdoor
Pixel Pitch	6.67mm	6.67mm	8mm
Overall Height	8.2m	10.5m	12.5m
Total LED Screen Area	51m²	90m²	132.7m²
Module Size	320mm×160mm	320mm×160mm	320mm×160mm
Module Resolution	48dots×24dots	48dots×24dots	40dots×20dots
Single Screen Size	3200mm×1760mm	4160mm×2400mm	5120mm×2800mm
Single Screen Resolution	480dots×264dots	624dots×360dots	624dots×360dots
Full screen Size	9.6m×5.28m	12.48m×7.2m	15.36m×8.64m
Full screen Resolution	1440dots×792dots	1872dots×1080dots	1920dots×1080dots
Brightness	4500~6000nits	4500~6000nits	4500~6000nits
Refresh Rate	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz
Gray Scale	14~16bits	14~16bits	14~16bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Screen Lifespan	≥100,000 hours	≥100,000 hours	≥100,000 hours
Maximum Power Consumption	63kw/pc	120kw/pc	178kw/pc
Average Power Consumption	25kw/pc	48kw/pc	72kw/pc
Input Voltage	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz
Screen Material	Iron	Iron	Iron
Screen Weight	6200kg	8600kg	11000kg
Operating System	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)
Footprint	4.4m²	7.4m²	11m²
