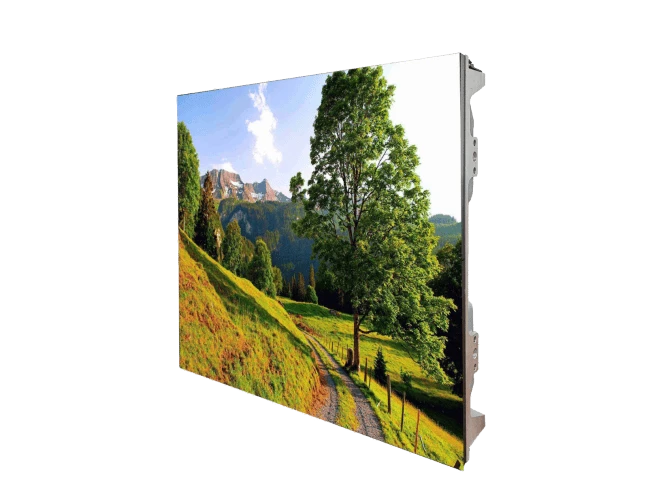

Die-Casting Magnalium Cabinet

The OA3 LED display has become popular in the field of outdoor advertising. To make this product stable and reliable, we have carefully selected high-quality materials and built the cabinet with die-casting magnalium. Out of consideration for clients' requests and different application scenes, the shape and size of our OA3 are slim and concise. It aims at slim type outdoor advertising and outdoor digtial signage. The pixel pitches are P4, P5, P6.6, P8, P10, and P16.

Slim Design, Light Weight

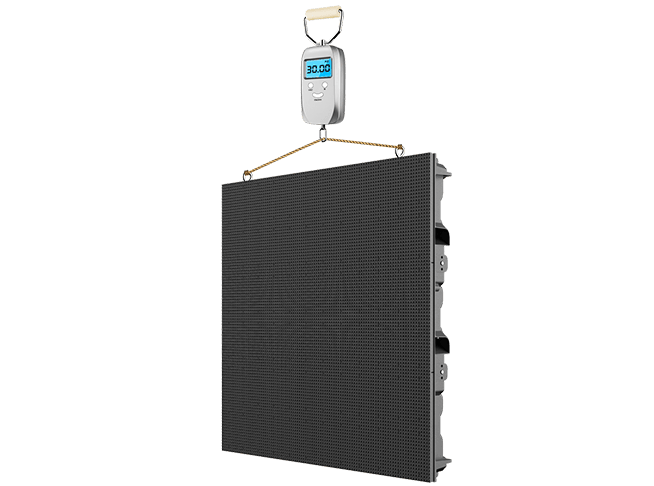

The concise cabinet and light weight are designed to reduce the pressure of constructions and transportation. The cabinet is die-casting magnalium. The screen only weighs 29.5kgs per cabinet. Meanwhile, the die-casting cabinet looks neat and elegant.With front access design, all components, such as power box, receiving card and other accessories, can be removed from the front. You don't need to leave any space in the back of the LED cabinet.

Fanless Design, Better Heat Dissipation

Thanks to the die-casting magnalium shell of cabinets, the OA3 LED video wall is capable of dissipating heat without fans or air conditioners. This design will also reduce weight and save energy. Meanwhile, the die-casting magnalium shell will segregate heat from outside and protect the inner modules. Thus, the screen will function more stable. There is no fan on the cabinet. That means the outside dust and humidity will not be sucked into the cabinet because of the running fans, which increases the waterproof and dustproof grades. Meanwhile, the heat sink strips are on the cabinet door, which helps to dissipate the heat faster.

Low Power Consumption

We use customized PCB and power supply, so average power consumption is less than 150W/㎡. Compared with the similar products in the market, the display saves 20% energy.

Superior Visual Effects

Our outdoor digital signage has high brightness(5,000 ~ 10,000 nits), ultimate refresh rate (1,920Hz-3,840Hz), and high gray scale (13bits-24bits). Wide horizontal and large viewing angles of our LED signage is up to 160°.

Stable Performance

Thanks to the adoption of high-quality standard material for the screens, such as superb power supply, driving IC, and LED, the screen is able to work properly for more than 8 years.

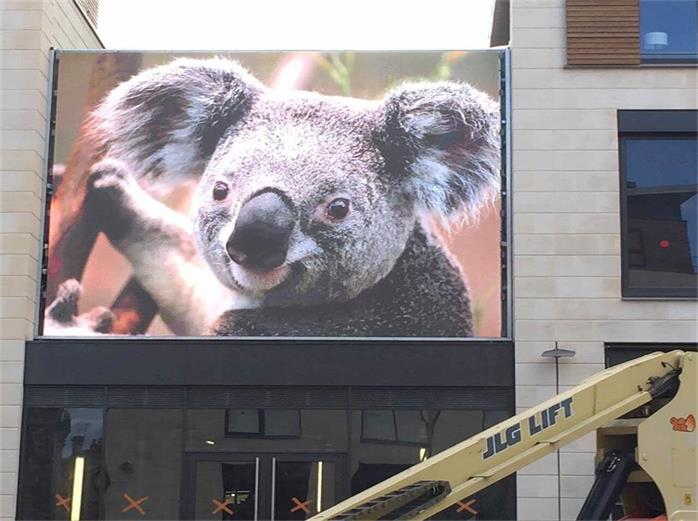

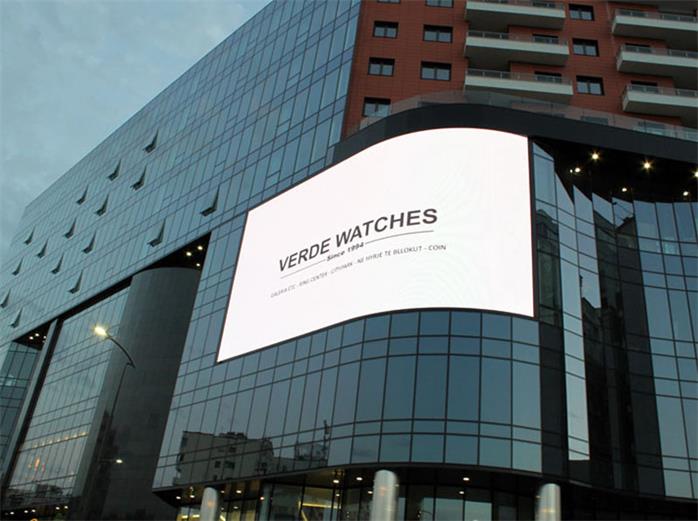

Application Fields

This product is usually used in:

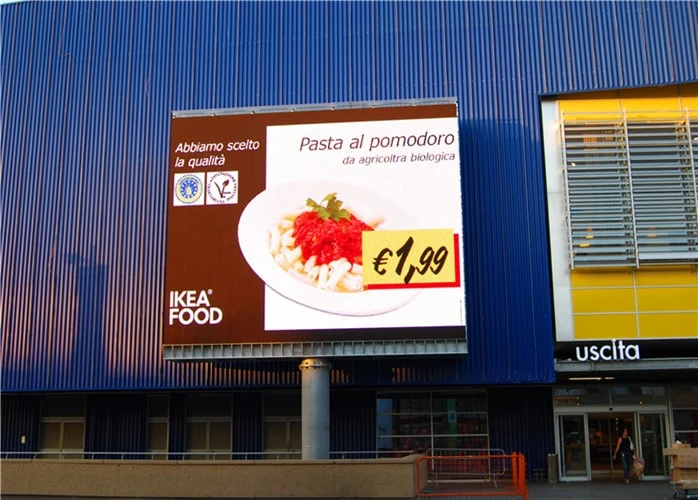

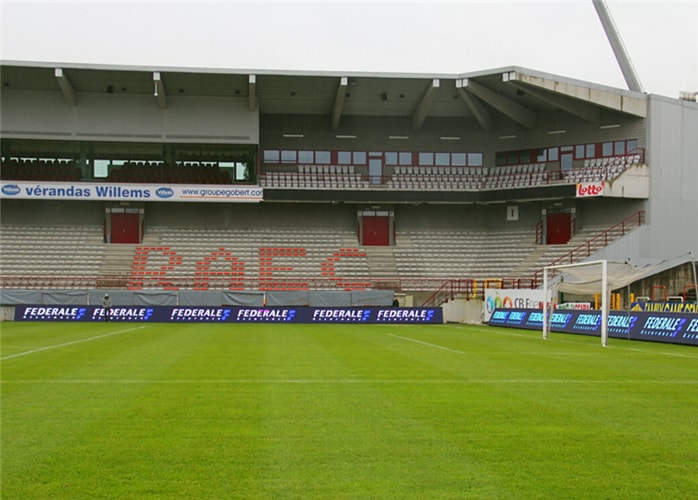

Stages; Sports Events; Shopping Center.

Parameter

Spec1 Spec2 Spec3

Item	P4	P5	P6.6	P8
Pixel Pitch	4mm	5mm	6.667mm	8mm
LED Type	SMD1921	SMD1921	SMD2727	SMD2727
Module Resolution	80dots × 40dots	64dots × 32dots	48dots × 48dots	40dots × 40dots
Driving Mode	1/10scan	1/8scan	1/6scan	1/5scan
Module Pixels	3,200dots	2,048dots	2,304dots	1,600dots
Module Size	320mm × 160mm	320mm × 160mm	320mm × 320mm	320mm × 320mm

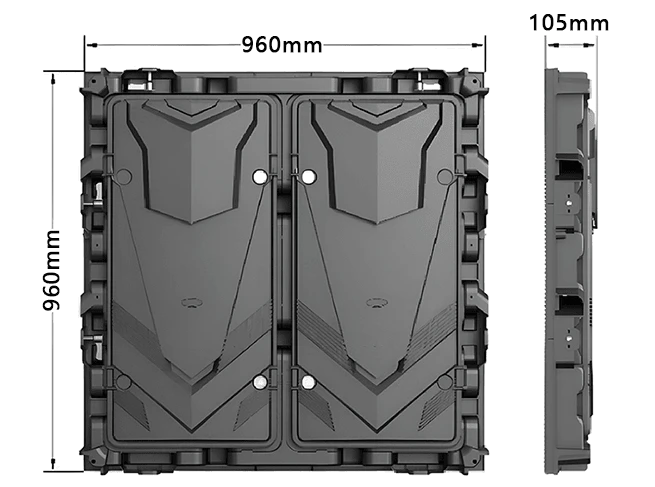

Cabinet Size	960mm × 960mm × 110mm	960mm × 960mm × 110mm	960mm × 960mm × 110mm	960mm × 960mm × 110mm
Cabinet Resolution	240dots × 240dots	192dots × 192dots	144dots × 144dots	120dots × 120dots
Pixel Density	62,500dots/㎡	40,000dots/㎡	22,500 dots/㎡	15,625dots/㎡
Minimum Viewing Distance	≥4m	≥5m	≥6m	≥8m
Brightness	6,000nits～7,000nits	6,000nits～6,500nits	5,500nits～6,500nits	5,000nits～5,500nits
IP Grade	IP65	IP65	IP65	IP65
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	13bits～24bits	13bits～24bits	13bits～24bits	13bits～24bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	800W/㎡	800W/㎡	800W/㎡	800W/㎡
Average Power Consumption	280W/㎡	280W/㎡	280W/㎡	230W/㎡
Input Voltage	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Magnesium	Die-casting Magnesium	Die-casting magnalium	Die-casting magnalium
Cabinet Weight	29.5kg/cabinet	29.5kg/cabinet	29.5kg/cabinet	29.5kg/cabinet
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P10	P10	P16
Pixel Pitch	10mm	10mm	16mm
LED Type	SMD2727	DIP346	DIP346
Module Resolution	32dots × 32dots	32dots × 16dots	20dots × 10dots
Driving Mode	1/2scan	1/4scan	Static
Module Pixels	1,024dots	512dots	200dots
Module Size	320mm × 320mm	320mm × 160mm	320mm × 160mm
Cabinet Size	960mm × 960mm × 110mm	960mm × 960mm × 110mm	960mm × 960mm × 110mm
Cabinet Resolution	96dots × 96dots	96dots × 96dots	60dots × 60dots
Pixel Density	10,000dots/㎡	10,000dots/㎡	3,906dots/㎡
Minimum Viewing Distance	≥10m	≥10m	≥16m
Brightness	5,500nits～6,500nits	≥7,000nits	7,000nits～10,000nits
IP Grade	IP65	IP65	IP65
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	13bits～24bits	13bits～24bits	13bits～24bits
Viewing Angle	H:160° / V:160°	H:120° / V:60°	H:120° / V:60°
Maximum Power Consumption	800W/㎡	370W/㎡	370W/㎡
Average Power Consumption	230W/㎡	90W/㎡	90W/㎡
Input Voltage	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting magnalium	Die-casting magnalium	Die-casting magnalium
Cabinet Weight	29.5kg/cabinet	29.5kg/cabinet	29.5kg/cabinet
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P10	P10	P16
Pixel Pitch	10mm	10mm	16mm
LED Type	SMD2727	DIP346	DIP346
Module Resolution	32dots × 32dots	32dots × 16dots	20dots × 10dots
Driving Mode	1/2scan	1/4scan	Static
Module Pixels	1,024dots	512dots	200dots
Module Size	320mm × 320mm	320mm × 160mm	320mm × 160mm
Cabinet Size	960mm × 960mm × 110mm	960mm × 960mm × 110mm	960mm × 960mm × 110mm
Cabinet Resolution	96dots × 96dots	96dots × 96dots	60dots × 60dots
Pixel Density	10,000dots/㎡	10,000dots/㎡	3,906dots/㎡
Minimum Viewing Distance	≥10m	≥10m	≥16m
Brightness	5,500nits～6,500nits	≥7,000nits	7,000nits～10,000nits
IP Grade	IP65	IP65	IP65
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	13bits～24bits	13bits～24bits	13bits～24bits
Viewing Angle	H:160° / V:160°	H:120° / V:60°	H:120° / V:60°
Maximum Power Consumption	800W/㎡	370W/㎡	370W/㎡
Average Power Consumption	230W/㎡	90W/㎡	90W/㎡
Input Voltage	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting magnalium	Die-casting magnalium	Die-casting magnalium
Cabinet Weight	29.5kg/cabinet	29.5kg/cabinet	29.5kg/cabinet
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
