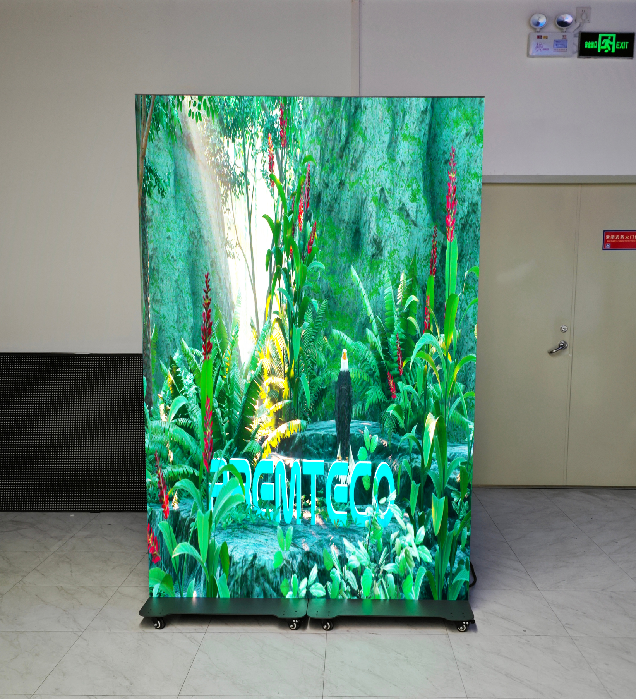

Indoor LED Display Banner-P1.5,P1.8,P2.5

Slim Shape

Full Screen Image

14bits~22bits

Amazing Display Capability

100,000h Lifespan

3840Hz~7680Hz

Product Description

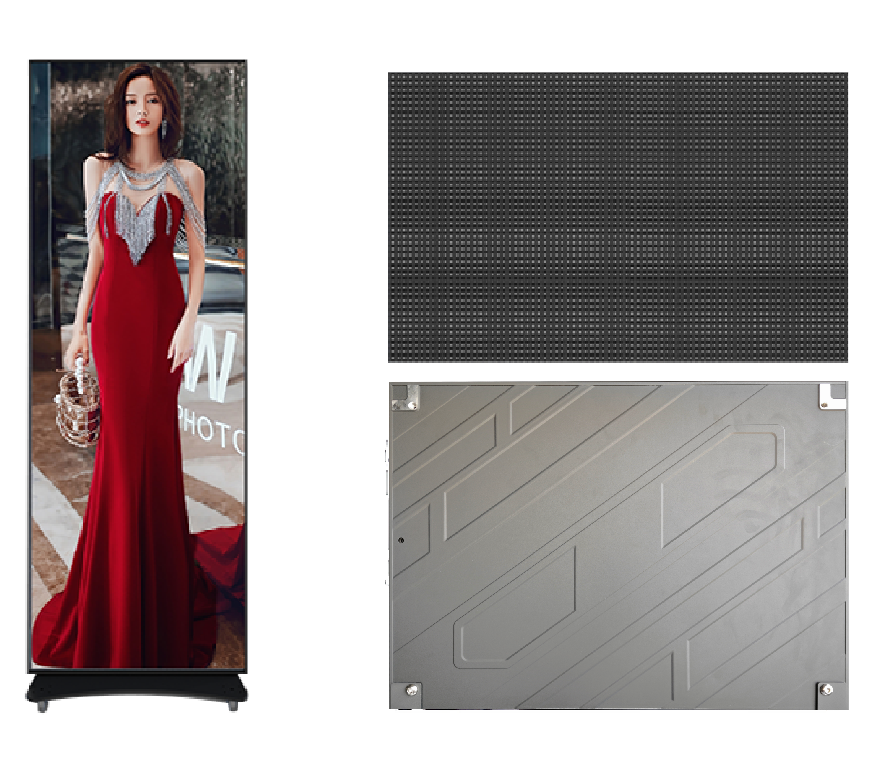

Front Service & Small Pitch

Front service design, more conducive to maintenance, saving more time for repair.

Small spacing makes your advertising screen clearer.

Non-integrated design provides convenience for transportation.

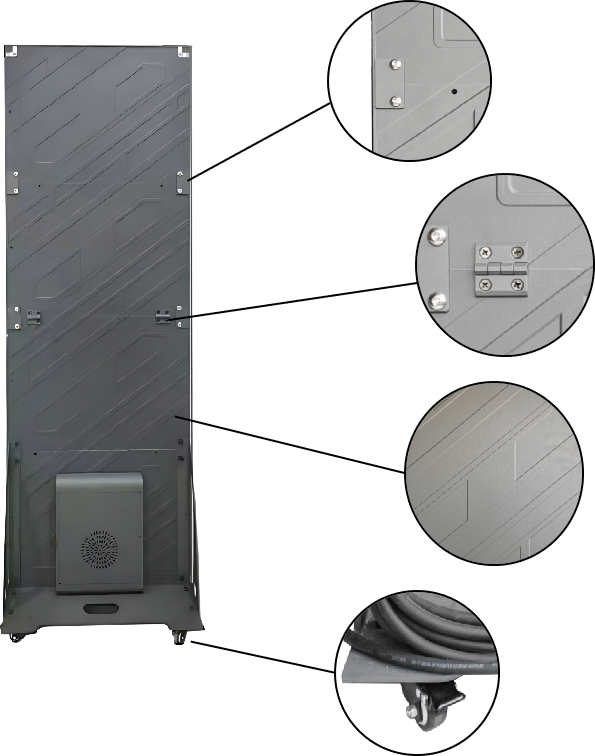

Show Details

Quick lock design, each panel is equipped with multiple quick locks, which can quickly and accurately connect the cabinet, making the flatness higher and the installation more convenient.

Die-cast aluminum cabinets: lighter and thinner than traditional steel cabinets. Meanwhile it’s better for quick heat dissipation.

Wheels design: One poster wears 4 wheels. With the vertical wheel design the poster not only can stand on its own without any external structure, but also bring great convenience for movement.

High Refresh Rate

Refresh rate: up to 3840-7680Hz. Grey scale: up to 22bits Excellent color contrast: 10000:1 Brightness: up to 1000nits Lifespan :100,000h

Energy Conservation

The maximum power is 480/㎡, which is much lower than other similar products on the market, more energy-saving. The brightness of this product can reach 800 nits, which can display advertisements very clearly without hurting the eyes.

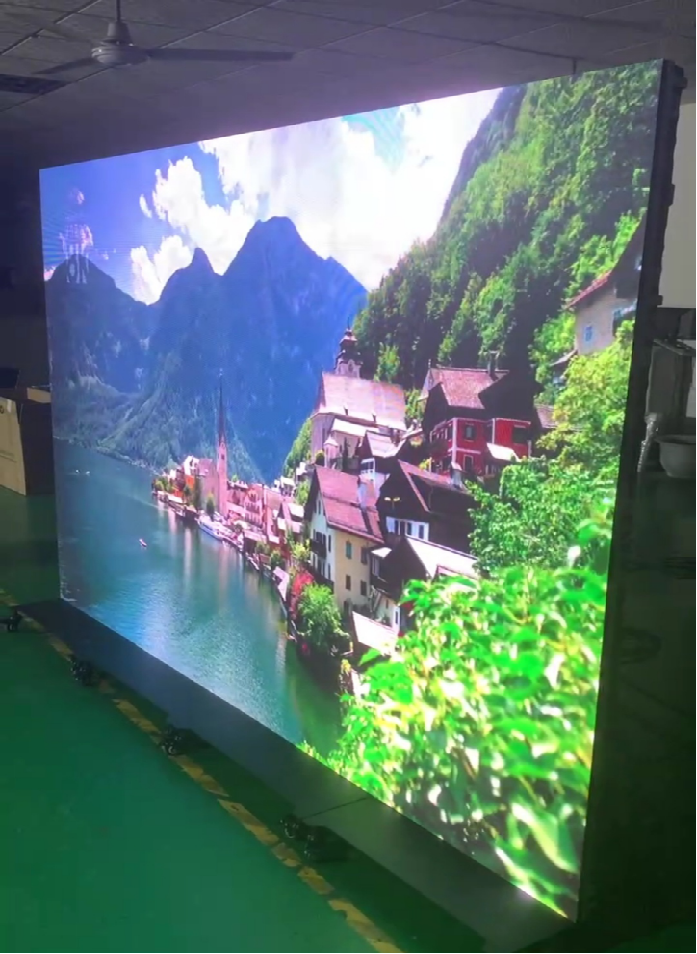

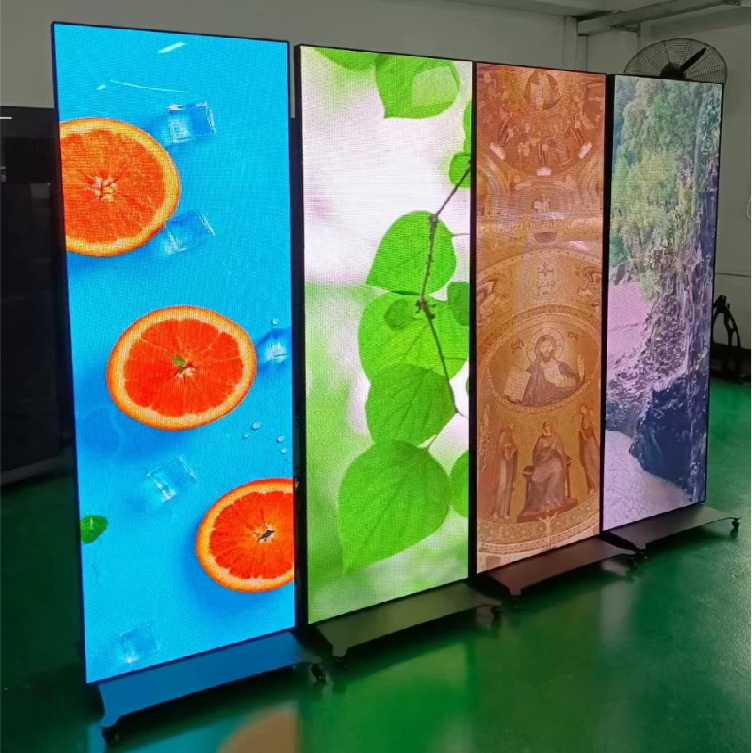

Seamless Connection

Many traditional posters LED, when they connect together, clients are often bothered by the unavoidable black frame line between posters, because it affects a lot the display effect as a big screen.

But for this product, thanks for the die-casting cabinet design, there is no any black frame line between posters and the splicing is seamless. When you put multiple posters together, they can perform like one big beautiful display. You won't even notice the stitching gap between screens.

Excellent Performance

The combination of high resolution, high refresh and small spacing makes every frame of this AP3 series advertising display vivid and can quickly attract attention.

Application Fields

To be adapted for every different scene, our product is made up of superior quality materials with the concise and strong structure. This product is usually used in:

Indoor Advertising; DOOH; Shopping Mall Advertisement.

Parameter

Item P1.5 P1.8 P2.5
Pixel Pitch 1.535mm 1.86mm 2.5mm
LED Type SMD 1212 SMD 1515 SMD 2020
Module Resolution 208dots × 104dots 172dots × 86dots 128dots × 64dots
Driving Mode 1/52scan 1/43scan 1/32scan
Module Pixels 21,632dots 14,792dots 8,192dots
Module Size 320mm × 160mm 320mm × 160mm 320mm × 160mm
Panel display Size 640mm × 1920mm 640mm × 1920mm 640mm × 1920mm
Panel display Resolution 344dots × 1250dots 344dots × 1032dots 256dots × 768dots
Pixel Density 422,500dots/㎡ 289,050dots/㎡ 160,000dots/㎡
Minimum Viewing Distance ≥1.5 m ≥1.8 m ≥2.5 m
Brightness 800-1000nits 800-1000nits 800-1000nits
IP Grade IP43 IP43 IP43
Refresh Rate 3,840Hz~7,680Hz 3,840Hz~7,680Hz 3,840Hz~7,680Hz
Gray Scale 14bits~22bits 14bits~22bits 14bits~22bits
Viewing Angle H:160° / V:160° H:160° / V:160° H:160° / V:160°
Maximum Power Consumption 448W/㎡ 448W/㎡ 480W/㎡
Average Power Consumption 240W/㎡ 240W/㎡ 260W/㎡
Input Voltage AC220V~AC110V @ 50Hz / 60Hz AC220V~AC110V @ 50Hz / 60Hz AC220V~AC110V @ 50Hz / 60Hz
Operating Temperature ﹣20℃~65℃ ﹣20℃~65℃ ﹣20℃~65℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Weight of Machine 54kg/pc 54kg/pc 54kg/pc
Dimension of Machine 720mm(w) x 1,975mm(h) x 101mm(d) 720mm(w) x 1,975mm(h) x 101mm(d) 720mm(w) x 1,975mm(h) x 101mm(d)
Operating System Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Item P1.8 P2.5
Pixel Pitch  1.86mm 2.5mm
LED Type  SMD 1515 SMD 2020
Module Resolution  172dots × 86dots 128dots × 64dots
Driving Mode  1/32scan 1/32scan
Module Pixels  14,792dots 8,192dots
Module Size  320mm × 160mm 320mm × 160mm
Panel display Size  640mm × 1920mm 640mm × 1920mm
Panel display Resolution  344dots × 1032dots 256dots × 768dots
Pixel Density  289,050dots/㎡ 160,000dots/㎡
Minimum Viewing Distance  ≥1.8 m ≥2.5 m
Brightness  ≥800nits ≥800nits
IP Grade  IP43 IP43
Refresh Rate  1,920Hz~3,840Hz 1,920Hz~3,840Hz
Gray Scale  13bits~24bits 13bits~24bits
Viewing Angle  H:160° / V:160° H:160° / V:160°
Maximum Power Consumption   448W/㎡ 480W/㎡
Average Power Consumption 240W/㎡ 260W/㎡
Input Voltage  AC220V~AC110V @ 50Hz / 60Hz AC220V~AC110V @ 50Hz / 60Hz
Operating Temperature  ﹣20℃~65℃  ﹣20℃~65℃
Operating Humidity 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum
Weight of Machine 54kg/pc 54kg/pc
Dimension of Machine 720mm(w) x 1,975mm(h) x 101mm(d) 720mm(w) x 1,975mm(h) x 101mm(d)
Operating System  Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Item P1.8 P2.5
Pixel Pitch  1.86mm 2.5mm
LED Type  SMD 1515 SMD 2020
Module Resolution  172dots × 86dots 128dots × 64dots
Driving Mode  1/32scan 1/32scan
Module Pixels  14,792dots 8,192dots
Module Size  320mm × 160mm 320mm × 160mm
Panel display Size  640mm × 1920mm 640mm × 1920mm
Panel display Resolution  344dots × 1032dots 256dots × 768dots
Pixel Density  289,050dots/㎡ 160,000dots/㎡
Minimum Viewing Distance  ≥1.8 m ≥2.5 m
Brightness  ≥800nits ≥800nits
IP Grade  IP43 IP43
Refresh Rate  1,920Hz~3,840Hz 1,920Hz~3,840Hz
Gray Scale  13bits~24bits 13bits~24bits
Viewing Angle  H:160° / V:160° H:160° / V:160°
Maximum Power Consumption   448W/㎡ 480W/㎡
Average Power Consumption 240W/㎡ 260W/㎡
Input Voltage  AC220V~AC110V @ 50Hz / 60Hz AC220V~AC110V @ 50Hz / 60Hz
Operating Temperature  ﹣20℃~65℃  ﹣20℃~65℃
Operating Humidity 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum
Weight of Machine 54kg/pc 54kg/pc
Dimension of Machine 720mm(w) x 1,975mm(h) x 101mm(d) 720mm(w) x 1,975mm(h) x 101mm(d)
Operating System  Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
