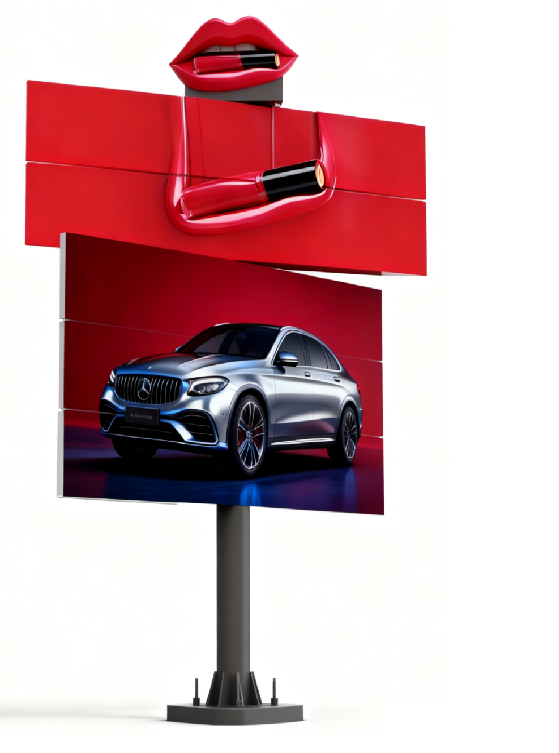

Rotating LED Display RW Series

Product Description

Standard Configuration

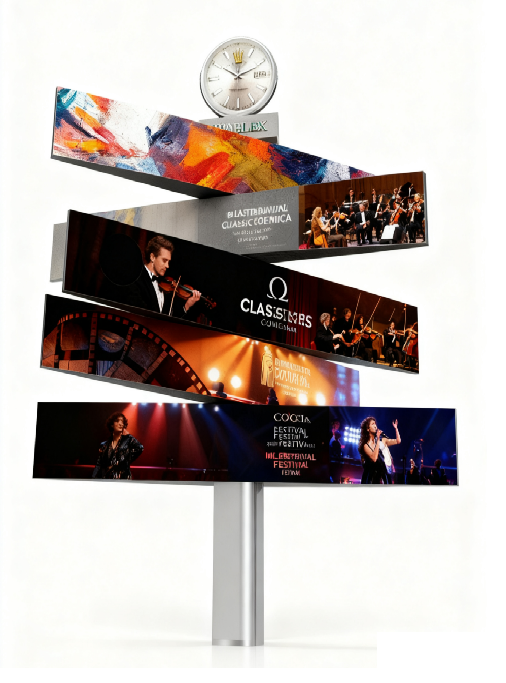

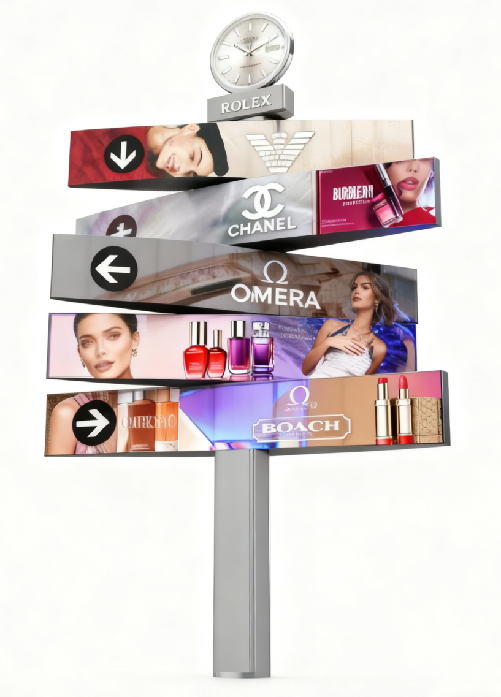

(1) 5 double-sided sub-screens, offering multi-angle visibility; (2) User-friendly control system, allowing for customized rotation and content; (3) Multiple sizes available, with a minimum base height of 2.5m.

Dynamic Creative DisplayDynamic Creative Display

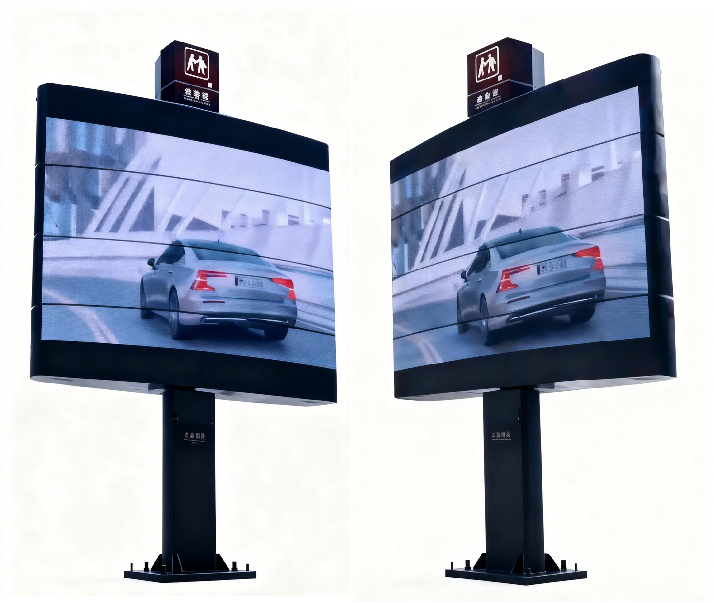

Synchronizes content with 3D rotational movements, transforming static physical spaces into interactive visual experiences. It supports flexible combinations of multiple display modes (e.g., image loops, video playback, real-time data integration), empowering diverse creative expressions for brands and scenarios.Synchronizes content with 3D rotational movements, transforming static physical spaces into interactive visual experiences. It supports flexible combinations of multiple display modes (e.g., image loops, video playback, real-time data integration), empowering diverse creative expressions for brands and scenarios.

Multi-Screen & Dual-Side DesignMulti-Screen & Dual-Side Designs

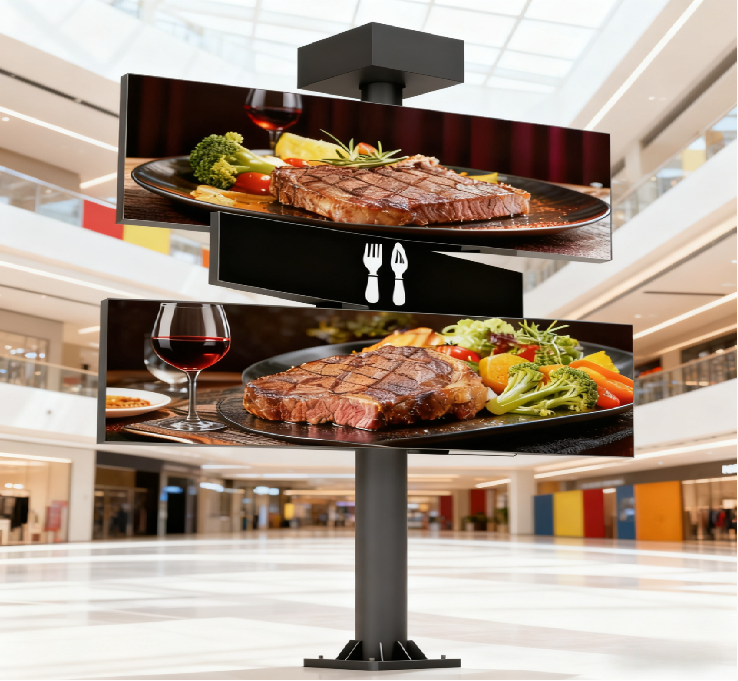

Features segmented sub-screens and dual-sided display capabilities, ensuring information is effectively disseminated to audiences from various orientations. This design significantly boosts audience engagement and improves the efficiency of information delivery.Features segmented sub-screens and dual-sided display capabilities, ensuring information is effectively disseminated to audiences from various orientations. This design significantly boosts audience engagement and improves the efficiency of information delivery.

Customizable ConfigurationsCustomizable Configurations

Offers tailored solutions for screen layouts, including adjustable quantities of sub-screens, customized base structures, and personalized top-box designs. The base height can be customized starting from 2.5m, meeting the unique needs of different installation environments.Offers tailored solutions for screen layouts, including adjustable quantities of sub-screens, customized base structures, and personalized top-box designs. The base height can be customized starting from 2.5m, meeting the unique needs of different installation environments.

Proprietary Operating SystemProprietary Operating System

Equipped with a self-developed operating system that enables users to program custom rotation patterns and movement sequences. It supports cross-device control (computer, mobile phone, tablet), ensuring intuitive and convenient operation for users of all technical levels.Equipped with a self-developed operating system that enables users to program custom rotation patterns and movement sequences. It supports cross-device control (computer, mobile phone, tablet), ensuring intuitive and convenient operation for users of all technical levels.

Versatile Installation OptionsVersatile Installation Options

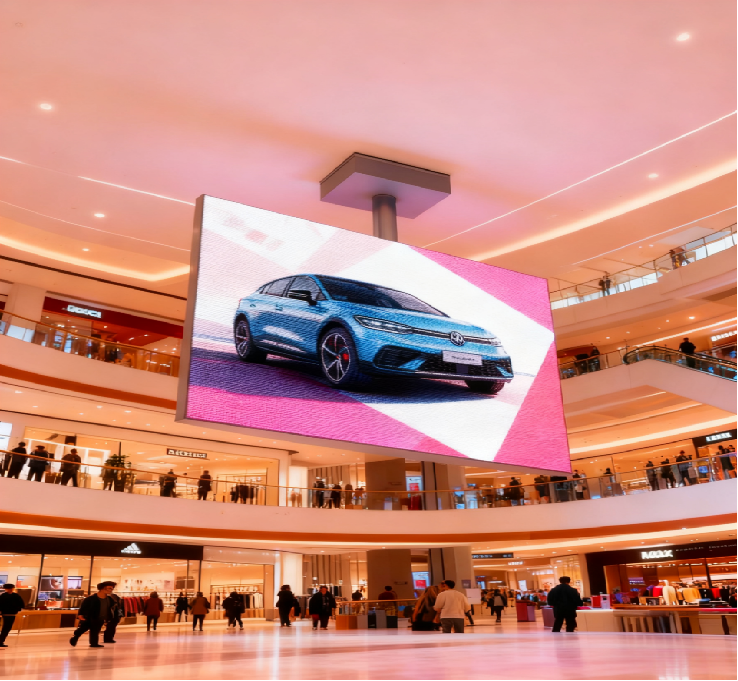

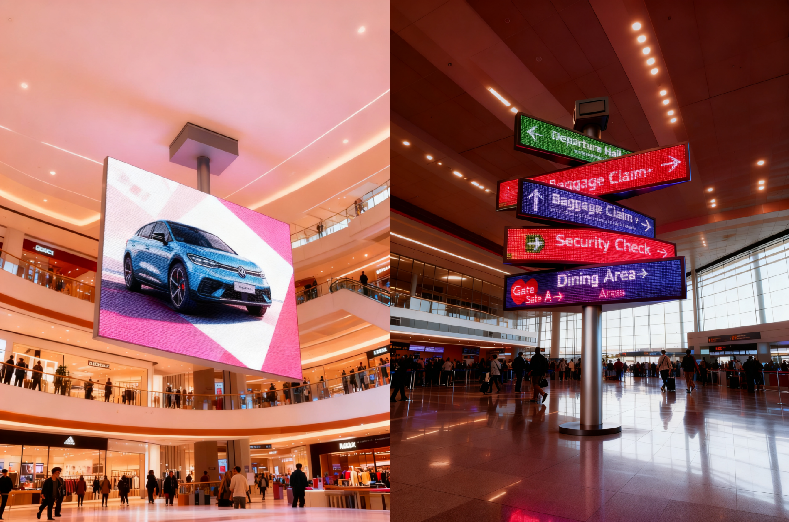

Supports two installation methods: freestanding pole mounting and overhead suspension. This versatility allows seamless deployment in both indoor and outdoor environments, regardless of space constraints.Supports two installation methods: freestanding pole mounting and overhead suspension. This versatility allows seamless deployment in both indoor and outdoor environments, regardless of space constraints.

Application Fields

To fit every different scene, our products utilize superior materials with the concise and strong structure, and various installation methods make it flexible and easy to apply. This product is usually used in.

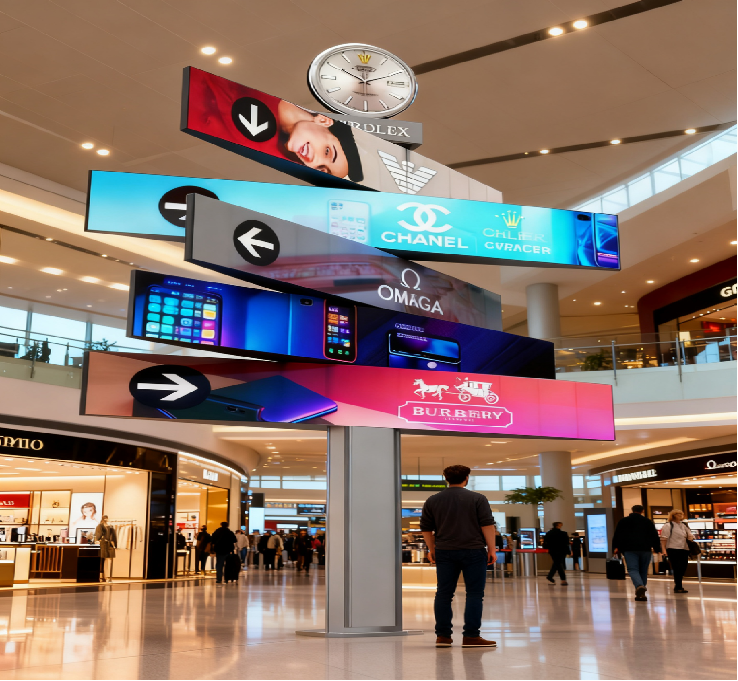

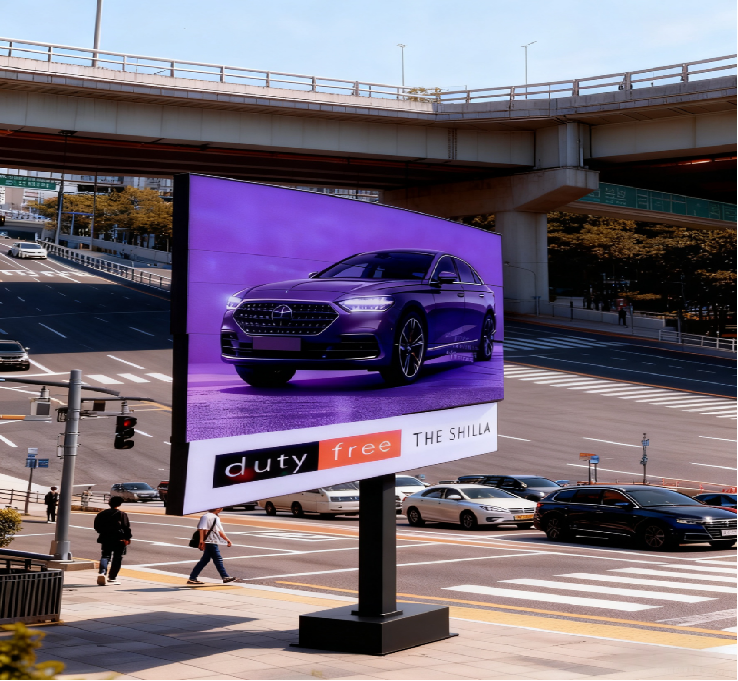

Large Waiting Hall, Airport, Shopping Mall, Roadside Advertising Billboard

Parameter

Spec1 Spec2 Spec3

Item	P3-indoor	P3-indoor	P3-indoor
Pixel Pitch	3mm	3mm	3mm
Overall Height	4.56m	5.2m	5.8m
Center Thickness	0.25m	0.30m	0.35m
Double Side Thickness	0.12m	0.12m	0.12m
Total LED Screen Area	3.07m²×2	6.14m²×2	10.24m²×2
Module Size	320mm×160mm	320mm×160mm	320mm×160mm
Module Resolution	104dots×52dots	104dots×52dots	104dots×52dots
Single-sided sub-screen Size	1920mm×320mm	2560mm×480mm	3200mm×640mm
Single-sided sub-screen Resolution	624dots×104dots	832dots×156dots	1040dots×208dots
Full screen Size	1.92m×1.6m×2	2.56m×2.4m×2	3.2m×3.2m×2
Full screen Resolution	624dots×520dots×2	832dots×780dots×2	1040dots×1040dots×2
Brightness	≥600nits	≥600nits	≥600nits
Refresh Rate	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz
Gray Scale	14~16bits	14~16bits	14~16bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Screen Lifespan	≥100,000 hours	≥100,000 hours	≥100,000 hours
Maximum Power Consumption	4.4kw/pc	8.5kw/pc	13.8kw/pc
Average Power Consumption	1.76kw/pc	3.4kw/pc	5.5kw/pc
Input Voltage	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz
Screen Material	Iron	Iron	Iron
Screen Weight	352kg	675kg	1087kg
Operating System	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)
Footprint	0.15m²	0.15m²	0.23m²

Item	P4-indoor	P4-indoor	P4-indoor	P4-indoor
Pixel Pitch	4mm	4mm	4mm	4mm
Overall Height	6.5m	7.4m	9m	10.6m
Center Thickness	0.8m	0.8m	0.9m	0.9m
Double Side Thickness	0.45m	0.45m	0.45m	0.45m
Total LED Screen Area	15.36m²×2	23.04m²×2	40.96m²×2	61.44m²×2
Module Size	320mm×160mm	320mm×160mm	320mm×160mm	320mm×160mm
Module Resolution	80dots×40dots	80dots×40dots	80dots×40dots	80dots×40dots
Single-sided sub-screen Size	3840mm×800mm	4800mm×960mm	6400mm×1280mm	7680mm×1600mm
Single-sided sub-screen Resolution	960dots×200dots	1200dots×240dots	1600dots×320dots	1920dots×400dots
Full screen Size	3.84m×4m×2	4.8m×4.8m×2	6.4m×6.4m×2	7.68m×8m×2
Full screen Resolution	960dots×1000dots×2	1200dots×1200dots×2	1600dots×1600dots×2	1920dots×2000dots×2
Brightness	≥600nits	≥600nits	≥600nits	≥600nits
Refresh Rate	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz
Gray Scale	14~16bits	14~16bits	14~16bits	14~16bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Screen Lifespan	≥100,000 hours	≥100,000 hours	≥100,000 hours	≥100,000 hours
Maximum Power Consumption	26.7kw/pc	42.6kw/pc	73kw/pc	112kw/pc
Average Power Consumption	10.7kw/pc	17kw/pc	29.2kw/pc	44.8kw/pc
Input Voltage	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz
Screen Material	Iron	Iron	Iron	Iron
Screen Weight	1700kg	2080kg	3680kg	5480kg
Operating System	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)
Footprint	0.66m²	0.88m²	1.02m²	1.17m²

Item	P5-outdoor	P5-outdoor	P6.67-outdoor	P6.67-outdoor
Pixel Pitch	5mm	5mm	6.67mm	6.67mm
Overall Height	6.8m	7.7m	9.3m	10.6m
Center Thickness	0.8m	0.8m	0.9m	0.9m
Double Side Thickness	0.45m	0.45m	0.45m	0.45m
Total LED Screen Area	15.36m²×2	23.04m²×2	40.96m²×2	61.44m²×2
Module Size	320mm×160mm	320mm×160mm	320mm×160mm	320mm×160mm
Module Resolution	64dots×32dots	64dots×32dots	48dots×24dots	48dots×24dots
Single-sided sub-screen Size	3840mm×800mm	4800mm×960mm	6400mm×1280mm	7680mm×1600mm
Single-sided sub-screen Resolution	768dots×160dots	960dots×192dots	960dots×192dots	1152dots×240dots
Full screen Size	3.84m×4m×2	4.8m×4.8m×2	6.4m×6.4m×2	7.68m×8m×2
Full screen Resolution	768dots×800dots×2	960dots×960dots×2	960dots×960dots×2	1152dots×1200dots×2
Brightness	4500~6000nits	4500~6000nits	4500~6000nits	4500~6000nits
Refresh Rate	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz
Gray Scale	14~16bits	14~16bits	14~16bits	14~16bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Screen Lifespan	≥100,000 hours	≥100,000 hours	≥100,000 hours	≥100,000 hours
Maximum Power Consumption	41kw/pc	66kw/pc	112kw/pc	170kw/pc
Average Power Consumption	17kw/pc	27kw/pc	45kw/pc	68kw/pc
Input Voltage	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz
Screen Material	Iron	Iron	Iron	Iron
Screen Weight	1950kg	2380kg	3980kg	5980kg
Operating System	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)
Footprint	0.66m²	0.88m²	1.02m²	1.17m²
