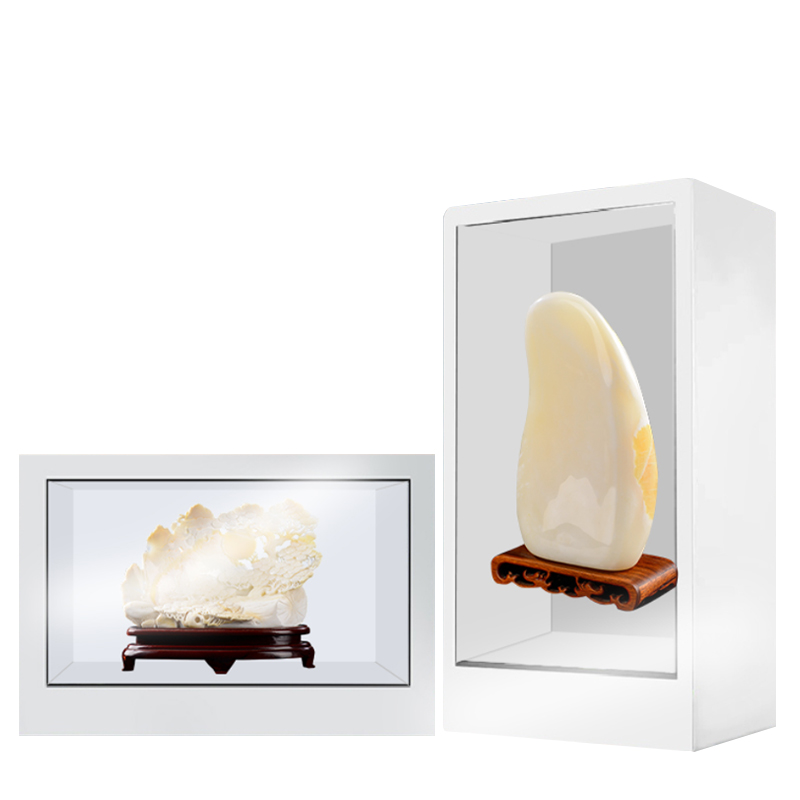

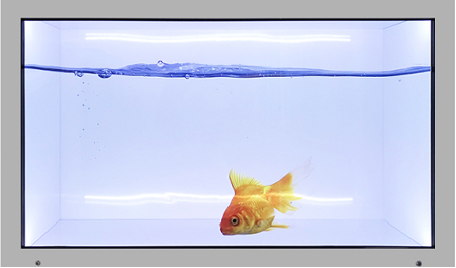

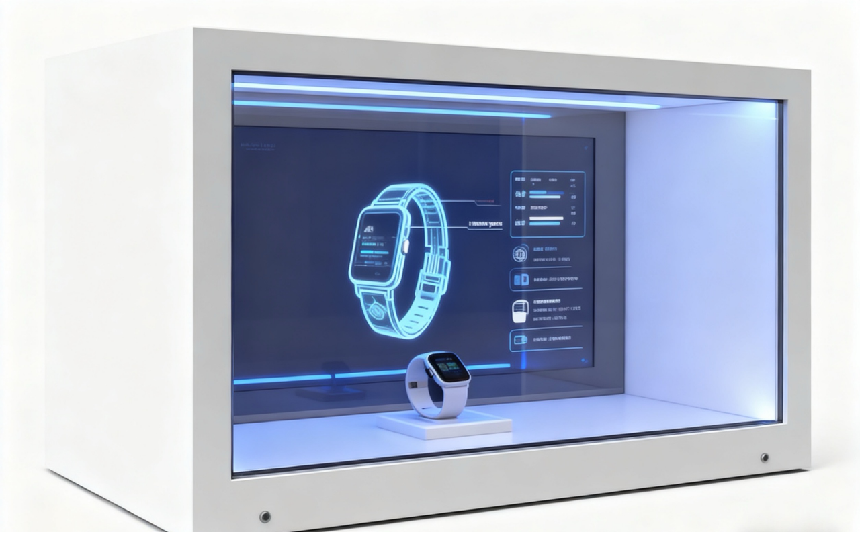

Interactive Touch Hologram Transparent Displayl

Product Description

Key Features

- Transparent Display Technology: 75%+ transparency while showing vibrant content

- Dual Door Design: Front and rear access for easy product management

- 10-Point Infrared Touch: Highly responsive interactive experience

- Powerful Windows System: Intel Core i3/i5/i7 with SSD storage

- High Transparency: Maintains product visibility while displaying digital content

- Multiple Content Formats: Supports video, images, text, web pages, and streaming media

- Flexible Content Management: Network, standalone, and mobile publishing options

- Professional Grade: Industrial A+ panel for outstanding display quality

Display Performance

Transparent Display Specifications:

- Screen Size: 10.1-13.3_15.6_18.5_21.5_32_43_49_55_65_75_86_98 inch

- Display Area: 2167 × 1222mm

- Resolution: 1920×1080, 3840×2160 options

- Transparency: 75%+

- Viewing Angle: 178°/178° (H/V)

- Contrast Ratio: 4000:1

- Response Time: 8ms

- Refresh Rate: 60Hz

- Color Depth: 8bit, 16.7M colors

- Backlight Life: 30,000 hours

Touch & Interaction

Touch Specifications:

- Technology: Built-in Infrared Touch

- Touch Points: 10+ points simultaneously

- Response Speed: <10ms

- Accuracy: ±2mm over 90% touch area

- Resolution: 32767×32767

- Scan Frequency: >100Hz/S

- Durability: >50 million touches

- Input Methods: Finger, stylus, or any non-transparent object (≥5mm)

Physical Specifications

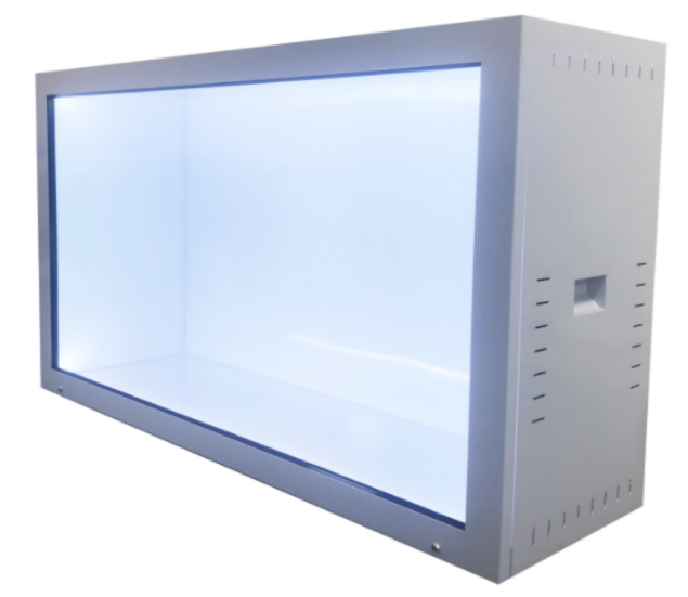

Cabinet Design:

- Design: Dual door access (front and rear)

- Construction: Metal frame with high-transparency glass

- Installation: Freestanding unit

Power & Environment:

- Input: AC 100-240V 50/60Hz

- Power Consumption: ≤450W

- Standby Power: ≤1W

- Operating Temperature: 0℃～50℃

- Operating Humidity: 20%～90%

Product Advantages

Content Creation:

- Support for third-party apps and countdown functions

- Interactive content creation with touch return features

- Horizontal and vertical content layout support

System Management:

- Online terminal statistics and download speed limiting

- Terminal encryption with password protection

- HTTPS security protocol support

- Remote monitoring and management

Quality Assurance:

- Industrial-grade A+ panel quality

- 30,000-hour backlight lifespan

- Professional Windows platform

- Comprehensive technical support

Application fields

Perfect For:

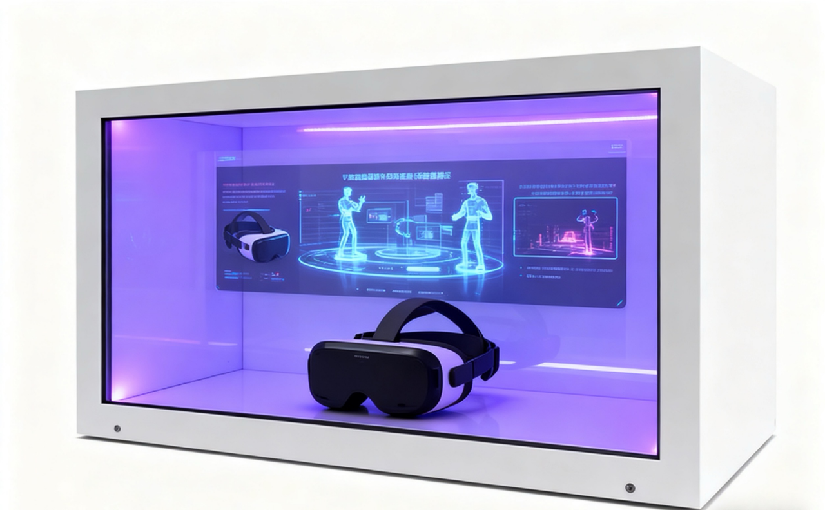

- Retail Product Display

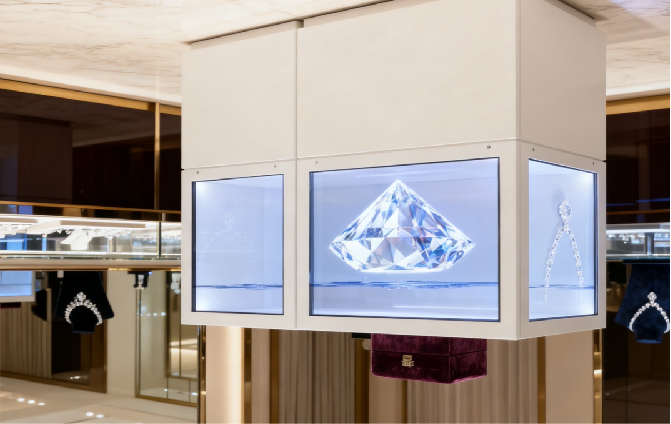

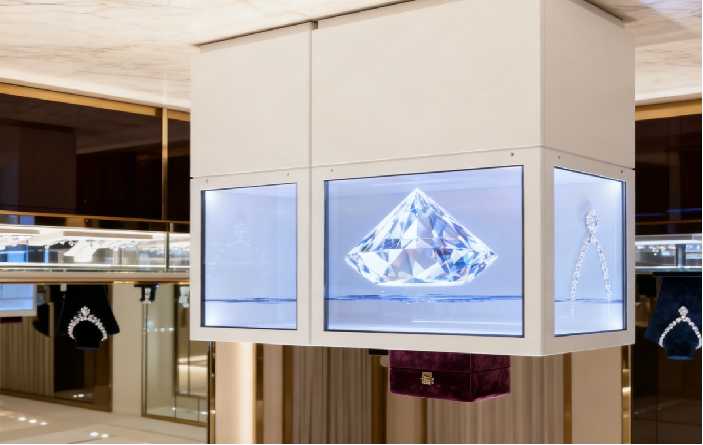

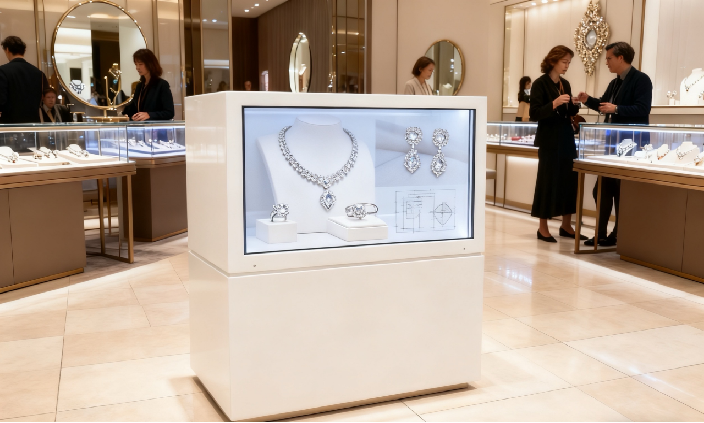

- Jewelry & Luxury Goods Stores

- Shopping Malls & Department Stores

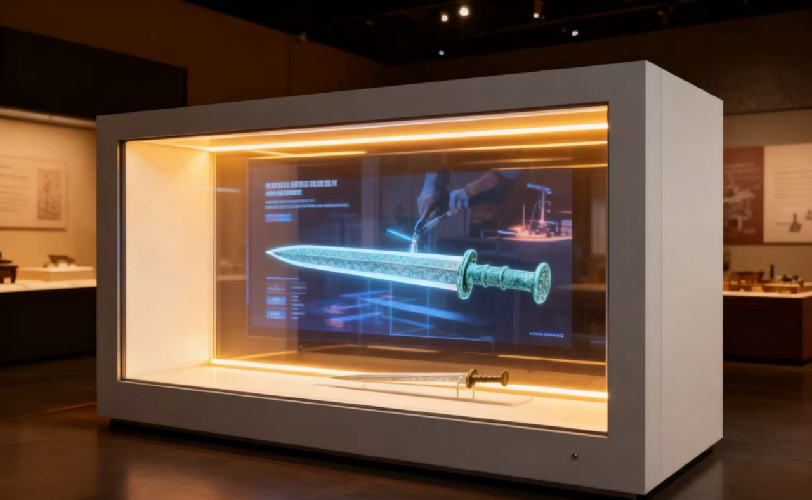

- Museum & Exhibition Showcases

- Airport & Bank POS Displays

- Hotel Lobby Displays

- Stage & Event Backgrounds

Parameter

parameter video

Specification	10.1"	13.3"	15.6"	18.5"	21.5"	32"	43"	49"	55"	65"	75"	86"	98"
Display Size	10.1"	13.3"	15.6"	18.5"	21.5"	32"	43"	49"	55"	65"	75"	86"	98"
Display Area	223.5×125.7mm	294.4×165.6mm	345.5×194.3mm	409.7×230.4mm	476.2×267.9mm	708.8×398.5mm	952.6×535.8mm	1085.8×610.5mm	1219.0×685.2mm	1440.6×809.6mm	1662.2×934.0mm	1906.4×1071.5mm	2167×1222mm
Physical Resolution	1920×1080; 3840×2160	1920×1080; 3840×2160	1920×1080; 3840×2160	1920×1080; 3840×2160	1920×1080; 3840×2160	1920×1080; 3840×2160	1920×1080; 3840×2160	1920×1080; 3840×2160	1920×1080; 3840×2160	1920×1080; 3840×2160	1920×1080; 3840×2160	1920×1080; 3840×2160	1920×1080; 3840×2160
Viewing Angle	178°(H)/178°(V)	178°(H)/178°(V)	178°(H)/178°(V)	178°(H)/178°(V)	178°(H)/178°(V)	178°(H)/178°(V)	178°(H)/178°(V)	178°(H)/178°(V)	178°(H)/178°(V)	178°(H)/178°(V)	178°(H)/178°(V)	178°(H)/178°(V)	178°(H)/178°(V)
Color Depth	8 bit; 16.7M	8 bit; 16.7M	8 bit; 16.7M	8 bit; 16.7M	8 bit; 16.7M	8 bit; 16.7M	8 bit; 16.7M	8 bit; 16.7M	8 bit; 16.7M	8 bit; 16.7M	8 bit; 16.7M	8 bit; 16.7M	8 bit; 16.7M
Contrast Ratio	4000:1	4000:1	4000:1	4000:1	4000:1	4000:1	4000:1	4000:1	4000:1	4000:1	4000:1	4000:1	4000:1
Response Time	8ms	8ms	8ms	8ms	8ms	8ms	8ms	8ms	8ms	8ms	8ms	8ms	8ms
Refresh Rate	60Hz	60Hz	60Hz	60Hz	60Hz	60Hz	60Hz	60Hz	60Hz	60Hz	60Hz	60Hz	60Hz
Panel Transparency	75%+	75%+	75%+	75%+	75%+	75%+	75%+	75%+	75%+	75%+	75%+	75%+	75%+
Light Source Life	30000 hours	30000 hours	30000 hours	30000 hours	30000 hours	30000 hours	30000 hours	30000 hours	30000 hours	30000 hours	30000 hours	30000 hours	30000 hours
Operating System	Win7/Win10 Activated	Win7/Win10 Activated	Win7/Win10 Activated	Win7/Win10 Activated	Win7/Win10 Activated	Win7/Win10 Activated	Win7/Win10 Activated	Win7/Win10 Activated	Win7/Win10 Activated	Win7/Win10 Activated	Win7/Win10 Activated	Win7/Win10 Activated	Win7/Win10 Activated
CPU	I3/I5/I7 (Optional)	I3/I5/I7 (Optional)	I3/I5/I7 (Optional)	I3/I5/I7 (Optional)	I3/I5/I7 (Optional)	I3/I5/I7 (Optional)	I3/I5/I7 (Optional)	I3/I5/I7 (Optional)	I3/I5/I7 (Optional)	I3/I5/I7 (Optional)	I3/I5/I7 (Optional)	I3/I5/I7 (Optional)	I3/I5/I7 (Optional)
RAM	4/8/16G (Optional)	4/8/16G (Optional)	4/8/16G (Optional)	4/8/16G (Optional)	4/8/16G (Optional)	4/8/16G (Optional)	4/8/16G (Optional)	4/8/16G (Optional)	4/8/16G (Optional)	4/8/16G (Optional)	4/8/16G (Optional)	4/8/16G (Optional)	4/8/16G (Optional)
Storage	128/256G SSD HDD 500G/1T (Optional)	128/256G SSD HDD 500G/1T (Optional)	128/256G SSD HDD 500G/1T (Optional)	128/256G SSD HDD 500G/1T (Optional)	128/256G SSD HDD 500G/1T (Optional)	128/256G SSD HDD 500G/1T (Optional)	128/256G SSD HDD 500G/1T (Optional)	128/256G SSD HDD 500G/1T (Optional)	128/256G SSD HDD 500G/1T (Optional)	128/256G SSD HDD 500G/1T (Optional)	128/256G SSD HDD 500G/1T (Optional)	128/256G SSD HDD 500G/1T (Optional)	128/256G SSD HDD 500G/1T (Optional)
Audio Output	EARPHONE × 1	EARPHONE × 1	EARPHONE × 1	EARPHONE × 1	EARPHONE × 1	EARPHONE × 1	EARPHONE × 1	EARPHONE × 1	EARPHONE × 1	EARPHONE × 1	EARPHONE × 1	EARPHONE × 1	EARPHONE × 1
Network Interface	LAN × 1 Wi-Fi	LAN × 1 Wi-Fi	LAN × 1 Wi-Fi	LAN × 1 Wi-Fi	LAN × 1 Wi-Fi	LAN × 1 Wi-Fi	LAN × 1 Wi-Fi	LAN × 1 Wi-Fi	LAN × 1 Wi-Fi	LAN × 1 Wi-Fi	LAN × 1 Wi-Fi	LAN × 1 Wi-Fi	LAN × 1 Wi-Fi
Data Transfer Interface	USB2.0×2	USB2.0×2	USB2.0×2	USB2.0×2	USB2.0×2	USB2.0×2	USB2.0×2	USB2.0×2	USB2.0×2	USB2.0×2	USB2.0×2	USB2.0×2	USB2.0×2
Touch Embedding	Built-in Integrated	Built-in Integrated	Built-in Integrated	Built-in Integrated	Built-in Integrated	Built-in Integrated	Built-in Integrated	Built-in Integrated	Built-in Integrated	Built-in Integrated	Built-in Integrated	Built-in Integrated	Built-in Integrated
Touch Technology	Infrared (10+ points)	Infrared (10+ points)	Infrared (10+ points)	Infrared (10+ points)	Infrared (10+ points)	Infrared (10+ points)	Infrared (10+ points)	Infrared (10+ points)	Infrared (10+ points)	Infrared (10+ points)	Infrared (10+ points)	Infrared (10+ points)	Infrared (10+ points)
Writing Method	Finger, stylus or non-transparent objects (≥5mm)	Finger, stylus or non-transparent objects (≥5mm)	Finger, stylus or non-transparent objects (≥5mm)	Finger, stylus or non-transparent objects (≥5mm)	Finger, stylus or non-transparent objects (≥5mm)	Finger, stylus or non-transparent objects (≥5mm)	Finger, stylus or non-transparent objects (≥5mm)	Finger, stylus or non-transparent objects (≥5mm)	Finger, stylus or non-transparent objects (≥5mm)	Finger, stylus or non-transparent objects (≥5mm)	Finger, stylus or non-transparent objects (≥6mm)	Finger, stylus or non-transparent objects (≥7mm)	Finger, stylus or non-transparent objects (≥7mm)
Cursor Speed	120/s	120/s	120/s	120/s	120/s	120/s	120/s	120/s	120/s	120/s	120/s	120/s	120/s
Positioning Accuracy	±2mm (90%+ touch area)	±2mm (90%+ touch area)	±2mm (90%+ touch area)	±2mm (90%+ touch area)	±2mm (90%+ touch area)	±2mm (90%+ touch area)	±2mm (90%+ touch area)	±2mm (90%+ touch area)	±2mm (90%+ touch area)	±2mm (90%+ touch area)	±2mm (90%+ touch area)	±2mm (90%+ touch area)	±2mm (90%+ touch area)
Touch Resolution	32767×32767	32767×32767	32767×32767	32767×32767	32767×32767	32767×32767	32767×32767	32767×32767	32767×32767	32767×32767	32767×32767	32767×32767	32767×32767
Touch Times	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited
Transmission Speed	480Mbps	480Mbps	480Mbps	480Mbps	480Mbps	480Mbps	480Mbps	480Mbps	480Mbps	480Mbps	480Mbps	480Mbps	480Mbps
Scan Frequency	>100Hz/S	>100Hz/S	>100Hz/S	>100Hz/S	>100Hz/S	>100Hz/S	>100Hz/S	>100Hz/S	>100Hz/S	>100Hz/S	>100Hz/S	>100Hz/S	>100Hz/S
Interface Type	USB Type-A + UATR	USB Type-A + UATR	USB Type-A + UATR	USB Type-A + UATR	USB Type-A + UATR	USB Type-A + UATR	USB Type-A + UATR	USB Type-A + UATR	USB Type-A + UATR	USB Type-A + UATR	USB Type-A + UATR	USB Type-A + UATR	USB Type-A + UATR
Response Speed	<10ms	<10ms	<10ms	<10ms	<10ms	<10ms	<10ms	<10ms	<10ms	<10ms	<10ms	<10ms	<10ms
Touch Life	>50 million touches	>50 million touches	>50 million touches	>50 million touches	>50 million touches	>50 million touches	>50 million touches	>50 million touches	>50 million touches	>50 million touches	>50 million touches	>50 million touches	>50 million touches
Audio Format	MP3/WMA/ OGG	MP3/WMA/ OGG	MP3/WMA/ OGG	MP3/WMA/ OGG	MP3/WMA/ OGG	MP3/WMA/ OGG	MP3/WMA/ OGG	MP3/WMA/ OGG	MP3/WMA/ OGG	MP3/WMA/ OGG	MP3/WMA/ OGG	MP3/WMA/ OGG	MP3/WMA/ OGG
Video Format	MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM/etc.	MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM/etc.	MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM/etc.	MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM/etc.	MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM/etc.	MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM/etc.	MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM/etc.	MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM/etc.	MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM/etc.	MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM/etc.	MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM/etc.	MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM/etc.	MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM/etc.
Image Format	JPG/MMP/GIP/PNG	JPG/MMP/GIP/PNG	JPG/MMP/GIP/PNG	JPG/MMP/GIP/PNG	JPG/MMP/GIP/PNG	JPG/MMP/GIP/PNG	JPG/MMP/GIP/PNG	JPG/MMP/GIP/PNG	JPG/MMP/GIP/PNG	JPG/MMP/GIP/PNG	JPG/MMP/GIP/PNG	JPG/MMP/GIP/PNG	JPG/MMP/GIP/PNG
Operating Voltage	AC 100-240V 50/60Hz	AC 100-240V 50/60Hz	AC 100-240V 50/60Hz	AC 100-240V 50/60Hz	AC 100-240V 50/60Hz	AC 100-240V 50/60Hz	AC 100-240V 50/60Hz	AC 100-240V 50/60Hz	AC 100-240V 50/60Hz	AC 100-240V 50/60Hz	AC 100-240V 50/60Hz	AC 100-240V 50/60Hz	AC 100-240V 50/60Hz
Power Consumption	≤450W	≤450W	≤450W	≤450W	≤450W	≤450W	≤450W	≤450W	≤450W	≤450W	≤450W	≤450W	≤450W
Standby Power	≤1W	≤1W	≤1W	≤1W	≤1W	≤1W	≤1W	≤1W	≤1W	≤1W	≤1W	≤1W	≤1W
Operating Temperature	0℃～50℃	0℃～50℃	0℃～50℃	0℃～50℃	0℃～50℃	0℃～50℃	0℃～50℃	0℃～50℃	0℃～50℃	0℃～50℃	0℃～50℃	0℃～50℃	0℃～50℃
Operating Humidity	20%～90%	20%～90%	20%～90%	20%～90%	20%～90%	20%～90%	20%～90%	20%～90%	20%～90%	20%～90%	20%～90%	20%～90%	20%～90%
Storage Temperature	-20℃～60℃	-20℃～60℃	-20℃～60℃	-20℃～60℃	-20℃～60℃	-20℃～60℃	-20℃～60℃	-20℃～60℃	-20℃～60℃	-20℃～60℃	-20℃～60℃	-20℃～60℃	-20℃～60℃
Storage Humidity	5%～90%	5%～90%	5%～90%	5%～90%	5%～90%	5%～90%	5%～90%	5%～90%	5%～90%	5%～90%	5%～90%	5%～90%	5%～90%
Additional Interfaces	DC_IN/CGA/RJ45/MCI_IN/HDMI/USB1/USB2/PHONE_OUT	DC_IN/CGA/RJ45/MCI_IN/HDMI/USB1/USB2/PHONE_OUT	DC_IN/CGA/RJ45/MCI_IN/HDMI/USB1/USB2/PHONE_OUT	DC_IN/CGA/RJ45/MCI_IN/HDMI/USB1/USB2/PHONE_OUT	DC_IN/CGA/RJ45/MCI_IN/HDMI/USB1/USB2/PHONE_OUT	DC_IN/CGA/RJ45/MCI_IN/HDMI/USB1/USB2/PHONE_OUT	DC_IN/CGA/RJ45/MCI_IN/HDMI/USB1/USB2/PHONE_OUT	DC_IN/CGA/RJ45/MCI_IN/HDMI/USB1/USB2/PHONE_OUT	DC_IN/CGA/RJ45/MCI_IN/HDMI/USB1/USB2/PHONE_OUT	DC_IN/CGA/RJ45/MCI_IN/HDMI/USB1/USB2/PHONE_OUT	DC_IN/CGA/RJ45/MCI_IN/HDMI/USB1/USB2/PHONE_OUT	DC_IN/CGA/RJ45/MCI_IN/HDMI/USB1/USB2/PHONE_OUT	DC_IN/CGA/RJ45/MCI_IN/HDMI/USB1/USB2/PHONE_OUT
Content Management	Standalone network;mobile publishing	Standalone network;mobile publishing	Standalone network;mobile publishing	Standalone network;mobile publishing	Standalone network;mobile publishing	Standalone network;mobile publishing	Standalone network;mobile publishing	Standalone network;mobile publishing	Standalone network;mobile publishing	Standalone network;mobile publishing	Standalone network;mobile publishing	Standalone network;mobile publishing	Standalone network;mobile publishing
Multi-language Support	Chinese Traditional Chinese English Russian Japanese etc.	Chinese Traditional Chinese English Russian Japanese etc.	Chinese Traditional Chinese English Russian Japanese etc.	Chinese Traditional Chinese English Russian Japanese etc.	Chinese Traditional Chinese English Russian Japanese etc.	Chinese Traditional Chinese English Russian Japanese etc.	Chinese Traditional Chinese English Russian Japanese etc.	Chinese Traditional Chinese English Russian Japanese etc.	Chinese Traditional Chinese English Russian Japanese etc.	Chinese Traditional Chinese English Russian Japanese etc.	Chinese Traditional Chinese English Russian Japanese etc.	Chinese Traditional Chinese English Russian Japanese etc.	Chinese Traditional Chinese English Russian Japanese etc.
Emergency Broadcast	One-click emergency video/image/text insertion	One-click emergency video/image/text insertion	One-click emergency video/image/text insertion	One-click emergency video/image/text insertion	One-click emergency video/image/text insertion	One-click emergency video/image/text insertion	One-click emergency video/image/text insertion	One-click emergency video/image/text insertion	One-click emergency video/image/text insertion	One-click emergency video/image/text insertion	One-click emergency video/image/text insertion	One-click emergency video/image/text insertion	One-click emergency video/image/text insertion
Security Features	HTTPS protocol password protection	HTTPS protocol password protection	HTTPS protocol password protection	HTTPS protocol password protection	HTTPS protocol password protection	HTTPS protocol password protection	HTTPS protocol password protection	HTTPS protocol password protection	HTTPS protocol password protection	HTTPS protocol password protection	HTTPS protocol password protection	HTTPS protocol password protection	HTTPS protocol password protection
