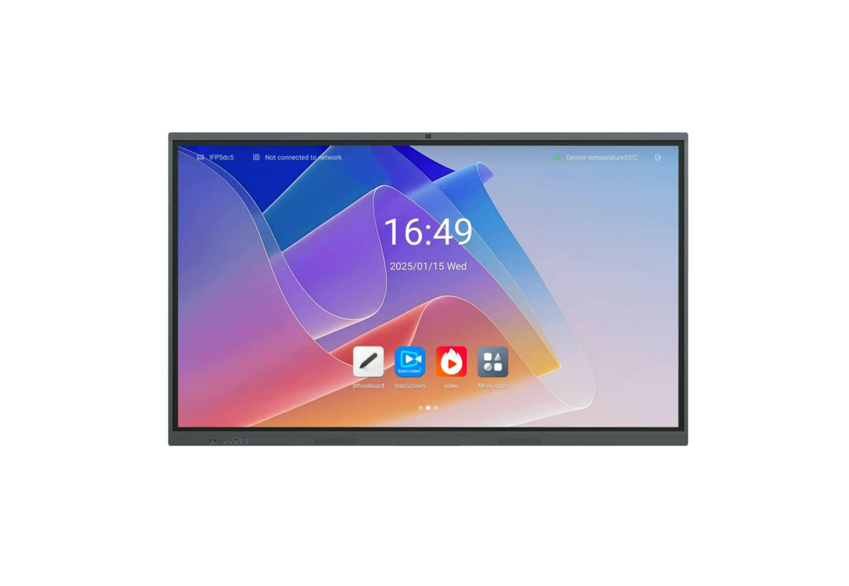

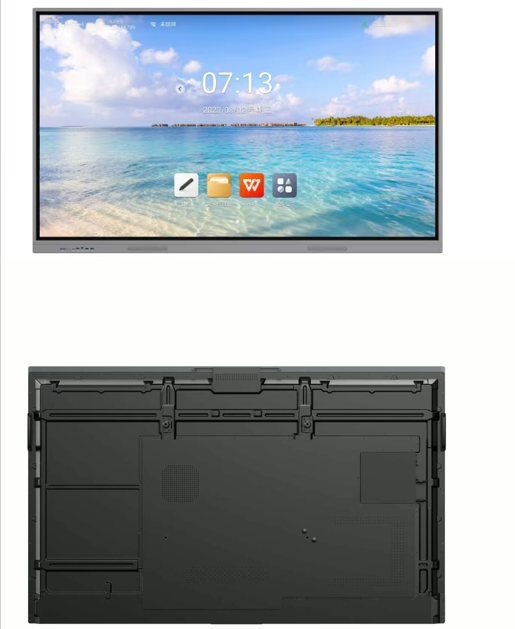

All-in-One Conference LCD Display

Product Description

Key Features

4K Ultra HD Large Screen : 55"/65"/75"/85"/86"/98" / 100"/110", 3840×2160 resolution, delivering stunning detail. 20-Point Infrared Touch : Fast response, supports finger and stylus input. Built-in 48MP Camera & 8-Mic Array : 115° wide angle, 8m pickup range for clearer remote meetings. Dual OS Compatibility : Android 13 + Optional OPS Windows PC, ready to use. Wireless Casting & Dual HDMI Input : Supports PBP/PIP/POP multi-screen display. Wi-Fi 6 & Bluetooth 5.3 : High-speed, stable connectivity. Energy Efficient & Eco-Friendly : Meets China RoHS & EU RoHS standards.

Display & Touch Performance

Display Parameters Size: 55"/65"/75"/85"/86"/98" / 100"/110" Resolution: 3840 × 2160 (4K UHD) Brightness: ≤350 cd/m² Contrast Ratio: 1500:1 Color: 10bit, 1.07B Colors Backlight Life: ≥50,000 hours Touch Parameters Technology: Infrared Touch Touch Points: 20 Points Response Time: ≤15ms Surface: 7H Tempered Glass, 92% Transmittance Accuracy: ±2mm

System & Audio-Video

System Configuration Processor: Quad-core ARM Cortex-A55 @1.9GHz RAM: 4GB (Optional 8GB) Storage: 32GB (Optional up to 128GB) OS: Android 13 Audio & Video Integration Camera: 48MP Sensor, 115° Ultra Wide Angle Microphone: 8-Mic Array with Echo Cancellation Audio: 2 × 15W Speakers, 8Ω

Connectivity & Expansion

Rich Interfaces, Flexible Expansion Front: USB × 2, Type-C × 1 Rear/Side: HDMI × 2, RJ45, RS232, Audio In/Out Network: Wi-Fi 6, BT 5.3 Control: RS232 for Remote Management Optional OPS Computer CPU: Intel Core i3/i5/i7 (4th Gen+) RAM: 4GB ~ 16GB DDR3/4 Storage: 128GB ~ 512GB SSD OS: Windows 10 / 7

Quality & Support

Warranty : 1 Year (Standard Industry Practice) Environmental Compliance : China RoHS & EU RoHS Energy Saving : Standby Power ≤0.5W Reliable Design : For Indoor Use, Moisture & Dust Protected

Application fields

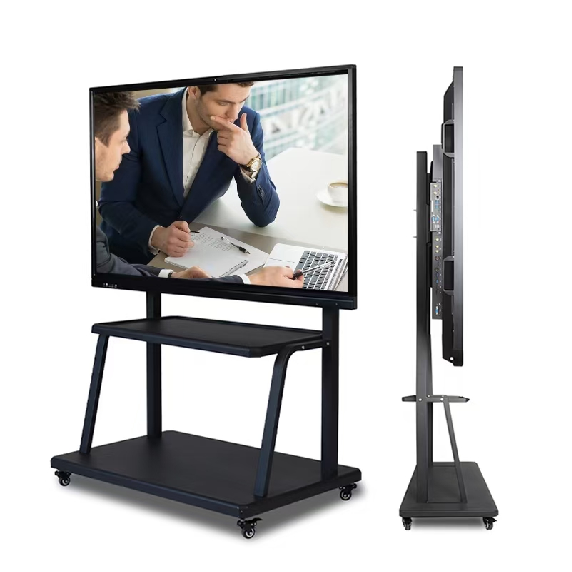

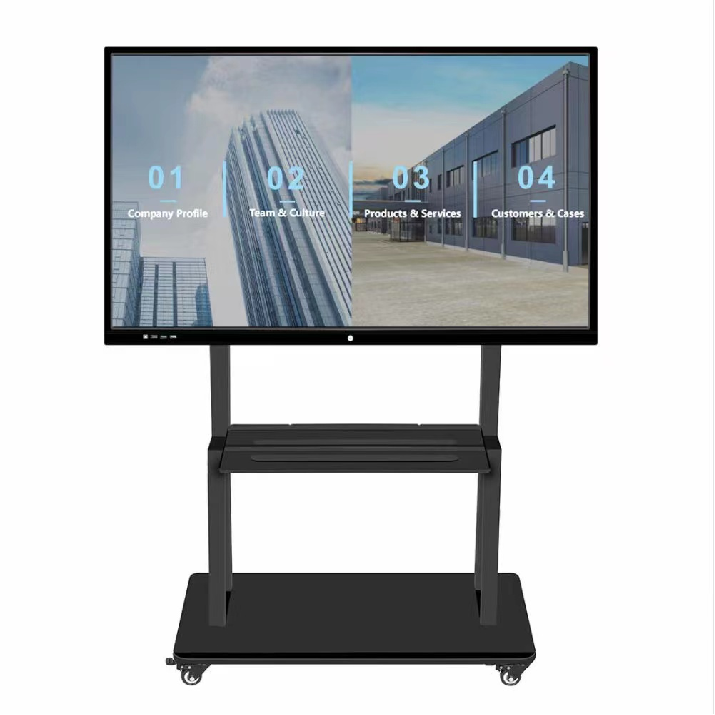

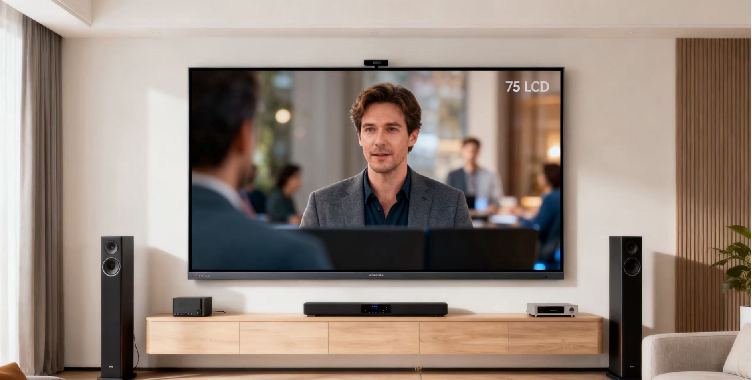

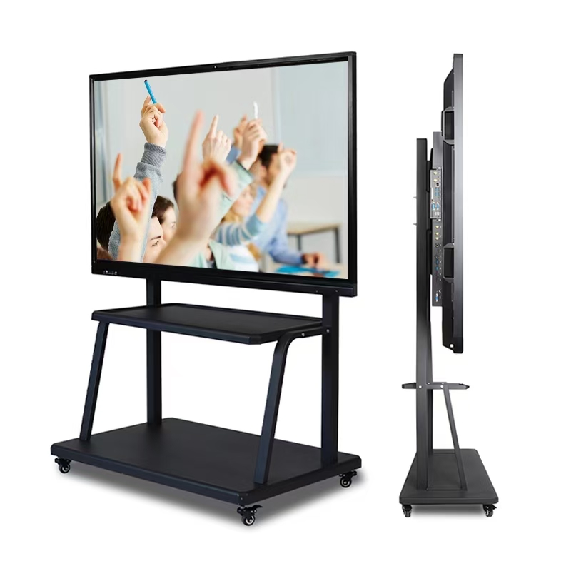

Installation & Applications Multiple Mounting Options Mobile Stand Wall Mount Ceiling Mount

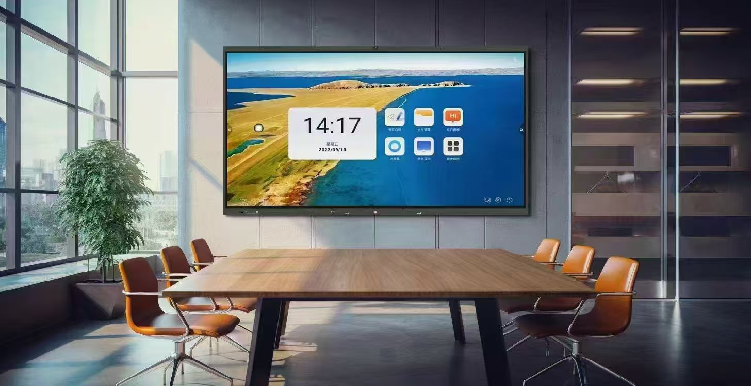

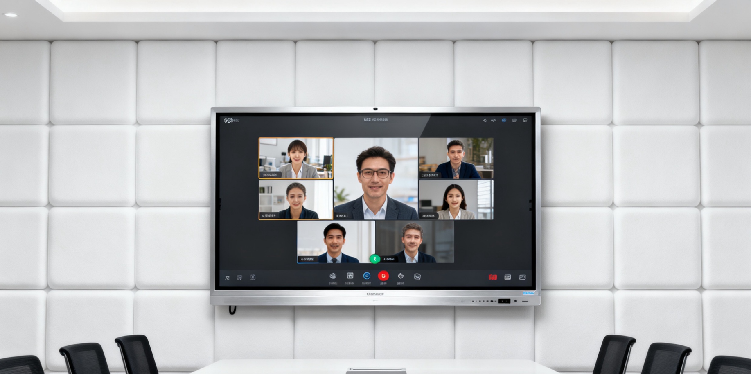

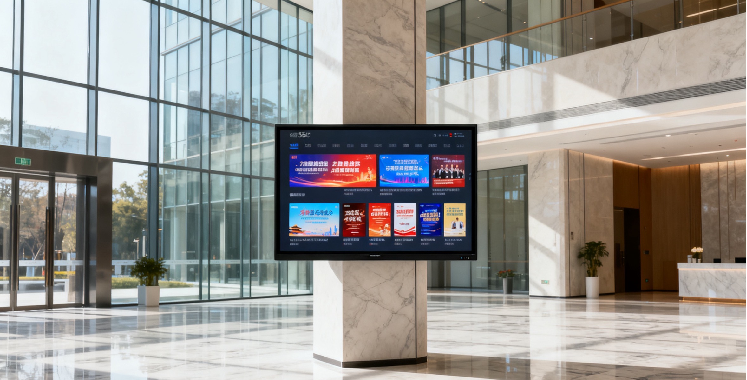

Ideal For Enterprise Meeting Rooms Education & Training Halls Remote Video Conferencing Multimedia Exhibition Spaces Command & Control Centers

Parameter

Parameter video

Items	55"	65"	75"	85"	86"	98"	100"	110"
Display Size	55"	65"	75"	85"	86"	98"	100"	110"
Resolution	3840x2160	3840x2160	3840x2160	3840x2160	3840x2160	3840x2160	3840x2160	3840x2160
Aspect Ratio	16:9	16:9	16:9	16:9	16:9	16:9	16:9	16:9
Brightness (Typ.)	≤350 cd/m2	≤350 cd/m2	≤350 cd/m2	≤350 cd/m2	≤350 cd/m2	≤350 cd/m2	≤350 cd/m2	≤350 cd/m2
Contrast Ratio	1500:1 (Typ.)	1500:1 (Typ.)	1500:1 (Typ.)	1500:1 (Typ.)	1500:1 (Typ.)	1500:1 (Typ.)	1500:1 (Typ.)	1500:1 (Typ.)
Viewing Angle	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Touch Technology	Infrared Optical	Infrared Optical	Infrared Optical	Infrared Optical	Infrared Optical	Infrared Optical	Infrared Optical	Infrared Optical
Touch Points	20 Points	20 Points	20 Points	20 Points	20 Points	20 Points	20 Points	20 Points
Touch Response	≤15ms	≤15ms	≤15ms	≤15ms	≤15ms	≤15ms	≤15ms	≤15ms
Built-in Camera	48MP 4K	48MP 4K	48MP 4K	48MP 4K	48MP 4K	48MP 4K	48MP 4K	48MP 4K
Microphone	8-Array Mic	8-Array Mic	8-Array Mic	8-Array Mic	8-Array Mic	8-Array Mic	8-Array Mic	8-Array Mic
Pickup Distance	8 meters	8 meters	8 meters	8 meters	8 meters	8 meters	8 meters	8 meters
Operating System	Android 13	Android 13	Android 13	Android 13	Android 13	Android 13	Android 13	Android 13
CPU	Quad-core A55 @1.9GHz	Quad-core A55 @1.9GHz	Quad-core A55 @1.9GHz	Quad-core A55 @1.9GHz	Quad-core A55 @1.9GHz	Quad-core A55 @1.9GHz	Quad-core A55 @1.9GHz	Quad-core A55 @1.9GHz
RAM (Standard/Optional)	4GB / 8GB	4GB / 8GB	4GB / 8GB	4GB / 8GB	4GB / 8GB	4GB / 8GB	4GB / 8GB	4GB / 8GB
Storage (Standard/Optional)	32GB / 128GB	32GB / 128GB	32GB / 128GB	32GB / 128GB	32GB / 128GB	32GB / 128GB	32GB / 128GB	32GB / 128GB
Audio	15W×2 Speakers	15W×2 Speakers	15W×2 Speakers	15W×2 Speakers	15W×2 Speakers	15W×2 Speakers	15W×2 Speakers	15W×2 Speakers
WiFi	WiFi 6 (2.4G/5G)	WiFi 6 (2.4G/5G)	WiFi 6 (2.4G/5G)	WiFi 6 (2.4G/5G)	WiFi 6 (2.4G/5G)	WiFi 6 (2.4G/5G)	WiFi 6 (2.4G/5G)	WiFi 6 (2.4G/5G)
Bluetooth	Bluetooth 5.3	Bluetooth 5.3	Bluetooth 5.3	Bluetooth 5.3	Bluetooth 5.3	Bluetooth 5.3	Bluetooth 5.3	Bluetooth 5.3
OPS Computer	Optional (Intel i3/i5/i7)	Optional (Intel i3/i5/i7)	Optional (Intel i3/i5/i7)	Optional (Intel i3/i5/i7)	Optional (Intel i3/i5/i7)	Optional (Intel i3/i5/i7)	Optional (Intel i3/i5/i7)	Optional (Intel i3/i5/i7)
Power Consumption	≤350W	≤350W	≤350W	≤350W	≤350W	≤350W	≤350W	≤350W
Standby Power	≤0.5W	≤0.5W	≤0.5W	≤0.5W	≤0.5W	≤0.5W	≤0.5W	≤0.5W
