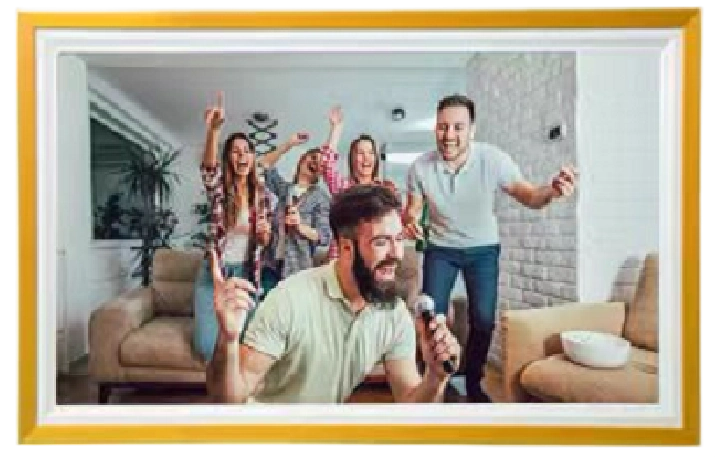

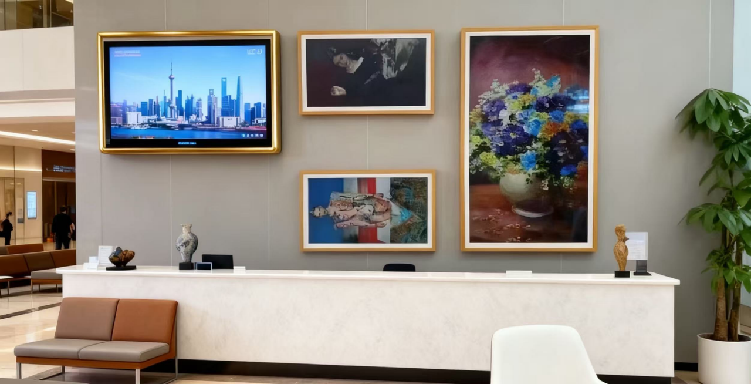

| Framed Advertising Display Series |
|
|
Display Size
|
21.5"
|
23.8"
|
27"
|
32"
|
43"
|
55"
|
65"
|
|
|
Panel Brands
|
BOE, CSOT, LG
|
BOE, CSOT, LG
|
BOE, CSOT, LG
|
BOE, CSOT, LG
|
BOE, CSOT, LG
|
BOE, CSOT, LG
|
BOE, CSOT, LG
|
|
|
Resolution
|
1920×1080 [FHD]
|
1920×1080 [FHD]
|
1920×1080 [FHD]
|
1920×1080 [FHD]
|
1920×1080 [FHD]
|
1920×1080 [FHD]
|
1920×1080 [FHD]
|
|
|
Viewable Size
|
476.6×268.1mm
|
527.0×296.5mm
|
597.7×336.2mm
|
698.4×392.85mm
|
940.9×529.3mm
|
1209.6×680.4mm
|
1428.5×803.5mm
|
|
|
Viewing Angle
|
89/89/89/89 (CR≥10)
|
89/89/89/89 (CR≥10)
|
89/89/89/89 (CR≥10)
|
89/89/89/89 (CR≥10)
|
89/89/89/89 (CR≥10)
|
89/89/89/89 (CR≥10)
|
89/89/89/89 (CR≥10)
|
|
|
Brightness
|
300 cd/m2
|
300 cd/m2
|
300 cd/m2
|
300 cd/m2
|
300 cd/m2
|
300 cd/m2
|
300 cd/m2
|
|
|
Color
|
16.7M/1.07B, 72% NTSC
|
16.7M/1.07B, 72% NTSC
|
16.7M/1.07B, 72% NTSC
|
16.7M/1.07B, 72% NTSC
|
16.7M/1.07B, 72% NTSC
|
16.7M/1.07B, 72% NTSC
|
16.7M/1.07B, 72% NTSC
|
|
|
Contrast Ratio
|
1300:01:00
|
1300:01:00
|
1300:01:00
|
1300:01:00
|
1300:01:00
|
1300:01:00
|
1300:01:00
|
|
|
Response Time
|
8ms
|
8ms
|
8ms
|
8ms
|
8ms
|
8ms
|
8ms
|
|
|
Screen Type
|
a-Si TFT-LCD
|
a-Si TFT-LCD
|
a-Si TFT-LCD
|
a-Si TFT-LCD
|
a-Si TFT-LCD
|
a-Si TFT-LCD
|
a-Si TFT-LCD
|
|
|
Backlight Type
|
WLED
|
WLED
|
WLED
|
WLED
|
WLED
|
WLED
|
WLED
|
|
|
LCD Life
|
50,000 hours
|
50,000 hours
|
50,000 hours
|
50,000 hours
|
50,000 hours
|
50,000 hours
|
50,000 hours
|
|
|
Operating System
|
Android 7.1.2
|
Android 7.1.2
|
Android 7.1.2
|
Android 7.1.2
|
Android 7.1.2
|
Android 7.1.2
|
Android 7.1.2
|
|
|
Motherboard Solution
|
527S
|
527S
|
527S
|
527S
|
527S
|
527S
|
527S
|
|
|
CPU
|
Octa-core Cortex-A55 @1.8GHz
|
Octa-core Cortex-A55 @1.8GHz
|
Octa-core Cortex-A55 @1.8GHz
|
Octa-core Cortex-A55 @1.8GHz
|
Octa-core Cortex-A55 @1.8GHz
|
Octa-core Cortex-A55 @1.8GHz
|
Octa-core Cortex-A55 @1.8GHz
|
|
|
RAM
|
2GB DDR3 (4GB optional)
|
2GB DDR3 (4GB optional)
|
2GB DDR3 (4GB optional)
|
2GB DDR3 (4GB optional)
|
2GB DDR3 (4GB optional)
|
2GB DDR3 (4GB optional)
|
2GB DDR3 (4GB optional)
|
|
|
Storage
|
32GB EMMC (64GB/128GB optional)
|
32GB EMMC (64GB/128GB optional)
|
32GB EMMC (64GB/128GB optional)
|
32GB EMMC (64GB/128GB optional)
|
32GB EMMC (64GB/128GB optional)
|
32GB EMMC (64GB/128GB optional)
|
32GB EMMC (64GB/128GB optional)
|
|
|
GPU
|
ARM G57 MC1
|
ARM G57 MC1
|
ARM G57 MC1
|
ARM G57 MC1
|
ARM G57 MC1
|
ARM G57 MC1
|
ARM G57 MC1
|
|
|
I/O Interfaces
|
HDMI×1, USB2.0×2, RJ45×1, AUDIO
|
HDMI×1, USB2.0×2, RJ45×1, AUDIO
|
HDMI×1, USB2.0×2, RJ45×1, AUDIO
|
HDMI×1, USB2.0×2, RJ45×1, AUDIO
|
HDMI×1, USB2.0×2, RJ45×1, AUDIO
|
HDMI×1, USB2.0×2, RJ45×1, AUDIO
|
HDMI×1, USB2.0×2, RJ45×1, AUDIO
|
|
|
Network
|
100M Ethernet, WiFi (IEEE 802.11)
|
100M Ethernet, WiFi (IEEE 802.11)
|
100M Ethernet, WiFi (IEEE 802.11)
|
100M Ethernet, WiFi (IEEE 802.11)
|
100M Ethernet, WiFi (IEEE 802.11)
|
100M Ethernet, WiFi (IEEE 802.11)
|
100M Ethernet, WiFi (IEEE 802.11)
|
|
|
Pre-installed Software
|
Advertising Player
|
Advertising Player
|
Advertising Player
|
Advertising Player
|
Advertising Player
|
Advertising Player
|
Advertising Player
|
|
|
Startup Methods
|
Power-on auto start, timed switch, network wake-up, remote control
|
Power-on auto start, timed switch, network wake-up, remote control
|
Power-on auto start, timed switch, network wake-up, remote control
|
Power-on auto start, timed switch, network wake-up, remote control
|
Power-on auto start, timed switch, network wake-up, remote control
|
Power-on auto start, timed switch, network wake-up, remote control
|
Power-on auto start, timed switch, network wake-up, remote control
|
|
|
Language Support
|
Chinese, Traditional Chinese, English, French, German, Japanese, Korean, etc.
|
Chinese, Traditional Chinese, English, French, German, Japanese, Korean, etc.
|
Chinese, Traditional Chinese, English, French, German, Japanese, Korean, etc.
|
Chinese, Traditional Chinese, English, French, German, Japanese, Korean, etc.
|
Chinese, Traditional Chinese, English, French, German, Japanese, Korean, etc.
|
Chinese, Traditional Chinese, English, French, German, Japanese, Korean, etc.
|
Chinese, Traditional Chinese, English, French, German, Japanese, Korean, etc.
|
|
|
Audio
|
Built-in 8Ω5W×2 Speaker
|
Built-in 8Ω5W×2 Speaker
|
Built-in 8Ω5W×2 Speaker
|
Built-in 8Ω5W×2 Speaker
|
Built-in 8Ω5W×2 Speaker
|
Built-in 8Ω5W×2 Speaker
|
Built-in 8Ω5W×2 Speaker
|
|
|
Split Screen
|
Support screen division, horizontal/vertical layout, free area combination
|
Support screen division, horizontal/vertical layout, free area combination
|
Support screen division, horizontal/vertical layout, free area combination
|
Support screen division, horizontal/vertical layout, free area combination
|
Support screen division, horizontal/vertical layout, free area combination
|
Support screen division, horizontal/vertical layout, free area combination
|
Support screen division, horizontal/vertical layout, free area combination
|
|
|
Standalone Function
|
USB content import and playback
|
USB content import and playback
|
USB content import and playback
|
USB content import and playback
|
USB content import and playback
|
USB content import and playback
|
USB content import and playback
|
|
|
Bare Machine Dimensions
|
500×300×50mm
|
550×330×55mm
|
620×370×60mm
|
772.5×467.01×64mm
|
980×580×70mm
|
1250×740×80mm
|
1470×870×85mm
|
|
|
Operating Temperature
|
0℃~40℃
|
0℃~40℃
|
0℃~40℃
|
0℃~40℃
|
0℃~40℃
|
0℃~40℃
|
0℃~40℃
|
|
|
Operating Humidity
|
10%~90%
|
10%~90%
|
10%~90%
|
10%~90%
|
10%~90%
|
10%~90%
|
10%~90%
|
|
|
Storage Temperature
|
-20℃~60℃
|
-20℃~60℃
|
-20℃~60℃
|
-20℃~60℃
|
-20℃~60℃
|
-20℃~60℃
|
-20℃~60℃
|
|
|
Storage Humidity
|
5%~95%
|
5%~95%
|
5%~95%
|
5%~95%
|
5%~95%
|
5%~95%
|
5%~95%
|
|
|
Power Input
|
AC 110-240V 50/60Hz
|
AC 110-240V 50/60Hz
|
AC 110-240V 50/60Hz
|
AC 110-240V 50/60Hz
|
AC 110-240V 50/60Hz
|
AC 110-240V 50/60Hz
|
AC 110-240V 50/60Hz
|
|
|
Power Consumption
|
≤30W
|
≤35W
|
≤40W
|
≤48W
|
≤60W
|
≤80W
|
≤100W
|
|
