FA3 Max

Product Description

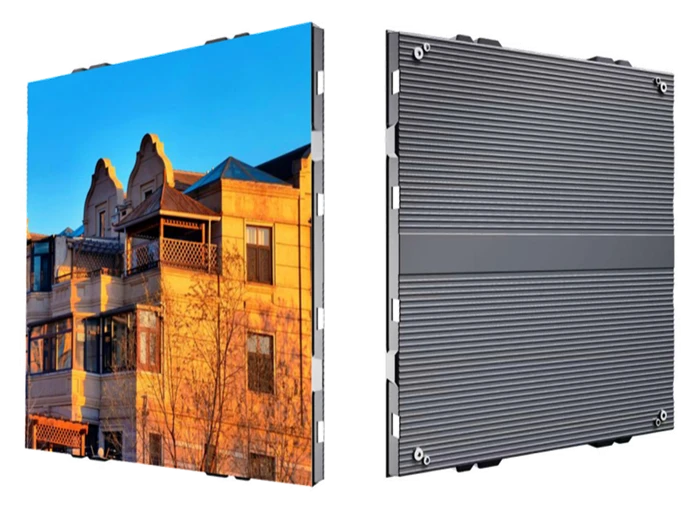

Die-Casting Aluminum Design

As customers have higher requirements for LED displays, more and more cabinets have been developed to meet market demands. Compared with the traditional bulky cabinet, the die-casting aluminum cabinet with humanized design is stronger, more light-weight and precise. This LED panel is highly praised for better user experience. The pixel pitches of this LED screen are SMD P1.9, P2.6, P2.9, P3.9.

Fully Front Access Service

The cabinet, module, power supply and other components are with fully front access service, therefore super easy disassembly of the fine pitch LED screen is allowed.The cabinet can be accessed from front side for maintenance and installation.

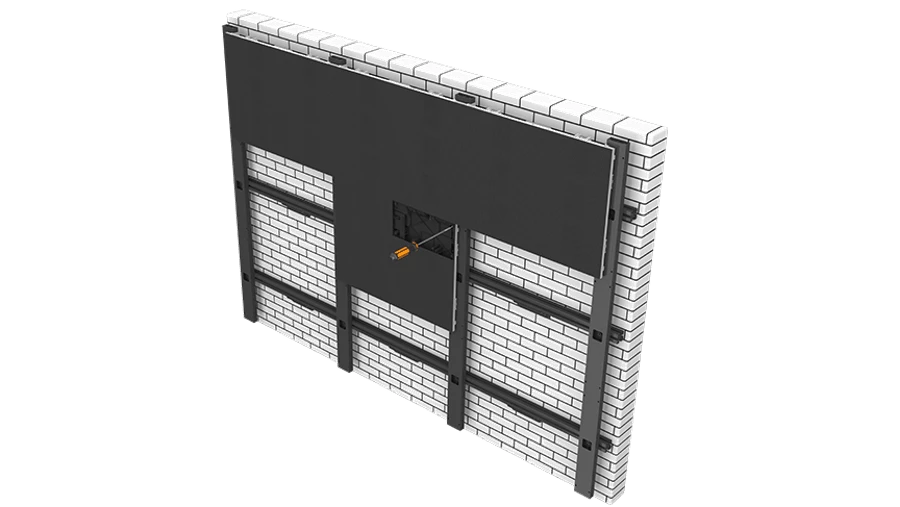

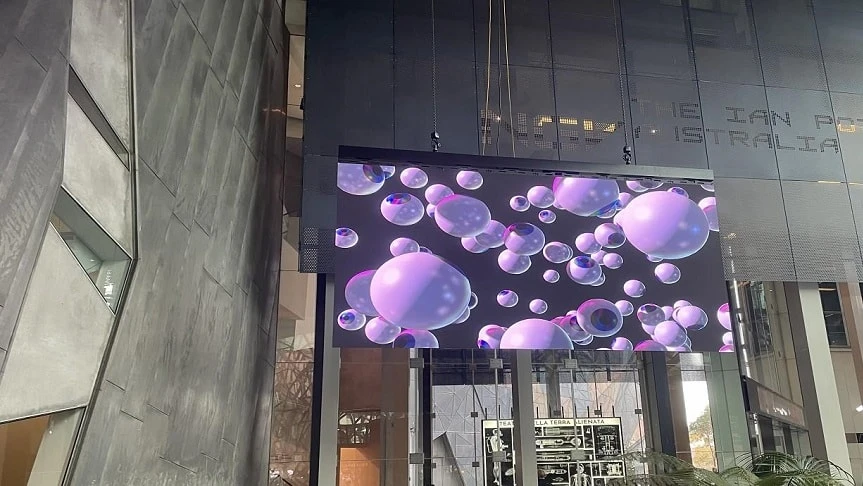

Various installation is available

Our FA3 Max is light and thin. It can not only be fixed on the wall but also can realize hoisting with the hanging bar. Thanks to the excellent cabinet structure design, the installation method is flexible, and the screen can fit well into different projects.

High Refresh Rate 3840Hz to 7680Hz

The high refresh rate ensures the smoothness of every frame of the images, thus the LED display won’t appear flicking on the highspeed camera.

Seamless Connection

High precision CNC fabrication and the cabinet precision within 0.05mm bring seamless assembly. Besides,signal cables and power cables are inside of the cabinets and the LED screen without external cables brings more stability.

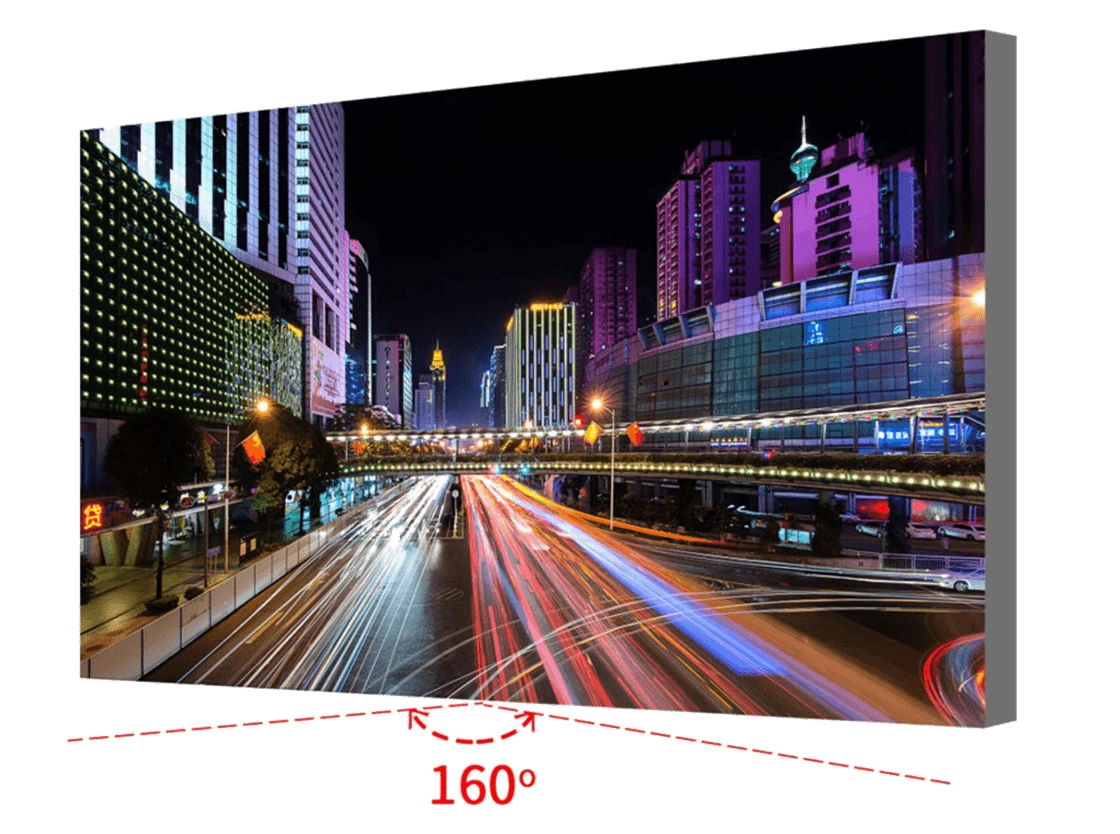

Large Viewing Angle

The smoothness of the LED screen's surface is truly remarkable, giving people a sensation as if they were touching the texture of future technology. Moreover, its wide horizontal and vertical viewing angles of up to 160° allow more viewers to fully immerse themselves in its captivating visual display.

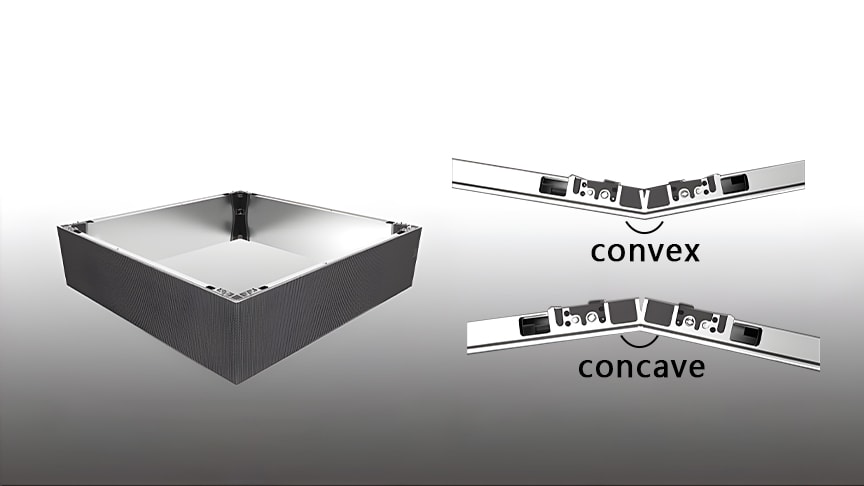

Installation-various shaps

Flexible in different shapes installation: 90 degree installation with cutted panel. Concave and Convex installation possible

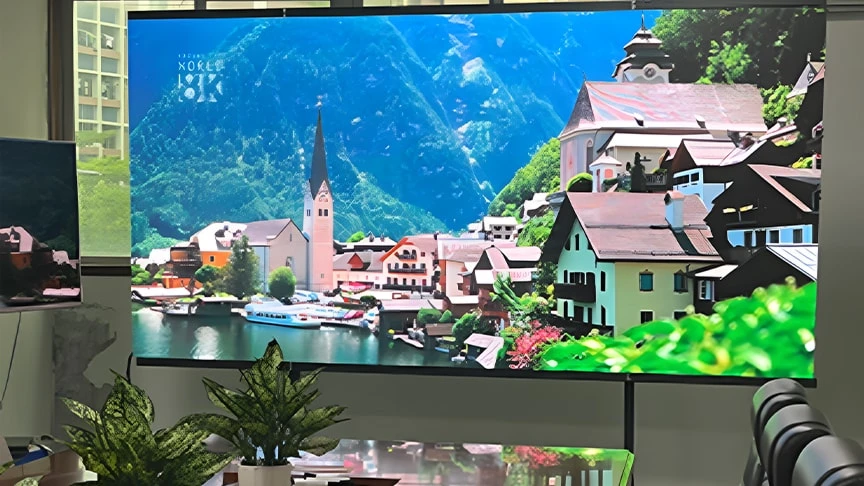

Excellent Visual Effect

The images and video visual effects are amazing. Our FA3 Max series has an excellent visual performance because we adopt high-quality black LED. The color contrast ratio is even better than 10000:1. Armed with HDR technology and color enhancement technology, the white balance of the screen reaches a 100% sRGB and stunning visual performance. Even in high light environments the screen also looks very clear, and the visual effect looks perfect.

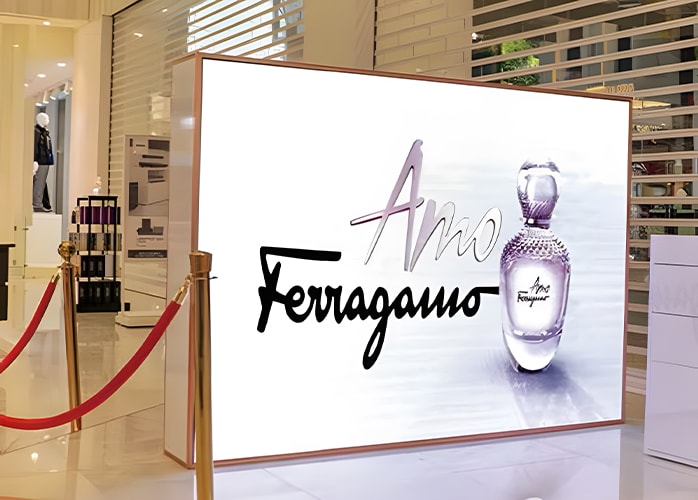

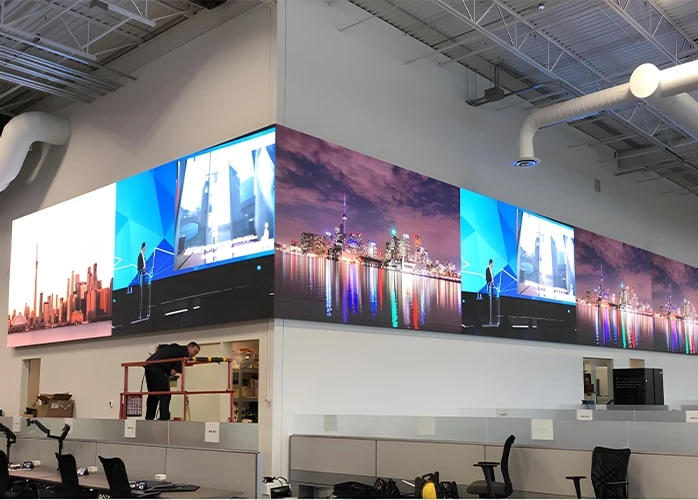

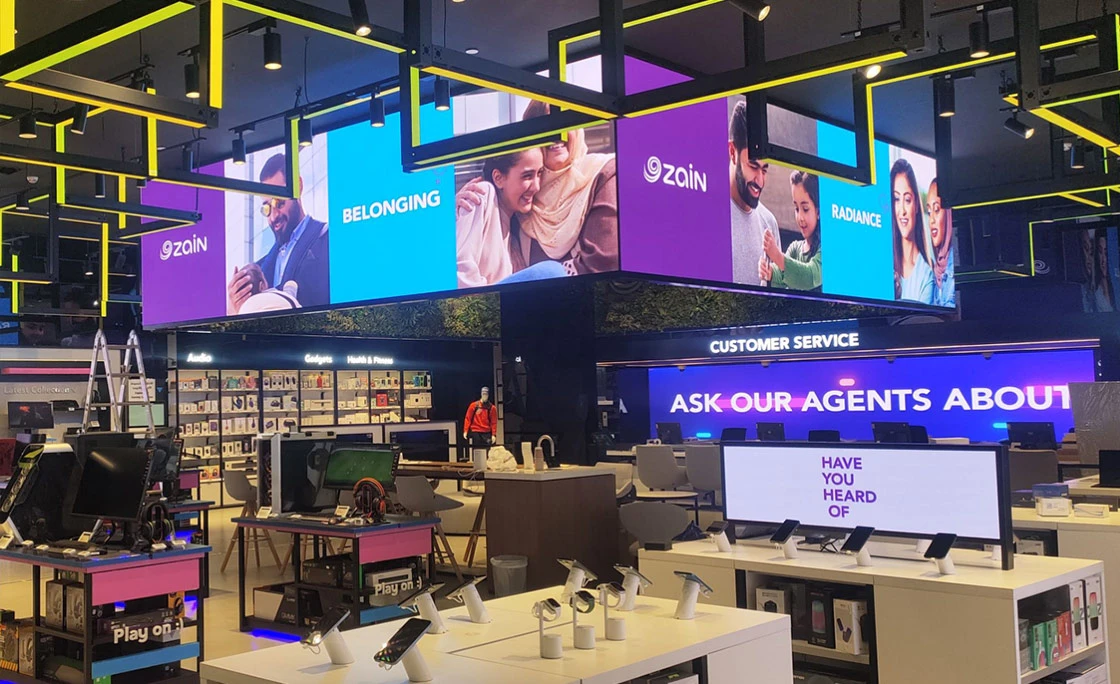

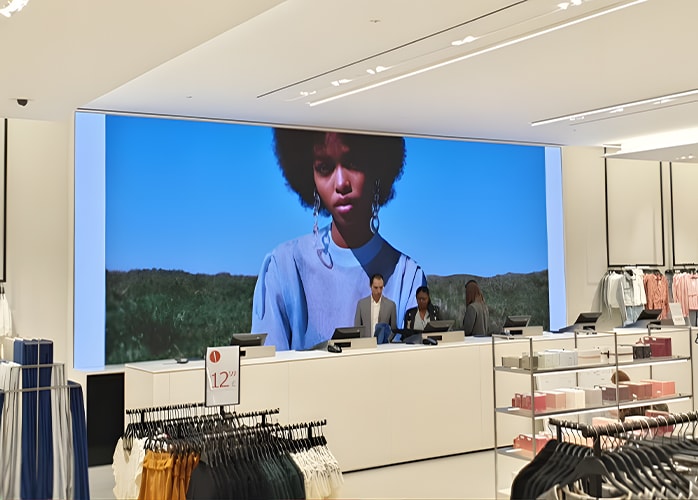

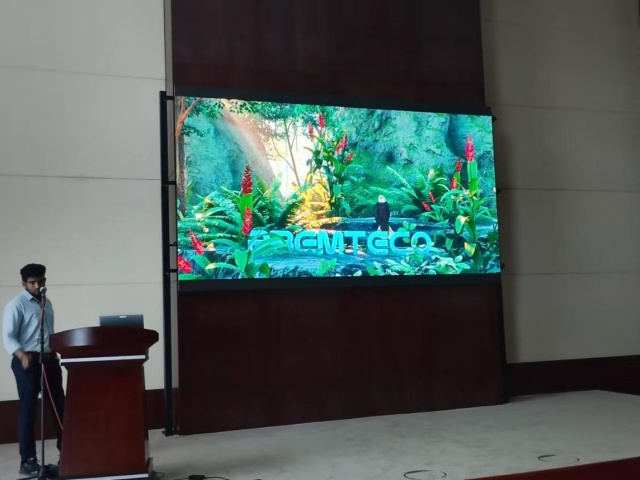

Application Fields

This indoor LED panel is usually be used for:

Fashion shop; Meeting room video wall; Church digital screen; Indoor advertising; Airport, etc.

Parameter

Spec1 Spec2 Video

Item	P1.5	P1.9	P2.5	P2.6
Pixel Pitch	1.5625mm	1.953mm	2.500mm	2.604mm
LED Type	SMD1212	SMD1515	SMD1515	SMD1515
Module Resolution	160dots x160dots	128dots x128dots	100dots x100dots	96dots x96dots
Driving Mode	1/64scan	1/52scan	1/43scan	1/40scan
Module Pixels	25,600dots	16,384dots	10,000dots	9,216dots
Module Size	250mm x 250mm	250mm x 250mm	250mm x 250mm	250mm x 250mm
Cabinet Size	1000mm x500mm/500mm x500mm 100mm x250mm/750mm x250mm 500mm x250mm	1000mm x500mm/500mm x500mm 100mm x250mm/750mm x250mm 500mm x250mm	1000mm x500mm/500mm x500mm 100mm x250mm/750mm x250mm 500mm x250mm	1000mm x500mm/500mm x500mm 100mm x250mm/750mm x250mm 500mm x250mm
Cabinet Resolution	640dots x320dots/320dots x320dots/640dots x160dots/480dots x160dots/320dots x160dots	512dots x256dots/256dots x256dots/512dots x128dots/384dots x128dots/256dots x128dots	400dots x200dots/200dots x200dots/400dots x100dots/300dots x100dots/200dots x100dots	384dots x192dots/192dots x192dots/384dots x96dots/288dots x96dots/192dots x96dots
Pixel Density	409,600dots/㎡	262,144dots/㎡	160,000dots/㎡	147,456dots/㎡
Minimum Viewing Distance	≥1.56 m	≥1.95 m	≥2.5 m	≥2.6 m
Brightness	700-800nits	800nits	800nits	800nits
IP Grade	IP43	IP43	IP43	IP43
Refresh Rate	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:140° / V:140°	H:140° / V:140°	H:140° / V:140°	H:140° / V:140°
Maximum Power Consumption	410W/ ㎡	410W/ ㎡	410W/ ㎡	410W/ ㎡
Average Power Consumption	210W/ ㎡	210W/ ㎡	210W/ ㎡	210W/ ㎡
Screen Lifespan	≥100,000 hours	≥100,000 hours	≥100,000 hours	≥100,000 hours
Input Voltage	AC110V - AC220V @ 50Hz/60Hz	AC110V - AC220V @ 50Hz/60Hz	AC110V - AC220V @ 50Hz/60Hz	AC110V - AC220V @ 50Hz/60Hz
Operating Temperature	﹣20℃～50℃	﹣20℃～50℃	﹣20℃～50℃	﹣20℃～50℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	24kg/m²	24kg/m²	24kg/m²	24kg/m²
Operating System	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)
Signal Source Compatibility	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.

Item	P2.9	P3.9	P4.8
Pixel Pitch	2.976mm	3.906mm	4.807mm
LED Type	SMD2020	SMD2020	SMD2020
Module Resolution	84dots x84dots	64dots x64dots	52dots x52dots
Driving Mode	1/32scan	1/26scan	1/16scan
Module Pixels	7,056dots	4,096dots	2,704dots
Module Size	250mm x 250mm	250mm x 250mm	250mm x 250mm
Cabinet Size	1000mm x500mm/500mm x500mm 100mm x250mm/750mm x250mm 500mm x250mm	1000mm x500mm/500mm x500mm 100mm x250mm/750mm x250mm 500mm x250mm	1000mm x500mm/500mm x500mm 100mm x250mm/750mm x250mm 500mm x250mm
Cabinet Resolution	336dots x168dots/168dots x168dots/336dots x84dots/252dots x84dots/168dots x84dots	256dots x128dots/128dots x128dots/192dots x64dots/128dots x64dots/64dots x64dots	208dots x104dots/104dots x104dots/156dots x52dots/104dots x52dots/52dots x52dots
Pixel Density	112,896dots/㎡	65,536dots/㎡	43,264dots/㎡
Minimum Viewing Distance	≥2.9 m	≥3.9m	≥4.8m
Brightness	800nits	800nits	800nits
IP Grade	IP43	IP43	IP43
Refresh Rate	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:140° / V:140°	H:140° / V:140°	H:140° / V:140°
Maximum Power Consumption	410W/ ㎡	410W/ ㎡	410W/ ㎡
Average Power Consumption	210W/ ㎡	210W/ ㎡	210W/ ㎡
Screen Lifespan	≥100,000 hours	≥100,000 hours	≥100,000 hours
Input Voltage	AC110V - AC220V @ 50Hz/60Hz	AC110V - AC220V @ 50Hz/60Hz	AC110V - AC220V @ 50Hz/60Hz
Operating Temperature	﹣20℃～50℃	﹣20℃～50℃	﹣20℃～50℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	24kg/m²	24kg/m²	24kg/m²
Operating System	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)
Signal Source Compatibility	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.	DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
