IR1 Pro

Product Description

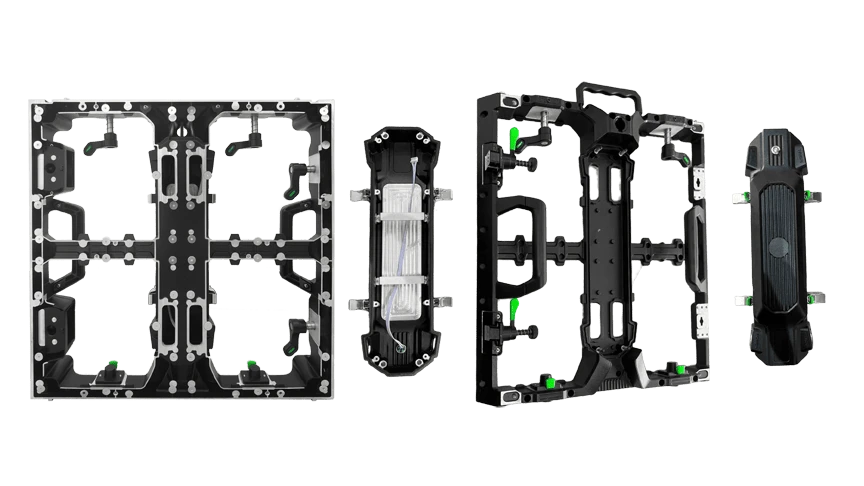

Great Cabinet Design

To meet the requirements of customers in different application scenarios, 2 cabinet sizes are available.

One of the cabinet size is 500mm x 500mm, and another one is 500mm x 1000mm, which makes installation flexible during the event.

Light Weight

As the cabinet uses die-cast aluminum material, the weight of the panel is only 9 kgs, and it has great heat dissipation.

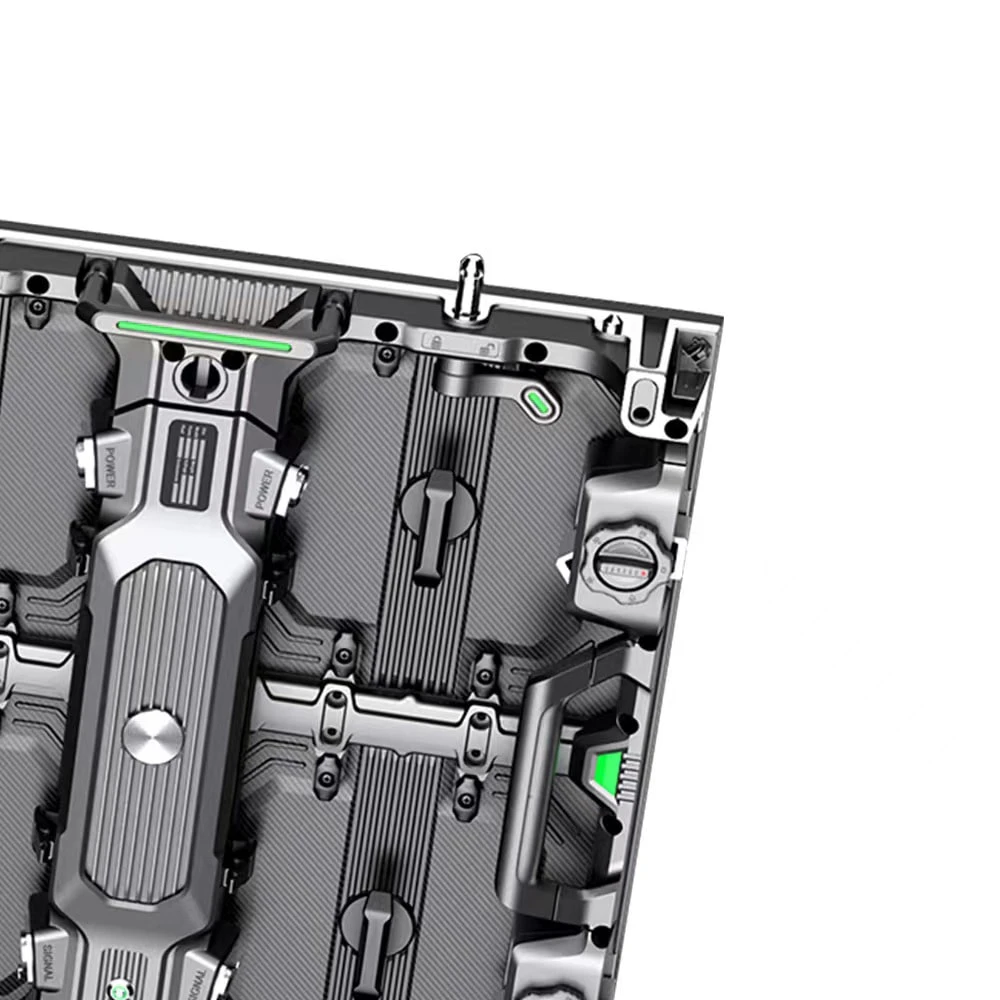

Removable power supply

The power supply box is easy to disassemble, you only need to open the button next to the box, and you can easily replace it.

Curved Design

The lock is very secure and strong. It can be designed to be curved to form a curved screen from -15°(convex) to +15°(concave).

Excellent visual effert

With its excellent video performance, create an immersive and dynamic visual experience. Provide viewers with a dynamic and engaging visual experience.

Application Files

Activity; Stages; Exhibition hall; Sports Events.

Parameter

Spec1 Spec2 Spec3

Item	P2.6	P2.9	P2.9
Pixel Pitch	2.604mm	2.976mm	2.976mm
LED Type	SMD1515	SMD1515	SMD1515
Module Resolution	96dots × 96dots	84dots × 84dots	84dots × 84dots
Driving Mode	1/32scan	1/28scan	1/42scan
Module Pixels	9,216dots	7,056dots	7,056dots
Module Size	250mm × 250mm	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm × 500mm	500mm × 500mm	500mm × 500mm
Cabinet Resolution	192dots × 192dots	168dots × 168dots	168dots × 168dots
Pixel Density	147,456dots/㎡	112,896dots/㎡	112,896dots/㎡
Minimum Viewing Distance	≥2.6 m	≥2.9 m	≥2.9 m
Brightness	600nits~800nits	600nits~800nits	600nits~1,000nits
IP Grade	IP43	IP43	IP43
Refresh Rate	3,840Hz～7,680Hz	3,840Hz～7,680Hz	3,840Hz～7,680Hz
Gray Scale	14bits~22bits	14bits~22bits	14bits~22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	520W/㎡	520W/㎡	300W/㎡
Average Power Consumption	175W/㎡	175W/㎡	100W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	9kg/panel	9kg/panel or 14kg/panel	9kg/panel or 14kg/panel
Operating System	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P3.9	P4.8
Pixel Pitch	3.906mm	4.807mm
LED Type	SMD2020	SMD2020
Module Resolution	64dots × 64dots	52dots × 52dots
Driving Mode	1/16scan	1/13scan
Module Pixels	4,096dots	2,704dots
Module Size	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm × 500mm or 500mm × 1000mm	500mm × 500mm or 500mm × 1000mm
Cabinet Resolution	128dots × 128dots	104dots × 104dots
Pixel Density	65,536dots/㎡	43,264dots/㎡
Minimum Viewing Distance	≥3.9m	≥4.8m
Brightness	800nits~1,200nits	800nits~1,200nits
IP Grade	IP43	IP43
Refresh Rate	3,840Hz～7,680Hz	3,840Hz～7,680Hz
Gray Scale	14bits~22bits	14bits~22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	520W/㎡	520W/㎡
Average Power Consumption	175W/㎡	175W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	9kg/panel or 14kg/panel	9kg/panel or 14kg/panel
Operating System	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P3.9	P4.8
Pixel Pitch	3.906mm	4.807mm
LED Type	SMD2020	SMD2020
Module Resolution	64dots × 64dots	52dots × 52dots
Driving Mode	1/16scan	1/13scan
Module Pixels	4,096dots	2,704dots
Module Size	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm × 500mm or 500mm × 1000mm	500mm × 500mm or 500mm × 1000mm
Cabinet Resolution	128dots × 128dots	104dots × 104dots
Pixel Density	65,536dots/㎡	43,264dots/㎡
Minimum Viewing Distance	≥3.9m	≥4.8m
Brightness	800nits~1,200nits	800nits~1,200nits
IP Grade	IP43	IP43
Refresh Rate	3,840Hz～7,680Hz	3,840Hz～7,680Hz
Gray Scale	14bits~22bits	14bits~22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	520W/㎡	520W/㎡
Average Power Consumption	175W/㎡	175W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	9kg/panel or 14kg/panel	9kg/panel or 14kg/panel
Operating System	Windows (Win7, Win10, etc.)	Windows (Win7, Win10, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
