Outdoor Small Pitch Display Screen P1.5, P1.875, P2.5

Product Description

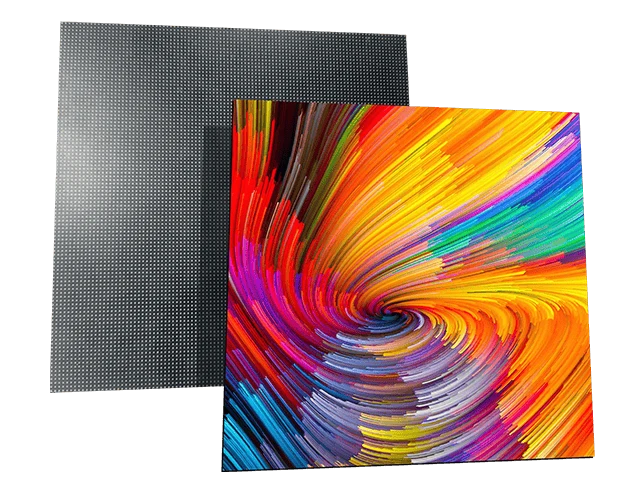

Module Size & Cabinet Size

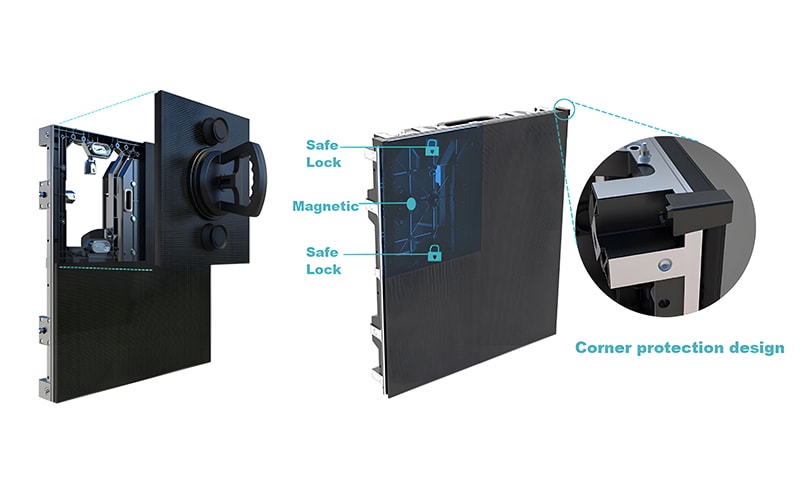

Magnetic Adsorption Design & Safe Lock Design

The module adopts a strong magnetic adsorption design,which not only makes the module more stable and faster to install, but also increases the flatness of the whole screen.Safe Lock Design:Theft-Proof:Invisible but higher security locking.ShockProof:Can be installed near railways or other areas.Fall-Proof:Firmly fixed, no modules fall off even in strong winds

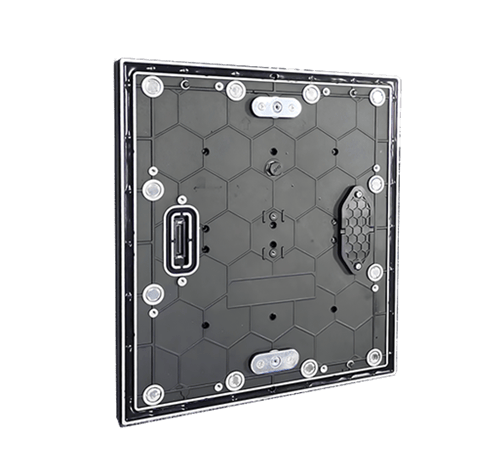

Cable free module with dual sockets

This design doesn’t require the ribbon cable, so the signal connection of the modules is much better than common designs in the market. What’s more, we use signal pin dual sockets which is easy to replace modules. There is no need to confuse about the direction.

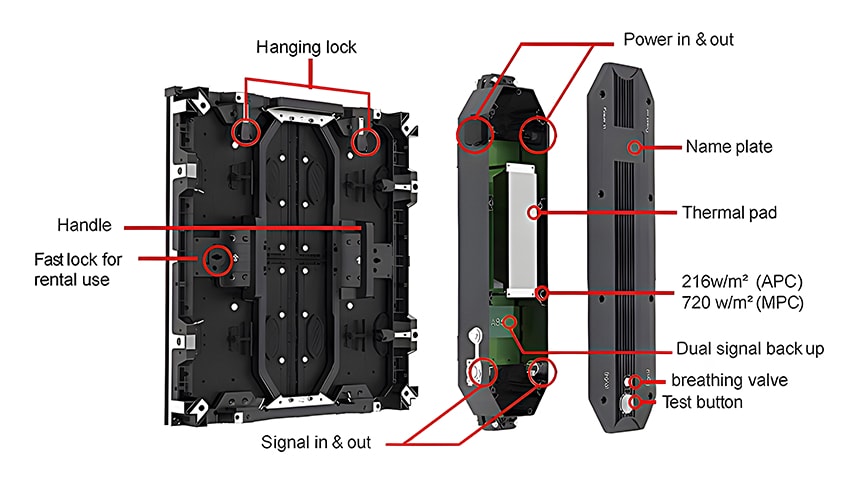

Cabinet Structure

Common Cathode Design

Premteco outdoor small-pitch display screen, with dense lamp beads, will generate a lot of heat, and the temperature of outdoor is high. In order to solve the heat dissipation problem, we adopt the common cathode technology. In the common cathode mode, the R, G and B chips supply power seperately, and the voltage and current are accurately distributed to the red, green and blue diodes. This independent and accurate power supply method improves the efficiency of the power supply, makes the power consumption lower, and can reduces its own heat by about 40%. . and lower pixel failure rate, thus improving the overall performance of the display screen and prolonging the screen lifespan.

Flip Chip Technology

Premteco OSP PRO series using flip chip technology, the lamp beads have larger luminous area, higher brightness, better heat dissipation capacity, longer product service life and better antistatic ability.Higher brightness. Better heat disipation. Better antistatic. Longer lifespan.

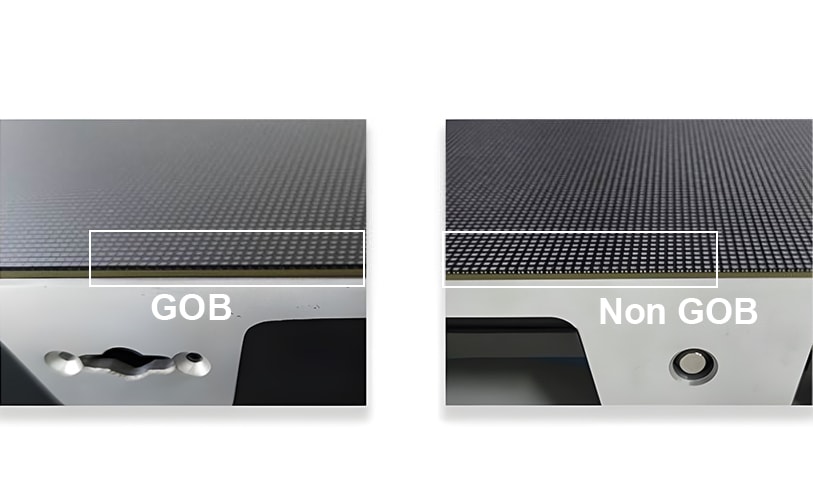

GOB Technology

GOB is a technical process that uses epoxy glue to innovatively seal the surface of the module to form effective protection. To achieve true waterproof, moisture-proof, dust-proof, anti-scratch, anti-collision, anti-knock, anti-UV and other characteristics. It can also increase the ink color consistency and contrast of the product, and reduce the moiré effect of the product.At the same time, it can also increase the flatness of the module.

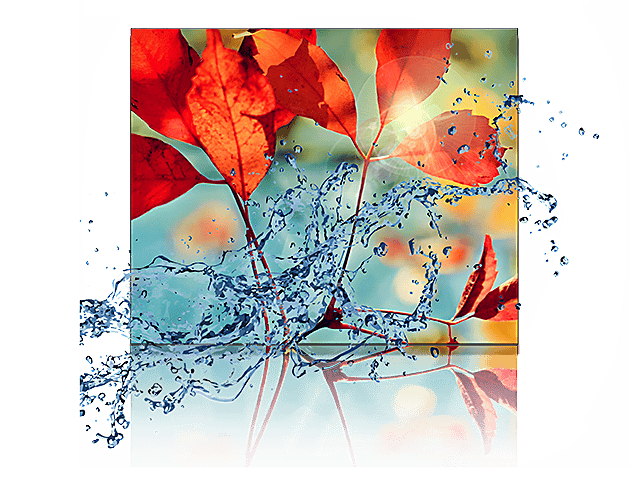

IP 65 Waterproof Grade

Compared with indoor displays, outdoor displays have stricter requirements on waterproof and dustproof, and Premteco displays adopt IP65 protection grade, which can effectively prevent waterproof and dustproof.

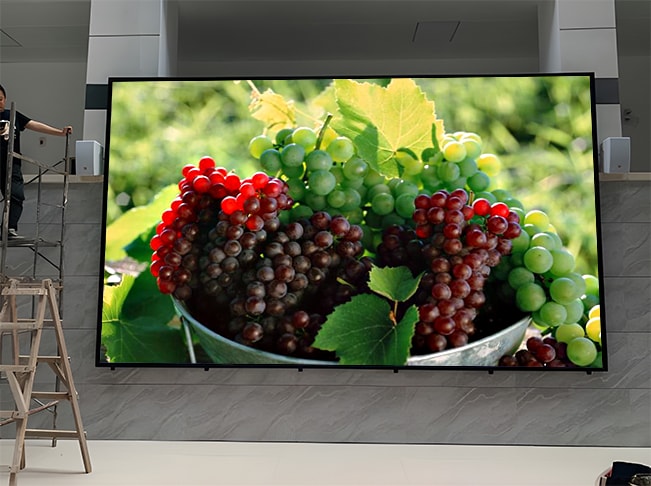

High Contrast Ratio & Excellent Visual Effect

Our OSP PRO series has excellent visual performance, because we use pure black substrate and high brightness flip chip, and the color contrast ratio is even better than 8000:1. At the same time, the flip-chip RGB chip has the same height, and the side visual effect has no module color difference. There is no bonding wire process, the chip is directly fixed on the pad, and it is more stable,Even in a strong light environment, the screen looks very clear and the visual effect looks perfect.

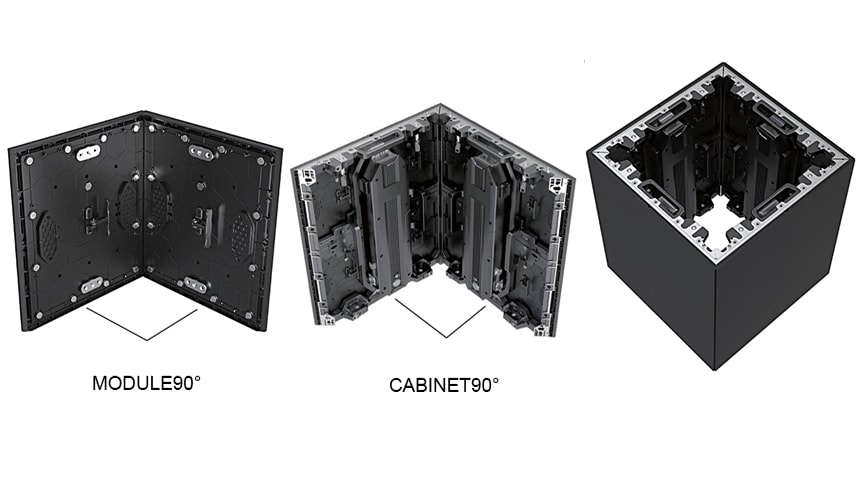

Innovative Cabinet Design

Our cabinet can be cut into a 45° angle and then pliced into a 90 degree angle seamlessly, without the black line. This feature allows the screen to fit 90 degree shape wall-mounted installation perfectly.

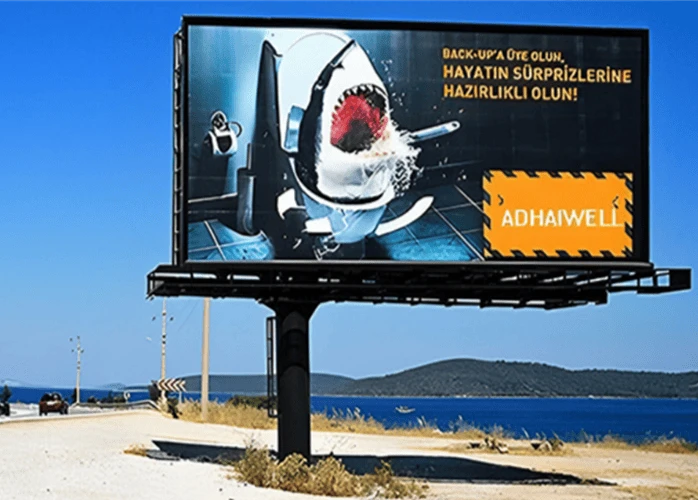

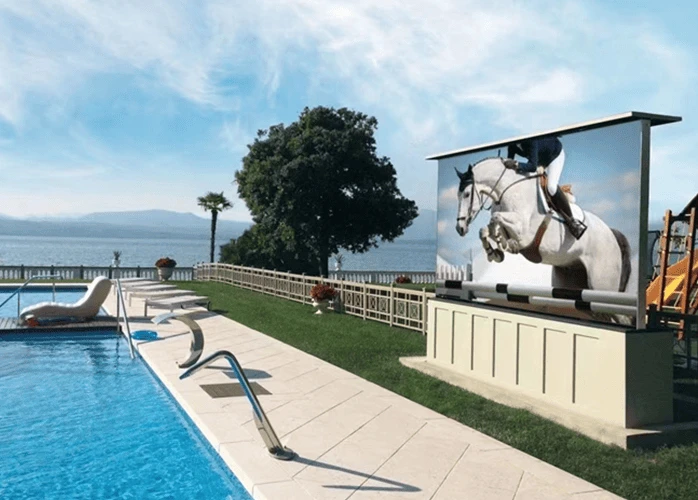

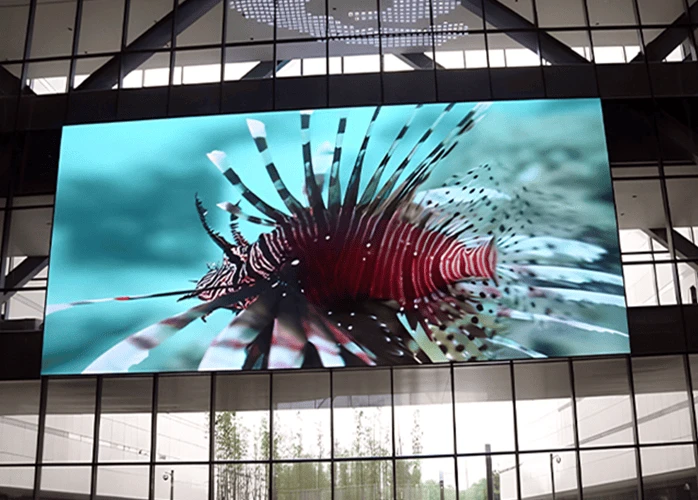

Application Fields

To fit every different scene, our products utilize superior materials with a concise and strong structure, and various installation methods make it flexible and easy to apply.

This product is usually used in：Truck Trailers; Scoreboards; Digital Out Of Home(DOOH).

Parameter

Spec1 Spec2 Spec3

Item	P1.5	P1.875	P2.5
Pixel Pitch	1.5mm	1.875mm	2.5mm
LED Type	FC LED 1010	FC LED 1010	FC LED 1010
Module Resolution	160dots × 180dots	128dots × 144dots	96dots × 108dots
Driving Mode	1/30scan	1/24scan	1/18scan
Module Pixels	115,200dots/㎡	73,728dots/㎡	41,472dots/㎡
Module Size	240mm × 270mm	240mm × 270mm	240mm × 270mm
Cabinet Size	480mm × 540mm × 66mm	480mm × 540mm × 66mm	480mm × 540mm × 66mm
Cabinet Resolution	320dots × 360dots	256dots × 288dots	192dots × 216dots
Pixel Density	444,444dots/㎡	284,444dots/㎡	160,000dots/㎡
Minimum Viewing Distance	≥1.5m	≥1.875 m	≥2.5 m
Brightness	＞4000nits	＞4000nits	＞3500nits
IP Grade	IP65	IP65	IP65
Refresh Rate	3,840Hz～40,000Hz	3,840Hz～40,000Hz	3,840Hz～40,000Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	720W/㎡	720W/㎡	720W/㎡
Average Power Consumption	216W/㎡	216W/㎡	216W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～50℃	﹣20℃～50℃	﹣20℃～50℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	9.5kg/panel	9.5kg/panel	9.5kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P1.5	P1.875	P2.5
Pixel Pitch	1.5mm	1.875mm	2.5mm
LED Type	FC LED 1010	FC LED 1010	FC LED 1010
Module Resolution	160dots × 180dots	128dots × 144dots	96dots × 108dots
Driving Mode	1/30scan	1/24scan	1/18scan
Module Pixels	115,200dots/㎡	73,728dots/㎡	41,472dots/㎡
Module Size	240mm × 270mm	240mm × 270mm	240mm × 270mm
Cabinet Size	480mm × 540mm × 66mm	480mm × 540mm × 66mm	480mm × 540mm × 66mm
Cabinet Resolution	320dots × 360dots	256dots × 288dots	192dots × 216dots
Pixel Density	444,444dots/㎡	284,444dots/㎡	160,000dots/㎡
Minimum Viewing Distance	≥1.5m	≥1.875 m	≥2.5 m
Brightness	＞4000nits	＞4000nits	＞3500nits
IP Grade	IP65	IP65	IP65
Refresh Rate	3,840Hz～40,000Hz	3,840Hz～40,000Hz	3,840Hz～40,000Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	720W/㎡	720W/㎡	720W/㎡
Average Power Consumption	216W/㎡	216W/㎡	216W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～50℃	﹣20℃～50℃	﹣20℃～50℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	9.5kg/panel	9.5kg/panel	9.5kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P1.5	P1.875	P2.5
Pixel Pitch	1.5mm	1.875mm	2.5mm
LED Type	FC LED 1010	FC LED 1010	FC LED 1010
Module Resolution	160dots × 180dots	128dots × 144dots	96dots × 108dots
Driving Mode	1/30scan	1/24scan	1/18scan
Module Pixels	115,200dots/㎡	73,728dots/㎡	41,472dots/㎡
Module Size	240mm × 270mm	240mm × 270mm	240mm × 270mm
Cabinet Size	480mm × 540mm × 66mm	480mm × 540mm × 66mm	480mm × 540mm × 66mm
Cabinet Resolution	320dots × 360dots	256dots × 288dots	192dots × 216dots
Pixel Density	444,444dots/㎡	284,444dots/㎡	160,000dots/㎡
Minimum Viewing Distance	≥1.5m	≥1.875 m	≥2.5 m
Brightness	＞4000nits	＞4000nits	＞3500nits
IP Grade	IP65	IP65	IP65
Refresh Rate	3,840Hz～40,000Hz	3,840Hz～40,000Hz	3,840Hz～40,000Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	720W/㎡	720W/㎡	720W/㎡
Average Power Consumption	216W/㎡	216W/㎡	216W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～50℃	﹣20℃～50℃	﹣20℃～50℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	9.5kg/panel	9.5kg/panel	9.5kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
