T3 - PTC Led

Product Description

Light-Weighted and Thin

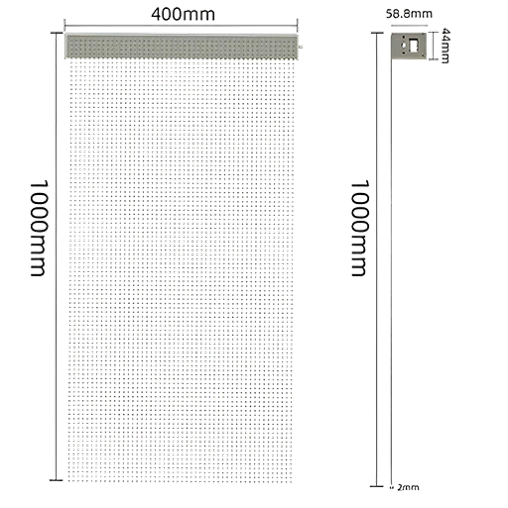

Single module size: 1000mm*400mm; Thickness: 58.8mm, save space; Light weight: 1.3kg/panel; The substrate for these displays is usually a flexible polymer material, like polyimide or transparent conductive polyester film. The LEDs are mounted on this substrate using techniques that make them durable against bending and flexing.

Outstanding display quality

Breakpoint continuation:The combination of light and drive, independent research and development, high reliability, industry leading.High gray scale display (true 16bit):RGB channel adopts 32-level current linear regulation, and maintains true 16-bit grayscale display under any current, which is applicable to the consistency of indoor, semi-outdoor and outdoor current requirements.

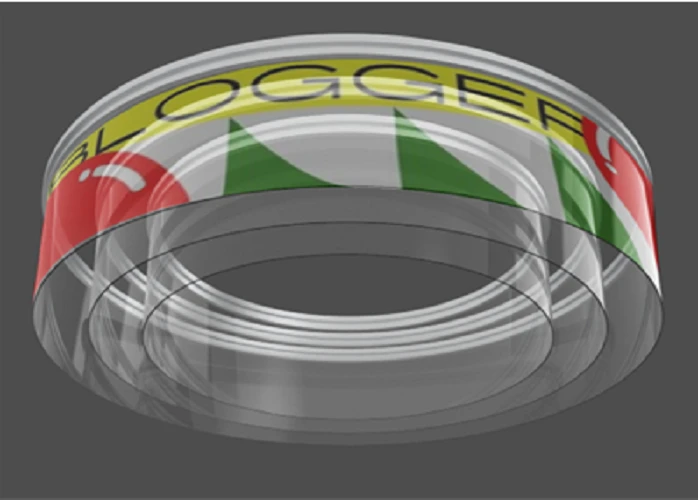

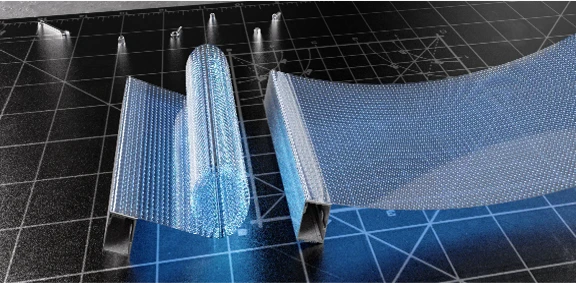

Extreme Flexibility

It can be applied to any type of surface.Soft flexible screen technology, can be suitable for curved, curved, cylindrical shaped scene applications

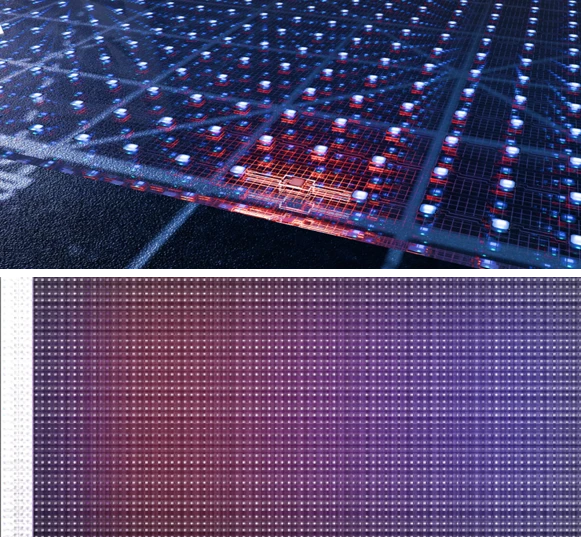

High transmittance

The implementation of integrated MiniLED lamp beads and an invisible grid circuit enhances its permeability. The transmittance exceeds 90%, allowing ample daylight through the glass without significantly impacting visibility.

Excellent material

It has Grade V1 flame retardant properties, which means it has a high level of resistance to flames. Additionally, it has UV resistance that allows it to withstand exposure to sunlight without yellowing for over 8 years. This makes it a durable and long-lasting option.

Easy and Fast Installation

No steel structure is required, just stick the thin screen slightly and connect the power signal. Innovative glue-filling process allows for the direct attachment of the screen body to the glass surface. Through strong colloid adsorption, the screen body is able to adhere firmly to the glass. Furthermore, over time, the viscosity of the adhesive increases due to the inherent characteristics of the colloid.

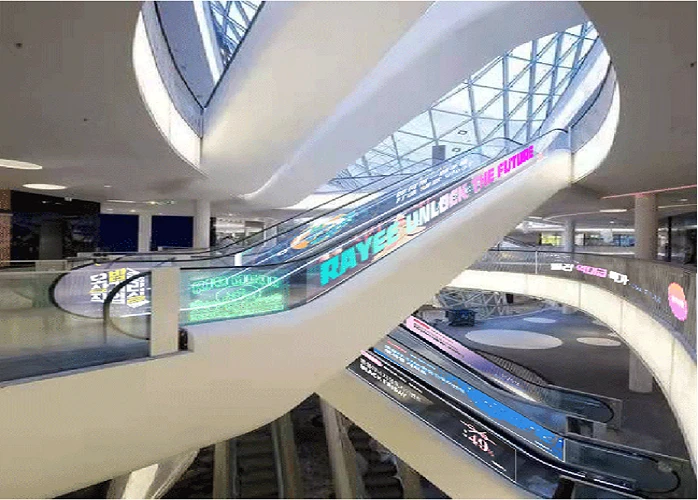

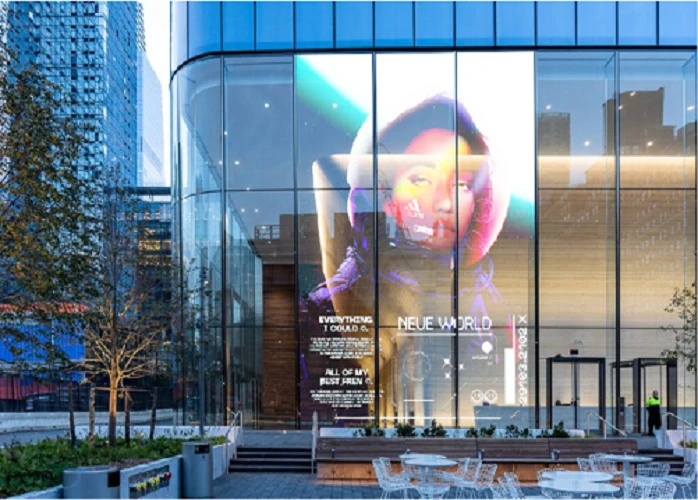

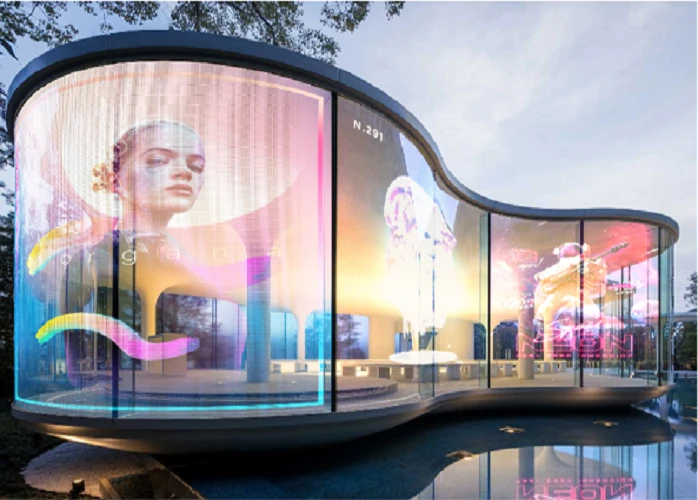

Application Fields

Parameter

Spec1 Spec2 Spec3

Item	P6	P6.25	P8
Pixel Pitch	6mm	6.25mm	8mm
LED Type	SMD1515	SMD1515	SMD1515
Driving Mode	static scan	static scan	static scan
Module Size	816mm × 384mm	1000mm × 400mm	1000mm × 400mm
Module Resolution	136dots × 64dots	160dots × 40dots	125dots × 50dots
Cabinet Size	816mm × 384mm × 2.5mm	1,000mm × 400mm × 2.5mm	1,000mm × 400mm × 2.5mm
Cabinet Resolution	136dots × 64dots	160dots × 40dots	125dots× 50dots
Pixel Density	27,777dots/㎡	25,600dots/㎡	15,625dots/㎡
Minimum Viewing Distance	≥6 m	≥6 m	≥8 m
Transparency	90%	90%	92%
Brightness	2000/4000nits	2000/4000nits	2000/4000nits
IP Grade	IP43	IP43	IP43
Refresh Rate	3,840Hz～7,680Hz	3,840Hz～7,680Hz	3,840Hz～7,680Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	600W/㎡	600W/㎡	600W/㎡
Average Power Consumption	200W/㎡	200W/㎡	200W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～55℃	﹣20℃～55℃	﹣20℃～55℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Weight	1.3kg/panel	1.3kg/panel	1.3kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P10	P15	P20
Pixel Pitch	10mm	15mm	20mm
LED Type	SMD1515	SMD2022	SMD2022
Driving Mode	static scan	static scan	static scan
Module Size	1,000mm × 400mm	990mm × 390mm	1000mm × 400mm
Module Resolution	100dots × 40dots	66dots × 26dots	50dots × 20dots
Cabinet Size	1,000mm × 400mm × 2.5mm	990mm × 390mm ×2.5mm	1,000mm × 400mm × 2.5mm
Cabinet Resolution	100dots × 40dots	66dots × 26dots	50dots× 20dots
Pixel Density	10,000dots/㎡	4,356dots/㎡	2500dots/㎡
Minimum Viewing Distance	≥10 m	≥15 m	≥20 m
Transparency	94%	94%	95%
Brightness	2000/4000nits	2000/4000nits	2000/4000nits
IP Grade	IP43	IP43	IP43
Refresh Rate	3,840Hz～7,680Hz	3,840Hz～7,680Hz	3,840Hz～7,680Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	600W/㎡	600W/㎡	600W/㎡
Average Power Consumption	200W/㎡	200W/㎡	200W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～55℃	﹣20℃～55℃	﹣20℃～55℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Weight	1.3kg/panel	1.3kg/panel	1.3kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P10	P15	P20
Pixel Pitch	10mm	15mm	20mm
LED Type	SMD1515	SMD2022	SMD2022
Driving Mode	static scan	static scan	static scan
Module Size	1,000mm × 400mm	990mm × 390mm	1000mm × 400mm
Module Resolution	100dots × 40dots	66dots × 26dots	50dots × 20dots
Cabinet Size	1,000mm × 400mm × 2.5mm	990mm × 390mm ×2.5mm	1,000mm × 400mm × 2.5mm
Cabinet Resolution	100dots × 40dots	66dots × 26dots	50dots× 20dots
Pixel Density	10,000dots/㎡	4,356dots/㎡	2500dots/㎡
Minimum Viewing Distance	≥10 m	≥15 m	≥20 m
Transparency	94%	94%	95%
Brightness	2000/4000nits	2000/4000nits	2000/4000nits
IP Grade	IP43	IP43	IP43
Refresh Rate	3,840Hz～7,680Hz	3,840Hz～7,680Hz	3,840Hz～7,680Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	600W/㎡	600W/㎡	600W/㎡
Average Power Consumption	200W/㎡	200W/㎡	200W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～55℃	﹣20℃～55℃	﹣20℃～55℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Weight	1.3kg/panel	1.3kg/panel	1.3kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
