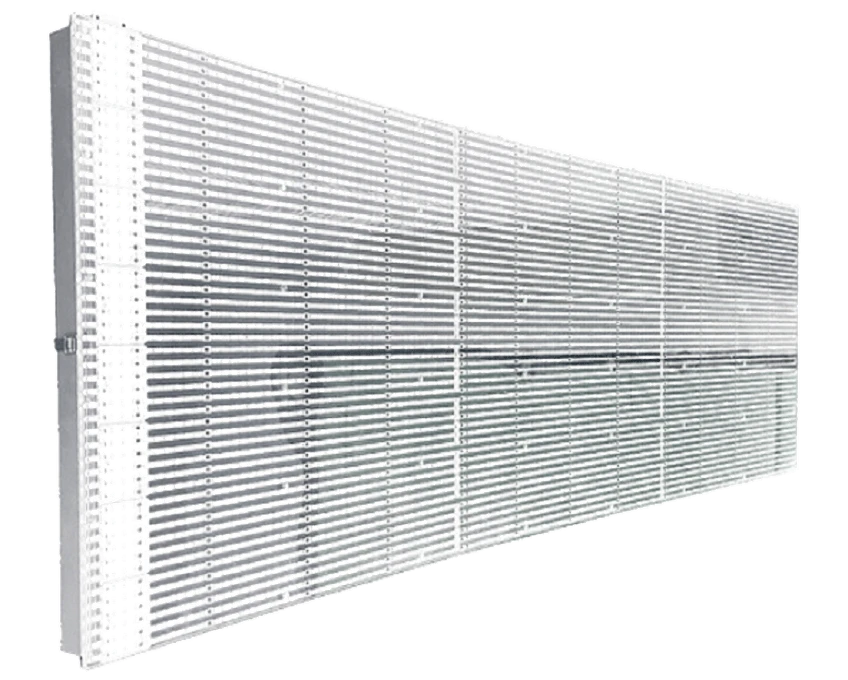

T2 - PTC Led

Product Description

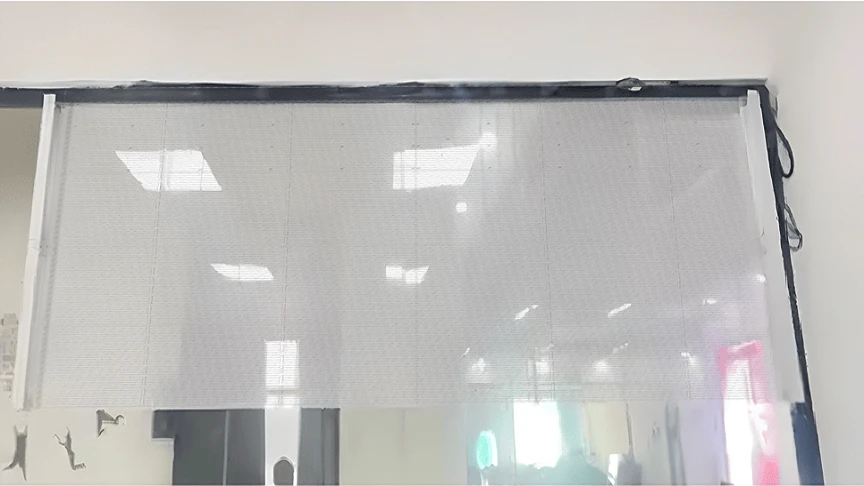

High Transparency

Transparency of our T2 series transparent LED display is up to 82%, which offers a range of creative applications for the live event and installation market.

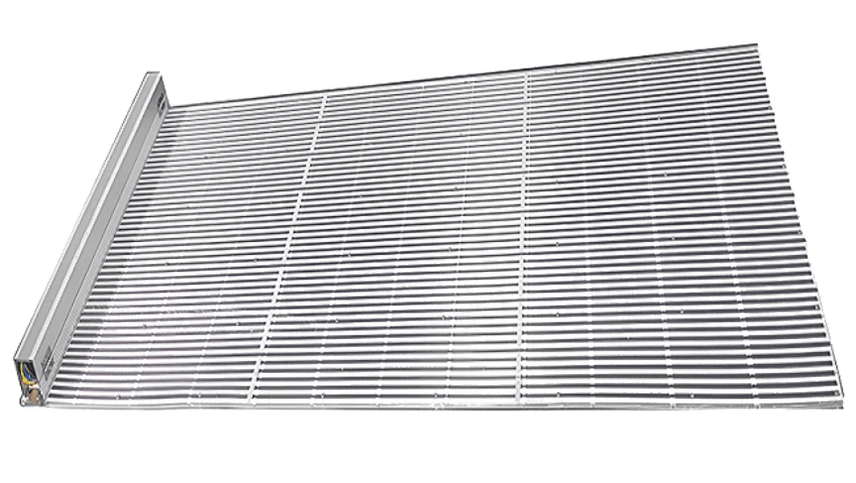

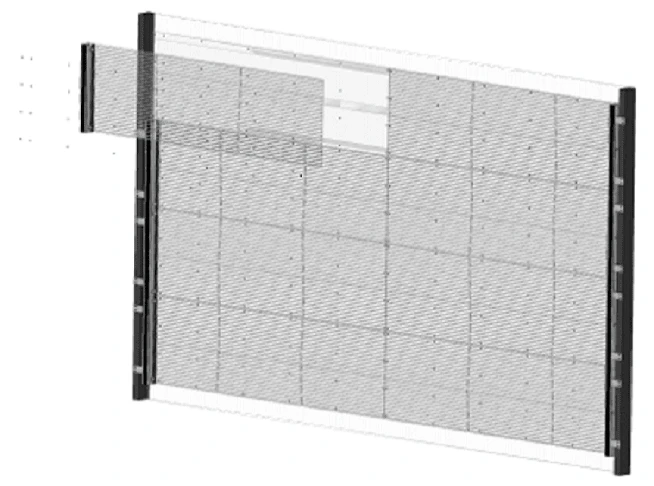

Light-Weighted and Thin

66mm cabinet thickness and 7-8kgs weight make T2 lighter and thinner than most of other transparent LED displays in the market. The modules is covered by PC, which has good heat resistance, high transparency, dustproof and certain waterproof function.

Extreme Cabinet Length

Maximum length of cabinet is up to 2.5m. Maximum length with totally pure transparency is up to 5m. This gives viewers a strong feeling of broader and more transparent vision.

Arbitrary cutting in Cabinet Length

Our T2 serie supports arbitrary cutting in cabinet length according to clients’ different needs.

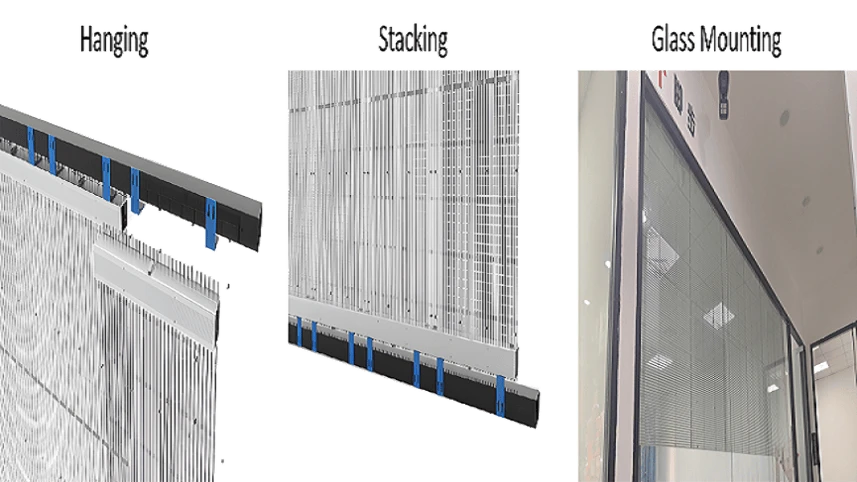

Fast and Easy Installation

No need structure, fast and easy installation, environment-friendly and energy-saving.

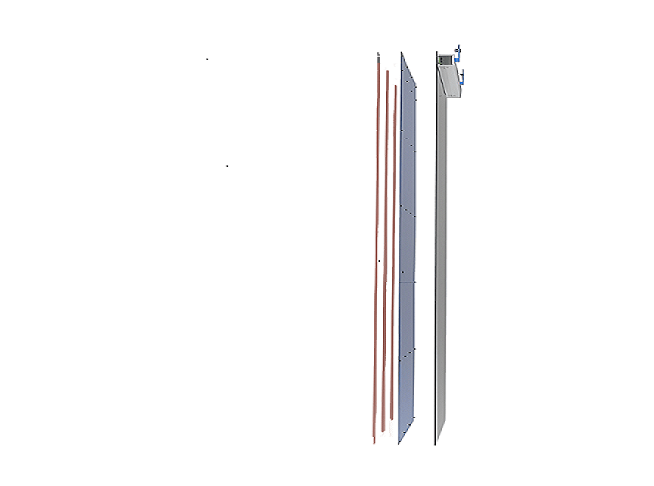

Easier Maintenance

Fully back access is available. There is no need to tear the whole cabinet off the screen when maintaining. Components like modules, power supply, receiving card can be removed from the back separately since they are screwed. It makes the maintenance more convenient and practical.

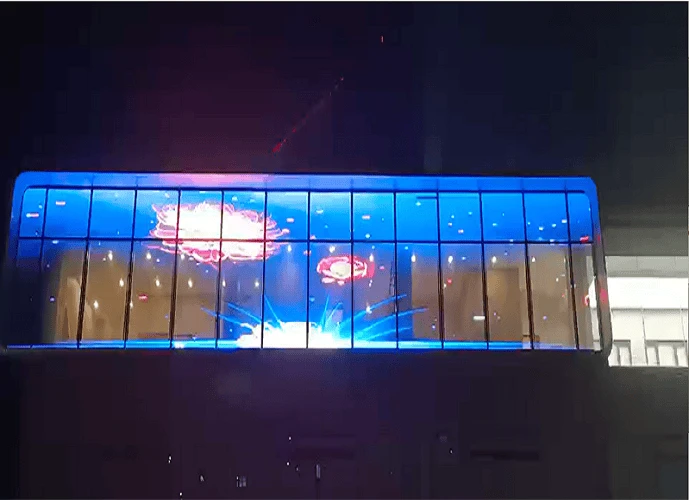

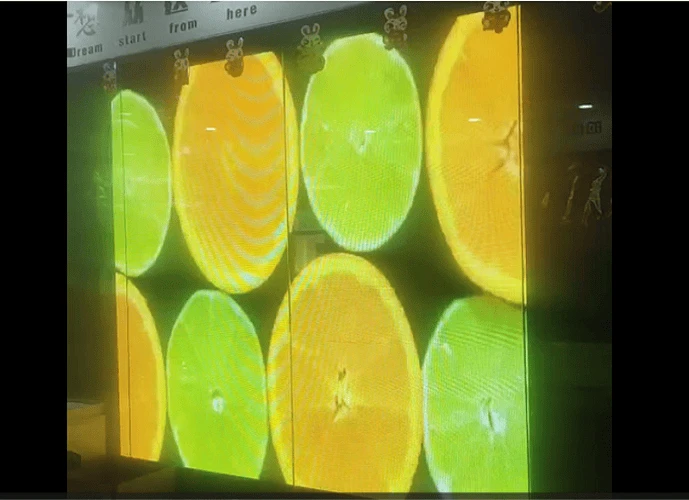

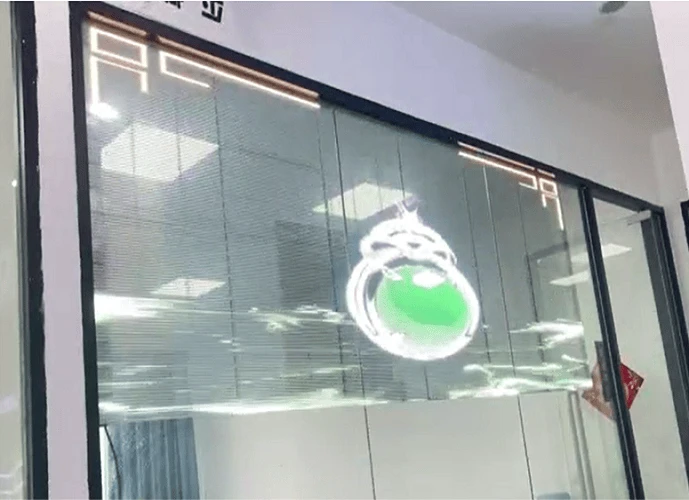

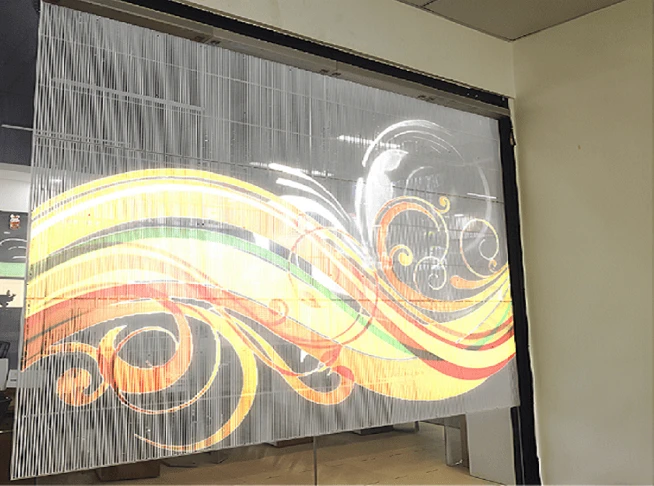

Application Fields

Parameter

Spec1 Spec2 Spec3

Item	P3.9	P7.8	P10.4
Pixel Pitch	3.9mm (W) / 7.8mm (H)	7.8mm (W) / 7.8mm (H)	10.4mm (W) / 10.4mm (H)
LED Type	SMD1921	SMD1921	SMD1921
Driving Mode	1/7scan	1/4scan	1/2scan
Module Size	1500mm × 62.5mm	1687.5mm × 62.5mm	1500mm × 62.5mm
Module Resolution	378dots × 8dots	216dots × 8dots	144dots × 6dots
Cabinet Size	1500mm × 500mm x 66mm	1687.5mm × 500mm x 66mm	1500mm × 500mm x 66mm
Cabinet Resolution	378dots × 64dots	216dots × 64dots	144dots× 48dots
Maximum Panel Length	2.5m	2.5m	2.5m
Pixel Density	32,256dots/㎡	16,384dots/㎡	9,216dots/㎡
Minimum Viewing Distance	≥3.9 m	≥7.8 m	≥10.4 m
Transparency	56%	48%	60%
Brightness	3,500-6,000nits	3,500-6,000nits	3,500-6,000nits
IP Grade	IP30	IP30	IP30
Refresh Rate	3,840Hz～7,680Hz	3,840Hz～7,680Hz	3,840Hz～7,680Hz
Gray Scale	14bits～22bits	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	600W/㎡	600W/㎡	600W/㎡
Average Power Consumption	200W/㎡	200W/㎡	200W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Aluminum +PC	Aluminum +PC	Aluminum +PC
Cabinet Weight	8.75kg/panel	8kg/panel	7.25kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P15.6	P20.8
Pixel Pitch	7.81mm (W) / 7.81mm(H)	10.4mm(W) / 10.4mm(H)
LED Type	SMD1921	SMD1921
Driving Mode	1/1scan	static
Module Size	1593.75mm × 62.5mm	1500mm × 62.5mm
Module Resolution	102dots × 4dots	72dots × 3dots
Cabinet Size	1593.75mm × 500mm x 66mm	1500mm × 500mm x 66mm
Cabinet Resolution	102dots × 64dots	72dots × 24dots
Maximum Panel Length	2.5m	2.5m
Pixel Density	4,096dots/㎡	2,304dots/㎡
Minimum Viewing Distance	≥15.6 m	≥20.8 m
Transparency	78%	82%
Brightness	3,500-6,000nits	3,000-3,500nits
IP Grade	IP30	IP30
Refresh Rate	3,840Hz～7,680Hz	3,840Hz～7,680Hz
Gray Scale	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	600W/㎡	600W/㎡
Average Power Consumption	200W/㎡	200W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%
Cabinet Material	Aluminum +PC	Aluminum +PC
Cabinet Weight	7.2kg/panel	7kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P15.6	P20.8
Pixel Pitch	7.81mm (W) / 7.81mm(H)	10.4mm(W) / 10.4mm(H)
LED Type	SMD1921	SMD1921
Driving Mode	1/1scan	static
Module Size	1593.75mm × 62.5mm	1500mm × 62.5mm
Module Resolution	102dots × 4dots	72dots × 3dots
Cabinet Size	1593.75mm × 500mm x 66mm	1500mm × 500mm x 66mm
Cabinet Resolution	102dots × 64dots	72dots × 24dots
Maximum Panel Length	2.5m	2.5m
Pixel Density	4,096dots/㎡	2,304dots/㎡
Minimum Viewing Distance	≥15.6 m	≥20.8 m
Transparency	78%	82%
Brightness	3,500-6,000nits	3,000-3,500nits
IP Grade	IP30	IP30
Refresh Rate	3,840Hz～7,680Hz	3,840Hz～7,680Hz
Gray Scale	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	600W/㎡	600W/㎡
Average Power Consumption	200W/㎡	200W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%
Cabinet Material	Aluminum +PC	Aluminum +PC
Cabinet Weight	7.2kg/panel	7kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
