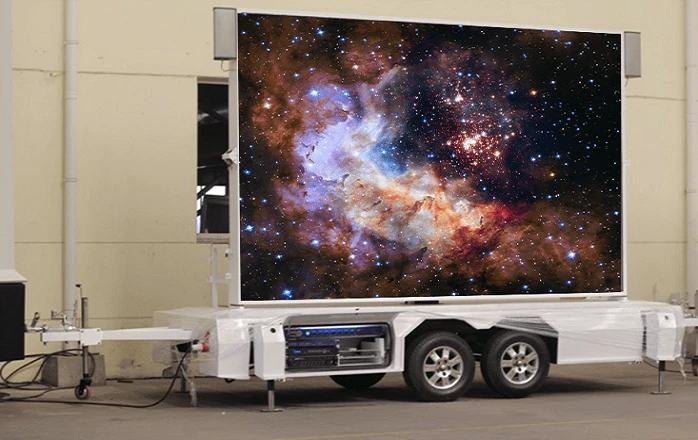

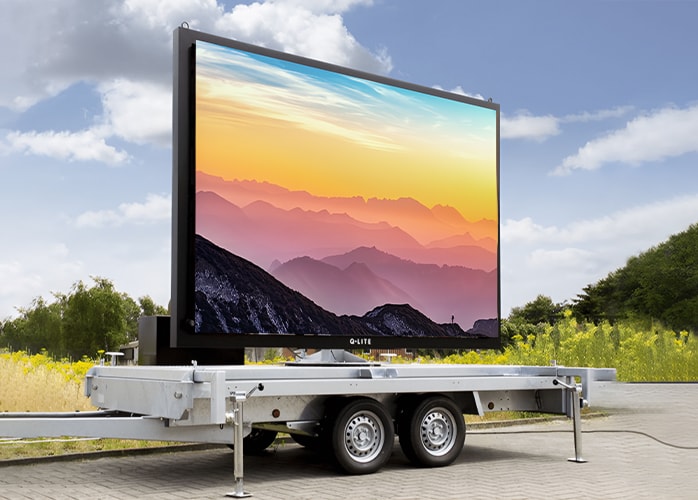

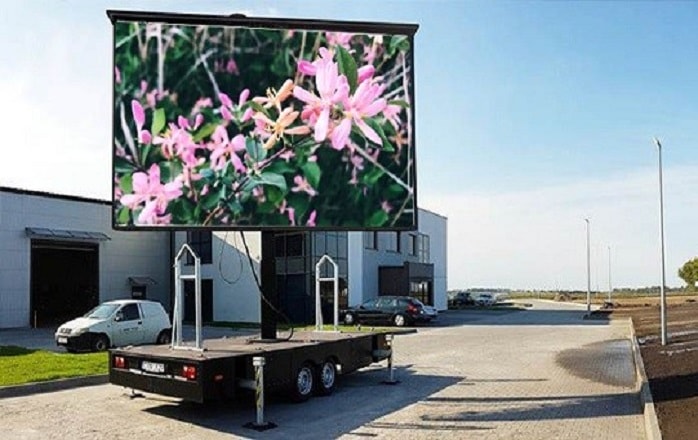

Trailer LED Display-P4, P5, P6, P8, P10.

High Quality Hydraulic System

High Quality SMD LED

Stable Trailer

Easy Setup

Foldable Design Frame

3840Hz ~ 7680Hz

14bits ~ 22bits

Safe Operation

Product Description

High Quality SMD LED

By using high quality SMD LED screen, the viewing angle is up to 160 degree, and the visual effect is extraordinary. The pixel pitches are P4, P5, P6, P8 and P10.

Stable Trailer

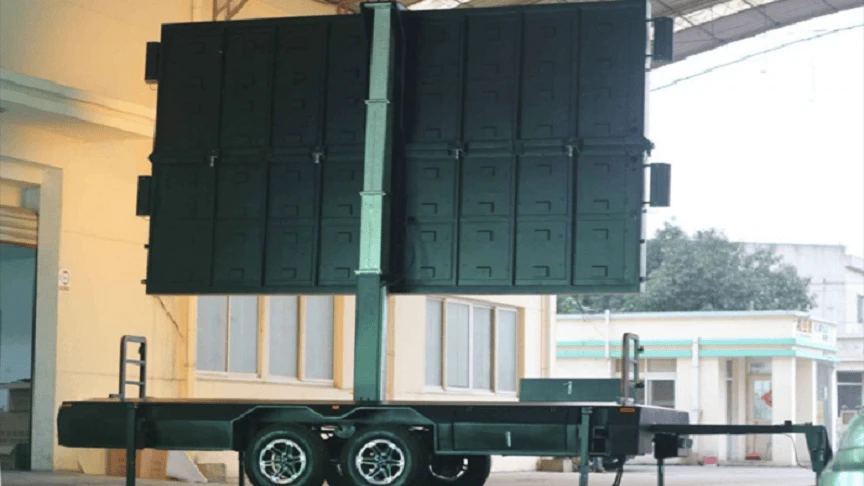

The frame of screen is foldable design, so the height of the screen can be folded during the transportation, which makes the trailer much more stable.

Easy, Accurate and Safe

The frame is also rotatable design, so that brings lots of convenience during the setup. Meanwhile, the screen is supported by high quality hydraulic system. The operation is more accurate and safer.

Application Fields

Because of the convenience of operation and high-definition of this LED screen, it can be used in:

Warnings for schools, passerbys or road engineering areas; Road closure or detour notification; Promotion of activities like musical festivals; Product advertisements; Real estate development.

Parameter

Item P4 P5 P6
Pixel Pitch  4mm 5mm 6mm
LED Type  SMD1921 SMD2727 SMD2727
Module Resolution  64dots × 32dots 64dots × 32dots 32dots × 32dots
Driving Mode  1/8scan 1/8scan 1/8scan
Module Pixels  2,048dots 2,048dots 1,024dots
Module Size  256mm × 128mm 320mm × 160mm 192mm × 192mm
Cabinet Size  1,280mm × 1,024mm 960mm × 960mm 1,152mm × 768mm
Screen Size  3,840mm × 2,048mm (optional) 3,840mm × 1,920mm (optional) 3,840mm × 1,920mm (optional)
Screen Resolution  960dots × 512dots 768dots × 384dots 640dots × 320dots
Pixel Density  62,500dots/㎡ 40,000dots/㎡ 27,777.78dots/㎡
Minimum Viewing Distance  ≥4m ≥5m ≥6m
Brightness  6,000nits~7,000nits 6,000nits~6,500nits 6,000nits~6,500nits
IP Grade  IP65 IP65 IP65
Refresh Rate  3,840Hz~7,680Hz 3,840Hz~7,680Hz 3,840Hz~7,680Hz
Gray Scale  14bits~22bits 14bits~22bits 14bits~22bits
Viewing Angle  H:160° / V:160° H:160° / V:160° H:160° / V:160°
Maximum Power Consumption   800W/㎡ 800W/㎡ 800W/㎡
Average Power Consumption 230W/㎡ 230W/㎡ 230W/㎡
Input Voltage  AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature  ﹣20℃~65℃  ﹣20℃~65℃  ﹣20℃~65℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Iron Iron Iron
Cabinet Weight  60kg/㎡ 60kg/㎡ 60kg/㎡
Operating System  Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Trailer External Dimension 5,900mm × 1,600mm × 2,200mm 5,900mm × 1,600mm × 2,200mm 5,900mm × 1,600mm × 2,200mm
Trailer Turning Radius 8m 8m 8m
Trailer Gross Weight ≈ 2,100kg (excluding generator) ≈ 2,100kg (excluding generator) ≈ 2,100kg (excluding generator)
Max Speed 60km/h 60km/h 60km/h
Braking System Hydraulic braking Hydraulic braking Hydraulic braking
Tire Size 14 inch 14 inch 14 inch
Tire Quantity 4 pcs 4 pcs 4 pcs
Towing Head European type (optional) European type (optional) European type (optional)
Wheel Hub Material Aluminum alloy Aluminum alloy Aluminum alloy
Lift System Hydraulic lifting system Hydraulic lifting system Hydraulic lifting system
Lifting Height 1,200mm 1,200mm 1,200mm
Rotating Type Hydraulic rotary system Hydraulic rotary system Hydraulic rotary system
Rotation Angle 360 degree 360 degree 360 degree
Trailer Supporting Legs 4pcs (lifting height 300mm & each affords 5t) 4pcs (lifting height 300mm & each affords 5t) 4pcs (lifting height 300mm & each affords 5t)
Pixel Pitch  8mm 10mm
LED Type  SMD3535 SMD3535
Module Resolution  40dots × 20dots 32dots × 16dots
Driving Mode  1/5scan 1/2scan
Module Pixels  800dots 512dots
Module Size  320mm × 160mm 320mm × 160mm
Cabinet Size  960mm × 960mm 960mm × 960mm
Screen Size  3,840mm × 1,920mm (optional) 3,840mm × 1,920mm (optional)
Screen Resolution  480dots × 240dots 384dots × 192dots
Pixel Density  15,625dots/㎡ 10,000dots/㎡
Minimum Viewing Distance  ≥8m ≥10m
Brightness  5,000nits~5,500nits 6,000nits~6,500nits
IP Grade  IP65 IP65
Refresh Rate  3,840Hz~7,680Hz 3,840Hz~7,680Hz
Gray Scale  14bits~22bits 14bits~22bits
Viewing Angle  H:160° / V:160° H:160° / V:160°
Maximum Power Consumption   800W/㎡ 800W/㎡
Average Power Consumption 230W/㎡ 230W/㎡
Input Voltage  AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature  ﹣20℃~65℃  ﹣20℃~65℃
Operating Humidity 10%~90% 10%~90%
Cabinet Material Iron Iron
Cabinet Weight  60kg/㎡ 60kg/㎡
Operating System  Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Trailer External Dimension 5,900mm × 1,600mm × 2,200mm 5,900mm × 1,600mm × 2,200mm
Trailer Turning Radius 8m 8m
Trailer Gross Weight ≈ 2,100kg (excluding generator) ≈ 2,100kg (excluding generator)
Max Speed 60km/h 60km/h
Braking System Hydraulic braking Hydraulic braking
Tire Size 14 inch 14 inch
Tire Quantity 4 pcs 4 pcs
Towing Head European type (optional) European type (optional)
Wheel Hub Material Aluminum alloy Aluminum alloy
Lift System Hydraulic lifting system Hydraulic lifting system
Lifting Height 1,200mm 1,200mm
Rotating Type Hydraulic rotary system Hydraulic rotary system
Rotation Angle 360 degree 360 degree
Trailer Supporting Legs 4pcs (lifting height 300mm & each affords 5t) 4pcs (lifting height 300mm & each affords 5t)
Pixel Pitch  8mm 10mm
LED Type  SMD3535 SMD3535
Module Resolution  40dots × 20dots 32dots × 16dots
Driving Mode  1/5scan 1/2scan
Module Pixels  800dots 512dots
Module Size  320mm × 160mm 320mm × 160mm
Cabinet Size  960mm × 960mm 960mm × 960mm
Screen Size  3,840mm × 1,920mm (optional) 3,840mm × 1,920mm (optional)
Screen Resolution  480dots × 240dots 384dots × 192dots
Pixel Density  15,625dots/㎡ 10,000dots/㎡
Minimum Viewing Distance  ≥8m ≥10m
Brightness  5,000nits~5,500nits 6,000nits~6,500nits
IP Grade  IP65 IP65
Refresh Rate  3,840Hz~7,680Hz 3,840Hz~7,680Hz
Gray Scale  14bits~22bits 14bits~22bits
Viewing Angle  H:160° / V:160° H:160° / V:160°
Maximum Power Consumption   800W/㎡ 800W/㎡
Average Power Consumption 230W/㎡ 230W/㎡
Input Voltage  AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature  ﹣20℃~65℃  ﹣20℃~65℃
Operating Humidity 10%~90% 10%~90%
Cabinet Material Iron Iron
Cabinet Weight  60kg/㎡ 60kg/㎡
Operating System  Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Trailer External Dimension 5,900mm × 1,600mm × 2,200mm 5,900mm × 1,600mm × 2,200mm
Trailer Turning Radius 8m 8m
Trailer Gross Weight ≈ 2,100kg (excluding generator) ≈ 2,100kg (excluding generator)
Max Speed 60km/h 60km/h
Braking System Hydraulic braking Hydraulic braking
Tire Size 14 inch 14 inch
Tire Quantity 4 pcs 4 pcs
Towing Head European type (optional) European type (optional)
Wheel Hub Material Aluminum alloy Aluminum alloy
Lift System Hydraulic lifting system Hydraulic lifting system
Lifting Height 1,200mm 1,200mm
Rotating Type Hydraulic rotary system Hydraulic rotary system
Rotation Angle 360 degree 360 degree
Trailer Supporting Legs 4pcs (lifting height 300mm & each affords 5t) 4pcs (lifting height 300mm & each affords 5t)

Video

Related Products

Related Cases

Premteco P8 Outdoor LED Trailer Screen in Australia

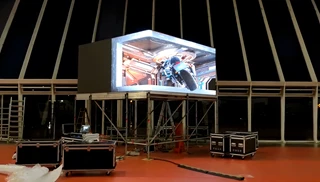

Premteco P3.9 Outdoor Rental LED Display in Spain
