SP3

SP3

Indoor Fine Pitch LED Display-P1.5, P1.86, P2.0, P2.5, P3

Energy Saving

Front  Access

Ultra Slim Design

Easy Maintenance

Die-Casting Aluminum

Quick Installation

3840Hz

Seamless connection

Product Description

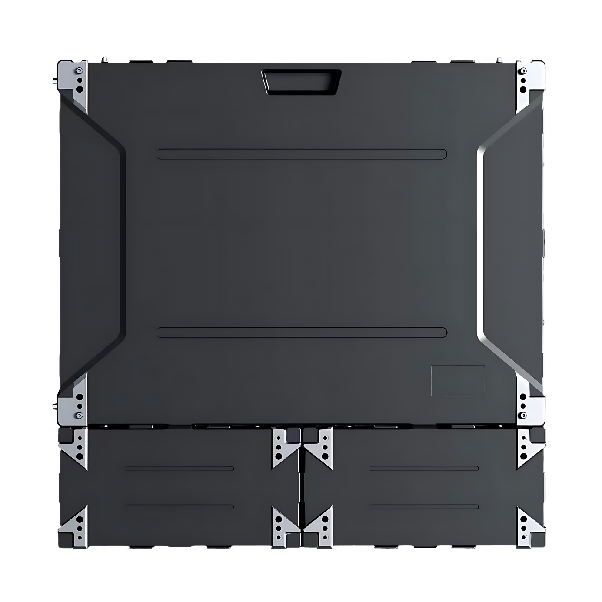

Slim and lightweight design

The Die-casting aluminum cabinet is designed to be 7 kgs/panel, which brings much more convenience when we do the installation and transportation. More importantly, it can reduce the pressure of architecture and the risk of collapse.

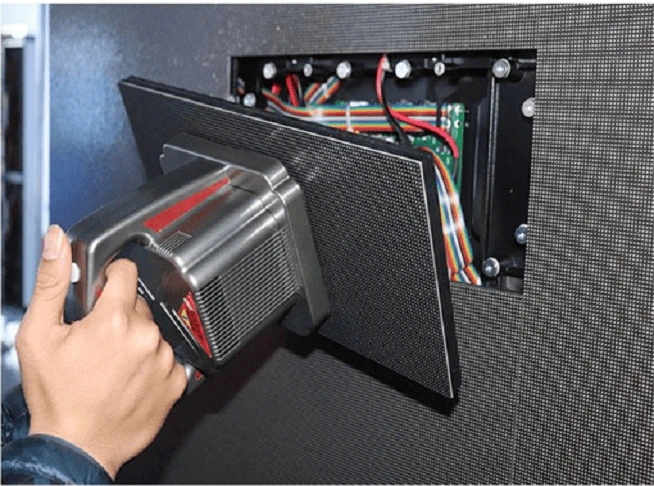

Front Access Service

With front access service, the front part of the LED screen can be easily removed, allowing for quick and easy maintenance or replacement of components. This makes it much easier for technicians to fix any issues that may arise with the screen, without having to disassemble the whole screen or move it from its location.

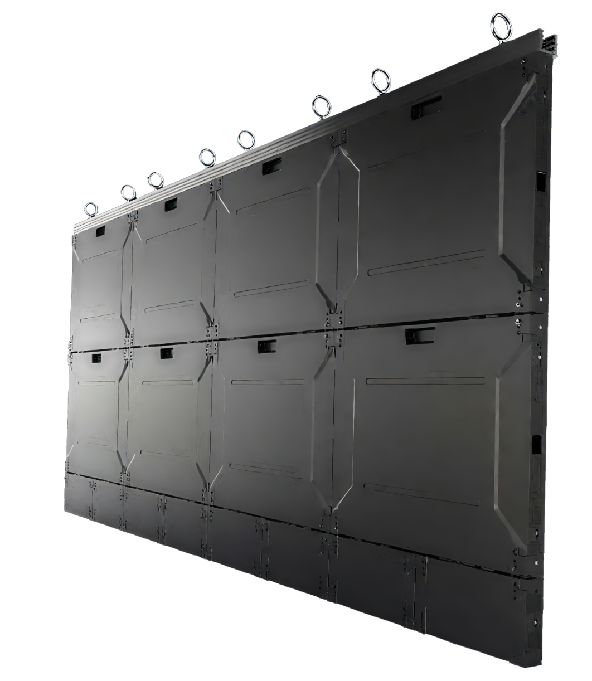

Seamless  Connection

The cabinet is made of die-casting aluminum, which ensures that the structure is accurate. This guarantees the flatness of the entire LED screen.

Groove on each cabinet.

This design matches the shape of the hand. It brings great convenience for your installation team during the installation and transportation. It greatly reduces the risk of falling accidently. Most of other indoor products in the market don't have this design.

Power and signal redundancy

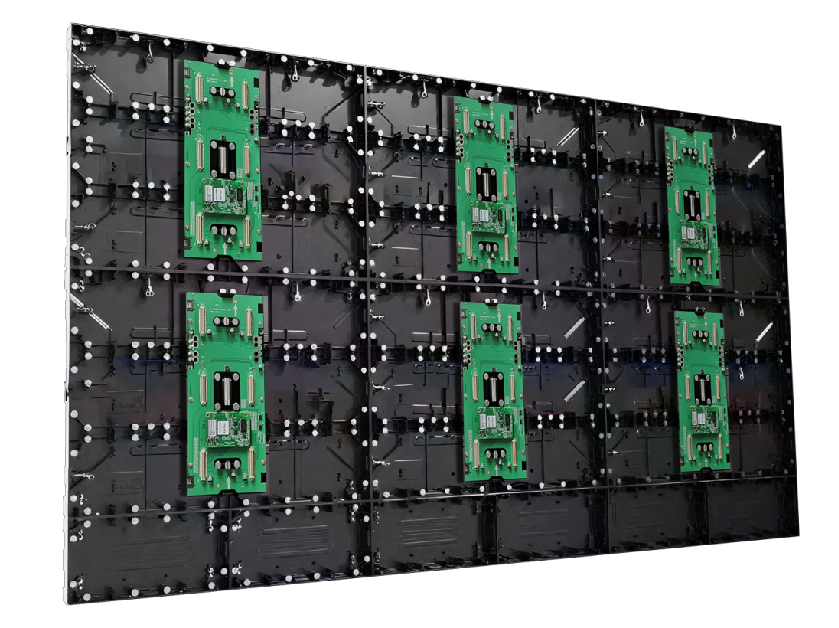

We have reasonale space to support two power supplies and two receiving cards.This design ensures the operation of cabinets, since when there is something wrong with one of the power supplies or receiving cards, the other one will take charge in the operation.

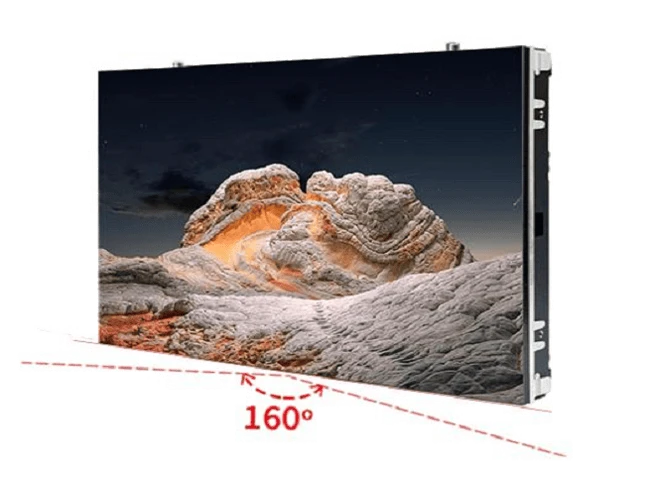

Large Viewing Angle

The vertical and horizontal viewing angles of the LED display are 160°, which means the display can be viewed from a wide angle. Multiple viewers can comfortably view the display from different angles without having to adjust their positions, resulting in a more immersive experience.

Application Files

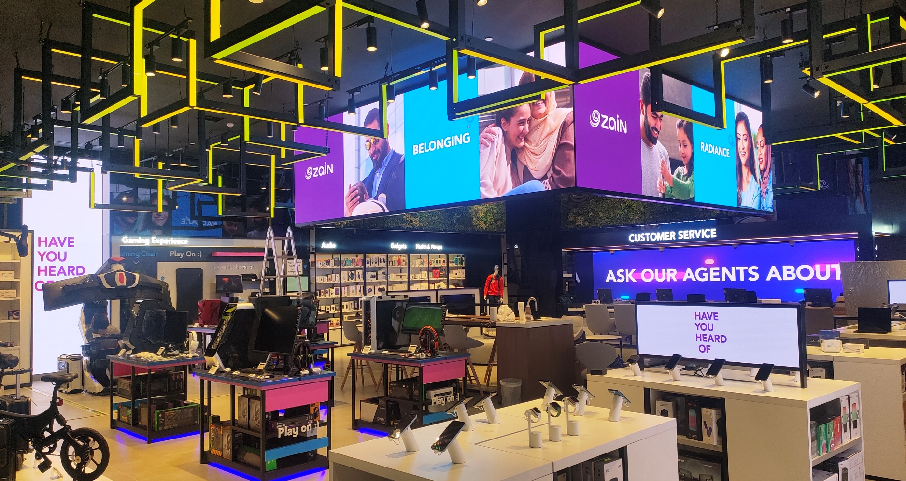

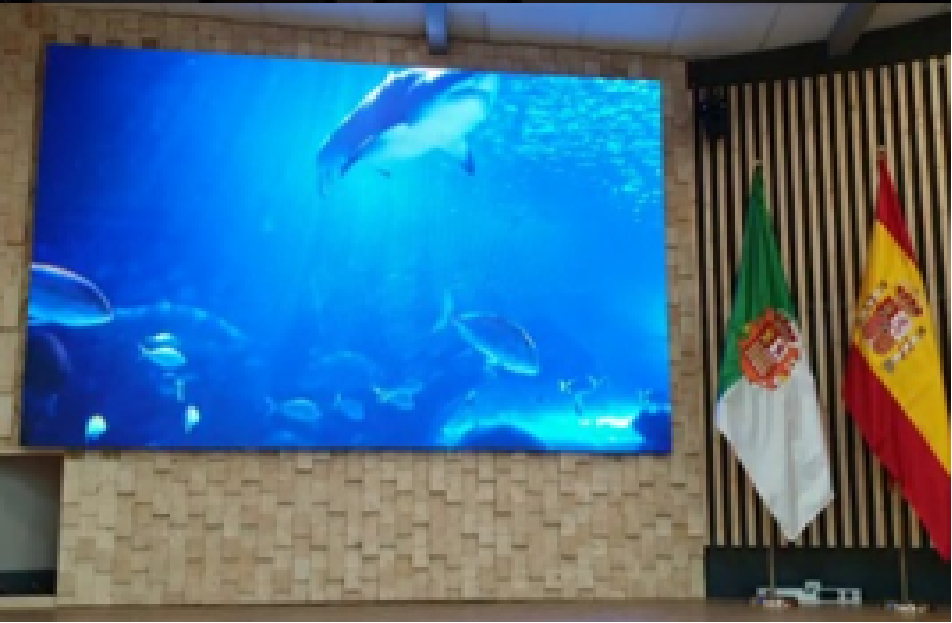

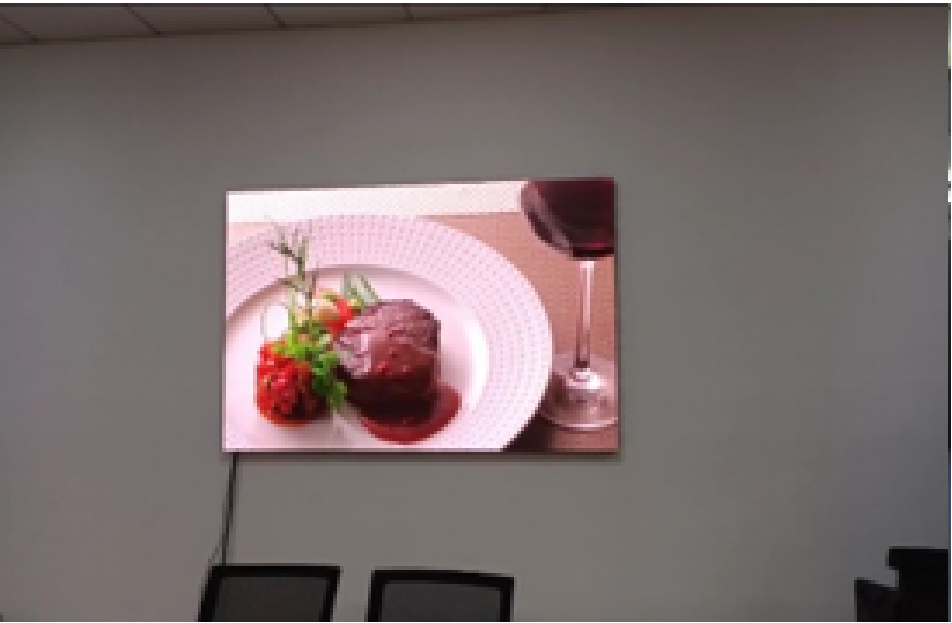

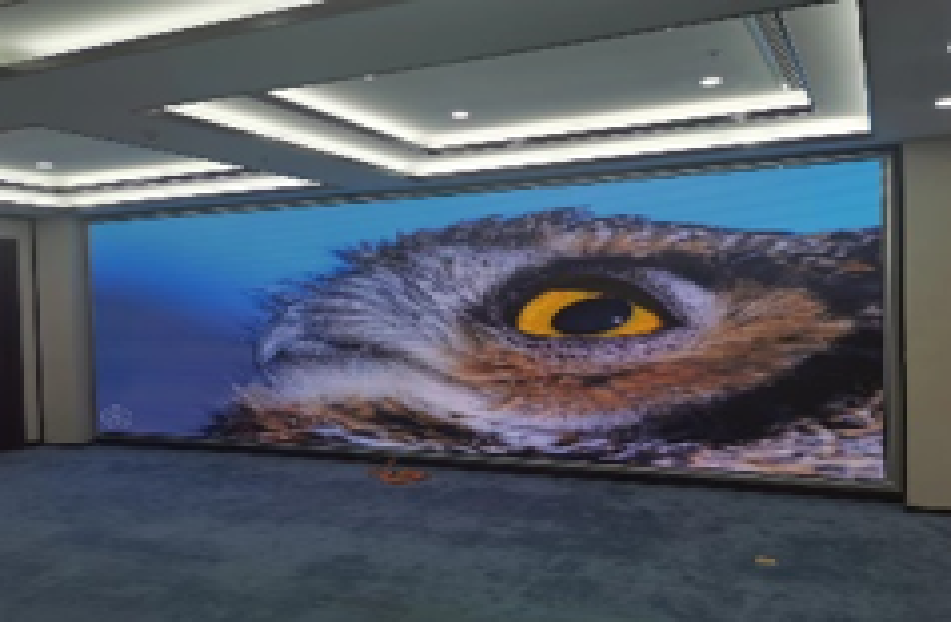

Meeting Room; Exhibition Center; Shopping Mall; Airport.





Parameter

Item P1.5  P1.86 P2.0
Pixel Pitch 1.535mm 1.86mm 2.0mm
LED Type SMD1212 SMD1515 SMD1515
Module Resolution 208dotsx 104dots 172dotsx 86dots 160dotsx 80dots
Driving Mode 1/52scan 1/43scan 1/40scan
Module Pixels 21,632dots 14,792dots 12,800dots
Module Size 320mm × 160mm 320mm × 160mm 320mm × 160mm
Cabinet Size 640mm × 480mm 640mm × 480mm 640mm × 480mm
Cabinet Resolution 416dots x 312dots 344dots x 258dots 320dots x 240dots
Pixel Density 422500dots/㎡ 288906.25dots/㎡ 250,000dots/㎡
Minimum Viewing Distance ≥1.53m ≥1.86m ≥2.0m
Brightness ≥750nits ≥750nits ≥750nits
IP Grade IP43 IP43 IP43
Refresh Rate 1,920Hz~3,840Hz 1,920Hz~3,840Hz 1,920Hz~3,840Hz
Gray Scale 13bits~24bits 13bits~24bits 13bits~24bits
Viewing Angle H:160° / V:160° H:160° / V:160° H:160° / V:160°
Maximum Power Consumption 500W/㎡ 500W/㎡ 500W/㎡
Average Power Consumption 170W/㎡ 170W/㎡ 170W/㎡
Input Voltage AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature ﹣20℃~60℃ ﹣20℃~60℃ ﹣20℃~60℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight 7kg/panel 7kg/panel 7kg/panel
Operating System Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Item P2.0   P2.5   P3
Pixel Pitch 2.0mm   2.5mm   3.076mm
LED Type SMD1515   SMD2020   SMD2121
Module Resolution 160dotsx 80dots   128dots × 64dots   104dots × 52dots
Driving Mode 1/40scan   1/32scan   1/26scan
Module Pixels 12,800dots   8,192dots   8,192dots
Module Size 320mm × 160mm   320mm × 160mm   320mm × 160mm
Cabinet Size 640mm × 480mm   640mm × 480mm   640mm × 480mm
Cabinet Resolution 320dots x 240dots   256dots x 192dots   208dots ×156dots
Pixel Density 250,000dots/m²   160,000 dots/m²   105,625 dots/m²
Minimum Viewing Distance ≥2.0m   ≥2.5m   ≥3.076m
Brightness ≥750nits   ≥750nits   ≥750nits
IP Grade IP43   IP43   IP43
Refresh Rate 1,920Hz~3,840Hz   1,920Hz~3,840Hz   1,920Hz~3,840Hz
Gray Scale 13bits~24bits   13bits~24bits   13bits~24bits
Viewing Angle H:160° / V:160°   H:160° / V:160°   H:160° / V:160°
Maximum Power Consumption 500W/㎡   430W/㎡   430W/㎡
Average Power Consumption 170W/㎡   145W/㎡   145W/㎡
Input Voltage AC110V~AC220V @ 50Hz / 60Hz   AC110V~AC220V @ 50Hz / 60Hz   AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature ﹣20℃~60℃   ﹣20℃~60℃   ﹣20℃~60℃
Operating Humidity 10%~90%   10%~90%   10%~90%
Cabinet Material Die-casting Aluminum   Die-casting Aluminum   Die-casting Aluminum
Cabinet Weight 7kg/panel   7kg/panel   7kg/panel
Operating System Windows (Win7, Win8, etc.)   Windows (Win7, Win8, etc.)   Windows (Win7, Win8, etc.)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.   DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.   DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Item P2.0   P2.5   P3
Pixel Pitch 2.0mm   2.5mm   3.076mm
LED Type SMD1515   SMD2020   SMD2121
Module Resolution 160dotsx 80dots   128dots × 64dots   104dots × 52dots
Driving Mode 1/40scan   1/32scan   1/26scan
Module Pixels 12,800dots   8,192dots   8,192dots
Module Size 320mm × 160mm   320mm × 160mm   320mm × 160mm
Cabinet Size 640mm × 480mm   640mm × 480mm   640mm × 480mm
Cabinet Resolution 320dots x 240dots   256dots x 192dots   208dots ×156dots
Pixel Density 250,000dots/m²   160,000 dots/m²   105,625 dots/m²
Minimum Viewing Distance ≥2.0m   ≥2.5m   ≥3.076m
Brightness ≥750nits   ≥750nits   ≥750nits
IP Grade IP43   IP43   IP43
Refresh Rate 1,920Hz~3,840Hz   1,920Hz~3,840Hz   1,920Hz~3,840Hz
Gray Scale 13bits~24bits   13bits~24bits   13bits~24bits
Viewing Angle H:160° / V:160°   H:160° / V:160°   H:160° / V:160°
Maximum Power Consumption 500W/㎡   430W/㎡   430W/㎡
Average Power Consumption 170W/㎡   145W/㎡   145W/㎡
Input Voltage AC110V~AC220V @ 50Hz / 60Hz   AC110V~AC220V @ 50Hz / 60Hz   AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature ﹣20℃~60℃   ﹣20℃~60℃   ﹣20℃~60℃
Operating Humidity 10%~90%   10%~90%   10%~90%
Cabinet Material Die-casting Aluminum   Die-casting Aluminum   Die-casting Aluminum
Cabinet Weight 7kg/panel   7kg/panel   7kg/panel
Operating System Windows (Win7, Win8, etc.)   Windows (Win7, Win8, etc.)   Windows (Win7, Win8, etc.)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.   DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.   DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
