kineticled LED Display KF Series

产品描述

Product performance characteristics

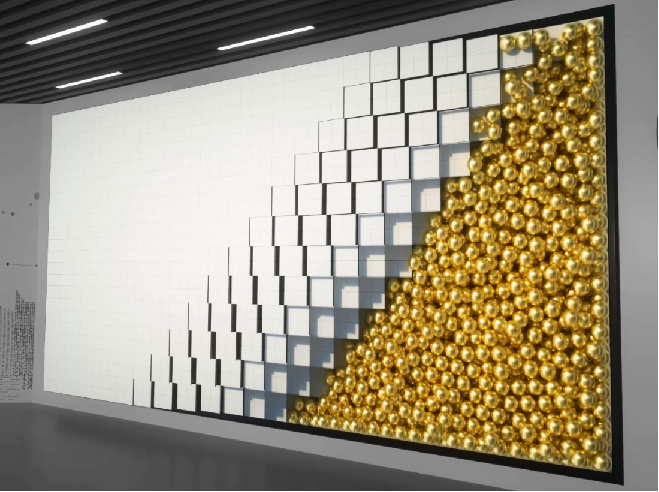

The KF series products use only premium industrial-grade components, adapting to various harsh working conditions; the screen splicing gaps are small, energy-saving, low-noise, stable, and safe; the professionally developed motion control system can precisely control the accurate coordination between mechanical movements and the image; providing users with a complete set of visual digital content editing and output systems, what you see is what you get, greatly reducing the barrier to entry. Cabinet size: 644mm x 483mm×320mm; 500mm x 500mm×400mm 75 kg/㎡；96 kg/㎡ The pixel pitch P1.9, P2 are available.

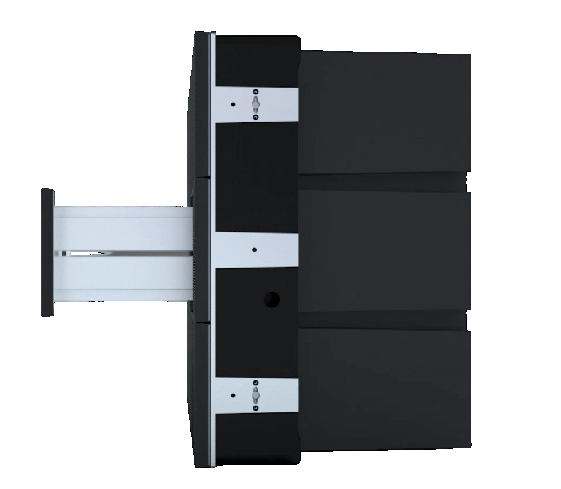

32cm ultra-thin thickness

With a body thickness of 32cm, the space occupied at the back is greatly reduced, lowering the requirements for the installation site and making it easier to modify and install in more locations.

Extremely small gaps, ultra-clear image quality

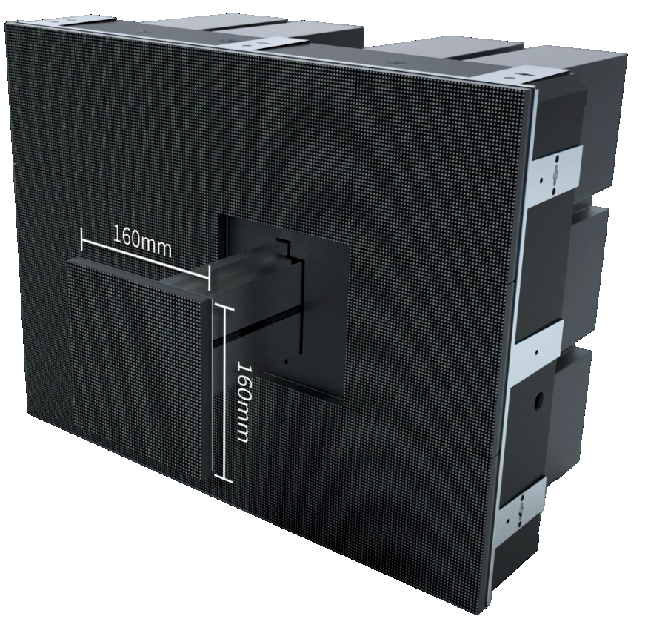

The KF series modules have a gap of ≤1mm between them; the indoor 250-250 and 160-160 modules have a gap of ≤1.5mm between them; the precise sliding structure and the extremely small spacing between the screens prevent the picture from being "fragmented" and present more complete and clear content.

Independent research and development

A digital content editing software specifically designed for wavy screens simplifies the production process of videos and motion graphics, making creative output as easy as creating a 3D game. It supports dynamic preview and fast output, greatly reducing the difficulty of video production and making creation more effortless.

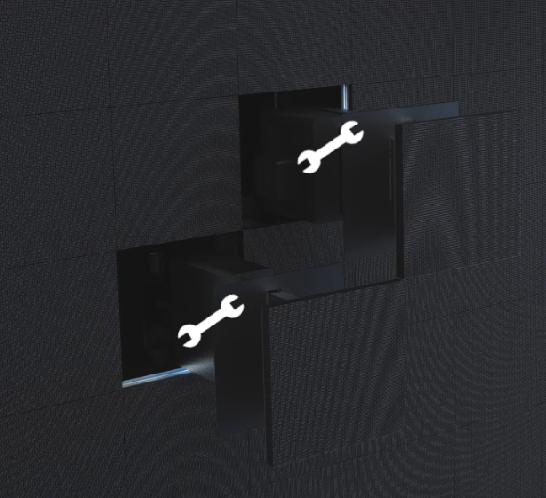

Easy and reliable equipment maintenance.

The indoor KF series features a front/rear maintenance design, allowing for convenient and quick disassembly and maintenance of the unit modules.

low decibel

With noise levels as low as 55 dB, multiple noise reduction designs ensure that the maximum noise level of the 12-in-1 unit is ≤ 55 dB(A), maintaining a low-noise environment during operation.

应用领域

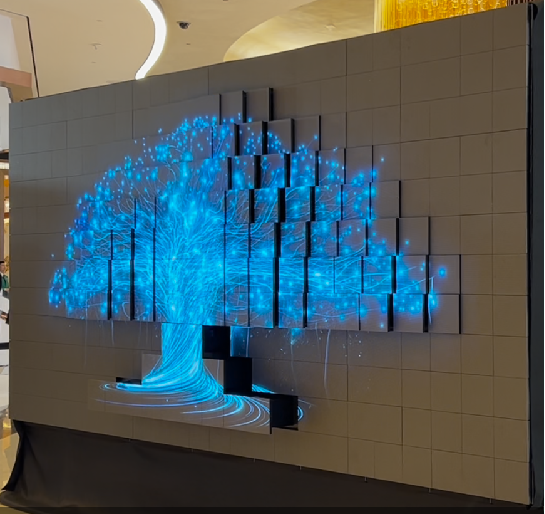

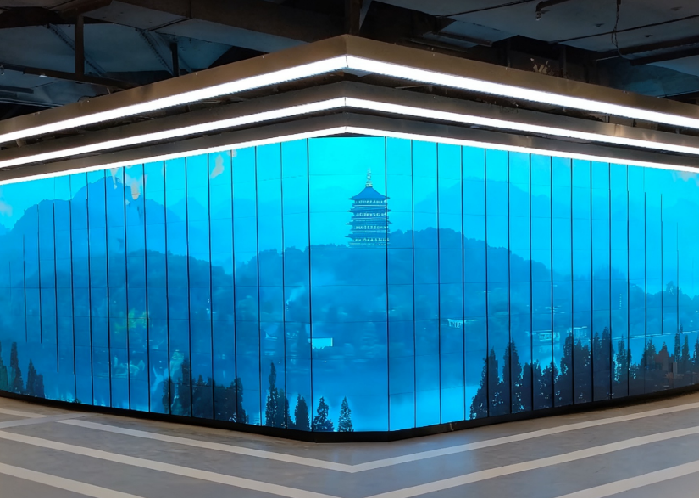

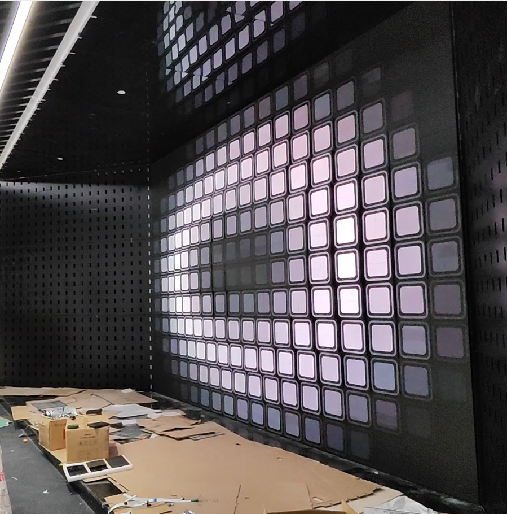

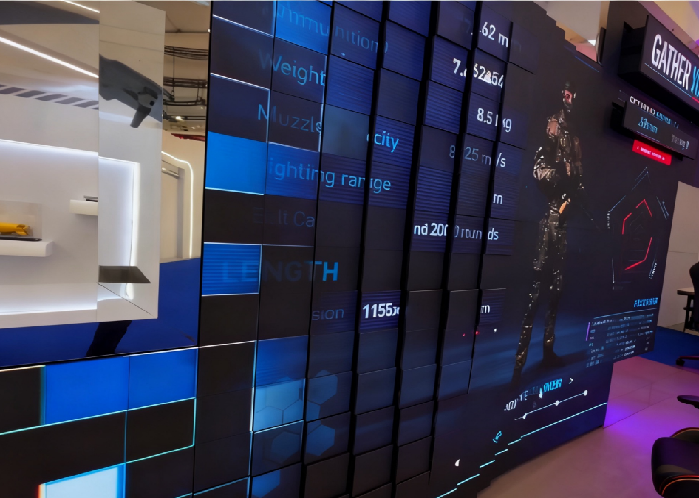

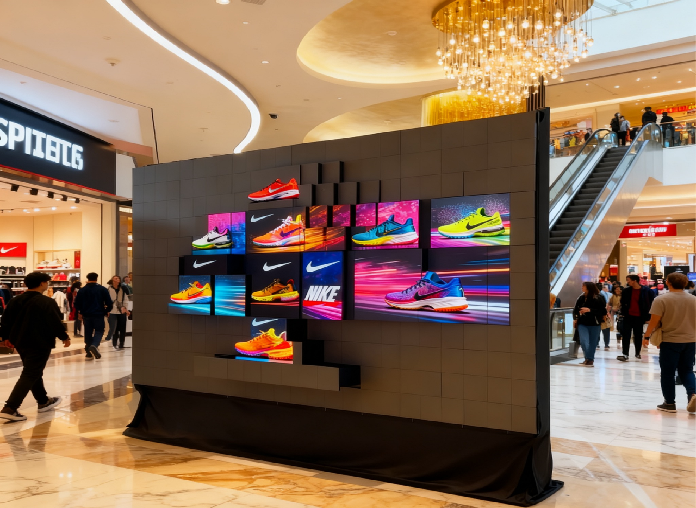

Application Fields Train station Exhibition Center Shopping Mall Airport

Parameter

规格1 Spec2 Spec3

Item	P1.9	P2
LED Pixel	1.95mm	2mm
LED Type	GOB	GOB
Screen Brightness	≥650cd/㎡	>600cd/m
Gap between Units	1.6（±0.5）mm	1(±0.5)mm
Unit Display Dimension(W x H）	248.4mm×248.4mm	160mmx160mm
Resolution of Unit(Px)(WxH)	128x128Px	80x80Px
Cabinet Dimension(WxH)	500mm x 500mm（2x2）	644mm x483mm(4x3)
Cabinet Thickness	440mm	320mm
Cabinet weight	24kg	23.3kg
Cabinet rated power	220W	270W
Max Forward Stroke	250mm	200mm
Max Forward Speed	600 mm/s	600 mm/s
Min Forward/back Time	0.65	0.4s
Unit Qty per sqm	16 pcs	38.6 pcs
Weight per sqm	96Kg	75Kg
Distribution power per Sqm	1100W	1087W
Power supply	<3KW: single phase；≥3KW: three phase (Three-phase five-wire system)
Ambient Temperature(℃)	0~40℃(non frost)
Ambient Humidity(RH)	Non rainproof 70% (non dew）
Environmental Requirements	Indoor, no etchant gas, no inflammable gas, no oil mist and dust
Heat Dissipation	Open self-cooling (with fan cooling)

Item	P4-indoor	P4-indoor	P4-indoor	P4-indoor
Pixel Pitch	4mm	4mm	4mm	4mm
Overall Height	6.5m	7.4m	9m	10.6m
Center Thickness	0.8m	0.8m	0.9m	0.9m
Double Side Thickness	0.45m	0.45m	0.45m	0.45m
Total LED Screen Area	15.36m²×2	23.04m²×2	40.96m²×2	61.44m²×2
Module Size	320mm×160mm	320mm×160mm	320mm×160mm	320mm×160mm
Module Resolution	80dots×40dots	80dots×40dots	80dots×40dots	80dots×40dots
Single-sided sub-screen Size	3840mm×800mm	4800mm×960mm	6400mm×1280mm	7680mm×1600mm
Single-sided sub-screen Resolution	960dots×200dots	1200dots×240dots	1600dots×320dots	1920dots×400dots
Full screen Size	3.84m×4m×2	4.8m×4.8m×2	6.4m×6.4m×2	7.68m×8m×2
Full screen Resolution	960dots×1000dots×2	1200dots×1200dots×2	1600dots×1600dots×2	1920dots×2000dots×2
Brightness	≥600nits	≥600nits	≥600nits	≥600nits
Refresh Rate	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz
Gray Scale	14~16bits	14~16bits	14~16bits	14~16bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Screen Lifespan	≥100,000 hours	≥100,000 hours	≥100,000 hours	≥100,000 hours
Maximum Power Consumption	26.7kw/pc	42.6kw/pc	73kw/pc	112kw/pc
Average Power Consumption	10.7kw/pc	17kw/pc	29.2kw/pc	44.8kw/pc
Input Voltage	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz
Screen Material	Iron	Iron	Iron	Iron
Screen Weight	1700kg	2080kg	3680kg	5480kg
Operating System	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)
Footprint	0.66m²	0.88m²	1.02m²	1.17m²

Item	P5-outdoor	P5-outdoor	P6.67-outdoor	P6.67-outdoor
Pixel Pitch	5mm	5mm	6.67mm	6.67mm
Overall Height	6.8m	7.7m	9.3m	10.6m
Center Thickness	0.8m	0.8m	0.9m	0.9m
Double Side Thickness	0.45m	0.45m	0.45m	0.45m
Total LED Screen Area	15.36m²×2	23.04m²×2	40.96m²×2	61.44m²×2
Module Size	320mm×160mm	320mm×160mm	320mm×160mm	320mm×160mm
Module Resolution	64dots×32dots	64dots×32dots	48dots×24dots	48dots×24dots
Single-sided sub-screen Size	3840mm×800mm	4800mm×960mm	6400mm×1280mm	7680mm×1600mm
Single-sided sub-screen Resolution	768dots×160dots	960dots×192dots	960dots×192dots	1152dots×240dots
Full screen Size	3.84m×4m×2	4.8m×4.8m×2	6.4m×6.4m×2	7.68m×8m×2
Full screen Resolution	768dots×800dots×2	960dots×960dots×2	960dots×960dots×2	1152dots×1200dots×2
Brightness	4500~6000nits	4500~6000nits	4500~6000nits	4500~6000nits
Refresh Rate	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz	3840Hz~7680Hz
Gray Scale	14~16bits	14~16bits	14~16bits	14~16bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Screen Lifespan	≥100,000 hours	≥100,000 hours	≥100,000 hours	≥100,000 hours
Maximum Power Consumption	41kw/pc	66kw/pc	112kw/pc	170kw/pc
Average Power Consumption	17kw/pc	27kw/pc	45kw/pc	68kw/pc
Input Voltage	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz	AC100V - AC240V @ 50Hz/60Hz
Screen Material	Iron	Iron	Iron	Iron
Screen Weight	1950kg	2380kg	3980kg	5980kg
Operating System	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)	Windows (Win10, Win8, etc.)
Footprint	0.66m²	0.88m²	1.02m²	1.17m²
