OR Ultra

Product Description

Excellent and safe module design

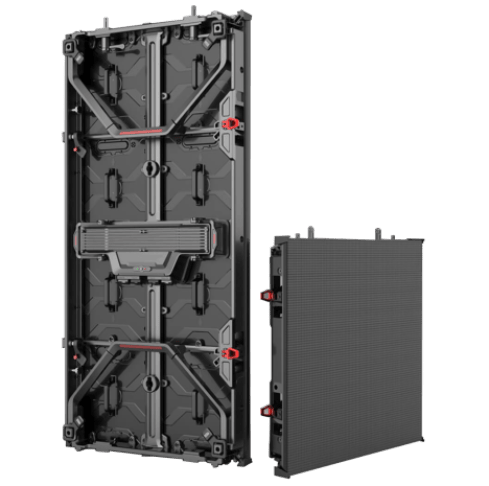

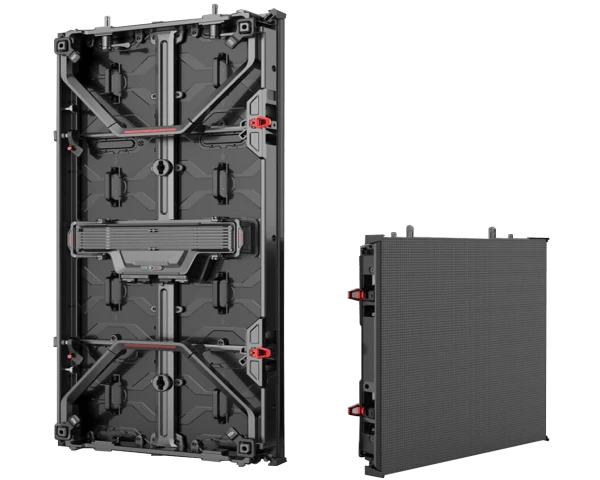

To meet different needs of live events projects, our OR Ultra series uses front and rear module maintenance design. Armed with N52 type strong magnets on the LED modules, the LED panel will be more secured. The pixel pitch P2.6, P2.9, P3.9 and P4.8 are available.

Easy maintenance and good cooling design

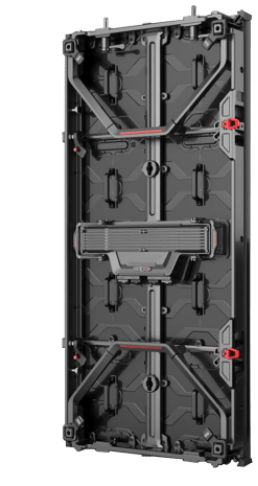

Beside the magnetic module design, all components like receiving cards, hub board, power supply, and other accessories are in a detachable box which can be swapped out in few seconds. This greatly reduces the “downtime” during the event. What's more, heat sink strips are on the backside of the control box, which helps to cool the power supply quicker.

L-shaped corner protector and climbable handle

Each corner has a L-shaped metal gadget. When you press the tricker, the metal gadget will cover the LED module’s corner and protect the LED from crash during the transportation or tear-down. The strong handle can be used as a ladder to climb up for fixing the problems if the faulty LED panel is several meters off the ground.

Light weight

This panel has1000x500mm and 500x500mm cabinet design. And 1000x500mm cabinet only weighs 13.5kg, which eases your installation work.

Optimized curve lock and no black-lines design

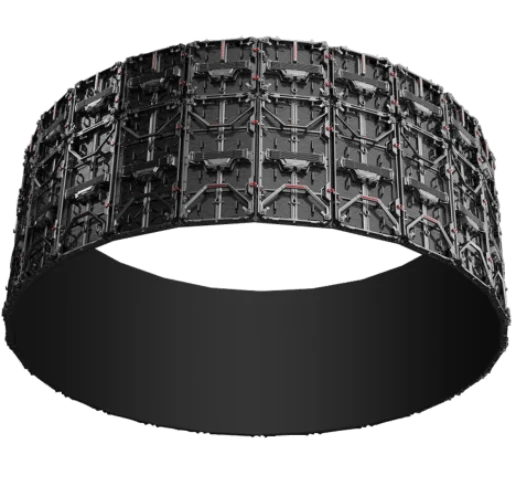

The curve locks use rotating design and support the curve from -15 degree to 15 degree. The lock fastens the cabinet more firmly and rapidly. There are soft strips on the left and right side of the panel. They block the light from the back of the screen, so the screen won’t appear black lines caused by the gaps between the panels.

Application Fields

To fit every different scene, the outdoor full color LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:

Cinemas; Stages; Advertisements.

Parameter

Spec1 Spec2 Spec3

Item	P2.6	P2.9	P3.9	P4.8
Pixel Pitch	2.604mm	2.976mm	3.906mm	4.807mm
LED Type	SMD1415	SMD1415	SMD1921	SMD1921
Module Resolution	96dots × 96dots	84dots × 84dots	64dots × 64dots	96dots × 96dots
Driving Mode	1/32scan	1/ 21scan	1/16scan	1/24scan
Module Pixels	9,216dots	7,056dots	4,096dots	9,216dots
Module Size	250mm × 250mm	250mm × 250mm	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm × 500mm or 500mm × 1,000mm	500mm × 500mm or 500mm × 1,000mm	500mm × 500mm or 500mm × 1,000mm	500mm × 500mm or 500mm × 1,000mm
Cabinet Resolution	192dots × 192dots or 192dots × 384dots	168dots x 168dots or 168dots x336dots	128dots × 128dots or 128dots × 256dots	104dots × 104dots or 104dots × 208dots
Pixel Density	147,456dots/㎡	112,896dots/㎡	65,536dots/㎡	43,264dots/㎡
Minimum Viewing Distance	≥2.6m	≥2.9 m	≥3.9 m	≥4.8 m
Brightness	4,000nits (Black) / 4,500nits(White)	4,000nits (Black) / 4,500nits (White)	≥4,500nits	≥4,500nits
IP Grade	IP65	IP65	IP65	IP65
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	13bits～24bits	13bits～24bits	13bits～24bits	13bits～24bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	800W/㎡	800W/㎡	800W/㎡	800W/㎡
Average Power Consumption	230W/㎡	230W/㎡	230W/㎡	230W/㎡
Input Voltage	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	7.5kg/panel or 14kg/panel	7.5kg/panel or 14kg/panel	7.5kg/panel or 14kg/panel	7.5kg/panel or 14kg/panel
Operating System	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
