Ultra-Lightweight 16.8kg/sqm & Ultra Slim Design 32mm Fine-Pitch LED Display - P1.2, P1.5, P1.8, P2.0, P2.5

Product Description

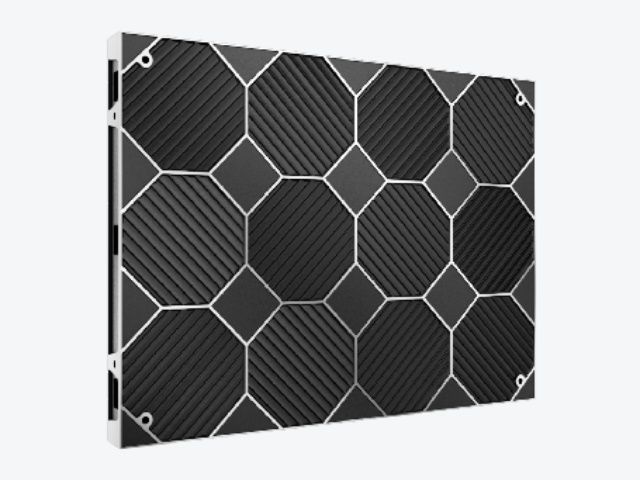

Slim and lightweight design

The die-cast aluminum SP3 MAX Series cabinet is engineered with an ultra- lightweight design of 5.16kg per panel, equivalent to 16.8 kg per square meter, delivering significant advantages in installation efficiency and transportation convenience. Meanwhile, the slim 32 mm cabinet thickness enables a compact screen structure, making it especially suitable for space-constrained indoor environments. More importantly, the reduced overall weight minimizes structural load, effectively lowering pressure on building architecture and reducing potential safety risks, including long-term structural stress—making it ideal for both permanent installations and rental applications. Cabinet Specifications • Cabinet size: 640 mm × 480 mm • Thickness: 32 mm • Weight: 5.16 kg per panel • Weight per sqm: 16.8 kg/sqm • Available Pixel Pitches : P1.2 / P1.5 / P1.8 / P2.0 / P2.5

Front Access Service

With a front-access service design, all key components of the SP3 MAX series LED screen can be easily accessed and removed from the front, enabling fast and efficient maintenance or component replacement. This design allows technicians to quickly resolve any issues without dismantling the entire screen or moving it from its installed position.As a result, front access service significantly reduces maintenance time, lowers labor costs, and minimizes downtime, making it an ideal solution for indoor fixed installations, especially in space-limited environments.

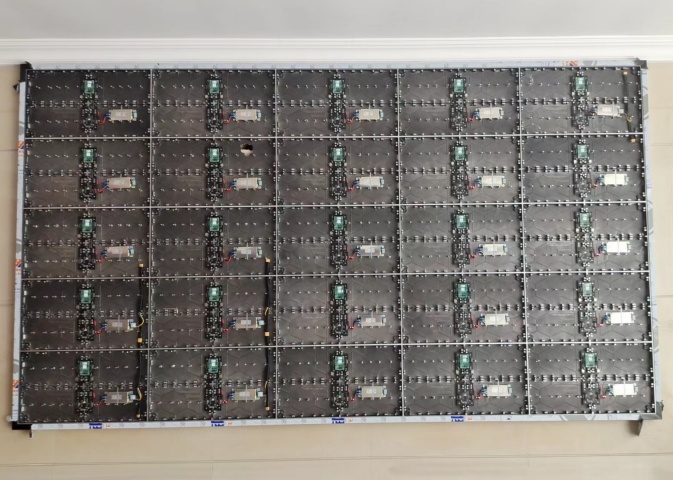

Seamless Connection

The SP3 MAX cabinet is manufactured using high-precision die-cast aluminum, ensuring exceptional structural accuracy,strength, and long-term consistency. This advanced manufacturing process guarantees precise cabinet alignment and excellent screen flatness, effectively eliminating gaps and misalignment between panels.As a result, the entire LED display surface appears seamless, smooth, and visually uniform, delivering superior image continuity and enhanced visual comfort. The rigid die-cast aluminum structure also improves mechanical stability and durability, ensuring reliable performance during long-term operation as well as frequent installation and dismantling in rental applications.

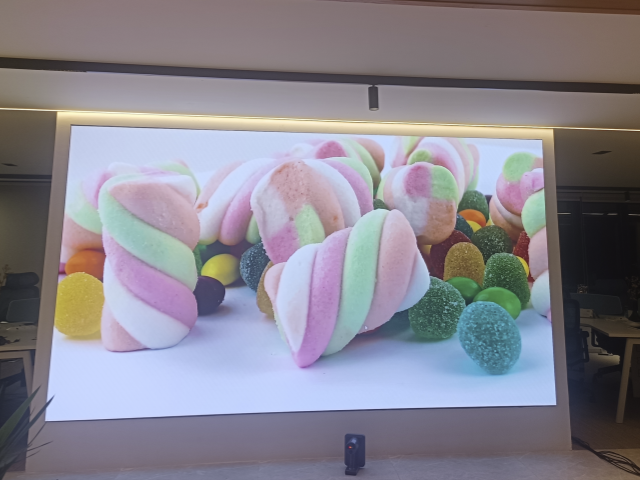

High Visual Performance for Commercial & Rental Applications

The SP3 MAX Series LED panel features a 7,680 Hz refresh rate and 14-bit grayscale, delivering smooth motion, stable images, and vivid color reproduction. The display is flicker-free and camera-friendly, ensuring excellent performance for live broadcasting and professional filming. For commercial applications such as malls, lobbies, showrooms,and control rooms, it provides uniform brightness, consistent colors, and reliable 24/7 operation. For rental and stage use, it eliminates scan lines, black bars, and flicker, making it ideal for events, exhibitions, concerts, and broadcasts. Combined with a lightweight die-cast aluminum cabinet,excellent flatness, and fast maintenance, the SP3 MAX Series delivers reliable performance for both fixed installation and rental environments.

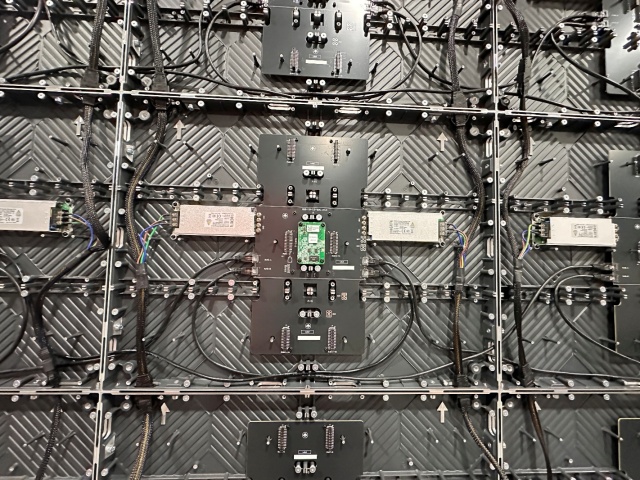

Power & Signal Redundancy | Never Blackout

By utilizing its upgraded version, we can efficiently allocate space to accommodate two power supplies and two receiving cards. This design ensures the seamless operation of cabinets, as in the event of a malfunction with one of the power supplies or receiving cards, the other will seamlessly take over operations.

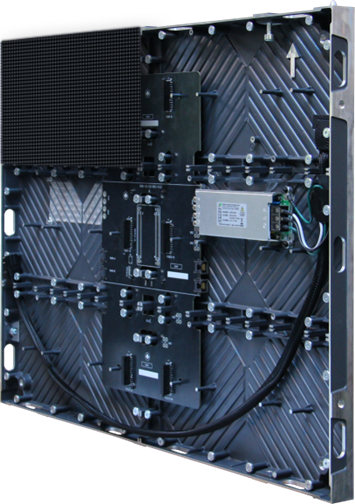

Hard-Pin Connection | Enhanced Reliability & Installation Convenience

The LED panel adopts a hard-pin connection design, completely eliminating the need for ribbon cables. This ensures a more reliable and stable signal and power connection, resulting in improved operational stability and a longer product lifespan. Compared with traditional ribbon-cable designs, the hard-pin modules can be connected to any HUB interface position, without being limited to fixed ribbon-cable sockets. This provides greater installation flexibility, enabling faster and more convenient module installation and replacement. By removing fragile ribbon cables, the design significantly reduces the risk of connection failures, especially during long-term operation or frequent installation and dismantling in rental environments. At the same time, it reduces maintenance frequency and overall costs, making the system more dependable and cost-effective throughout its entire lifecycle.

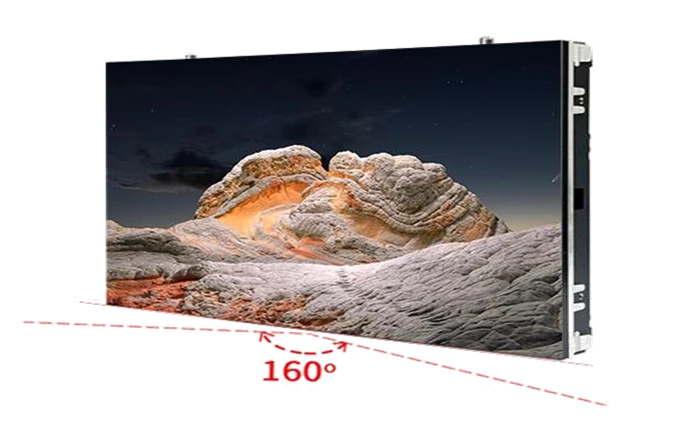

Large Viewing Angle

The LED display offers vertical and horizontal viewing angles of 160°, allowing for a wide viewing range. This means that multiple viewers can comfortably enjoy the display from various angles without needing to adjust their positions, resulting in a more immersive experience.

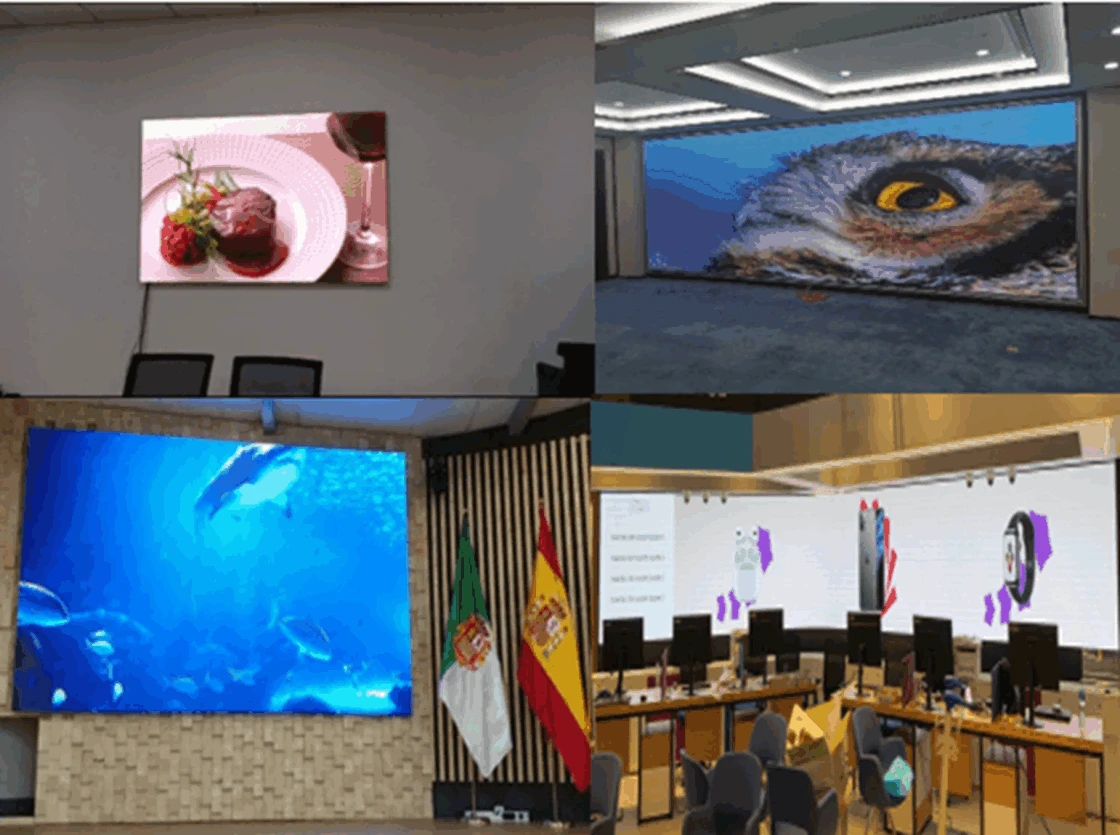

Application Files

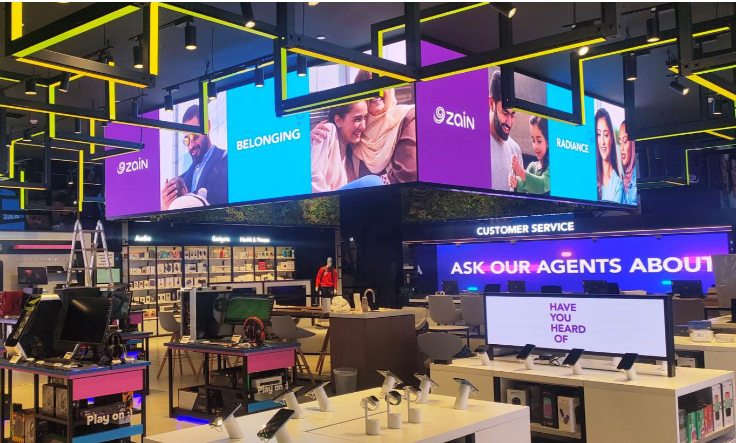

Meeting Room; Exhibition Center; Shopping Mall; Airport;Commercial Displays ;Event & Rental Displays

Parameter

Spec1 Spec2 Spec3

Item	P1.2	P1.5
Pixel Pitch	1.25mm	1.538mm
LED Type	SMD1010	SMD1010
Module Resolution	256dotsx 128dots	208dotsx 104dots
Driving Mode	1/64scan	1/52scan
Module Pixels	32768dots	34112dots
Module Size	320mm × 160mm	320mm × 160mm
Cabinet Size	640mm × 480mm	640mm × 480mm
Cabinet Resolution	512dots x 384dots	416dots x 312dots
Pixel Density	640,000dots/㎡	422,500dots/㎡
Minimum Viewing Distance	1.25m	1.5m
Brightness	800-1000nits	800-1000nits
IP Grade	IP43	IP43
Refresh Rate	7680Hz	7680Hz
Gray Scale	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:140°	H:160° / V:140°
Maximum Power Consumption	280W/m²	280W/m²
Average Power Consumption	70W/m²	70W/m²
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	5.16kg/panel	5.16kg/panel
Cabinet Thickness	32mm	32mm
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, etc.	DVI, HDMI1.3, etc.

Item	P1.86	P2.0
Pixel Pitch	1.86mm	2.0mm
LED Type	SMD1515	SMD1515
Module Resolution	172dotsx 86dots	160dots × 80dots
Driving Mode	1/43scan	1/40scan
Module Pixels	14,792dots	12,800dots
Module Size	320mm × 160mm	320mm × 160mm
Cabinet Size	640mm × 480mm	640mm × 480mm
Cabinet Resolution	344dots x 258dots	320dots ×240dots
Pixel Density	288,906dots/m²	250,000 dots/m²
Minimum Viewing Distance	1.8m	2.0m
Brightness	800-1000nits	800-1000nits
IP Grade	IP43	IP43
Refresh Rate	7680Hz	7680Hz
Gray Scale	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:140°	H:160° / V:140°
Maximum Power Consumption	280W/m²	280W/m²
Average Power Consumption	70W/m²	70W/m²
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	5.16kg/panel	5.16kg/panel
Cabinet Thickness	32mm	32mm
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, etc.	DVI, HDMI1.3, etc.

Item	P1.86	P2.5
Pixel Pitch	1.86mm	2.5mm
LED Type	SMD1515	SMD2020
Module Resolution	172dotsx 86dots	128dots × 64dots
Driving Mode	1/43scan	1/32scan
Module Pixels	14,792dots	8,192dots
Module Size	320mm × 160mm	320mm × 160mm
Cabinet Size	640mm × 480mm	640mm × 480mm
Cabinet Resolution	344dots x 258dots	256dots ×192dots
Pixel Density	288,906dots/m²	160,000 dots/m²
Minimum Viewing Distance	1.8m	2.5m
Brightness	800-1000nits	800-1000nits
IP Grade	IP43	IP43
Refresh Rate	7680Hz	7680Hz
Gray Scale	14bits～22bits	14bits～22bits
Viewing Angle	H:160° / V:140°	H:160° / V:140°
Maximum Power Consumption	280W/m²	280W/m²
Average Power Consumption	70W/m²	70W/m²
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～60℃	﹣20℃～60℃
Operating Humidity	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	5.16kg/panel	5.16kg/panel
Cabinet Thickness	32mm	32mm
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, etc.	DVI, HDMI1.3, etc.
