IR Ultra

IR Ultra

High-grade XR LED display-P1.9, P2.6, P2.9

Excellent and safe module design

Easy maintenance and good cooling design

XR technology

Stunning vision

Optimized curve lock and no black-lines design

7680Hz refresh rate

Product Description

Excellent and safe module design

To meet different needs of live events projects, our IR Ultra series uses front and rear module maintenance design.

Armed with N52 type strong magnets on the LED modules, the LED panel will be more secured.

The pixel pitch P1.9, P2.6, and P2.9 are available.

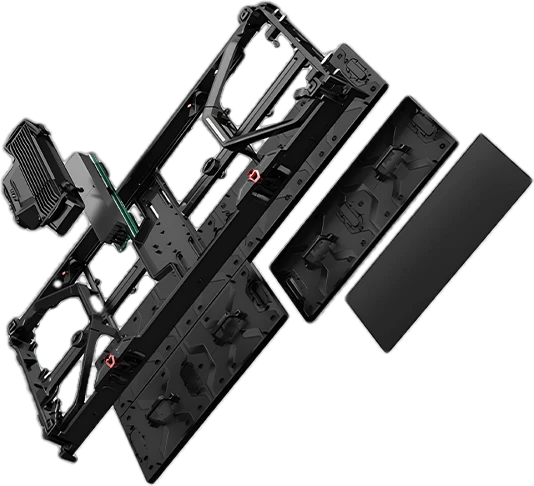

Easy maintenance and good cooling design

Beside the magnetic module design, all components like receiving cards, hub board, power supply, and other accessories are in a detachable box which can be swapped out in few seconds. This greatly reduces the “downtime” during the event.What's more, heat sink strips are on the backside of the control box, which helps to cool the power supply quicker.

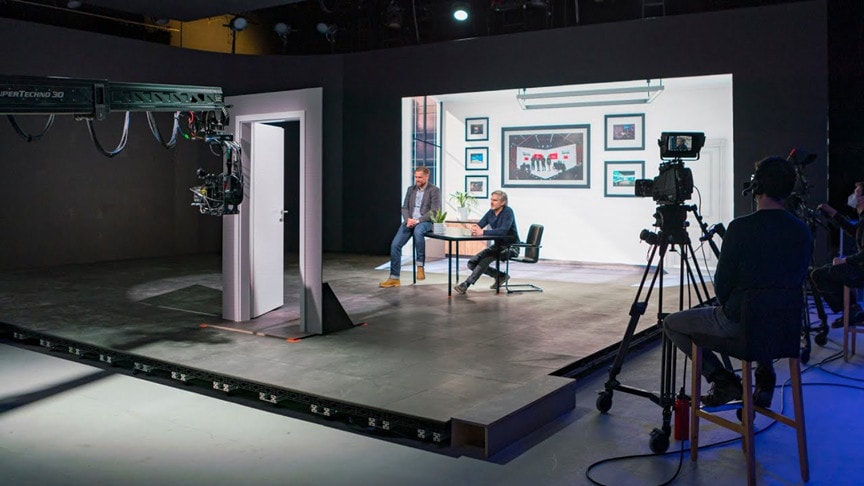

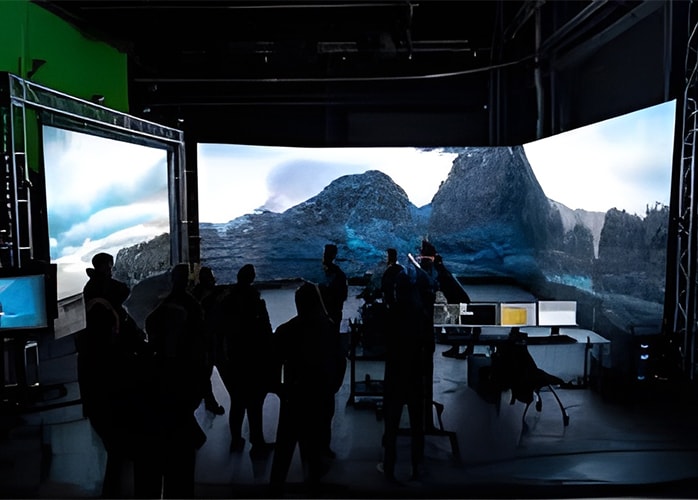

XR technology

Our IR Ultra series have been specifically developed for used in film & TV industries as well as extended reality applications. Premteco’s intelligent electronnic design capabilities performed acritical role in the XR’s high-performance abilities, creating a display that is meticulously close to real-life imagery.

7680 refresh rate

The high refresh rate ensures the smoothness of every frame of the images, thus the LED display won’t appear flicking on the highspeed camera.

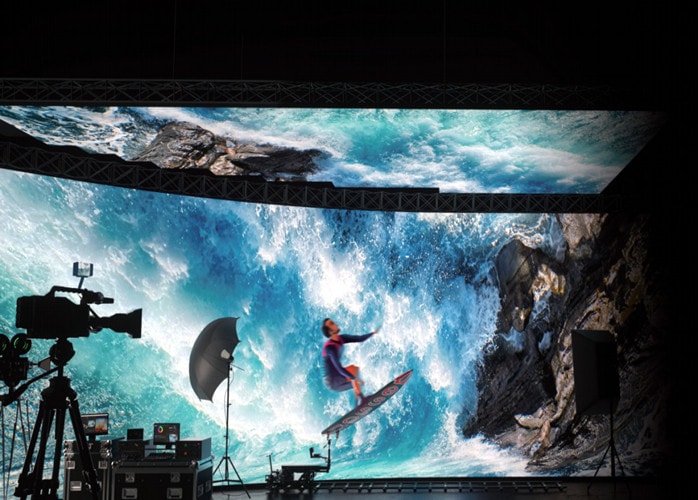

Stunning vision

The IR Ultra is able to perform a refresh rate of 7680Hz, a max frame frequency of 236Hz and a max grayscale of 16 bits. With these characteristics, our IR Ultra can easily be synchronized with most of brands of high-quality broadcast cameras, no even one frame delay.

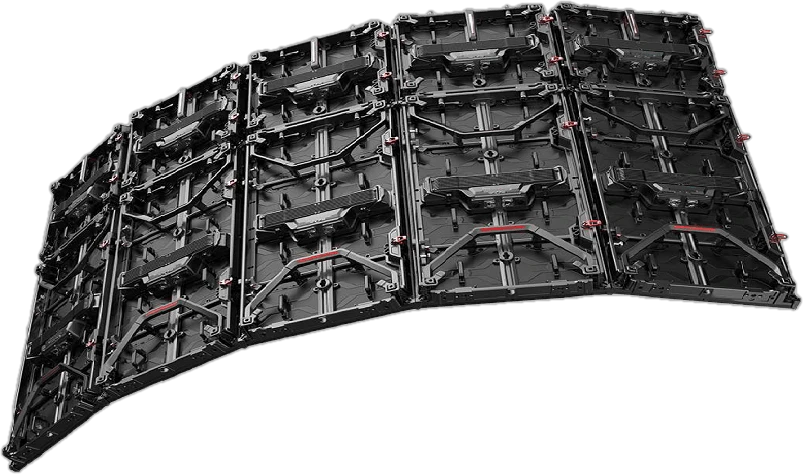

Optimized curve lock and no black-lines design

The curve locks use rotating design and support the curve from -15 degree to 15 degree. The lock fastens the cabinet more firmly and rapidly.There are soft strips on the left and right side of the panel. They block the light from the back of the screen, so the screen won’t appear black lines caused by the gaps between the panels.

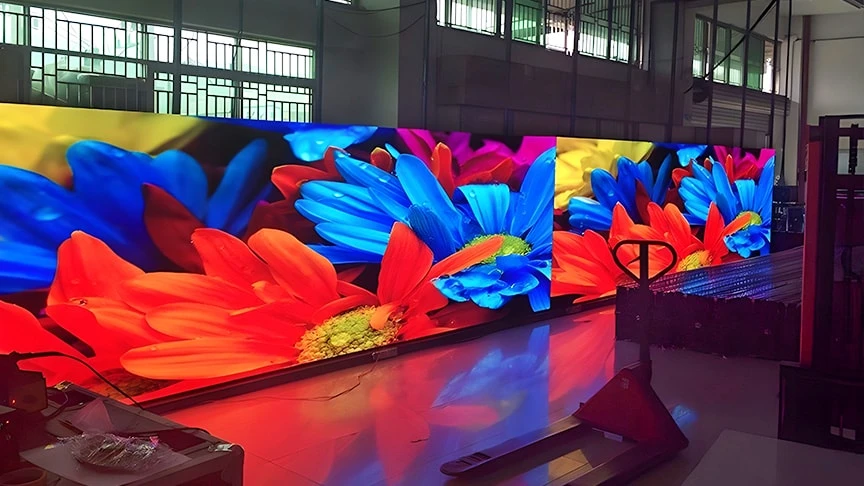

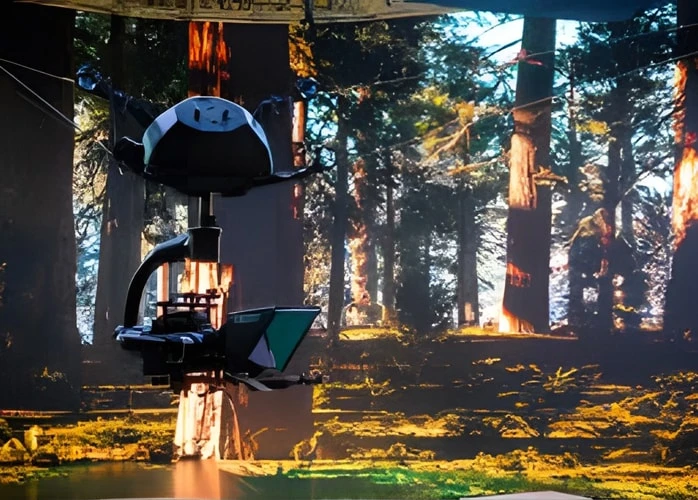

Application Fields

To fit every different scene, our products utilize superior materials with the concise and strong structure. This product is usually used in:

Program; Shows; Film Studio.



Parameter

Item P1.9 P2.6 P2.9
Pixel Pitch  1.953mm 2.604mm 2.976mm
LED Type  SMD 1212 SMD1515 SMD1515
Module Resolution  128dots × 128dots 96dots × 96dots 84dots × 84dots
Driving Mode  1/16scan 1/16scan 1/14scan
Module Pixels  16,384dots 9,216dots  7,056dots
Module Size  250mm × 250mm 250mm × 250mm  250mm × 250mm
Cabinet Size  500mm × 500mm 500mm × 500mm 500mm × 500mm
Cabinet Resolution  256dots × 256dots   192dots × 192dots 168dots × 168dots
Pixel Density  262,144dots/㎡ 147,456dots/㎡ 112,896dots/㎡
Minimum Viewing Distance  ≥1.9m ≥2.6 m ≥2.9 m
Brightness  1000nits~1,200nits 1000nits~1,200nits 1000nits~1,200nits
IP Grade  IP40 IP40 IP40
Refresh Rate  ≥7680Hz ≥7680Hz ≥7680Hz
Gray Scale  ≥16bits ≥16bits ≥16bits
Viewing Angle  H:140° / V:140° H:140° / V:140° H:140° / V:140°
Maximum Power Consumption   650W/㎡ 650W/㎡ 650W/㎡
Average Power Consumption 200W/㎡ 200W/㎡ 200W/㎡
Input Voltage  AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature  ﹣20℃~60℃  ﹣20℃~60℃  ﹣20℃~60℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Die-casting Magnalium Die-casting Magnalium Die-casting Magnalium
Cabinet Weight  8.5kg/panel 8.5kg/panel 8.5kg/panel
Operating System  Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
Item P1.9 P2.6 P2.9
Pixel Pitch  1.953mm 2.604mm 2.976mm
LED Type  SMD 1212 SMD1515 SMD1515
Module Resolution  128dots × 128dots 96dots × 96dots 84dots × 84dots
Driving Mode  1/16scan 1/16scan 1/14scan
Module Pixels  16,384dots 9,216dots  7,056dots
Module Size  250mm × 250mm 250mm × 250mm  250mm × 250mm
Cabinet Size  500mm × 500mm 500mm × 500mm 500mm × 500mm
Cabinet Resolution  256dots × 256dots   192dots × 192dots 168dots × 168dots
Pixel Density  262,144dots/㎡ 147,456dots/㎡ 112,896dots/㎡
Minimum Viewing Distance  ≥1.9m ≥2.6 m ≥2.9 m
Brightness  1000nits~1,200nits 1000nits~1,200nits 1000nits~1,200nits
IP Grade  IP40 IP40 IP40
Refresh Rate  ≥7680Hz ≥7680Hz ≥7680Hz
Gray Scale  ≥16bits ≥16bits ≥16bits
Viewing Angle  H:140° / V:140° H:140° / V:140° H:140° / V:140°
Maximum Power Consumption   650W/㎡ 650W/㎡ 650W/㎡
Average Power Consumption 200W/㎡ 200W/㎡ 200W/㎡
Input Voltage  AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature  ﹣20℃~60℃  ﹣20℃~60℃  ﹣20℃~60℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Die-casting Magnalium Die-casting Magnalium Die-casting Magnalium
Cabinet Weight  8.5kg/panel 8.5kg/panel 8.5kg/panel
Operating System  Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.



Item P1.9 P2.6 P2.9
Pixel Pitch  1.953mm 2.604mm 2.976mm
LED Type  SMD 1212 SMD1515 SMD1515
Module Resolution  128dots × 128dots 96dots × 96dots 84dots × 84dots
Driving Mode  1/16scan 1/16scan 1/14scan
Module Pixels  16,384dots 9,216dots  7,056dots
Module Size  250mm × 250mm 250mm × 250mm  250mm × 250mm
Cabinet Size  500mm × 500mm 500mm × 500mm 500mm × 500mm
Cabinet Resolution  256dots × 256dots   192dots × 192dots 168dots × 168dots
Pixel Density  262,144dots/㎡ 147,456dots/㎡ 112,896dots/㎡
Minimum Viewing Distance  ≥1.9m ≥2.6 m ≥2.9 m
Brightness  1000nits~1,200nits 1000nits~1,200nits 1000nits~1,200nits
IP Grade  IP40 IP40 IP40
Refresh Rate  ≥7680Hz ≥7680Hz ≥7680Hz
Gray Scale  ≥16bits ≥16bits ≥16bits
Viewing Angle  H:140° / V:140° H:140° / V:140° H:140° / V:140°
Maximum Power Consumption   650W/㎡ 650W/㎡ 650W/㎡
Average Power Consumption 200W/㎡ 200W/㎡ 200W/㎡
Input Voltage  AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature  ﹣20℃~60℃  ﹣20℃~60℃  ﹣20℃~60℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Die-casting Magnalium Die-casting Magnalium Die-casting Magnalium
Cabinet Weight  8.5kg/panel 8.5kg/panel 8.5kg/panel
Operating System  Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
