Narrow Pitch 4K LED Display | Fine Pixel Pitch LED Display SP1 Series

Product Description

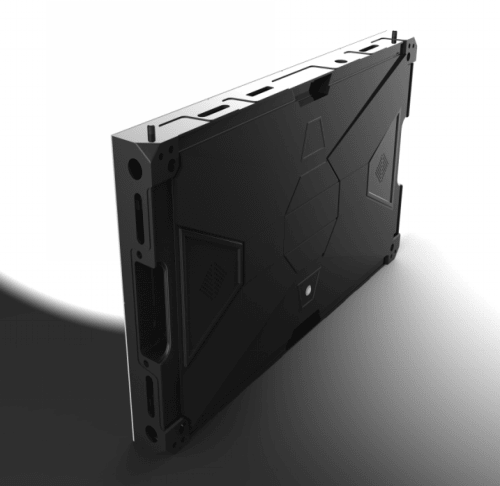

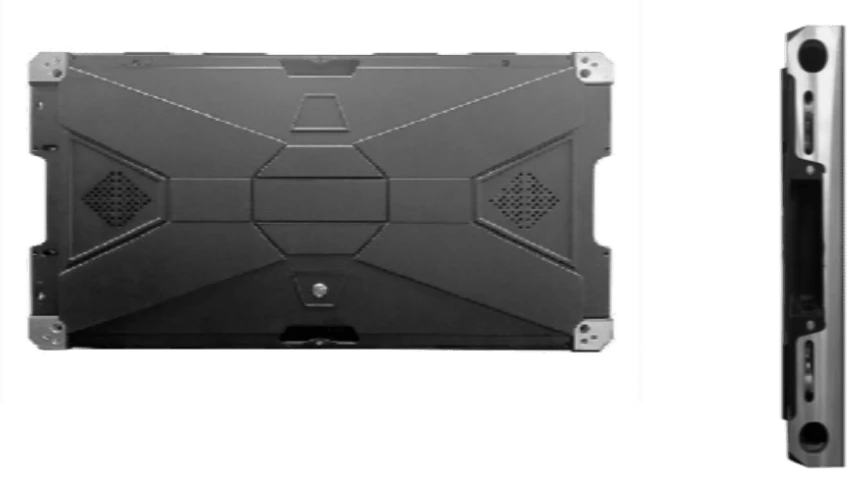

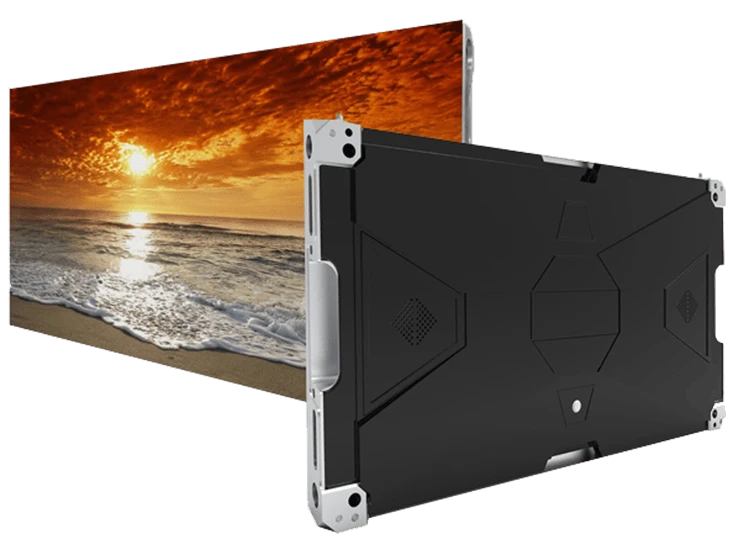

Ultra Light Weight, Thin Screen

Die-casting aluminum design is used in the cabinet and the thickness of cabinet including modules is only 59mm, so each panel weighs only 6.5kgs, which brings much more convenience when we do the installation and transportation. More importantly, it can reduce the pressure of architecture and the risk of collapse.

More Cost-Effective and Reliable

SP1 series is the most classic design and once it is put on the market the screen has captured great attention. The product is hot-selling not only because of its cost-effectiveness but also its reliable performance.

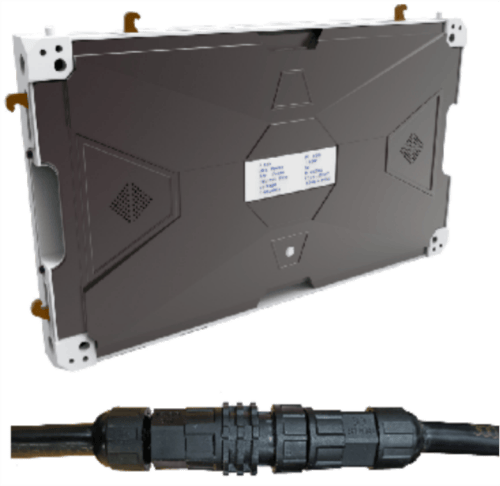

Quick Installation

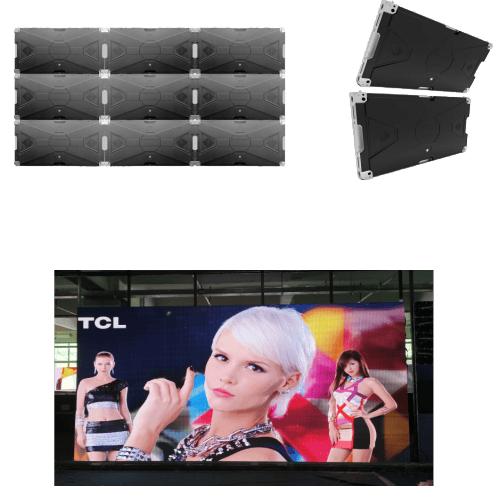

Internal lockers are designed to make joint cabinets combine together quickly and tightly. Internal power cable connectors bring quick cable connections.

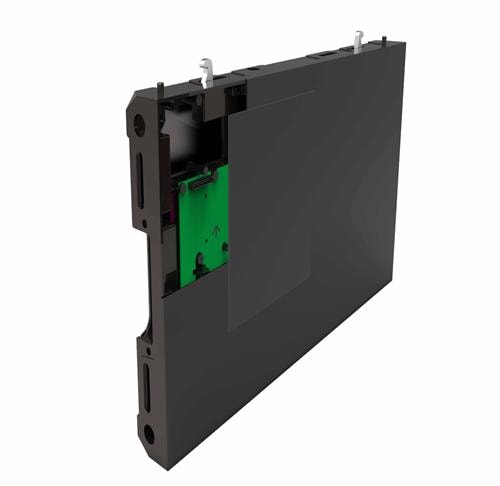

Easy Maintenance

The cabinet can be accessed from the front side for maintenance and installation. All receiving cards, power supplies, and other components can be serviced from the front side.

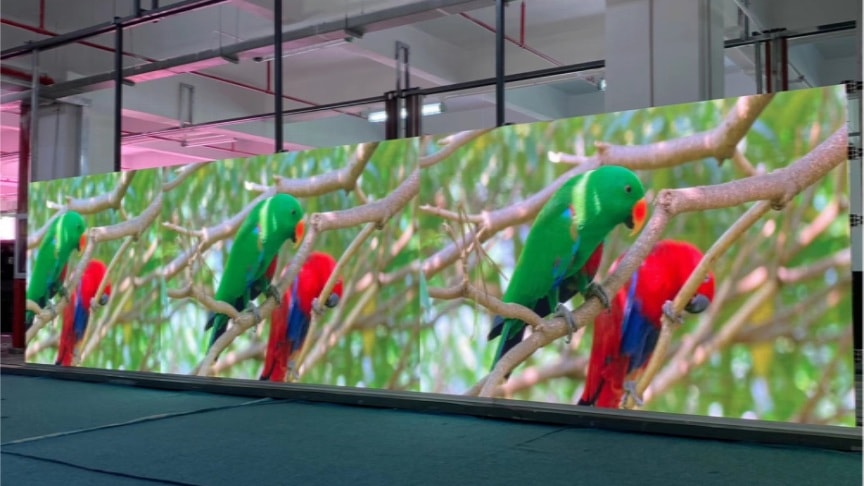

Seamless Connection

Precise die-casting aluminum cabinet with internal lockers make the screen bezel free and gapless. Signal cables and power cables are inside of the cabinets and no external cables design brings more stability.

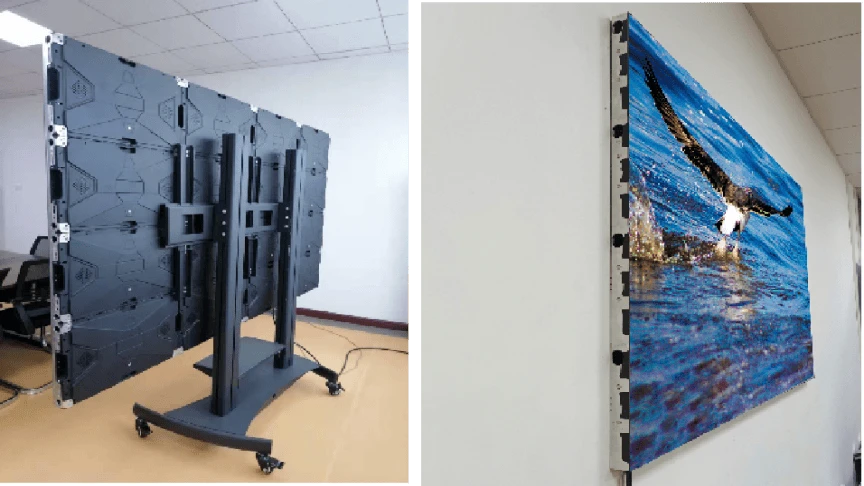

Multiple Functions

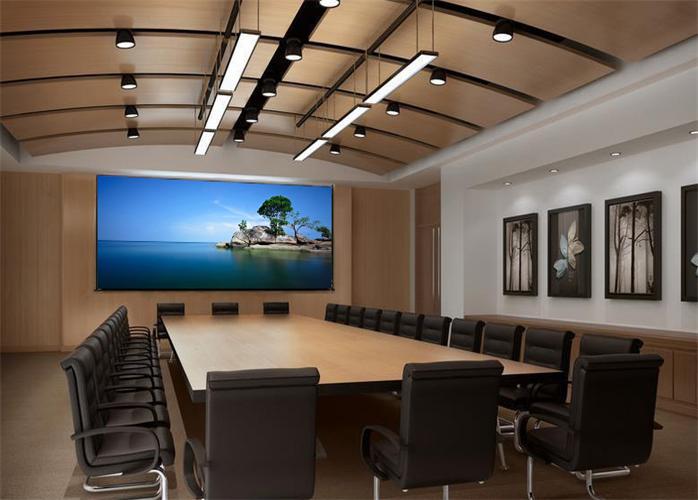

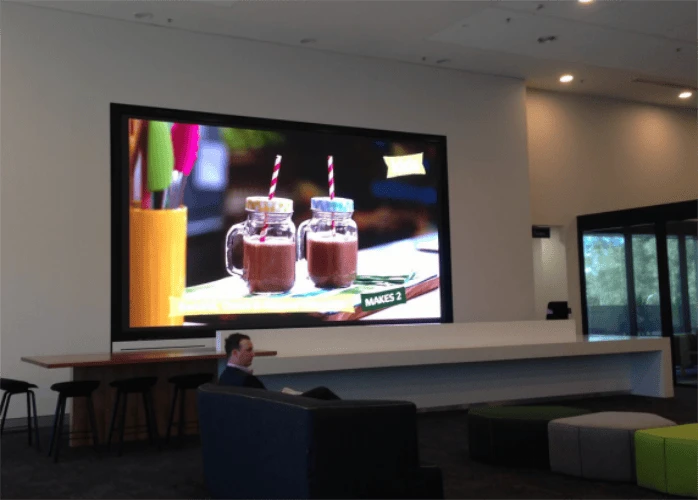

The screen can be installed on movable structure and it can be used for meeting rooms, exhibitions, etc.

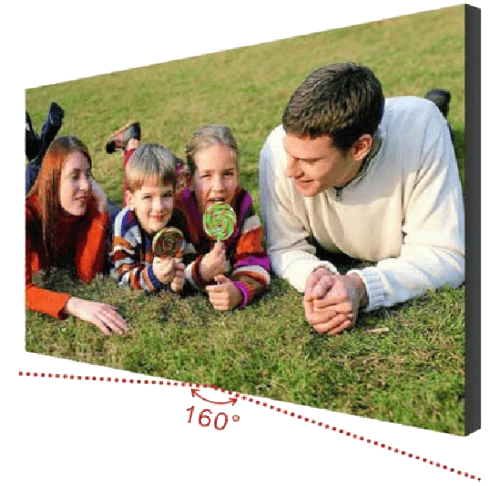

Large Viewing Angle

The surface of the screen looks very flat and neat because of the precision of cabinets, and thus the viewing angle can be up to 160°

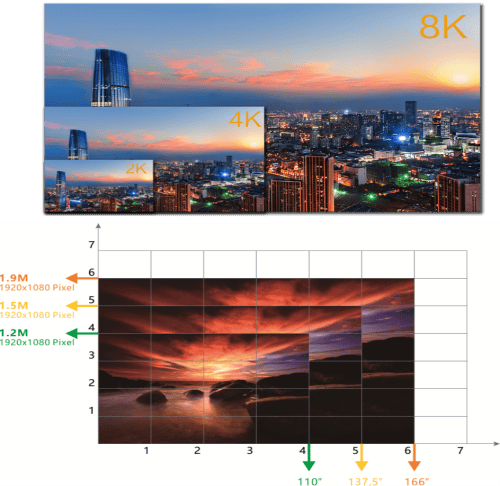

Golden Aspect Ratio（16：9）

When we build a screen with 2k, 4k, 8k or some other resolutions, we can still have a 16:9 screen aspect ratio.

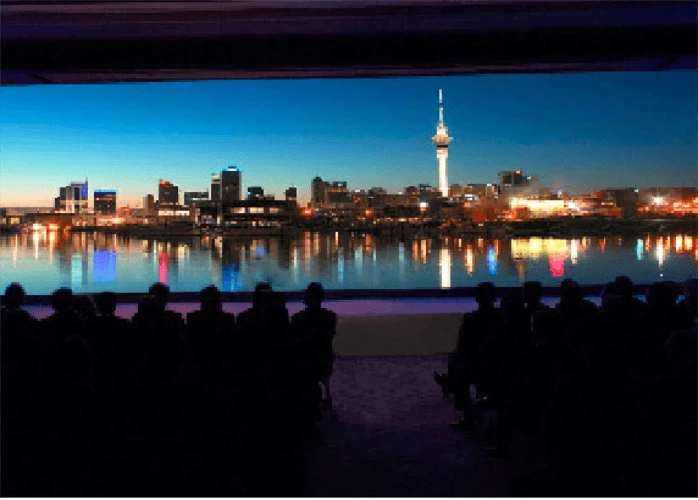

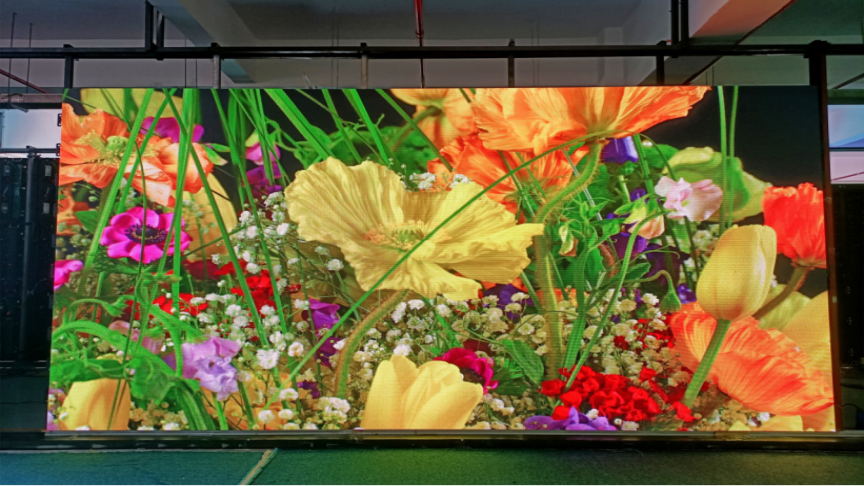

High Color Contrast Ratio and Enhancement of Sharpness, Brightness and Color

Our SP1 series has an excellent visual performance because we adopt high-quality black LED. The color contrast ratio is even better than 5,000:1. Armed with HDR technology and color enhancement technology, the white balance of the screen reaches a 100% sRGB and stunning visual performance. Even in high light environments the screen also looks very clear, and the visual effect looks perfect.

Advanced Visual Performance

To display the perfect image is not easy, but we persist in producing the high - quality image on the screen. After thousands of tests and improvements, the screen has reached the ideal value of each visual performance. Ultimate Refresh Rate The refresh rate of SP1 LED display is up to 3,840Hz. Best Gray Scale The refresh rate of SP1 LED display is up to 24bits.

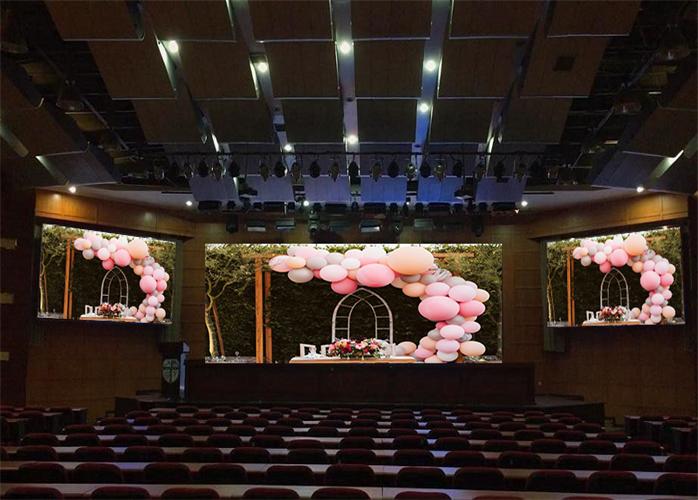

Application Fields

Meeting Room; TV Studio; Exhibition Center; Shopping Mall; Airport.

Parameter

Spec1 Spec2 Spec3

Item	P1.2	P1.5	P1.7
Pixel Pitch	1.27mm	1.58mm	1.793mm
LED Type	SMD1010	SMD1010	SMD1010
Module Resolution	120dots × 270dots	96dots × 216dots	85dots × 192dots
Driving Mode	1/45scan	1/27scan	1/32scan
Module Pixels	32,400dots	20,736dots	16,320dots
Module Size	152.43mm × 343.08mm	152.43mm × 343.08mm	152.43mm × 343.08mm
Cabinet Size	609.72mm × 343.08mm	609.72mm × 343.08mm	609.72mm × 343.08mm
Cabinet Resolution	480dots × 270dots	384dots × 216dots	340dots × 192dots
Pixel Density	619,757dots/㎡	400,576dots/㎡	312,100dots/㎡
Minimum Viewing Distance	≥1.2m	≥1.5m	≥1.7m
Brightness	800nits～1,200nits	800nits～1,200nits	800nits～1,200nits
IP Grade	IP43	IP43	IP43
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	14bits～24bits	14bits～24bits	14bits～24bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	350W/㎡	350W/㎡	350W/㎡
Average Power Consumption	100W/㎡	100W/㎡	100W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	6.5kg/panel	6.5kg/panel	6.5kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P1.9	P2.5
Pixel Pitch	1.905mm	2.54mm
LED Type	SMD1515	SMD2020
Module Resolution	80dots × 180dots	60dots × 135dots
Driving Mode	1/30scan	1/32scan
Module Pixels	14,400dots	8,100dots
Module Size	152.43mm × 343.08mm	152.43mm × 343.08mm
Cabinet Size	609.72mm × 343.08mm	609.72mm × 343.08mm
Cabinet Resolution	320dots × 180dots	240dots × 135dots
Pixel Density	275,556dots/㎡	155,000dots/㎡
Minimum Viewing Distance	≥1.9 m	≥2.5 m
Brightness	800nits～1,200nits	800nits～1,200nits
IP Grade	IP43	IP43
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	14bits～24bits	14bits～24bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	350W/㎡	350W/㎡
Average Power Consumption	100W/㎡	100W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	6.5kg/panel	6.5kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P1.9	P2.5
Pixel Pitch	1.905mm	2.54mm
LED Type	SMD1515	SMD2020
Module Resolution	80dots × 180dots	60dots × 135dots
Driving Mode	1/30scan	1/32scan
Module Pixels	14,400dots	8,100dots
Module Size	152.43mm × 343.08mm	152.43mm × 343.08mm
Cabinet Size	609.72mm × 343.08mm	609.72mm × 343.08mm
Cabinet Resolution	320dots × 180dots	240dots × 135dots
Pixel Density	275,556dots/㎡	155,000dots/㎡
Minimum Viewing Distance	≥1.9 m	≥2.5 m
Brightness	800nits～1,200nits	800nits～1,200nits
IP Grade	IP43	IP43
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	14bits～24bits	14bits～24bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	350W/㎡	350W/㎡
Average Power Consumption	100W/㎡	100W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	6.5kg/panel	6.5kg/panel
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
