P1.9,P2.6,P2.9 Outdoor Food Delivery LED Box

Product Description

Mobile LED Display for Delivery Box Advertising

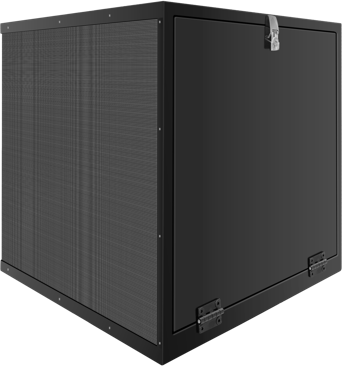

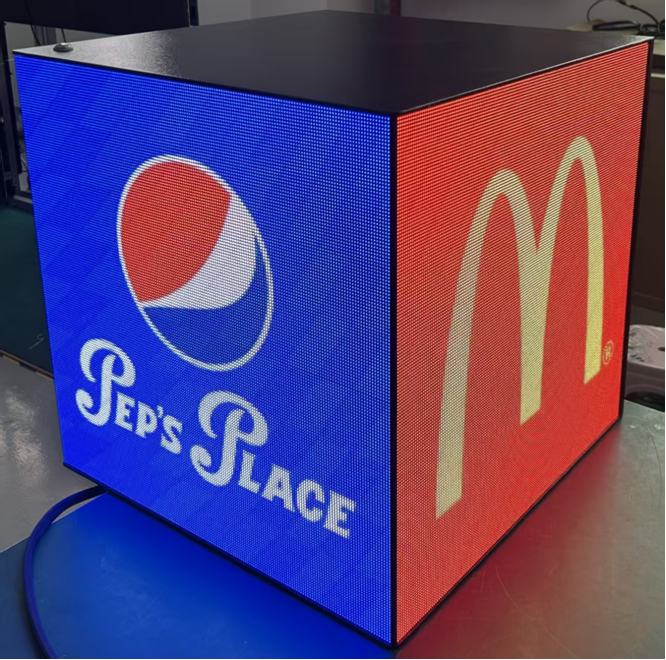

Cube X Max is a shock-resistant, IP65 waterproof 3-sided high-brightness outdoor mobile LED advertising screen for delivery boxes with optional GPS positioning playback.

Built for mobile media

Compact 3-sided LED display with robust structure and easy field maintenance.

Product positioning

Cube X Max is designed for outdoor delivery-box advertising, where high visibility, shock resistance, low power consumption and operational stability are critical.

Key Features

1.Purpose-built 3-sided LED screen for delivery box outdoor ads, with 500×500mm single-side display, 50mm thin cabinet and 28.6kg unit weight. 2.IP65 waterproof & dustproof enclosure, shock-resistant, low power consumption and stable performance. 3.Modular design for simple maintenance, lightweight and sturdy cabinet structure. 4.160° wide horizontal & vertical viewing angle for full traffic and pedestrian exposure.

Performance that travels

Designed to stay bright, stable and safe across real outdoor operating conditions.3500-4500 cd/m² brightness,≥3840HZ refresh rate ,14bits grayscale and DC9-36V vehicle power input.

SMART PLAYBACK

Location-based advertising made practical

GPS fixed-point playback can trigger different advertisements based on vehicle location, helping mobile media campaigns stay relevant to surrounding stores and streets.

Control options

1.Designed for flexible content update workflows: local update, network update or remote media operation can be configured according to project needs.2.GPS fixed-point playback must be confirmed before quotation because the control solution and price are different.

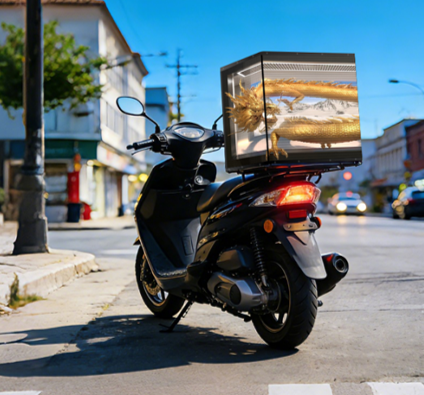

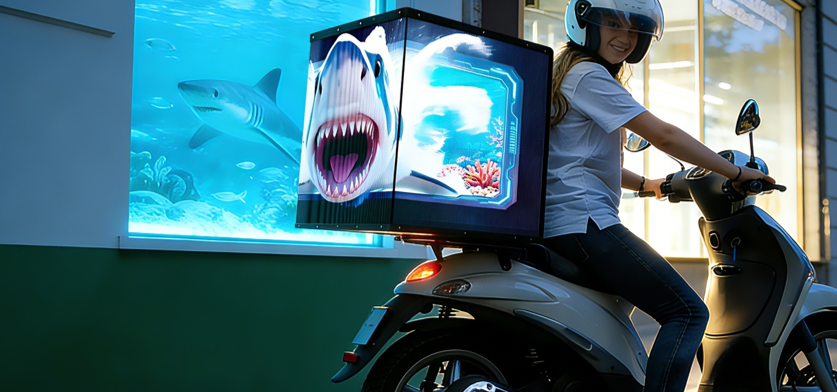

Application Fields

This product is usually used in:

Food delivery industry

Parameter

Spec1

Item	P1.9	P2.6	P2.9
Pixel Pitch	1.953mm	2.604mm	2.953mm
LED Type	MIP	SMD1415	SMD1415
Module Resolution	128dots × 128dots	96dots × 96dots	84dots × 84dots
Module Pixels	589,824 dots	303,104 dots	229,376 dots
Module Size	250mm x 250mm	250mm x 250mm	250mm x 250mm
Screen Size (one side)	500mm x 500mm	500mm x 500mm	500mm x 500mm
Screen Resolution (one side)	256dots × 256dots	192dots × 192dots	169dots × 169dots
unit Size(mm)	525 x 552 x 525 mm	525 x 552 x 525 mm	525 x 552 x 525 mm
Pixel Density	262,144dots/㎡	147,456 dots/㎡	112,896 dots/㎡
failure rate	<0.002%	<0.002%	<0.002%
Brightness	3,500-4,500nits	3,500-4500nits	3,500-4,500nits
IP Grade	IP65	IP65	IP65
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz
Gray Scale	14bits	14bits	14bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	＜230w/set	＜230w/set	＜230w/set
Average Power Consumption	＜80w/set	＜80w/set	＜80w/set
Input Voltage	DC 9V - 36V	DC 9V - 36V	DC 9V - 36V
LED lifetime	100,000 hours	100,000 hours	100,000 hours
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Box Material	FRP + Acrylic /Frosted	FRP + Acrylic /Frosted	FRP + Acrylic /Frosted
Cabinet Weight	28.6kg	28.6kg	28.6kg
Operating System	Wi-Fi / 4G optional	Wi-Fi / 4G optional	Wi-Fi / 4G optional
