Flexible Led Display FL Series P1.9, P2.5, P3.8

Product Description

Cabinet Design

Flexible rental LED display refers to an LED display designed for many situations. Flexible rental LED displays feature a modular design that can be easily connected and configured into various sizes and shapes, such as arc (inner and outer arc), cylindrical or irregular shapes. It is the best choice for various stages now. Our FX Series display offers unparalleled flexibility, allowing for smooth convex and concave curves without any flat sections. Perfect for creating dynamic, eye-catching displays.

Flexible Feature

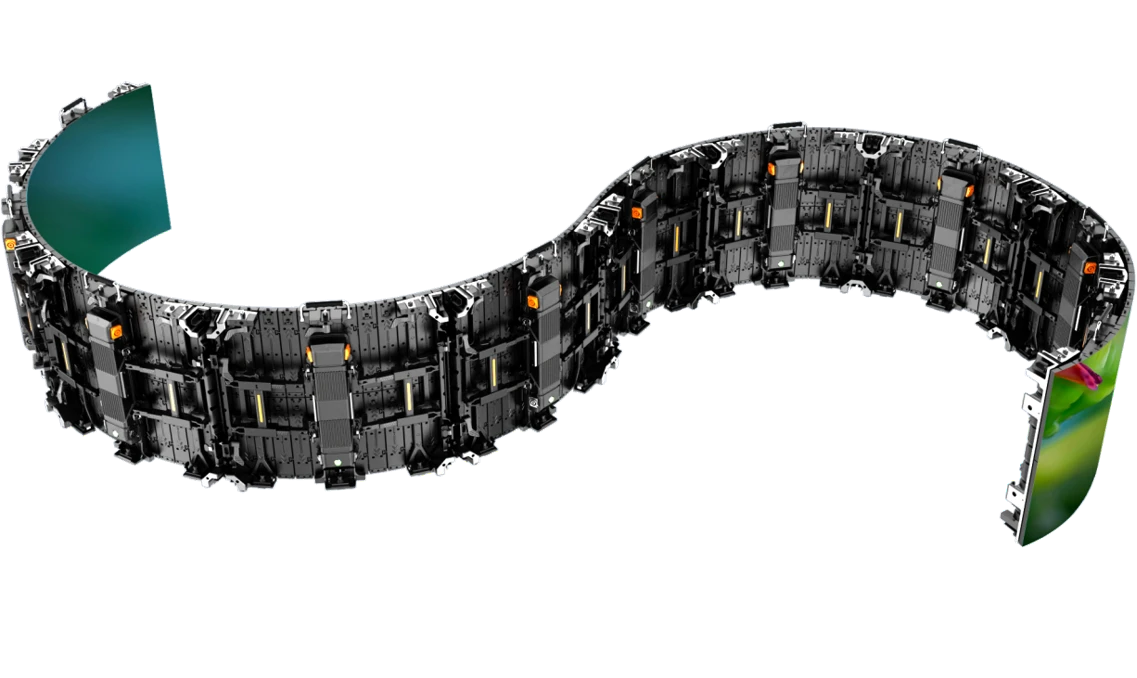

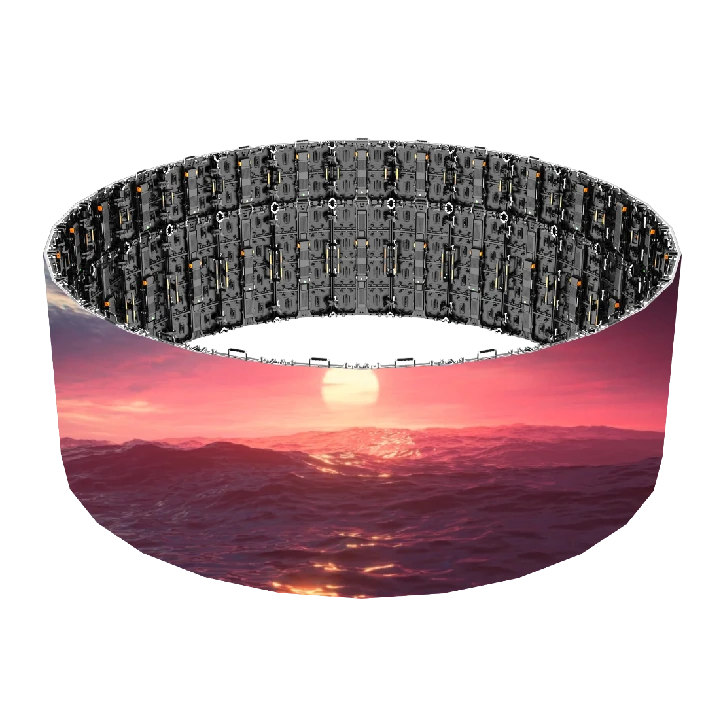

A flexible LED display, flexible is one of its features, is a type of display technology that can be bent or curved to fit various shapes and surfaces. It offers versatility and the ability to create unique and eye-catching visual installations. Flexible LED displays come in two different styles, the convex and the concave LED displays and 8 cabinets can make a circle. For unique design and aesthetic taste, the flexible LED display screen has a unique and eye-catching appearance. Its fashionable and modern design adds a touch of exquisiteness to any environment, whether it is a home theater, a game room or a corporate environment.

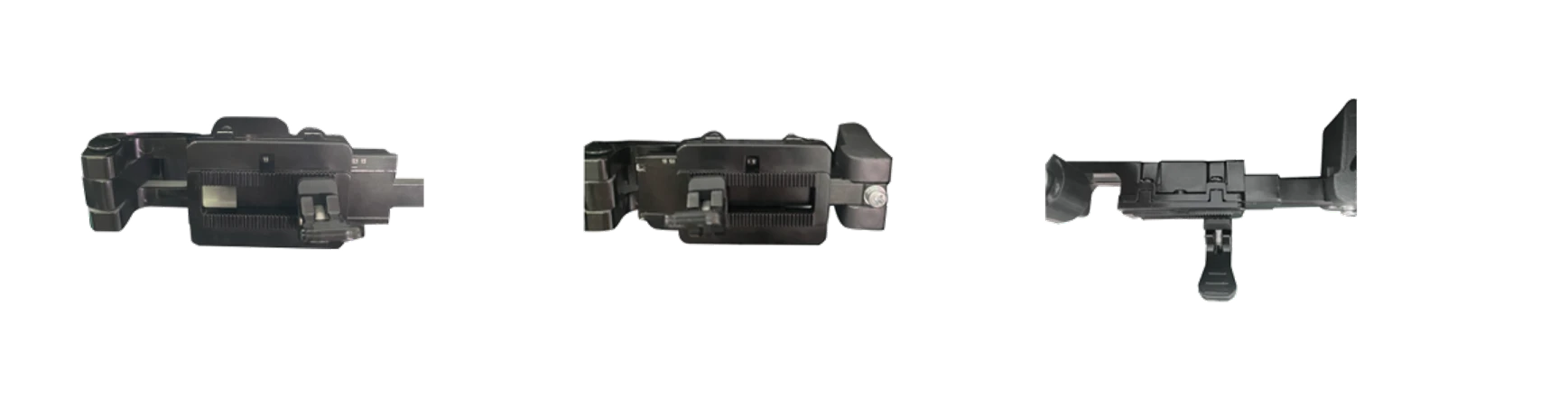

Curved lock

Curved lock is very secure and strong. It can be designed to be curved to form a curved screen from -15°(convex) to +15°(concave). This innovative curved connection lock design not only significantly enhances the functionality of the rental LED screen, but also enables it to install in many situation. The curved shape enhances the viewing experience by wrapping the visuals around the viewer, creating a more immersive and engaging presentation.

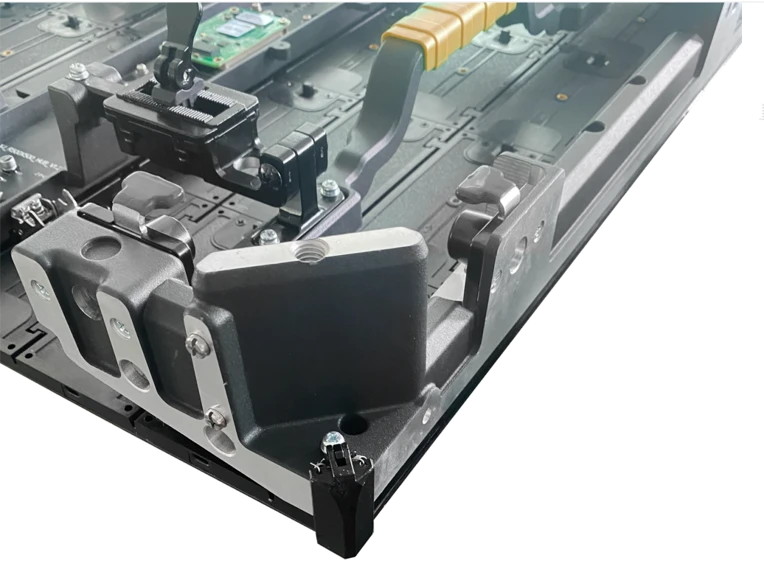

High Protection Corner

Intelligent corner protection module, all-round protection module, anti-collision, less maintenance. The corner protection can make the installation safer and less likely to be broken. With the corner protection, the installation is also more convenience. This is really a useful feature of our FX series.

Front Access Service

The front maintenance mode does not need to leave a maintenance channels, supports independent front maintenance, and saves the maintenance space on the back of the monitor. It does not need to dissamble the wire, support fast maintenance work, disassembly is simpler and more convenient. It can achieve greater use of environmental space and reduce the difficulty of post-maintenance work.

Application Fields

In order to fit each different scene, the flexible LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in:

Activity Stages; Exhibition hall; XR virtual shooting; Sports Events.

Parameter

Spec1 Video

Item	P2.6	P2.9
Pixel Pitch	2.604mm	2.976mm
LED Type	SMD1515	SMD1515
Module Resolution	96dots x 96dots	84dots x 84dots
Driving Mode	1/32scan	1/28scan or 1/42scan
Module Pixels	9,216dots	7,056dots
Module Size	250mm x 250mm	250mm x 250mm
Cabinet Size	500mm x 500mm	500mm x 500mm
Cabinet Resolution	192dots x 192dots	168dots x 168dots
Pixel Density	147,456dots/m²	112,896dot/m²
Minimum Viewing Distance	≥2.6m	≥2.9m
Brightness	600nits~800nits	600nits~800nits
IP Grade	IP43	IP43
Refresh Rate	3,840Hz~7,680Hz	3,840Hz~7,680Hz
Gray Scale	14bits~22bits	14bits~22bits
Viewing Angle	H:160°/V:160°	H:160°/V:160°
Maximum Power Consumption	520W/m²	520W/m² or 300W/m²
Average Power Consumption	175W/m²	175W/m² or 100W/m²
Cabinet Weight	7.5kg/panel	7.5kg/panel or 14kg/panel
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum
Input Voltage	AC110V~AC220V @ 50Hz/60Hz	AC110V~AC220V @ 50Hz/60Hz
Operating Temperature	﹣20℃~65℃	﹣20℃~65℃
Operating Humidity	10%~90%	10%~90%
Operating System	Windows(Win7,Win8,etc.)	Windows(Win7,Win8,etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
