IF Pro

Product Description

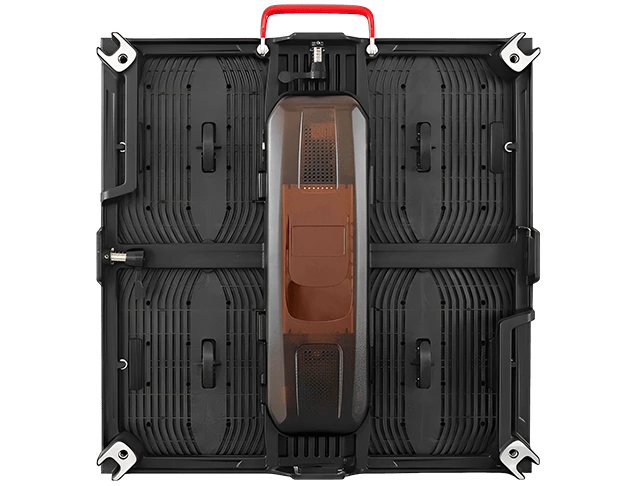

Die-Casting Aluminum Design

As customers have higher requirements for LED displays, more and more cabinets have been developed to meet market demands. Compared with the traditional bulky cabinet, the die-casting aluminum cabinet with humanized design is stronger, more light-weight and precise. This LED panel is highly praised for better user experience. The pixel pitches of this LED screen are SMD P1.9, P2.6, P2.9 and P3.9.

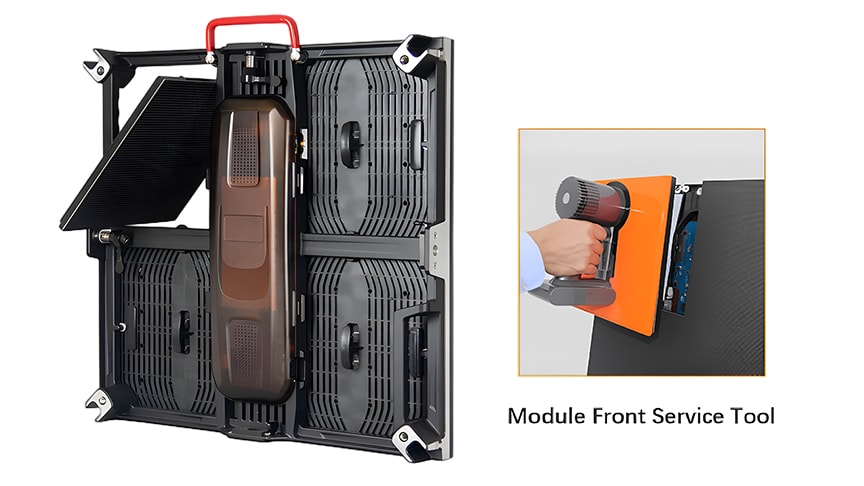

Front and Rear Access Design

All electrical components: power supply, receiving card, and data cable are easily accessed from the front or back of the LED display. This design feature allows for direct wall mount installation.

Flexible Installations&Accessories

Flat mounting or embedded installation Stack or back structure installation Kinds of universal accessories for options Recycling paper or wooden boc packing, enviroment friendly

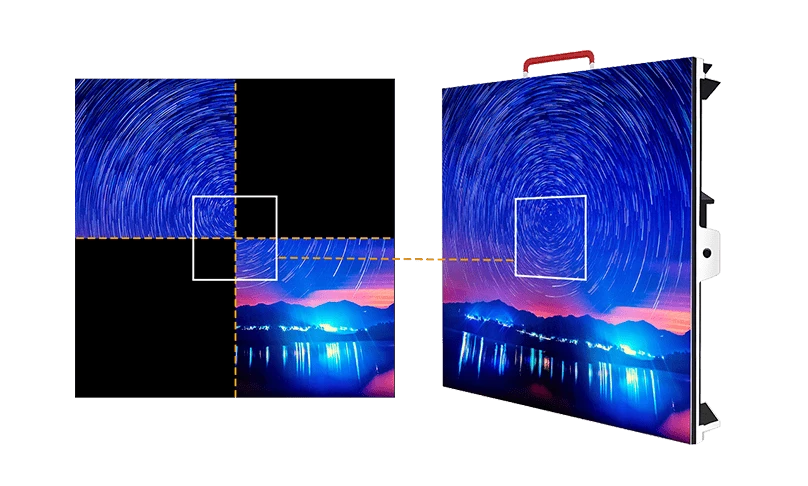

Calibration Data Storage

Calibration data can be stored in every module. When replacing defected modules with new modules, receiving card will read back calibration data from new modules. It prevents color and brightness difference after module replacement.

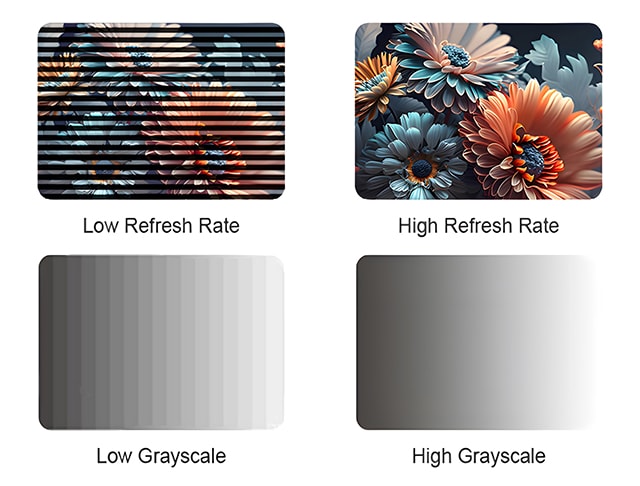

Advanced Visual Performance

They’re achieved by an industry setting display refresh rate of 3,840Hz combined with a Grey Scale performance that reaches 18 bits luminance intensity.

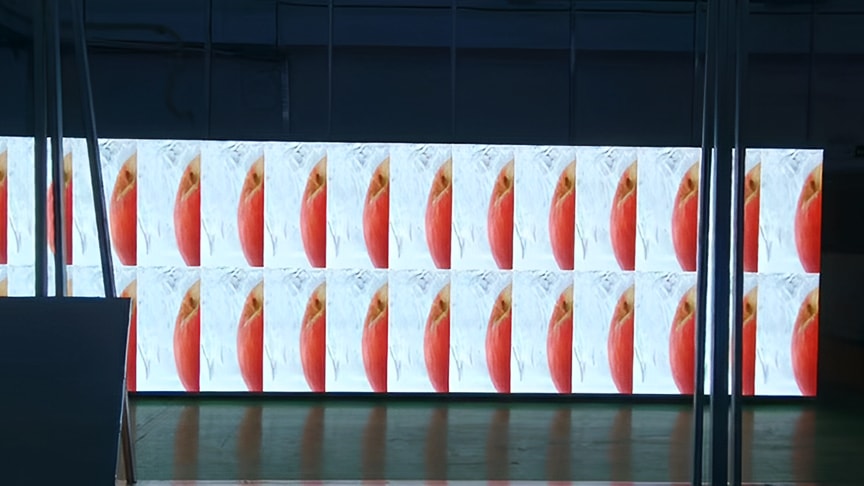

Wide View Angle

The view angle of IF Pro series is 160°. Images can be seen clearly from different directions. At the range of viewing angle, there will be no square, modularity.

Application Files

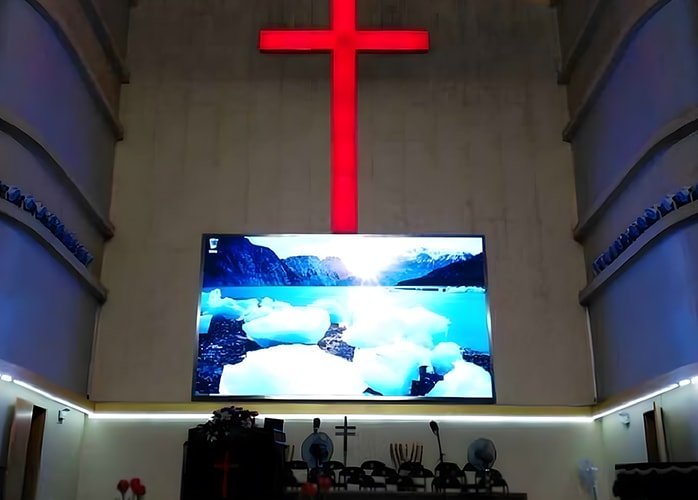

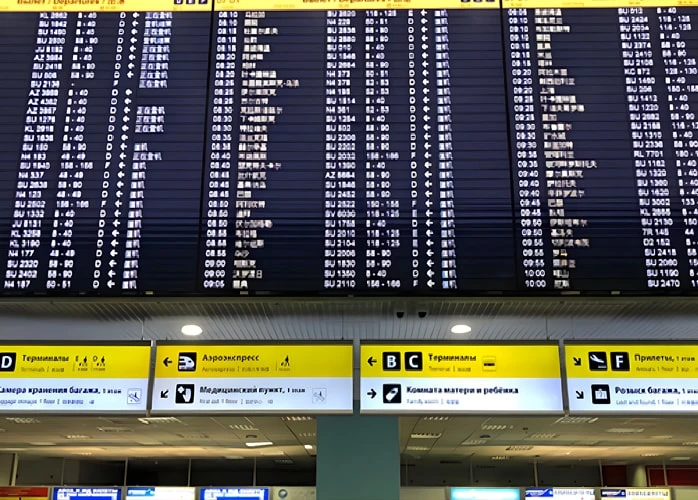

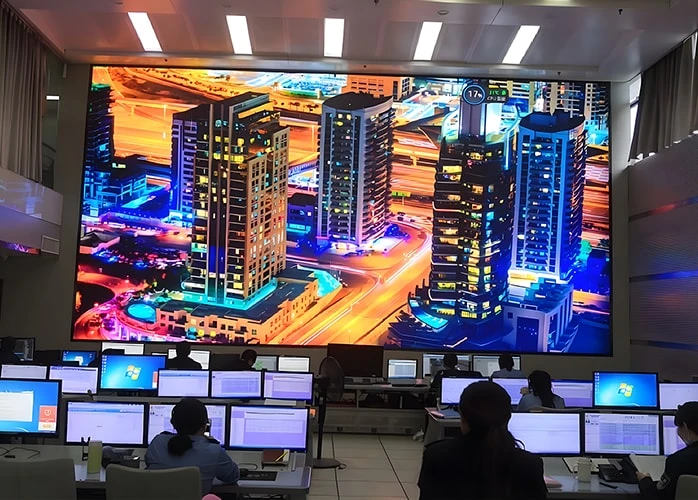

This indoor LED panel is usually be used for:

Parameter

Spec1 Spec2 Spec3

Item	P1.9	P2.6	P2.9
Pixel Pitch	1.953mm	2.604mm	2.976mm
LED Type	SMD1515	SMD1515	SMD1515
Module Resolution	128dots × 128dots	96dots × 96dots	84dots × 84dots
Driving Mode	1/32scan	1/32scan	1/28scan
Module Pixels	16384dots	9216dots	7056dots
Module Size	250mm × 250mm	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm x 500mm	500mm x 500mm	500mm x 500mm
Cabinet Resolution	65536dots	36864dots	28224dots
Pixel Density	262144dots/㎡	147456dots/㎡	123904dots/㎡
Minimum Viewing Distance	≥1.9m	≥2.6m	≥2.9m
Brightness	800nits～1,000nits	800nits～1,000nits	800nits～1,000nits
IP Grade	IP43	IP43	IP43
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	13bits～18bits	13bits～18bits	13bits～18bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	580W/㎡	580W/㎡	580W/㎡
Average Power Consumption	190W/㎡	190W/㎡	190W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	6kg/panel	6kg/panel	6kg/panel
Operating System	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P2.6	P2.9	P3.9
Pixel Pitch	2.604mm	2.976mm	3.91mm
LED Type	SMD1515	SMD1515	SMD2121
Module Resolution	96dots × 96dots	84dots × 84dots	64dots × 64dots
Driving Mode	1/32scan	1/28scan	1/32scan
Module Pixels	9216dots	7056dots	4096dots
Module Size	250mm × 250mm	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm x 500mm	500mm x 500mm	500mm x 500mm
Cabinet Resolution	36864dots	28224dots	16384dots
Pixel Density	147456dots/㎡	123904dots/㎡	65536dots/㎡
Minimum Viewing Distance	≥2.6m	≥2.9m	≥3.9m
Brightness	800nits～1,000nits	800nits～1,000nits	800nits～1,000nits
IP Grade	IP43	IP43	IP43
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	13bits～18bits	13bits～18bits	13bits～18bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	580W/㎡	580W/㎡	540W/㎡
Average Power Consumption	190W/㎡	190W/㎡	180W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	6kg/panel	6kg/panel	6kg/panel
Operating System	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.

Item	P2.6	P2.9	P3.9
Pixel Pitch	2.604mm	2.976mm	3.91mm
LED Type	SMD1515	SMD1515	SMD2121
Module Resolution	96dots × 96dots	84dots × 84dots	64dots × 64dots
Driving Mode	1/32scan	1/28scan	1/32scan
Module Pixels	9216dots	7056dots	4096dots
Module Size	250mm × 250mm	250mm × 250mm	250mm × 250mm
Cabinet Size	500mm x 500mm	500mm x 500mm	500mm x 500mm
Cabinet Resolution	36864dots	28224dots	16384dots
Pixel Density	147456dots/㎡	123904dots/㎡	65536dots/㎡
Minimum Viewing Distance	≥2.6m	≥2.9m	≥3.9m
Brightness	800nits～1,000nits	800nits～1,000nits	800nits～1,000nits
IP Grade	IP43	IP43	IP43
Refresh Rate	1,920Hz～3,840Hz	1,920Hz～3,840Hz	1,920Hz～3,840Hz
Gray Scale	13bits～18bits	13bits～18bits	13bits～18bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	580W/㎡	580W/㎡	540W/㎡
Average Power Consumption	190W/㎡	190W/㎡	180W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz	AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature	﹣20℃～65℃	﹣20℃～65℃	﹣20℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	6kg/panel	6kg/panel	6kg/panel
Operating System	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)	Windows (Win7,Win8,etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
