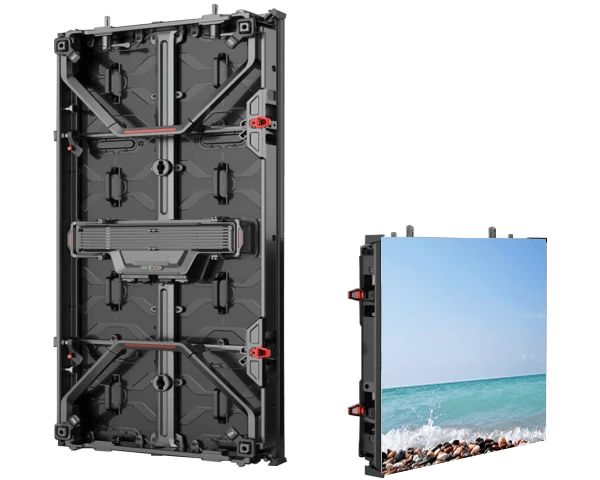

IR Ultra

IR Ultra

High-grade Indoor Rental LED display-P1.9, P2.6, P2.9, P3.9

Excellent and safe module design

Easy maintenance and good cooling design

Corner protector and climbable handle

Light weight

Optimized curve lock and no black-lines design

3840Hz refresh rate

Excellent and safe module design

To meet different needs of live events projects, our IR Ultra series uses front and rear module maintenance design.

Armed with N52 type strong magnets on the LED modules, the LED panel will be more secured.

The pixel pitch P1.9, P2.6, P2.9 and P3.9 are available.

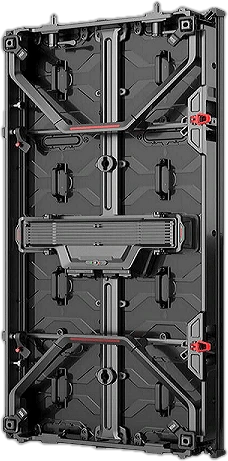

Easy maintenance and good cooling design

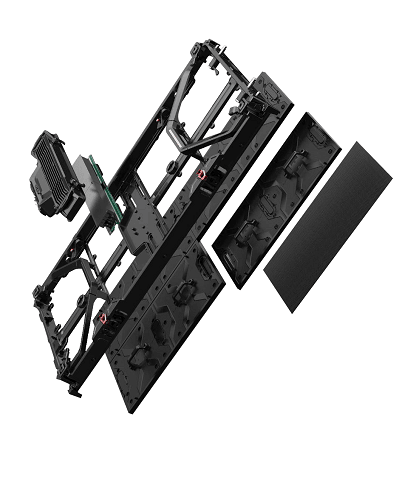

Beside the magnetic module design, all components like receiving cards, hub board, power supply, and other accessories are in a detachable box which can be swapped out in few seconds. This greatly reduces the “downtime” during the event.What's more, heat sink strips are on the backside of the control box, which helps to cool the power supply quicker.

L-shaped corner protector and climbable handle

Each corner has a L-shaped metal gadget. When you press the tricker, the metal gadget will cover the LED module’s corner and protect the LED from crash during the transportation or tear-down.The strong handle can be used as a ladder to climb up for fixing the problems if the faulty LED panel is several meters off the ground.

Light weight

This panel has1000x500mm cabinet design. And 1000x500mm cabinet only weighs 13.5kg, which eases your installation work.

Optimized curve lock and no black-lines design

The curve locks use rotating design and support the curve from -15 degree to 15 degree. The lock fastens the cabinet more firmly and rapidly.There are soft strips on the left and right side of the panel. They block the light from the back of the screen, so the screen won’t appear black lines caused by the gaps between the panels.

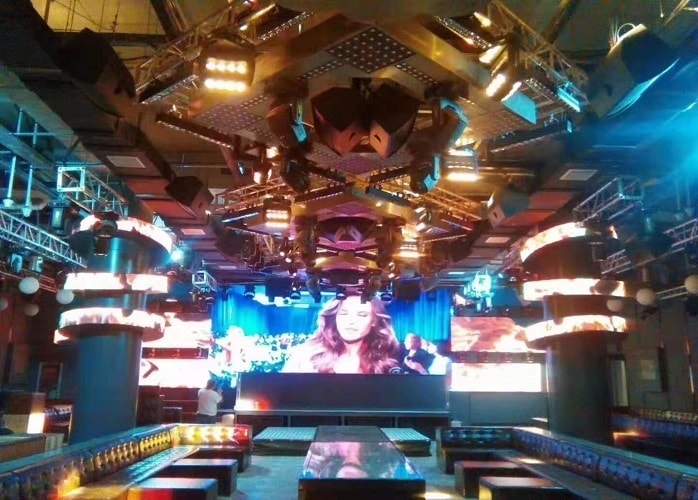

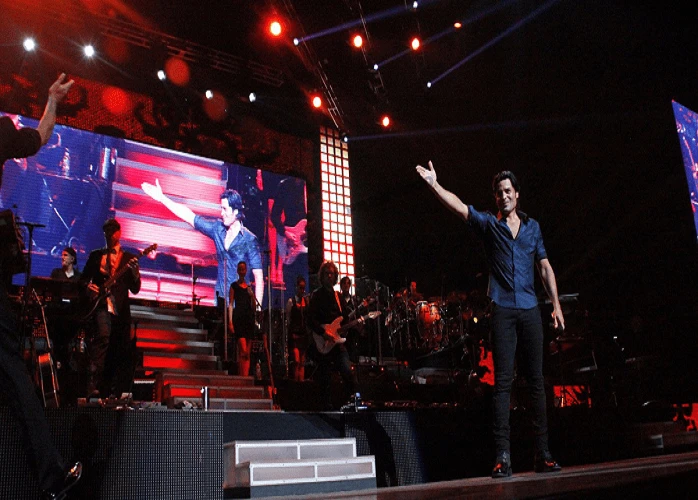

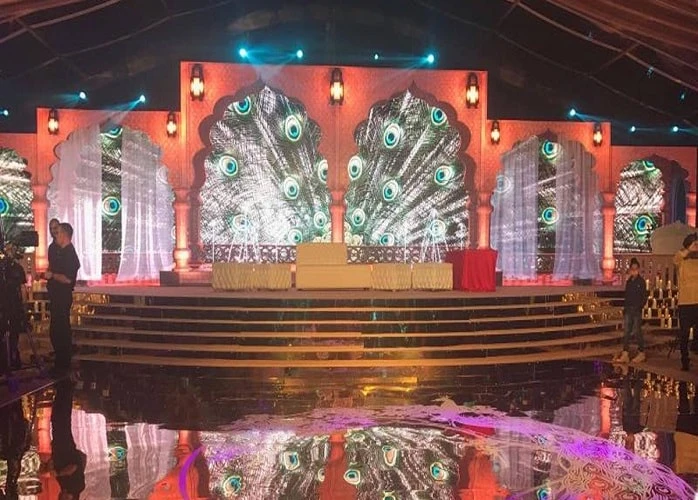

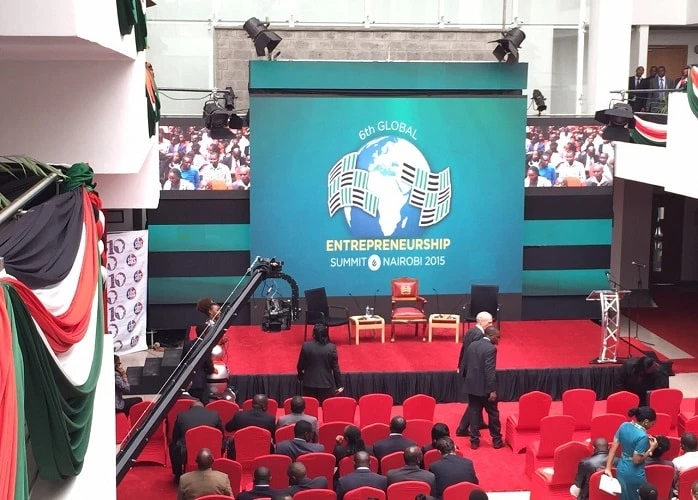

Application Fields

To fit every different scene, our products utilize superior materials with the concise and strong structure. This product is usually used in:

Wedding; Shows; Advertisements.



Parameter

Item P1.9 P2.6 P2.9 P3.9
Pixel Pitch  1.953mm 2.604mm 2.976mm 3.906mm
LED Type  SMD 1515 SMD1515 SMD2020  SMD2020
Module Resolution  128dots × 128dots 96dots × 96dots 84dots × 84dots 128dots × 64dots
Driving Mode  1/32scan 1/32scan 1/28scan 1/16scan
Module Pixels  16,384dots 9,216dots  7,056dots  4,096dots
Module Size  250mm × 250mm 250mm × 250mm  250mm × 250mm  500mm × 250mm
Cabinet Size  500mm × 1,000mm 500mm × 1,000mm 500mm × 1,000mm 500mm × 1,000mm
Cabinet Resolution  256dots × 512dots   192dots × 384dots 168dots × 336dots 128dots × 256dots
Pixel Density  262,144dots/㎡ 147,456dots/㎡ 112,896dots/㎡ 65,536dots/㎡
Minimum Viewing Distance  ≥1.9m ≥2.6 m ≥2.9 m ≥3.9m
Brightness  ≥600nits 800nits~1,200nits 800nits~1,200nits 800nits~1,200nits
IP Grade  IP43 IP43 IP43 IP43
Refresh Rate  1,920Hz~3,840Hz 1,920Hz~3,840Hz 1,920Hz~3,840Hz 1,920Hz~3,840Hz
Gray Scale  13bits~24bits 13bits~24bits 13bits~24bits 13bits~24bits
Viewing Angle  H:160° / V:160° H:160° / V:160° H:160° / V:160° H:160° / V:160°
Maximum Power Consumption   650W/㎡ 560W/㎡ 560W/㎡ 560W/㎡
Average Power Consumption 200W/㎡ 160W/㎡ 160W/㎡ 160W/㎡
Input Voltage  AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature  ﹣20℃~65℃  ﹣20℃~65℃  ﹣20℃~65℃  ﹣20℃~65℃
Operating Humidity 10%~90% 10%~90% 10%~90% 10%~90%
Cabinet Material Die-casting Aluminum Die-casting Magnalium Die-casting Magnalium Die-casting Magnalium
Cabinet Weight  14kg/panel 14kg/panel 14kg/panel 14kg/panel
Operating System  Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility  DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
