IR2 Pro
Indoor LED Panel for Rental-P1.9, P2.5, P2.6, P2.9, P3.9 & P4.8
Light Weight
Excellent Protection Gadgets
Easy Maintenance
Great Gray Scale
Aluminum Material
Strong Back Handle
Excellent Refresh Rate
Various Shapes
As the cabinet uses aluminum material, the weight of the panel is only 9 kgs, and it has great heat dissipation.

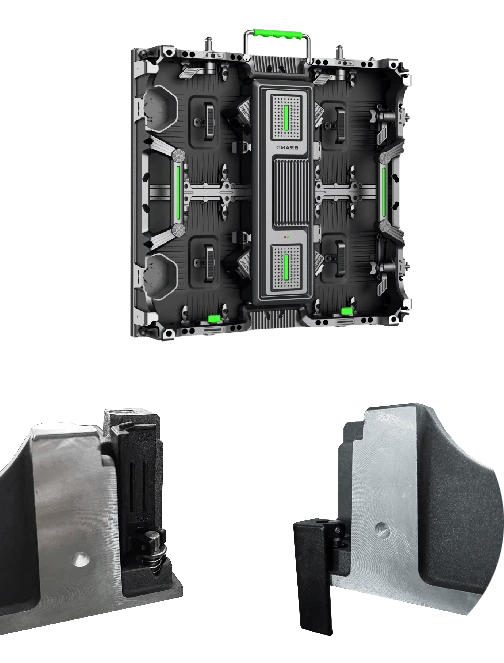

Handle on the top brings convenience. A safety device on the lock in case the locks slide off by itself.
Strong back handle. Strong double locks on the side.
The panel has anti-collision protection design. Two options: 500*500mm, 500*1,000mm.
The panel has anti-collision design. There are anti-collision protectors at each corner of the panel to prevent the panel and modules from hitting the floor or hard objects and damaging them. Meanwhile, it also has strong and safety locking system. It can be easily and quickly assemble and disassemble, with fast lock design.
Front access design is used in this panel. The module's slim shape makes it even much easier to maintain. The receiving card, power supply, and hub card are built in a control box in the back of the cabinet. If there is any problem with the LED panel, you can check the whole control box in a short time.
IR2 Pro LED wall captures the audience's attention and creates unforgettable experience using its excellent video performance. Meanwhile, black LED is adopted as well, and the color contrast of the screen is amazing. Ultimate Refresh Rate:Refresh rate of this kind of LED billboard can be up to 3,840Hz;Great Gray Scale:Gray scale of this kind of LED signage can be (13bits-24bits).
The lock is very secure and strong. It can be designed to be curved from -5°(convex) to +5°(concave).
IR2 Pro LED display with high reliability. Thanks to the high-tech module design, the LED is well connected with the PCB, so it is very reliable in any curved shape.The screen is able to be assembled to form the following shapes: curved wall, curved design, round shape, irregular design.
To fit every different scene, our products utilize superior materials with the concise and strong structure. This product is usually used in:
Staing Events; XR Studio; Concerts.
Item | P1.9 | P2.5 | P2.6 |
---|---|---|---|
Pixel Pitch | 1.953mm | 2.5mm | 2.604mm |
LED Type | SMD1515 | SMD2020 | SMD2020 |
Module Resolution | 128dots × 128dots | 100dots × 100dots | 96dots × 96dots |
Driving Mode | 1/32scan | 1/25scan | 1/24scan |
Module Pixels | 16,384dots | 10,000dots | 9,216dots |
Module Size | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm |
Cabinet Size | 500mm × 500mm | 500mm × 500mm | 500mm × 500mm |
Cabinet Resolution | 256dots × 256dots | 200dots × 200dotss | 192dots × 192dots |
Pixel Density | 262,144dots/㎡ | 160,000dots/㎡ | 147,456dots/㎡ |
Minimum Viewing Distance | ≥1.9 m | ≥2.5m | ≥2.6 m |
Brightness | 800nits~1,200nits | 800nits~1,200nits | 800nits~1,200nits |
IP Grade | IP43 | IP43 | IP43 |
Refresh Rate | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz |
Gray Scale | 13bits~24bits | 13bits~24bits | 13bits~24bits |
Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
Maximum Power Consumption | 100W/panel | 100W/panel | 100W/panel |
Average Power Consumption | 65W/panel | 65W/panel | 65W/panel |
Input Voltage | AC110V~AC220V @ 50Hz / 60Hz | AC110V~AC220V @ 50Hz / 60Hz | AC110V~AC220V @ 50Hz / 60Hz |
Operating Temperature | ﹣20℃~65℃ | ﹣20℃~65℃ | ﹣20℃~65℃ |
Operating Humidity | 10%~90% | 10%~90% | 10%~90% |
Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
Cabinet Weight | 9kg/panel | 9kg/panel | 9kg/panel |
Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
Item | P2.9 | P3.9 | P4.8 | |
---|---|---|---|---|
Pixel Pitch | 2.976mm | 3.906mm | 4.807mm | |
LED Type | SMD2020 | SMD2020 | SMD2020 | |
Module Resolution | 84dots × 84dots | 64dots × 64dots | 52dots × 52dots | |
Driving Mode | 1/24scan | 1/16scan | 1/13scan | |
Module Pixels | 7,056dots | 4,096dots | 2,704dots | |
Module Size | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm | |
Cabinet Size | 500mm × 500mm | 500mm × 500mm or 500mm × 1,000mm | 500mm × 500mm or 500mm × 1,000mm | |
Cabinet Resolution | 168dots × 168dotss | 128dots × 128dots or 128dots × 256dots | 104dots × 104dots or 104dots × 208dots | |
Pixel Density | 112,896dots/㎡ | 65,536dots/㎡ | 43,264dots/㎡ | |
Minimum Viewing Distance | ≥2.9 m | ≥3.9m | ≥4.8m | |
Brightness | 800nits~1,200nits | 800nits~1,200nits | 800nits~1,200nits | |
IP Grade | IP43 | IP43 | IP43 | |
Refresh Rate | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | |
Gray Scale | 13bits~24bits | 13bits~24bits | 13bits~24bits | |
Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | |
Maximum Power Consumption | 100W/panel | 100W/panel | 100W/panel | |
Average Power Consumption | 65W/panel | 65W/panel | 65W/panel | |
Input Voltage | AC110V~AC220V @ 50Hz / 60Hz | AC110V~AC220V @ 50Hz / 60Hz | AC110V~AC220V @ 50Hz / 60Hz | |
Operating Temperature | ﹣20℃~65℃ | ﹣20℃~65℃ | ﹣20℃~65℃ | |
Operating Humidity | 10%~90% | 10%~90% | 10%~90% | |
Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | |
Cabinet Weight | 9kg/panel | 9kg/panel or 14kg/panel | 9kg/panel or 14kg/panel | |
Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | |
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
Item | P2.9 | P3.9 | P4.8 |
---|---|---|---|
Pixel Pitch | 2.976mm | 3.906mm | 4.807mm |
LED Type | SMD2020 | SMD2020 | SMD2020 |
Module Resolution | 84dots × 84dots | 64dots × 64dots | 52dots × 52dots |
Driving Mode | 1/24scan | 1/16scan | 1/13scan |
Module Pixels | 7,056dots | 4,096dots | 2,704dots |
Module Size | 250mm × 250mm | 250mm × 250mm | 250mm × 250mm |
Cabinet Size | 500mm × 500mm | 500mm × 500mm or 500mm × 1,000mm | 500mm × 500mm or 500mm × 1,000mm |
Cabinet Resolution | 168dots × 168dots | 128dots × 128dots or 128dots × 256dots | 104dots × 104dots or 104dots × 208dots |
Pixel Density | 112,896dots/㎡ | 65,536dots/㎡ | 43,264dots/㎡ |
Minimum Viewing Distance | ≥2.9 m | ≥3.9m | ≥4.8m |
Brightness | 800nits~1,200nits | 800nits~1,200nits | 800nits~1,200nits |
IP Grade | IP43 | IP43 | IP43 |
Refresh Rate | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz |
Gray Scale | 13bits~24bits | 13bits~24bits | 13bits~24bits |
Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
Maximum Power Consumption | 100W/panel | 100W/panel | 100W/panel |
Average Power Consumption | 65W/panel | 65W/panel | 65W/panel |
Input Voltage | AC110V~AC220V @ 50Hz / 60Hz | AC110V~AC220V @ 50Hz / 60Hz | AC110V~AC220V @ 50Hz / 60Hz |
Operating Temperature | ﹣20℃~65℃ | ﹣20℃~65℃ | ﹣20℃~65℃ |
Operating Humidity | 10%~90% | 10%~90% | 10%~90% |
Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
Cabinet Weight | 9kg/panel | 9kg/panel or 14kg/panel | 9kg/panel or 14kg/panel |
Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. |
