COB Flexible LED Screens Explained in a Straightforward Buying Guide

When display surfaces start to curve, most traditional LED panels fall short. That's where COB flexible LED screens come in—not as a futuristic concept, but as a practical solution already being used in retail stores, exhibition halls, and creative installations. This guide takes a close look at what they are, what makes them different, where they perform best, and how to choose the right one for your project.

1. What Is a COB Flexible LED Screen

1.1 COB Technology Meets Flexibility

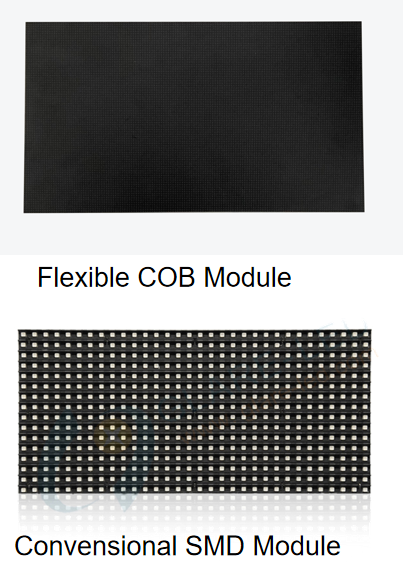

COB, or Chip-on-Board, is a display packaging method where multiple LED chips are mounted directly onto the surface of a PCB board. Unlike traditional SMD displays where each pixel is separately soldered, COB groups multiple chips closely together, forming a seamless surface that improves contrast, brightness, and durability. This setup reduces the number of soldering points, thereby increasing long-term stability and reducing maintenance issues.

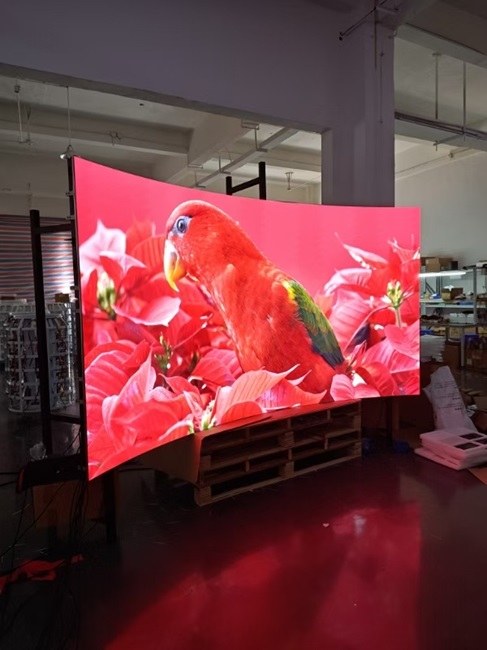

What makes the COB flexible LED screen different is not just the COB structure, but the base material that allows it to bend. Built on a highly pliable and lightweight soft PCB, these modules can be gently curved, wrapped around cylindrical surfaces, or fitted into non-traditional spaces. They maintain the same brightness and image quality even when installed on a concave or convex surface.

1.2 More Than Just a Flexible Panel

Calling it “flexible” only scratches the surface. These panels are engineered to adapt—literally and structurally—to what traditional rigid LED panels can't handle. They're soft enough to bend but strong enough to hold shape once installed. They're thin, often around 7–8mm, and offer an edge-to-edge LED surface with no lamp bead protrusion, which contributes to a smoother appearance. That makes them ideal for visual solutions where curves, corners, or custom geometries define the space.

If you're dealing with a display surface that doesn't conform to straight lines, COB flexible LED screens give you a new level of freedom without sacrificing visual impact or reliability.

2. Advantages of COB Flexible LED Screens

2.1 Visually Consistent, Even on a Curve

Because the LED chips are densely packed and uniformly coated, COB flexible screens offer a consistent brightness and color balance across the entire surface. There's no visible seam between modules, and color shift is minimal even when viewed from an angle. Even when curved, the screen retains uniform resolution and smooth transitions between panels.

This kind of consistency is particularly important in commercial settings, where uneven brightness or jagged seams can ruin the intended visual effect. Whether it's a product showcase, a brand activation wall, or a panoramic display, image uniformity is non-negotiable—and COB soft modules deliver on that.

2.2 Tough Enough for Public Environments

COB modules are inherently more durable than traditional SMD ones. Since the chips are embedded and covered by a layer of protective resin, the LED surface is better protected against collision, dust, and humidity. There's no exposure of delicate lamp beads. This means that these displays are much less vulnerable to casual damage, even when installed in high-traffic areas like retail stores or transportation hubs.

Additionally, COB flexible screens generate less heat, and most designs don't require active cooling systems like fans. This allows them to operate quietly and efficiently over long periods, reducing both noise and power consumption—benefits that pay off in the long run.

2.3 Modular and Easy to Maintain

Despite their flexibility, these panels maintain a modular design. Individual units can be replaced or serviced without disassembling the entire structure. Installation structures can be tailored to fit the screen curvature, and magnets or brackets are often used to allow for quick front or rear maintenance access.

This balance of flexibility and serviceability makes COB soft LED panels a solid choice not just for creative installations, but for projects where time and operational downtime matter.

2.4 Key Specifications of PTCLED COB Flexible LED Screens

3. Where COB Flexible Screens Work Best

3.1 Retail Spaces and Commercial Interiors

In stores, visual branding needs to grab attention without cluttering the space. COB flexible displays can wrap around columns, follow ceiling curves, or even be embedded into furniture. They allow designers to create focal points in otherwise awkward spaces, maximizing both visual impact and usable floor area.

For example, in a cosmetics flagship store, a curved LED wall behind a product display can convey animated brand visuals without flat screens breaking the aesthetic. And since the modules are compact and lightweight, they don't demand major structural changes to existing interiors.

3.2 Museums, Exhibitions, and Public Installations

When you want to tell a story visually—especially in a limited space—COB soft screens shine. Their ability to conform to architectural elements makes them ideal for museum walls, cylindrical information kiosks, or immersive tunnels in exhibition halls.

Since the visuals can flow naturally with the space's geometry, the content becomes part of the environment rather than something added to it. Combined with the COB screen's fine pixel pitch and brightness uniformity, even close-up viewers can enjoy rich details without visual fatigue.

3.3 Stages and Entertainment Venues

Whether used on concert stages, in theaters, or for corporate events, these screens adapt to stage design elements in ways traditional panels simply can't. Need a video wall that bends around a DJ booth? Or a semi-spherical display to simulate a planet in a science show? COB flexible modules are purpose-built for these challenges.

Their portability and slim profile also reduce stage build time, and the lack of exposed beads lowers the risk of damage during transport and setup.

4. Key Considerations Before You Buy

4.1 Match Pixel Pitch with Viewing Distance

Flexible doesn't mean “one size fits all.” You still need to match the pixel pitch to your audience's viewing distance. PTCLED's COB flexible series offers options like P1.875 and P2.5, which are suitable for close-range indoor use. Choosing the wrong pitch can result in pixelation or unnecessary costs. If your audience is typically within 3–5 meters of the screen, a smaller pixel pitch is ideal.

4.2 Ensure Compatibility with Your Control System

Make sure your existing video processor and software can support the screen's resolution and format. Some creative displays require non-standard resolutions or configurations, which means you'll want to check whether the screen supports flexible splicing and standard input formats like HDMI, DVI, or SDI.

Also consider whether your content will be static, animated, or interactive, as that can influence the kind of controller and refresh rate required.

4.3 Plan for Power and Signal Layout

Because these modules can bend, their cabling paths are not as straightforward as rigid displays. Proper planning is key. You need to ensure enough signal integrity across curved surfaces and anticipate any signal loss due to cable distance or tight turns.

PTCLED's COB flexible modules typically come with clear input/output markings and support flexible cable routing, which makes installation easier—but it still requires proper pre-layout.

4.4 Check Environmental Conditions

Even though COB screens are more durable, they are not fully waterproof. If you're planning to use them in semi-open or humidity-prone spaces (like hotel atriums or shopping mall entrances), additional housing or protective treatment may be required.

And remember: flexible doesn't mean fragile—but environmental exposure will always reduce service life if not properly handled.

5. Installation Tips for COB Flexible LED Panels

5.1 Frame Structure and Mounting Support

Start with the structure. These screens aren't self-supporting; they need a frame that reflects the final curvature. That means custom brackets or metal grids that follow the intended arc. Avoid forcing the panel to bend unnaturally—it should always follow the radius it's designed for (typically ≥120° curve).

Some panels use magnets for quick attachment, while others require screw-in brackets. Be sure the underlying material is compatible with your fixing method.

5.2 Pre-Align Before Power-On

It's tempting to power on panels during setup, but alignment must come first. Because flexible modules shift slightly during mounting, you need to secure and fine-tune the physical alignment before testing display outputs. That's how you avoid brightness gaps or pixel mismatches.

Each module should sit flush with its neighbors to maintain a seamless visual surface, even on a curve.

5.3 Cable Routing and Maintenance Access

Plan cable channels before installing the modules. Signal and power cables should follow natural bends, with enough slack to avoid strain. Use cable clips or guides to hold paths in place, especially on vertical installations.

Also, don't forget future maintenance. Design the structure so you can access modules without removing the whole display. Front-access magnetic modules can be a great help, especially in confined indoor installations.

5.4 Don't Skip Heat Dissipation Space

Even without fans, COB screens need space to breathe. Leave at least a few millimeters behind the screen for air circulation, especially if it's installed in a closed architectural box or recess.

Finally, test the entire setup for 24–48 hours before going live. This ensures stable signal transfer, even brightness, and confirms there's no micro-shifting of modules post-installation.

Conclusion

COB flexible LED screens are no longer niche. For projects that require visual impact in non-traditional spaces—curved walls, tight corners, or custom structures—they offer a reliable, clean, and performance-focused solution. Their ability to blend into the architecture while still delivering high-resolution imagery makes them especially valuable in commercial, cultural, and entertainment settings. For businesses looking to turn creative concepts into working displays, PTCLED offers a range of COB flexible screen solutions that are ready to meet the challenge.
